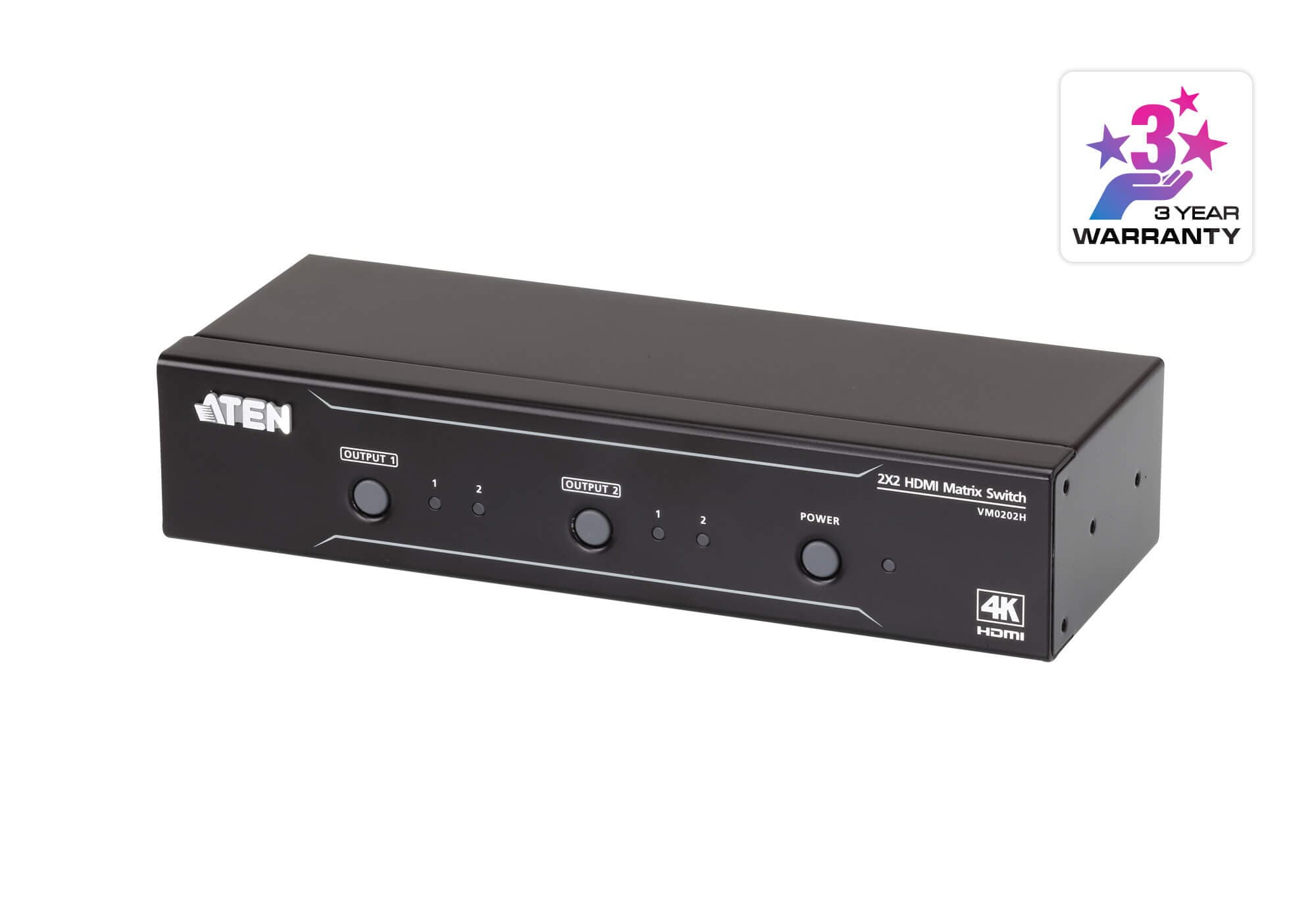

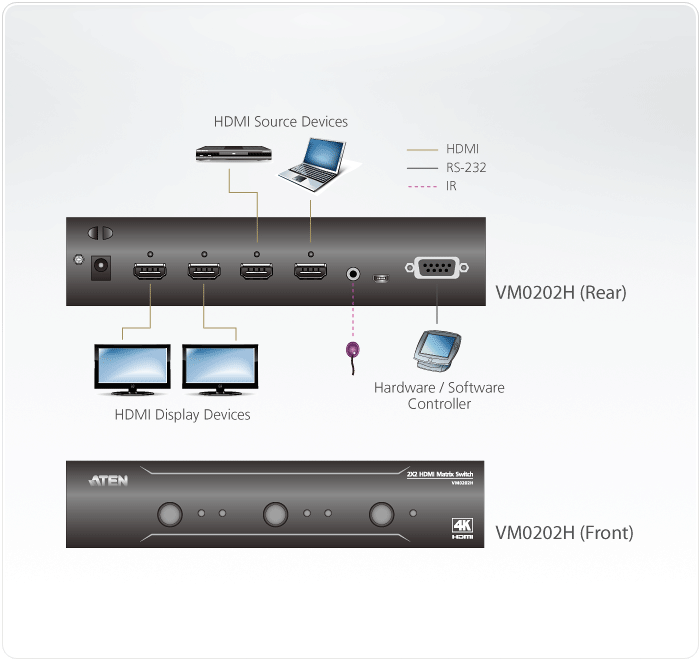

Матричен превключвател, който подава 2 HDMI източника към 2 дисплея в произволна комбинация при резолюции до 4K. Максимална скорост на данните 10.2 Gbps.
Характеристики
- Connects 2 HDMI sources to any 2 HDMI displays
- HDMI (3D, Deep Color, 4k); HDCP 1.4 Compatible
- Supports computer and video resolutions up to 4K
- Max. Data Rate 10.2 Gbps (3.4 Gbps Per Lane)
- Supports long distance transmission at a distance up to 15 meters

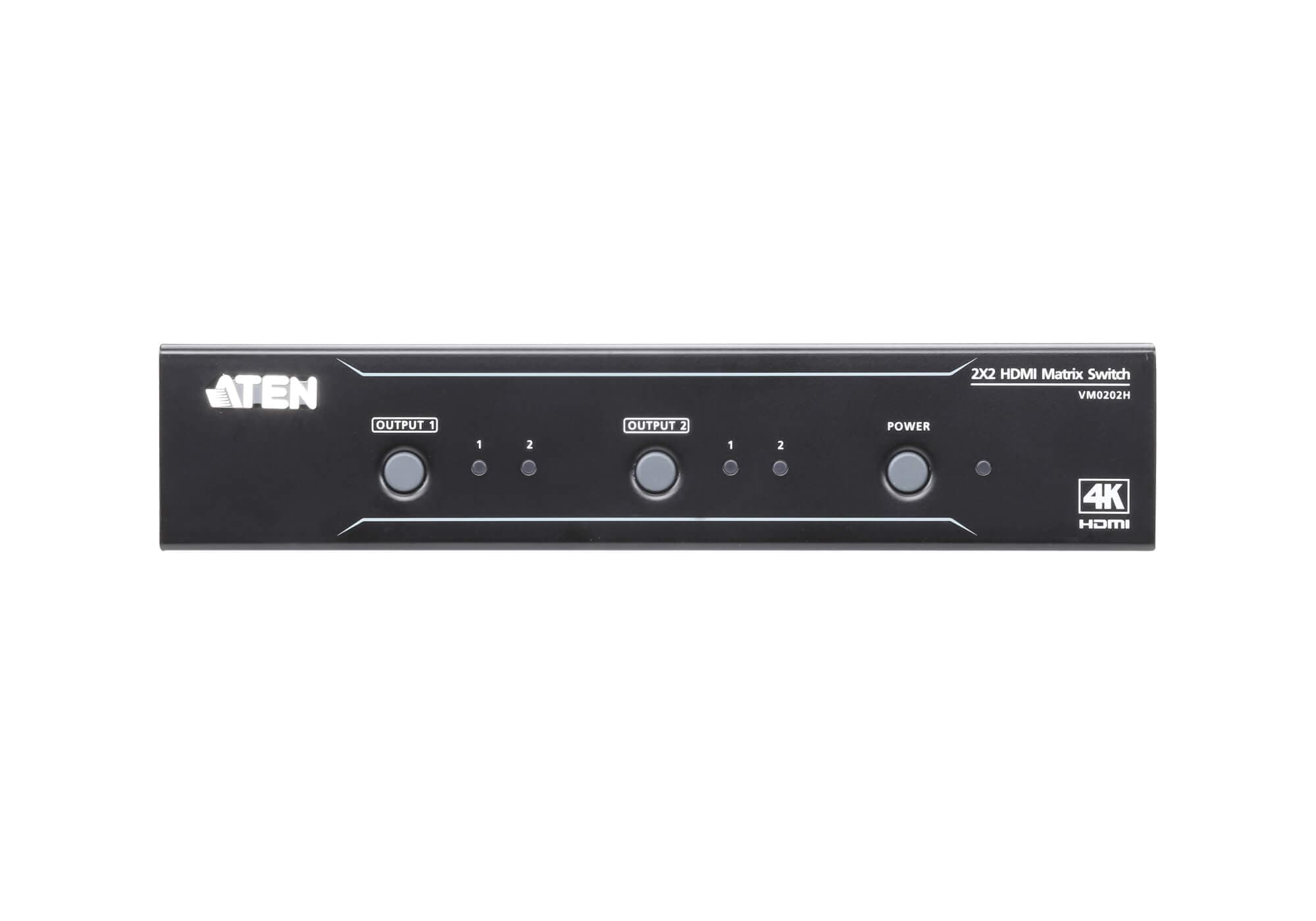

- Multiple Control Methods- system management via front panel push buttons, IR remote and RS- 232 control
- Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
- EDID Expert™ — Selects optimum EDID settings for smooth power- up, high- quality display and use of the best video resolution across different screens
- Supports ATEN’s Lock Pro™ HDMI cable lock for securing HDMI cable connections
- All- metal casing
- Firmware upgradable
- Rack mountable
Видео вход
- Интерфейси
- 2 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- 5 m
Видео изход
- Интерфейси
- 2 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- 15 m
Видео
- Макс. скорост на данните
- 10.2 Gbps (3.4 Gbps Per Lane)
- Макс. пикселна честота
- 340 MHz
- Съответствие
- HDMI (3D, 4K, Deep Color) HDCP 1.4 Compatible Consumer Electronics Control (CEC)
- Макс. резолюция
- Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
- Макс. разстояние
- Up to 15 m

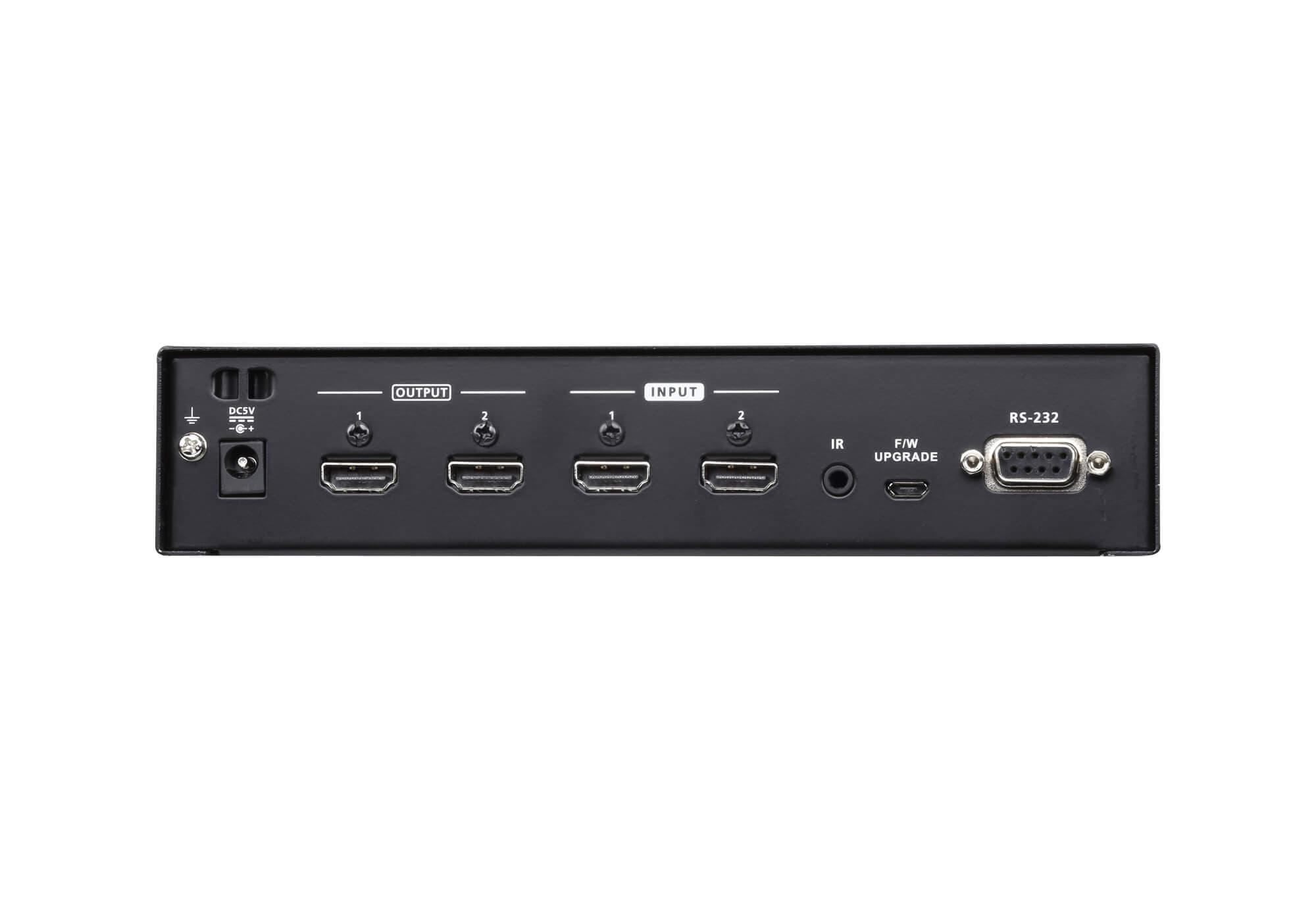

Управление
- USB
- 1 x Micro USB F/W upgrade
- RS-232
- Connector: 1 x DB-9 Female (Black) Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
- IR
- 1 x Mini Stereo Jack Female (Black)
- EDID настройки
- EDID Mode: Default / Port1 / Remix
- Брой в кашон
- 5 pcs
Физически характеристики
- Тегло
- 0.58 kg ( 1.28 lb )
- Корпус
- Metal
- Размери (Д x Ш x В)
- 20.00 x 7.60 x 4.20 cm (7.87 x 2.99 x 1.65 in.)
Конектори
- Захранване
- 1 x DC Jack (Black)
- Консумация
- DC5V:4.3W:20BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-40°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
