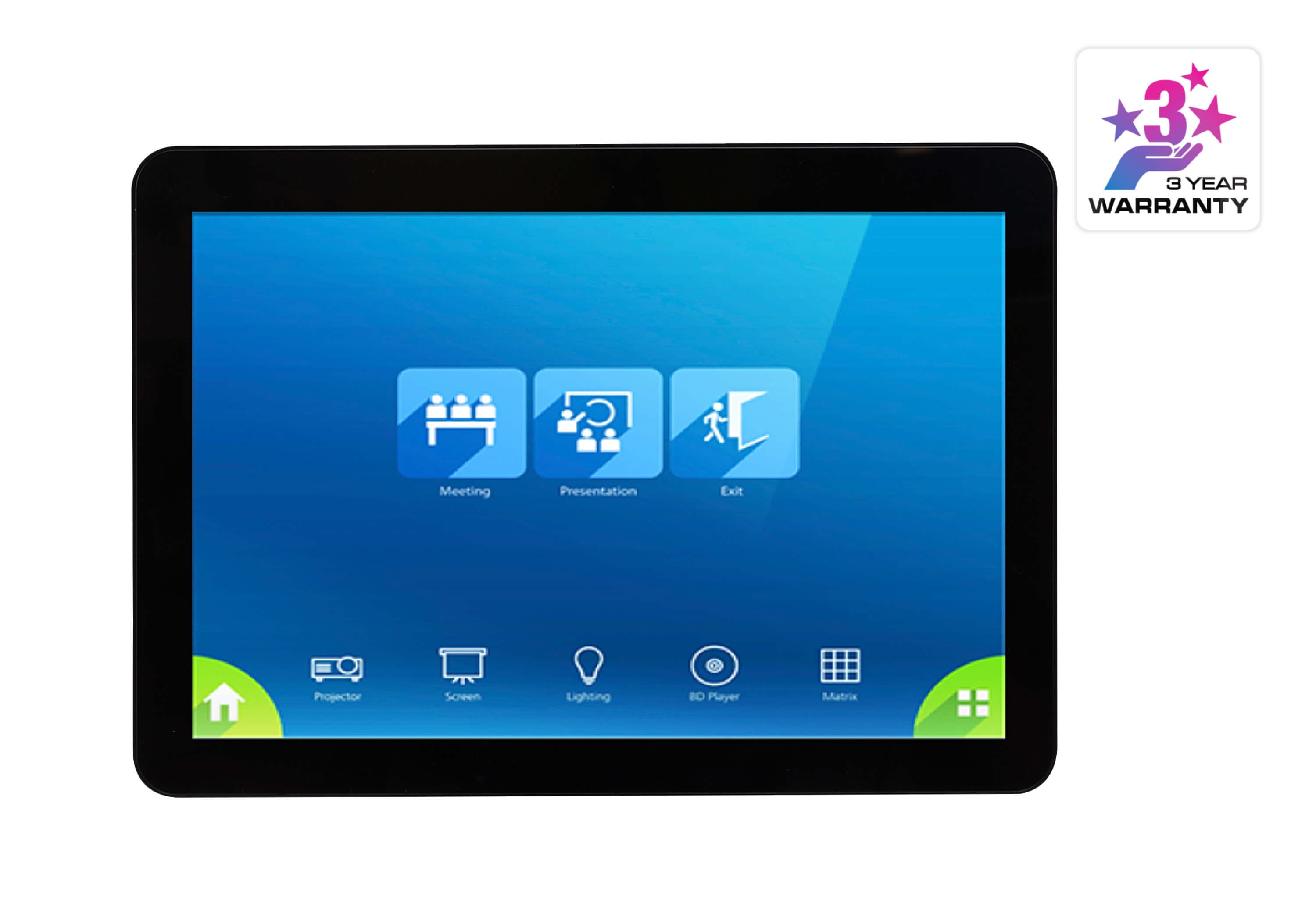

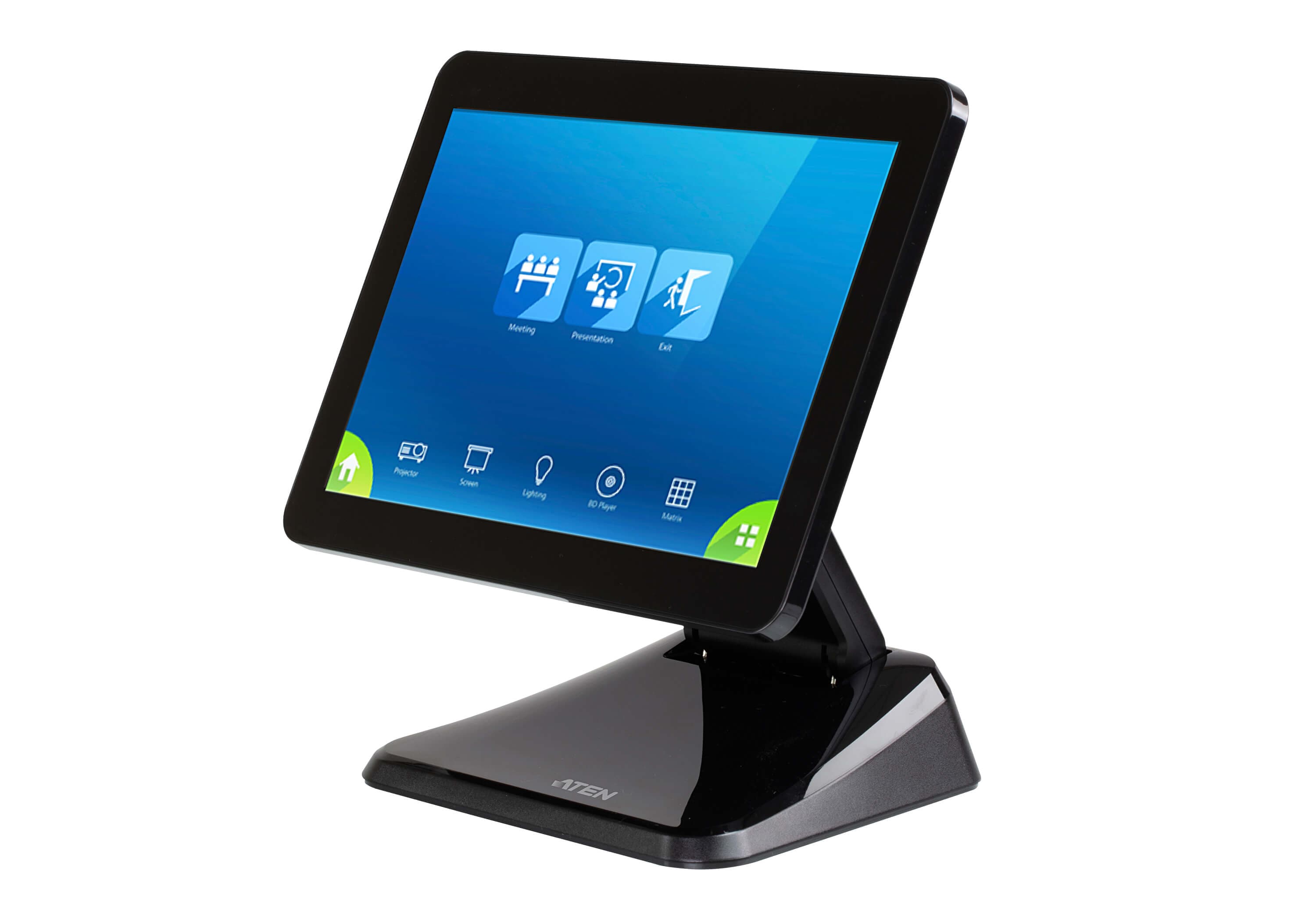

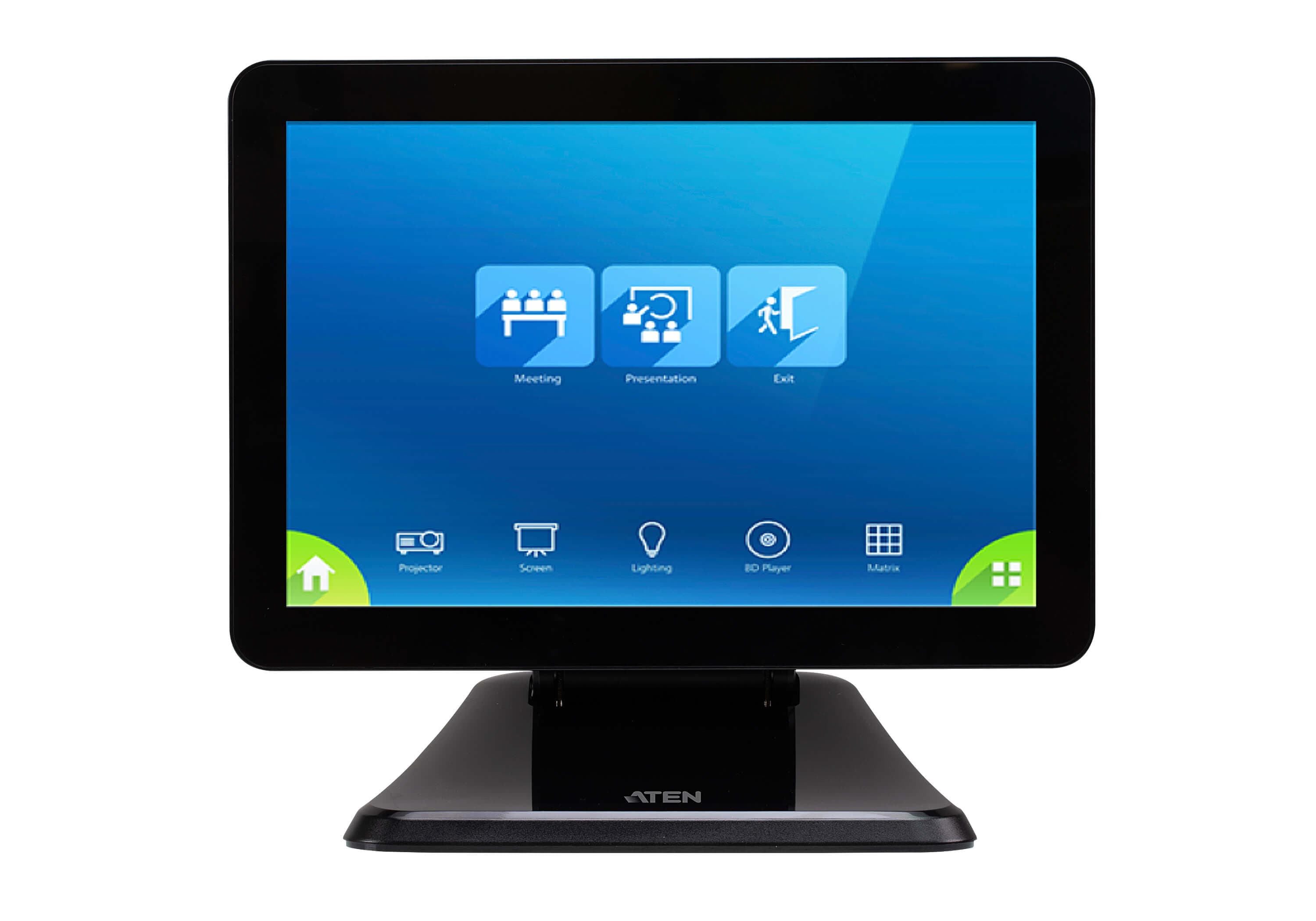

10.1-инчов тъч панел с капацитивен TFT дисплей 1280 x 800, четириядрен процесор, 2 GB RAM и 16 GB памет. Работи с приложението ATEN Control System; в комбинация с VK401 поддържа достъп с карти.
Характеристики
- 10.1” touch panel
- Natively installed with ATEN Control System app and designed for the integrated use with the ATEN Control System
- Supports AppSwitcher to allow multiple apps to be switched and operated

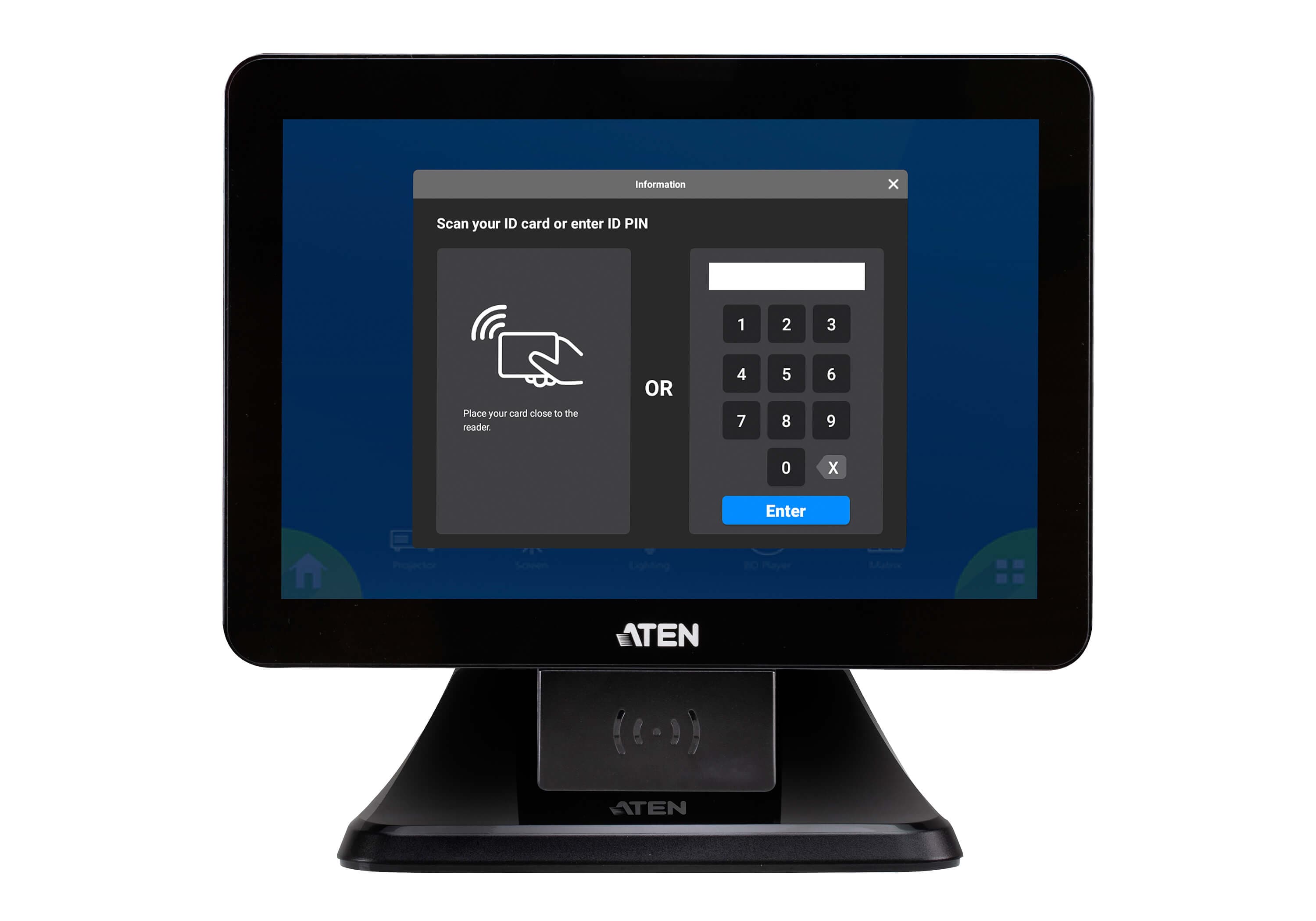

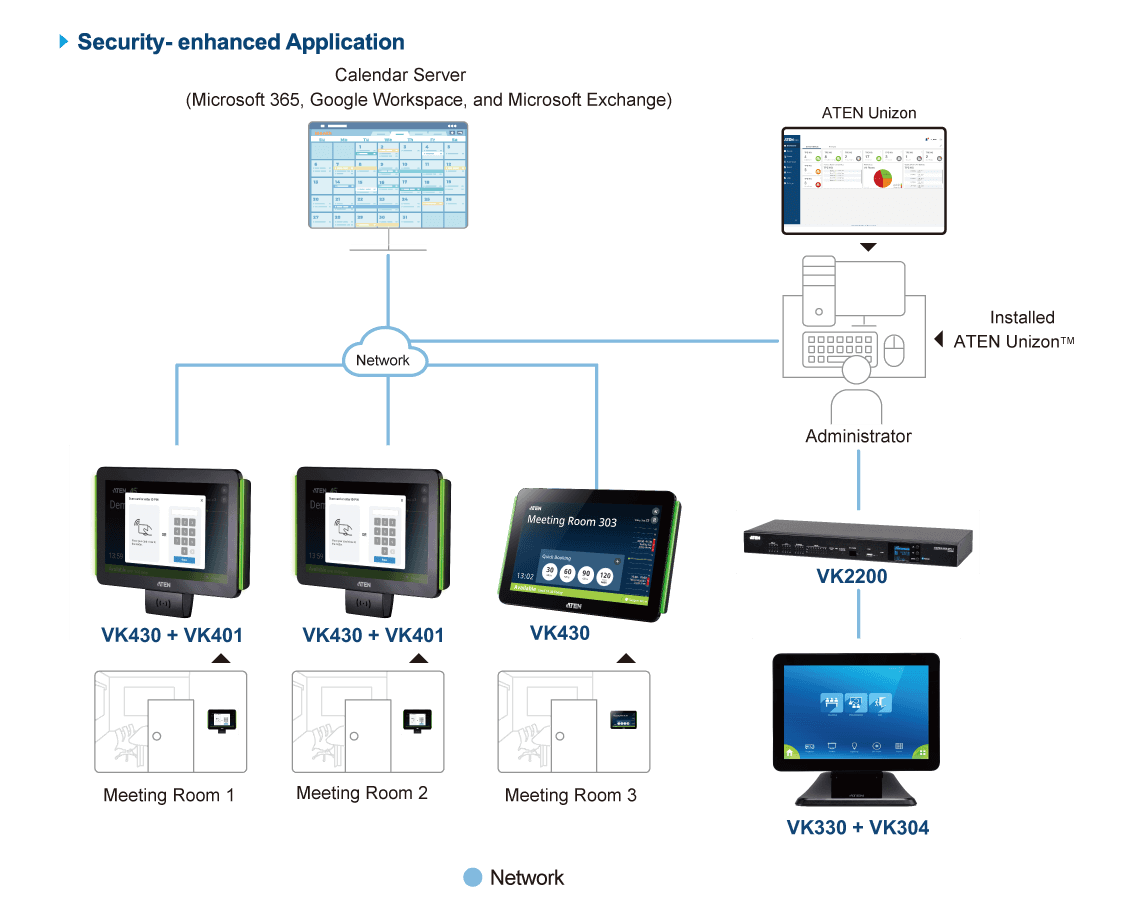

- In conjunction with the VK401, the system enables exclusive card-access functionality; only authorized users can scan cards to book and check in meeting rooms and facilitate conference room automation
- Integrated with ATEN Unizon and ATEN Room Booking system to display room usage and operating status
- Allows administrators for central control of multiple rooms via profiles
- Restricts user access to profiles via password authentication
- Synchronization of system control among multiple ATEN Touch Panels, mobile devices and tablet computers
- Demo mode enables friendly demonstration without connecting a controller while familiarizing the users with the solution’s most important functions
- Screen Saver function helps energy saving and prolongs the lifetime of the touch screen
- Allows for Display Real-time Streaming Protocol (RTSP), ONVIF and ATEN VE89 series video preview*
- Supports Power over Ethernet (PoE), which allows it to receive power and communication over a single Ethernet cable

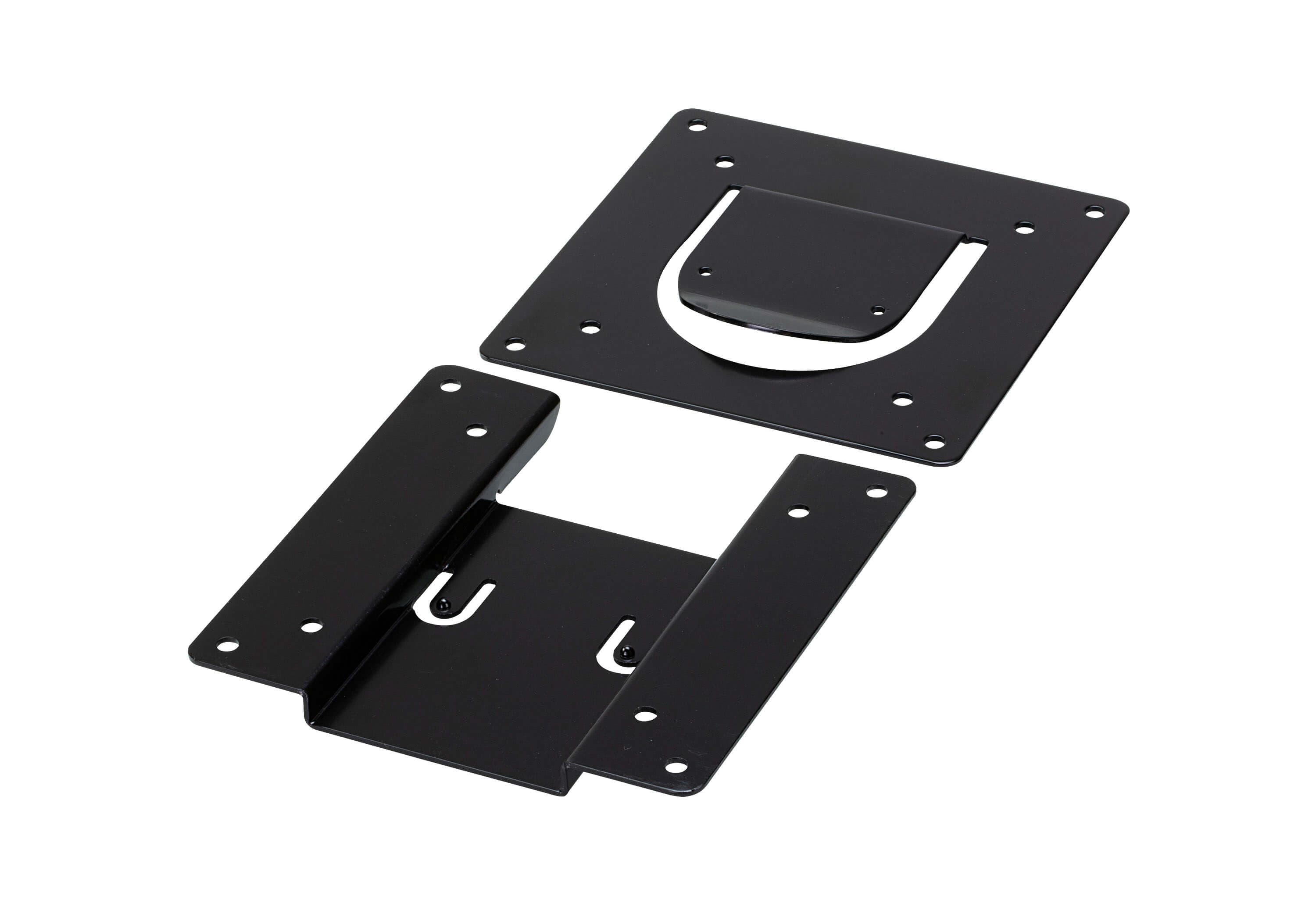

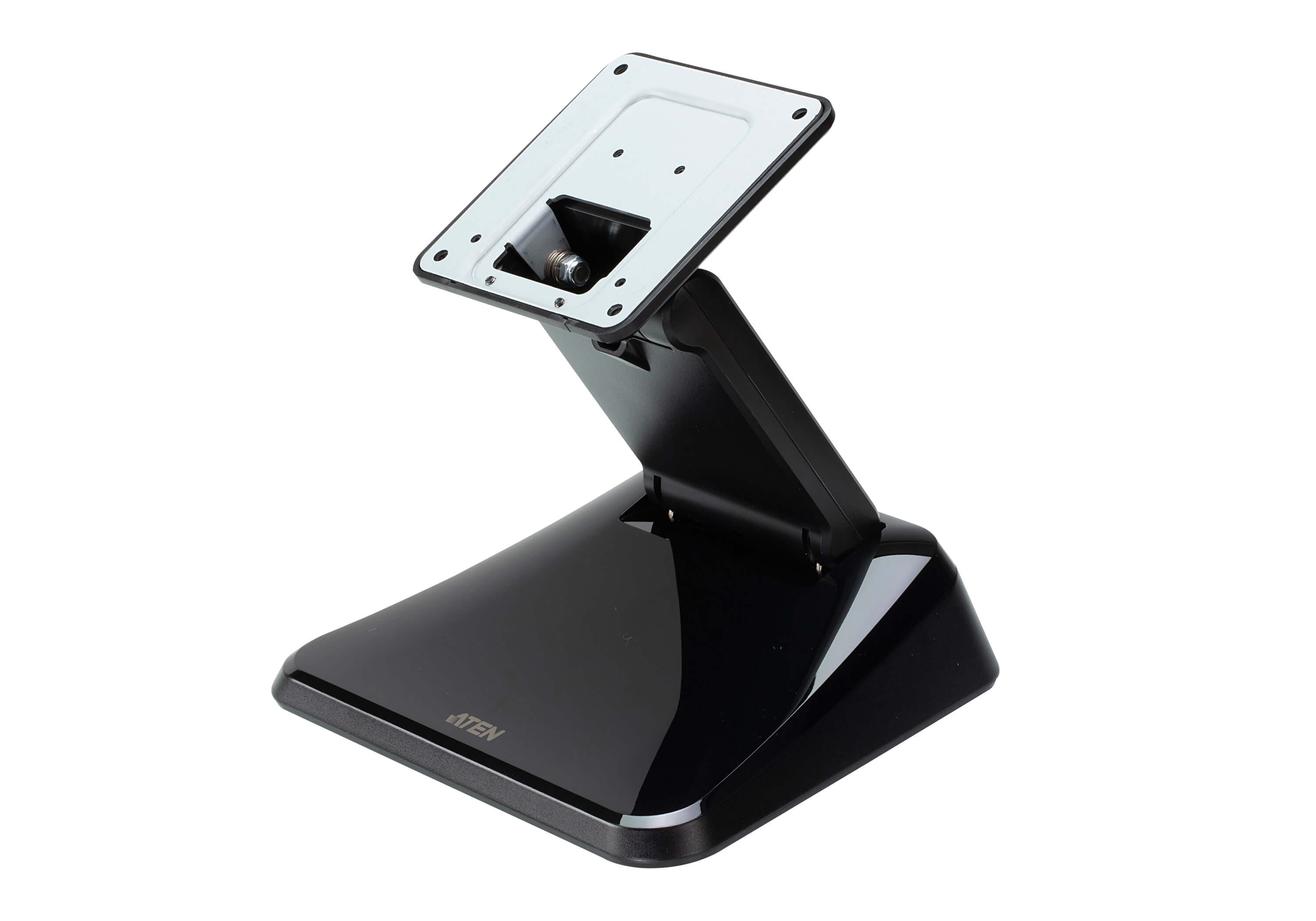

- Flexible installation thanks to the support for VK302 Wall Mount Kit, VK304 Tabletop Kit, and any standard VESA 75 x 75 mm mounts *Note: The function is applicable to VK2200 / VK1200.
Спецификация
- Процесор
- Quad-core
Памет
- SDRAM
- 2GB
- Flash памет
- 16GB
Панел
- Тип дисплей
- TFT-LCD
- Сечение
- 10.1"
- Сензорен екран
- Capacitive
- Резолюция
- 1280 x 800
- Съотношение
- 16 : 10
- Дълбочина на цвета
- 8 bit
- Контраст
- 800 : 1
- Подсветка
- LED
- Зрителен ъгъл
- ± 85° (H), ± 85° (V)
- Яркост
- 500 cd/m²
Интерфейси
- Ethernet
- 1 x RJ-45 Female, 10 / 100 / 1000 BaseT
- USB
- 1 x USB Type A
Захранващи входове
- Power over Ethernet (PoE)
- 802.3 at PoE+
- Консумация
- DC12V:12.8W:43.65BTU/h POE:14W:47.77BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 – 40°C
- Температура на съхранение
- –10 – 55°C
- Влажност
- 10 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Plastic
- Тегло
- 0.60 kg ( 1.32 lb )
- Размери (Д x Ш x В)
- 25.22 x 17.78 x 2.45 cm (9.93 x 7 x 0.96 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Фърмуер
