Двуканален усилвател Class D с DSP: 120 W на канал към 4Ω или 240 W към 70/100V линия в Bridge режим. Настройка през WebGUI — EQ, delay, limiter, до 20 пресета.
Характеристики
- A dual-channel DSP-equipped amplifier that delivers 120W per channel in a compact enclosure
- Supports balanced / unbalanced line level inputs and drives 4 ohm low impedance or 70/100V line (in Bridge mode) loudspeaker systems
- Built-in WebGUI-configurable DSP allows speaker EQ, 5-band EQ, delay, limiter, and up to 20 presets for precise tuning and system protection
- Ground lift deployed to eliminate unwanted noises from power circuit.
- Class-D design with ENERGY STAR qualification for high power efficiency
- Customizable Auto Standby mode – Amplifier automatically switches to “sleep” when the signal level comes lower than -40 / -50 dBu for 10 / 15 / 25 minutes
- Integrated protection circuit – Protects the system from damages caused by Amp shortcut, Amp output over/under voltage, high frequency overload, and overtemperature
- Amplifier will be muted when the heat sink temperature exceeds the limit
- Fanless design – Avoids fan noise and prevents dust from building up

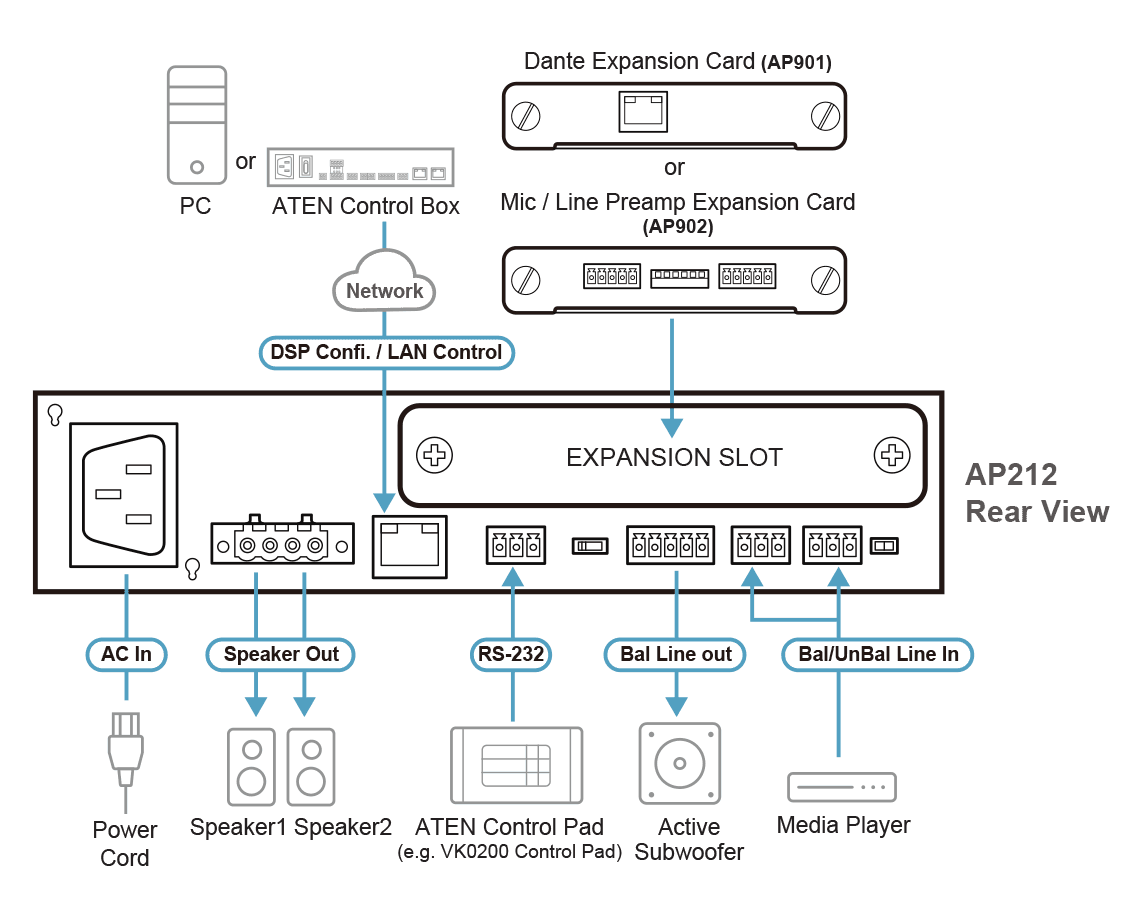

- Expansion slot for add-on expansion card – Install AP901 2-CH Dante Expansion Card to make the sound system compatible with Dante network or AP902 2-CH Mic/Line Pre-AMP Expansion Card to receive two channels of mic / line input signals
- Supports VK Control System via RS-232 and Ethernet connection
- Supports rack or surface-mounting
- Firmware upgradable
Системни характеристики
- Номинална мощност
- 120Wrms / 240Wpeak per Channel @4Ω 240Wrms / 480Wpeak @70/100V Under Bridge Mode
- Изкривявания
- THD+N: <0.1%, 1kHz, 3dB before clipping
- Честотна характеристика
- 50~20kHz, +/-3dB @4Ω, 1W
- Чувствителност
- Balanced: +4dBu Unbalanced: -10dBV (0dBu=0.775Vrms, 0dBV=1Vrms)
- Тип усилвател
- Class D
Аудио входове
- Интерфейси
- 2 x 3-pin 3.5mm Euroblock (Bal/Unbal Line In)
- Импеданс
- Balanced: 20kΩ / Unbalanced: 10kΩ
- Праг на детекция
- -50dBu

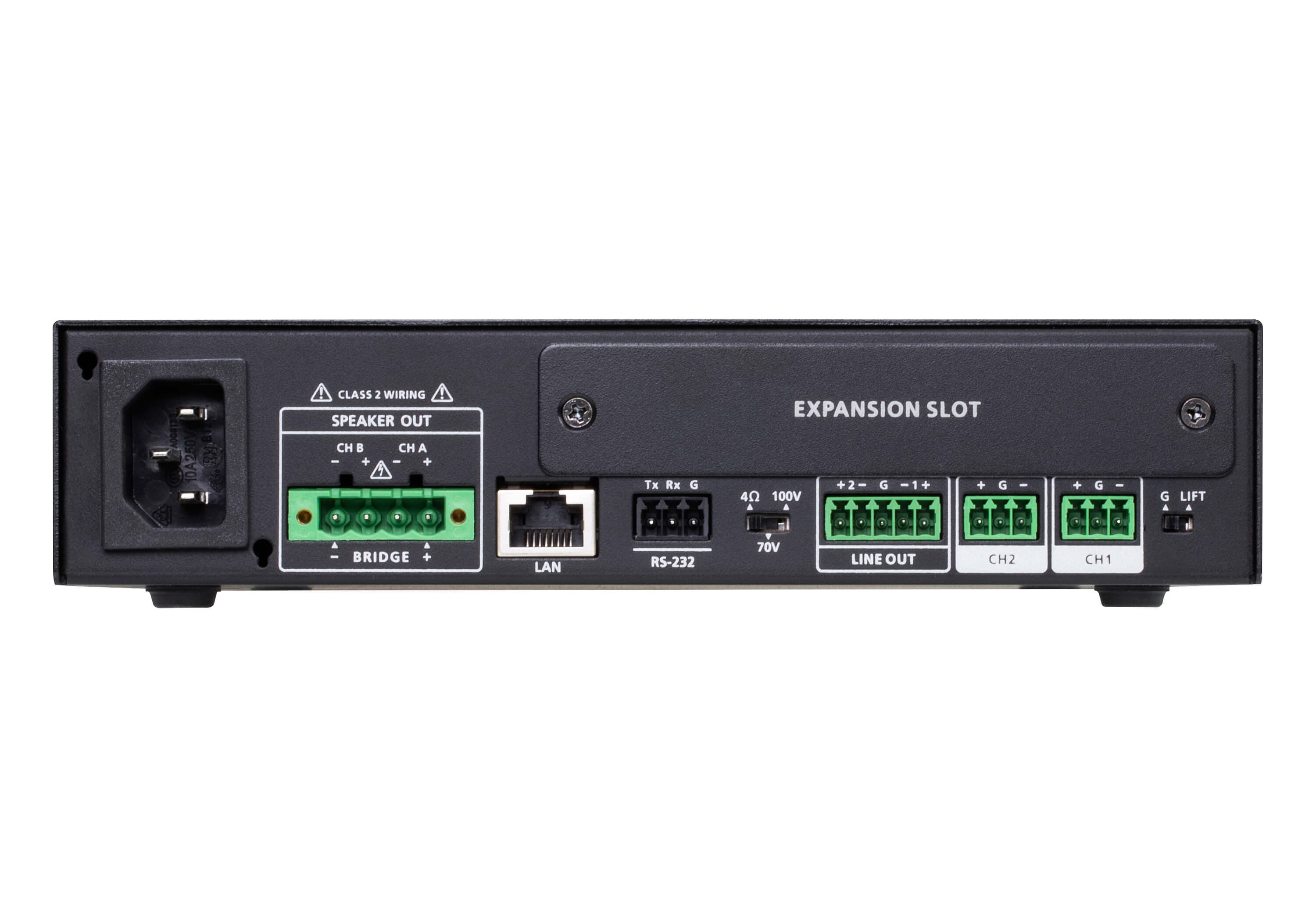

Аудио изходи
- Интерфейси
- Line Output: 1 x 5-pin 3.5mm Euroblock Speaker Output: 1 x 4-pin 5.08mm Euroblock
- Импеданс
- Lo-Z: 4Ω / Hi-Z: 70V (20Ω), 100V (40Ω) Line Output: 600Ω
- Аудио ефекти
- Built-In DSP
- Защита
- Output Shortcut AMP Output over/under voltage High Frequency Overload Thermal Protect
Комуникация
- RS-232
- Connector: 3-pin, 3.5mm, Terminal Block Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
Съответствие
- Сертификация
- FCC, CE, UKCA
Захранване
- Макс. входна мощност
- 100-240V~, 50/60Hz, 4A with PFC
- Консумация
- AC110V:41.9W:196BTU AC220V:39.6W:186BTU
- Забележка
- 1/8 Max. Power Output
Работна среда
- Работна температура
- 0~50℃
- Влажност
- 0-80% RH, Non-Condensing
- Температура на съхранение
- -20~60℃
Физически характеристики
- Тегло
- 2.15 kg ( 4.74 lb )
- Корпус
- Metal
- Размери (Д x Ш x В)
- 20.00 x 32.30 x 4.40 cm (7.87 x 12.72 x 1.73 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
