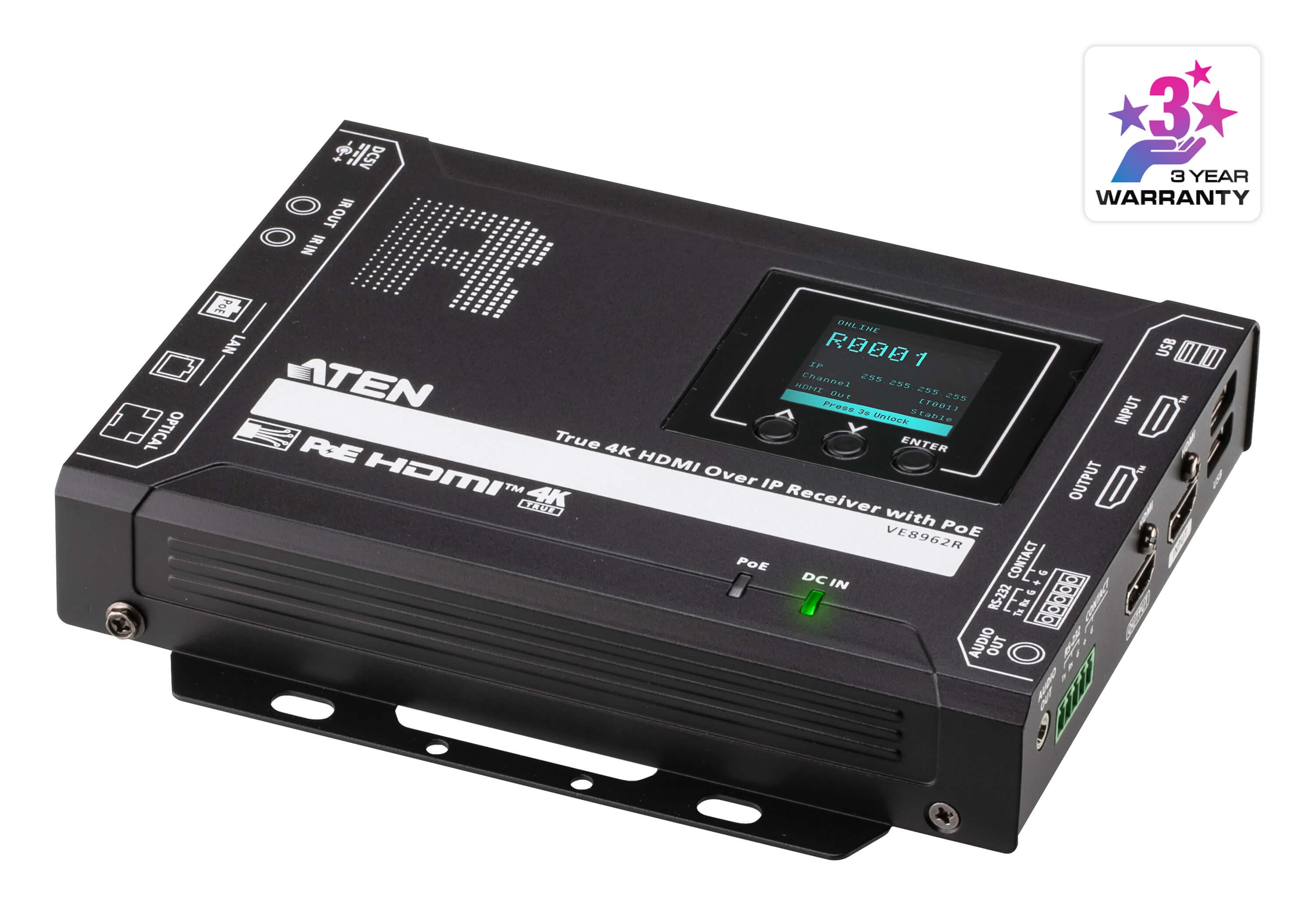

True 4K HDMI over IP Receiver with PoE
VE8962R
Приемник за разпределение на True 4K HDMI сигнал по IP мрежа – до 100 m точка-точка по Cat 5e/6 или до 10 km по оптика. До 4096x2160@60Hz (4:4:4); захранва се по PoE.
Характеристики
- Extends True 4K HDMI signals over IP up to 100 m point-to-point via a single Cat 5e/6 or up to 10 km via fiber optic cable with ultra-low latency
- Delivers visually lossless high-quality video up to 4096 x 2160 @ 60 Hz (4:4:4)
- Supports HDR 10 with HDCP 2.2/ 2.3 compliant for content protection
- Supports individual stereo audio and HDMI audio formats including LPCM 7.1CH, Dolby True HD, Dolby Digital Plus, and DTS-HD Master Audio
- EDID Expert. selects the optimum EDID settings for smooth power-up, high-quality display, and the best video resolution across different screens
- Power redundancy – with automatic switching between DC Jack and Power over Ethernet (PoE) when both are supplied, compliant with IEEE 802.3at standard

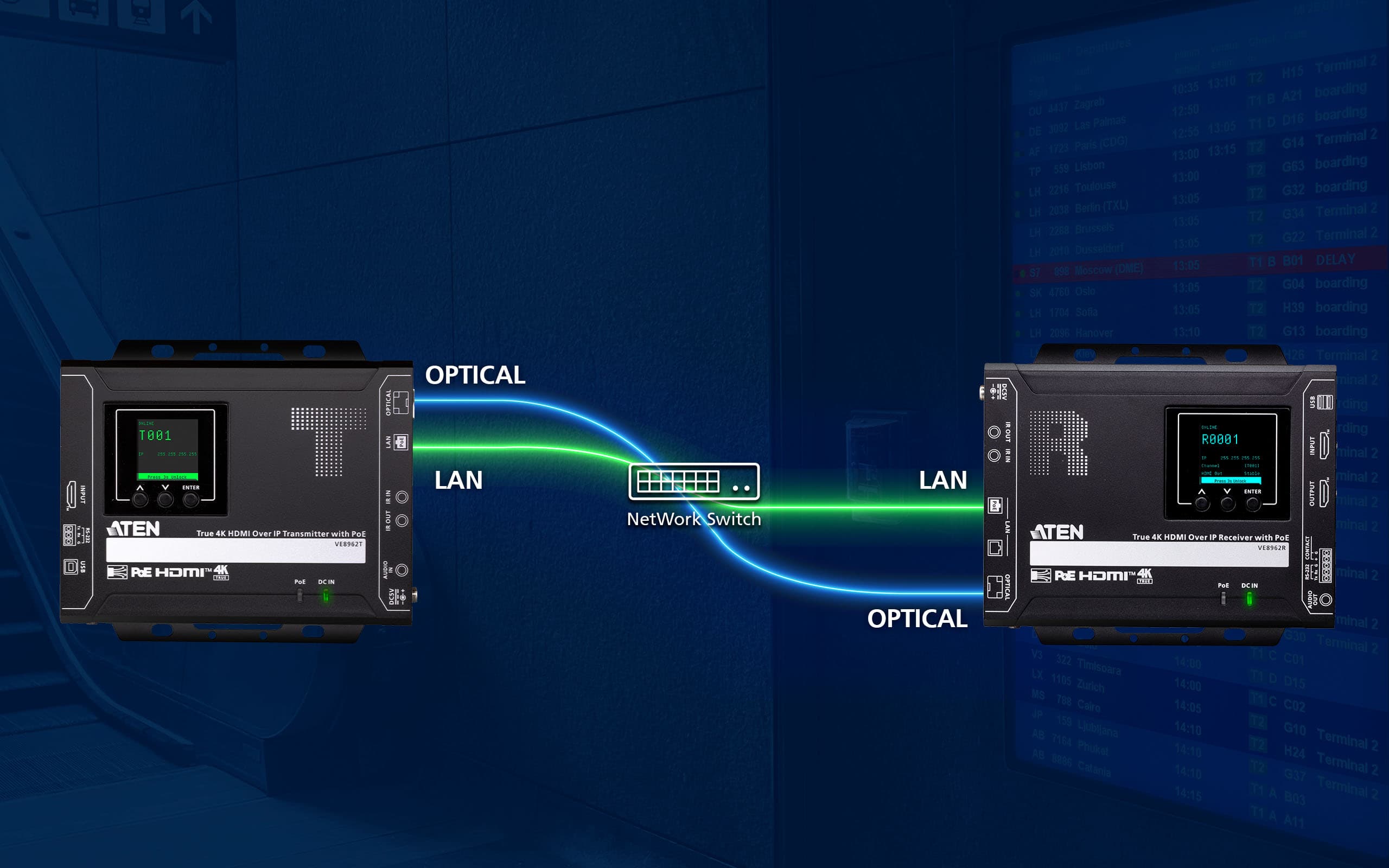

- Over IP redundancy – transmitting the over IP signal through copper or optical fiber cable
- Operation redundancy – user-friendly Web GUI and multiple control methods

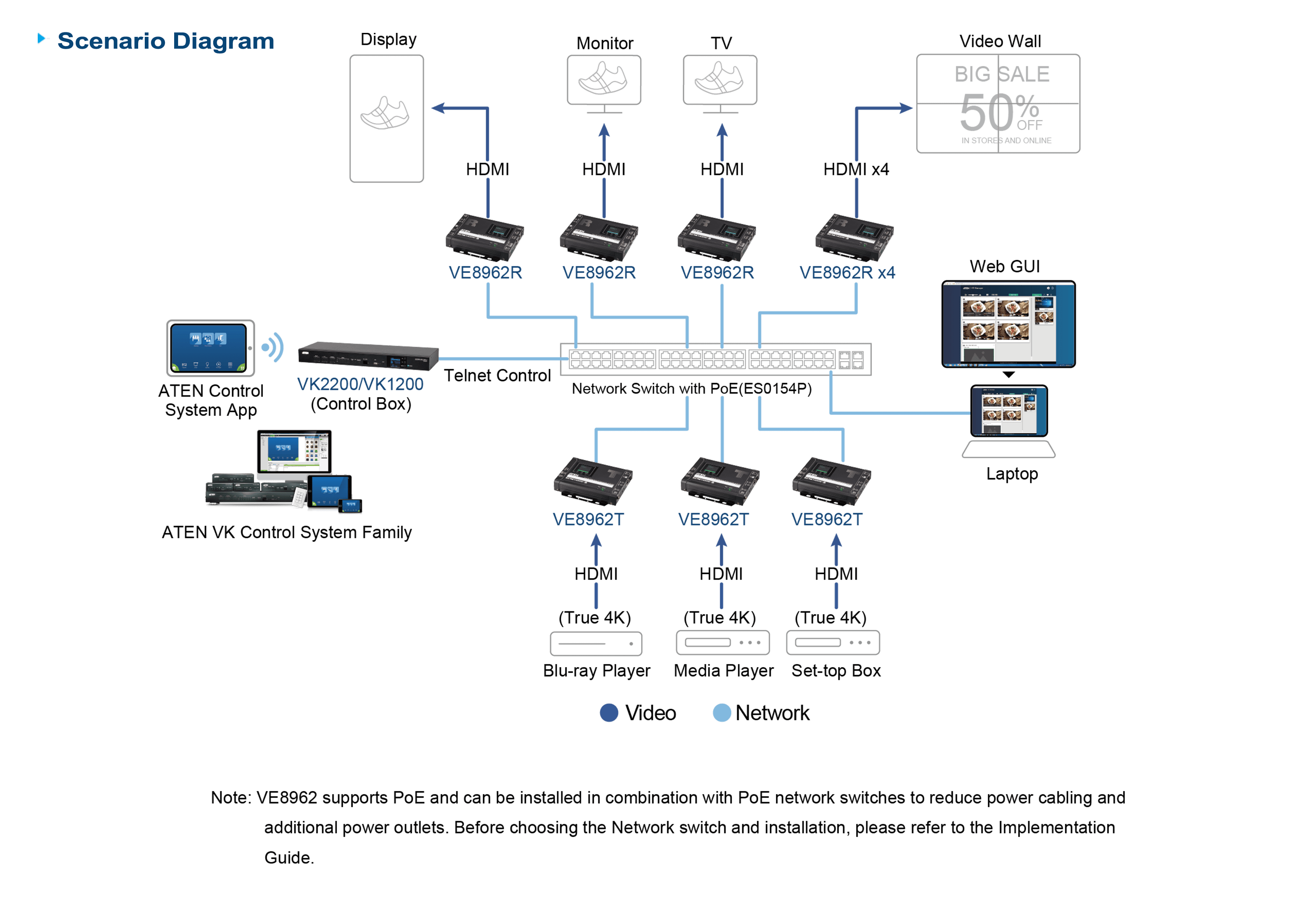

- Extends AV connections from a simple point-to-point to a multi-point to multi-point setup via LAN without distance limitations
- Offers multi-functionality in extender, splitter, matrix switch, video wall, and daisy chain applications
- True 4K Scaler – converting input resolutions to optimum display resolutions
- Built-in 8KV / 15KV ESD protection
- Rack-mountable
- Simple configuration that requires no extensive IT experience or additional learning
- Assign ID numbers for fast installation, no complex IP settings required
- Effortlessly switches among input sources via ID number of top panel push buttons
- Web GUI-Based Management, No Additional Server PCs or Software Required
- Intuitive web GUI for central management and can work with all major operating systems
- Through the “Add Device” page while logging in for the first time on the web GUI, users can easily search all VE8962 devices
- Operated with imagery and contextualized web GUI, users can import environmental images to intuitively configure and organize control room layouts
- Smooth and clear 720p preview of the source on web GUI
- Offers a user-friendly scheduling management function for users to pre-plan display schedule
- Provides robust and intuitive scheduling management options to help users manage all events in the calendar to as detailed as to setting events to minute intervals
- Integrates all VE8962 units to arrange profiles by grouping individual receivers or video wall
- Multiple profiles can be arranged to play in any order over a selected period of time
- Daisy chain for VE8962R up to 30 units*
- Connects multiple displays through a single port to utilize every port of the network switch and maximize their value
- Easily expandable – cabling and system deployment is easy with no huge network switches and fewer cables needed
- Perfect for large-scale deployment covering hundreds of meters through fi ber optical cables, such as trade shows,airports, university campuses, conference centers, and shopping centers Note: Only copper cable supports Daisy chain

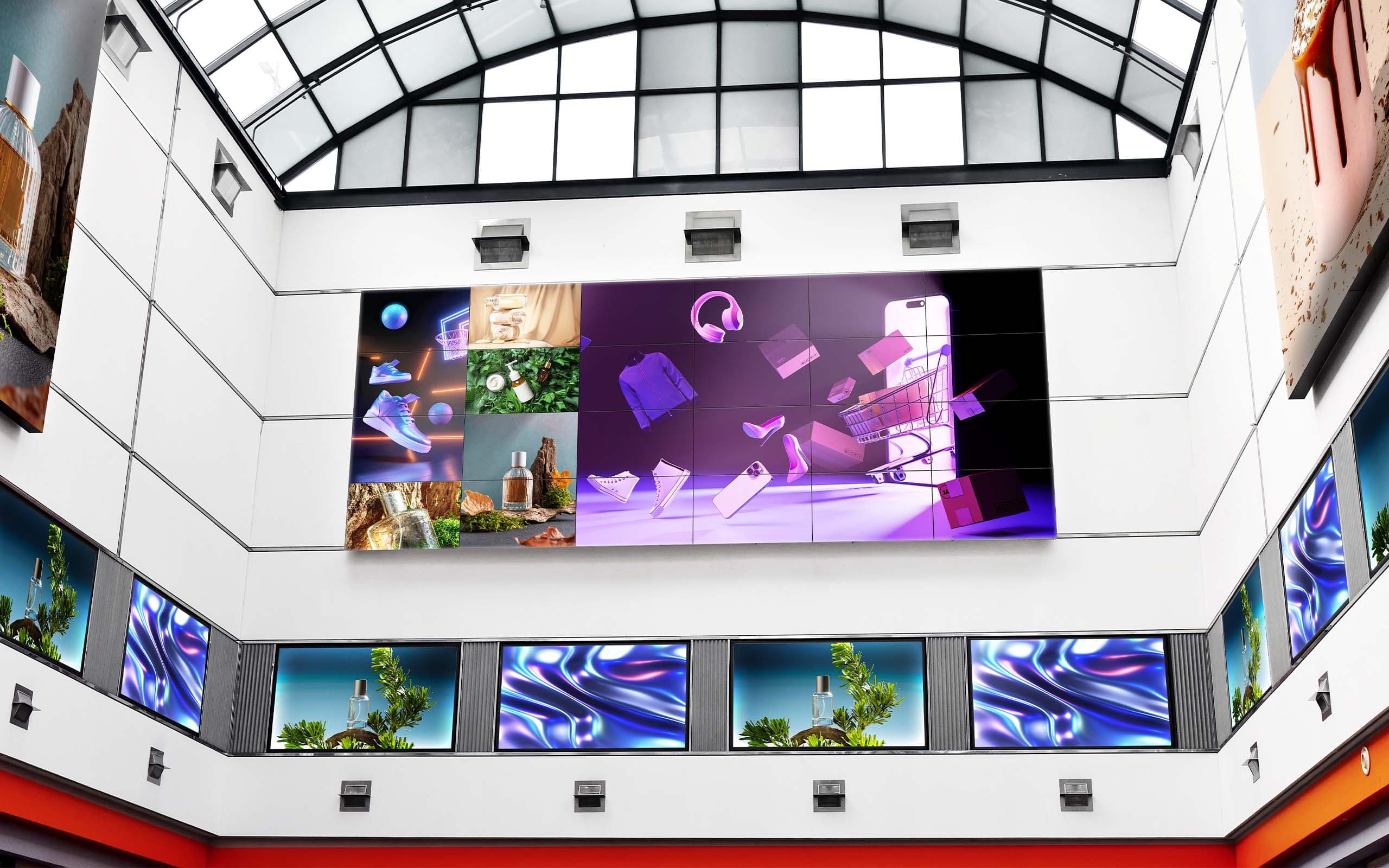

- Supports up to 8 x 10 video wall (80 displays)
- Supports horizontal or vertical (90° and 270° rotation) display orientation
- Easily switches layout profiles, previews and drag-and-drop video sources via intuitive web GUI
- Supports boundless switching, enabling operators to intuitively switch control from one computer to another by moving the mouse cursor across screens* Note: To be supported in a future firmware release.
- For transmitters – separate stereo audio signals can be embedded into the HDMI stream
- For receivers – audio streams can be extracted from the HDMI stream and delivered as a separate audio signal
- Supports Audio Matrix – routes audio from selected transmitters to selected receivers, allowing flexible setup based on different unit requirements

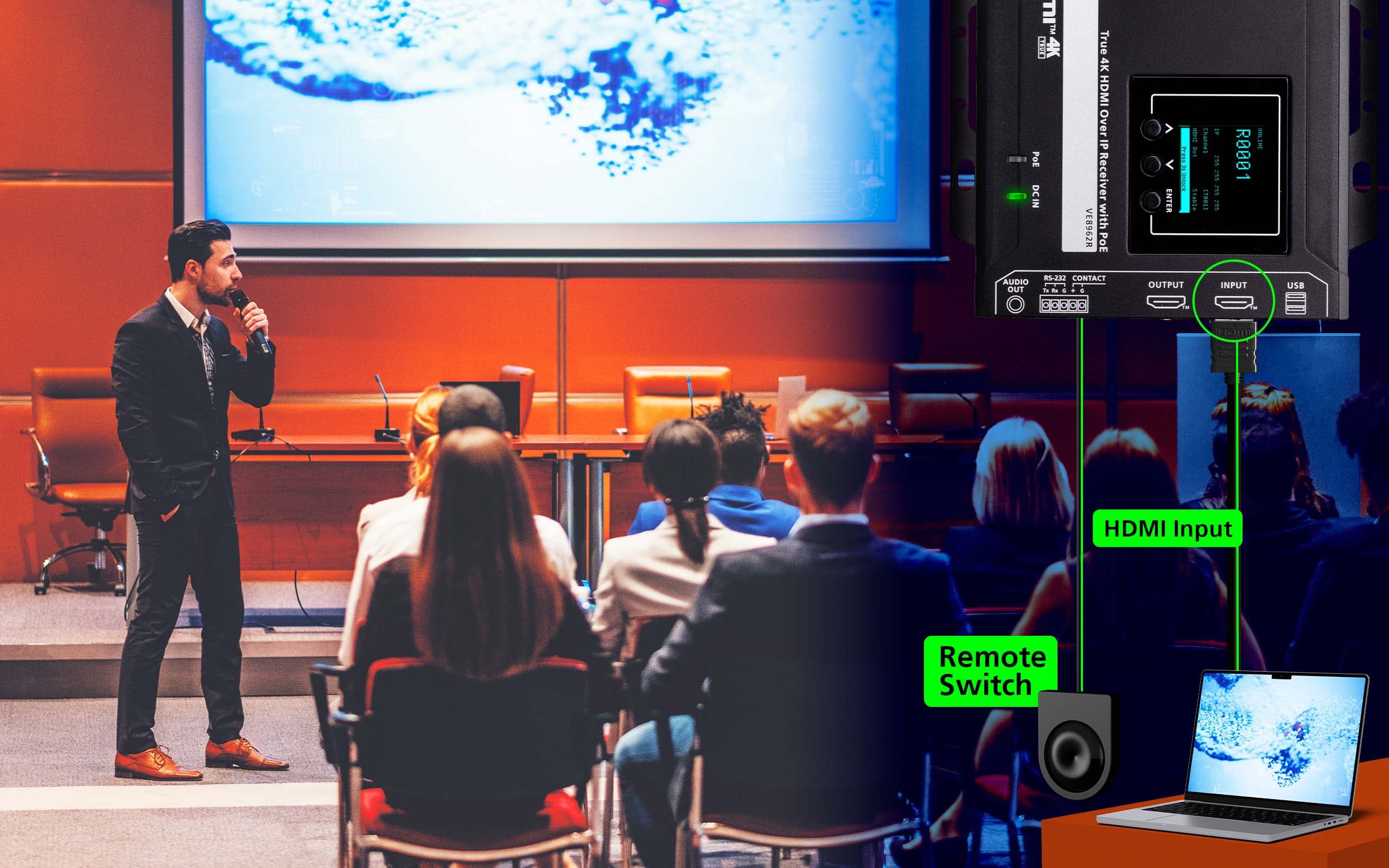

- Local HDMI Input – the VE8962R is equipped with a local HDMI input for quick on-site content setup from an additional local source, with easy port switching supported via the remote port selector (Part Number: 2XRT-0016G*)

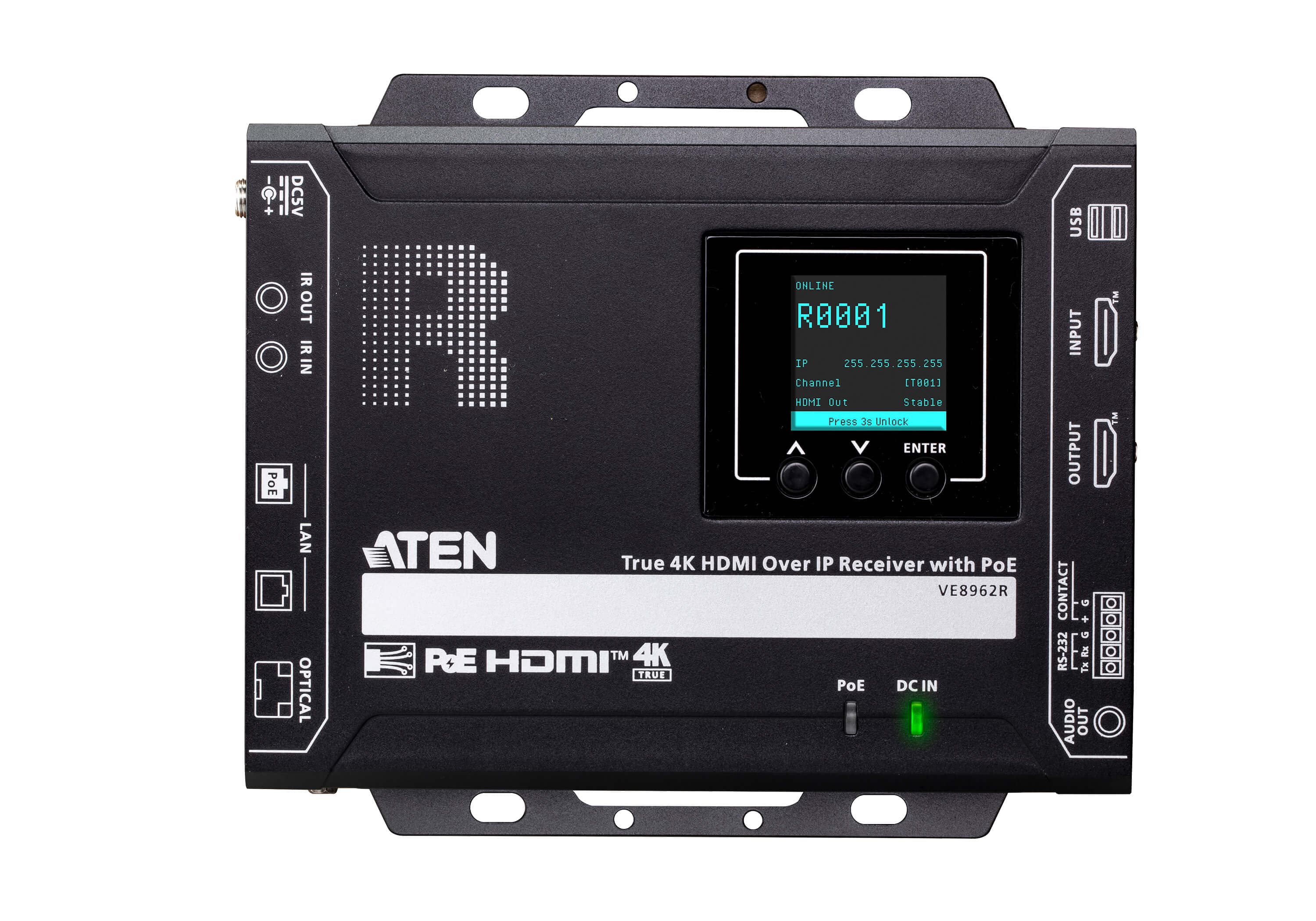

- LCM display – top-panel LCM display allows for the monitoring of the ID & IP address and device status of the extender
- USB Connectivity – USB port (USB 2.0) allows for connection of devices such as keyboard, mouse, touch screen, flash drive, printer, and other USB peripherals
- Bi-directional IR Channel – IR transmission is processed one way at a time
- RS-232 Channel – bi-directional RS-232 serial port allows for connection of peripherals such as touch screens and barcode scanners
- Supports Telnet / CLI, and SSH for remote control, management, and authorized security bypass Note: Please contact your ATEN dealer for product information
- Integrated solution – Compatible with ATEN Control System, allowing users to directly operate VE8962T / VE8962R via CLI, Telnet, RS-232 or Reslink protocol
- Effortless Operation – Simple click to effectively operate VE Manager, TV, projector, source player, and related equipment via touch panel and keypad
- AES-256 encryption for AV streaming in SRTP (Secure Real-time Transport Protocol)
- HTTPS for secure communication Accessories: * The power adapter and power cord for this product are sold separately. For more information about this accessory, see Accessories. Note: If you experience issues related to your network architecture, please refer to the ATEN HDMI over IP Video Extender System Implementation Guide or contact ATEN representatives for assistance.
Видео вход
- Макс. разстояние
- 5m
- Импеданс
- 100 Ω
- Интерфейси
- 1 x HDMI Type A Female (Black)
Видео изход
- Интерфейси
- 1 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- 5m
Видео
- Макс. скорост на данните
- Average: 500 ~ 800Mbps
- Съответствие
- HDMI HDCP2.3 & HDCP2.2 Compatible
- Макс. резолюция / разстояние
- Up to 4K@100m (Cat 5e/6, point to point) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
- Видео компресия
- Optimized JPEG2000, proprietary codec
- Закъснение
- ~ 1 frame
Аудио
- Изход

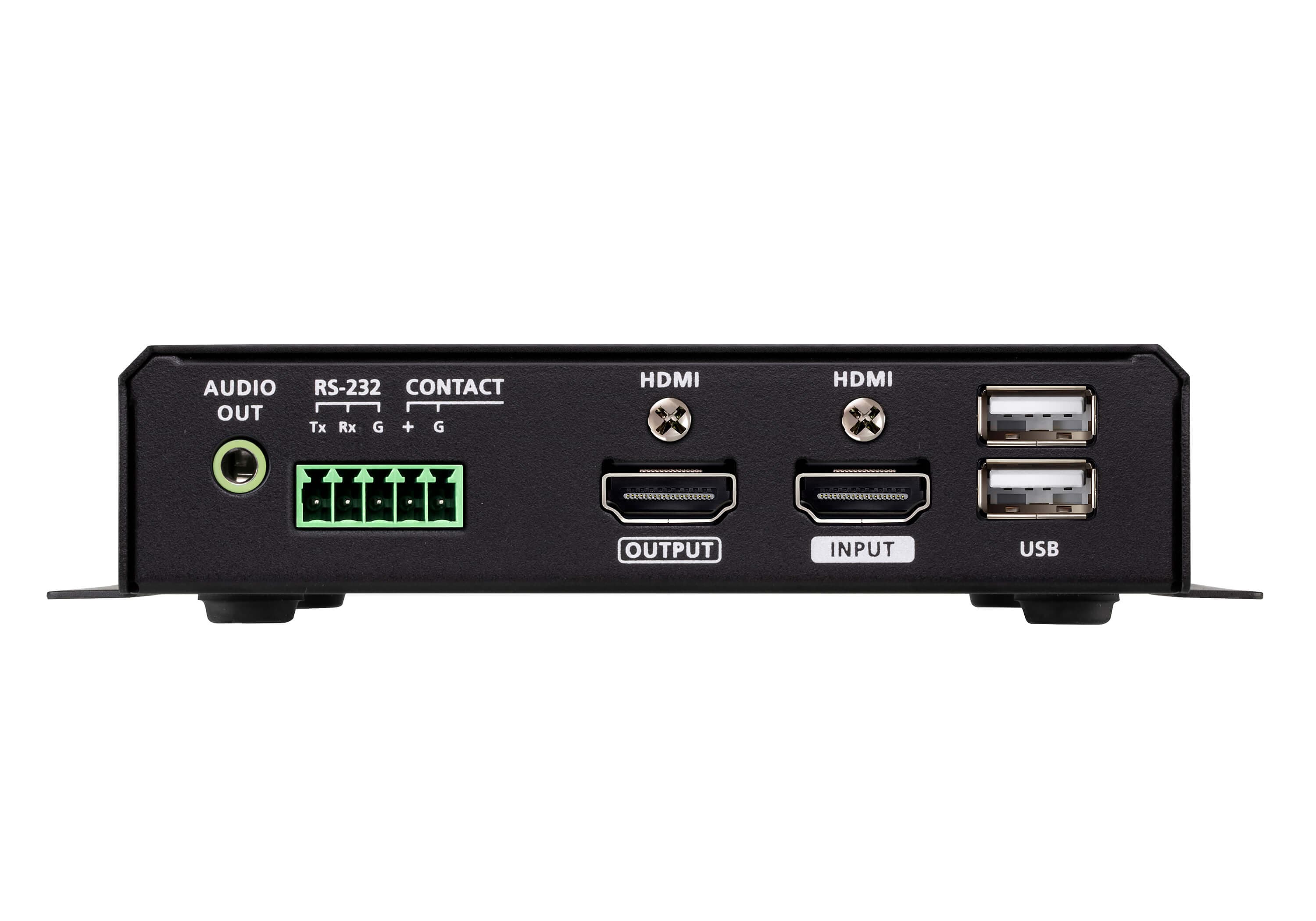

- 1 x HDMI Type A Female (Black) 1 x Mini Stereo Jack Female (Green)
Конектори
- Между устройства

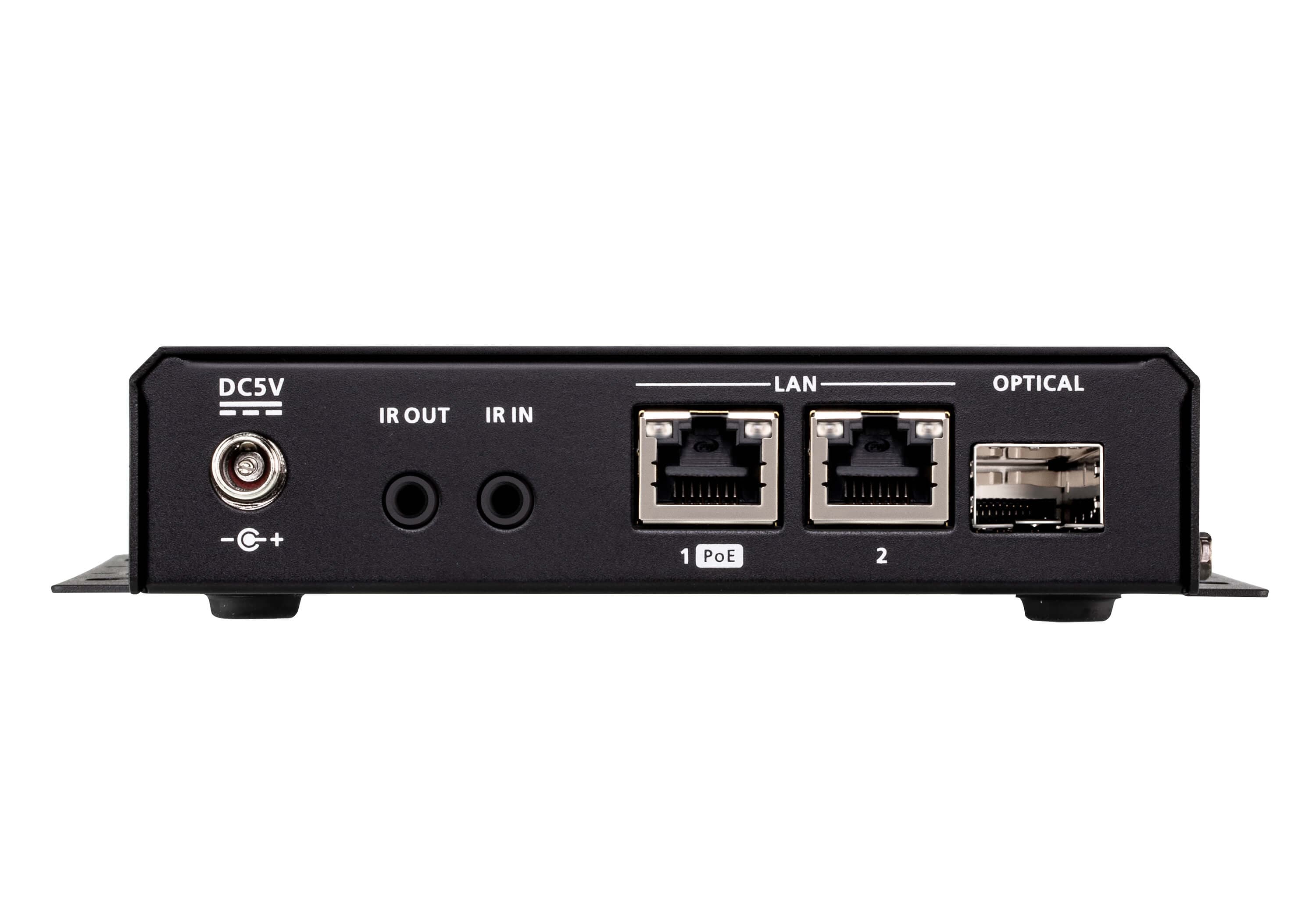

- 2 x RJ-45 Female ( x1 with POE+, x1 with Daisy chain) or 1 x SFP+ socket (SFP+ module excluded)
- Захранване
- 1 x DC Jack (Black) with locking or 1 x RJ-45 (Power Over Ethernet, POE+)
Управление
- IR канал
- 2 x Mini Stereo Jack Female (bi-directional, Black)
- RS-232
- Connector: 1 x Terminal Block, 3 pole Baud Rate: 19200, Data Bits:8, Stop Bits:1, no parity and flow control
- USB канал
- 2 x USB Type A Female (Black)
- Контактен вход
- Connector: 1x Terminal block, 2pole (Contact IN + GND)
Бутони
- Избор на работен режим
- 3 x Push buttons for LCM operation
Индикатори
- Захранване
- 1 x DC IN LED 1 x POE LED
- Консумация
- DC5V:9.1W:68BTU/h POE:11.38W:79BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 40°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.74 kg ( 1.63 lb )
- Размери (Д x Ш x В) със скоба
- 17.02 x 14.69 x 3.00 cm (6.7 x 5.78 x 1.18 in.)
- Размери (Д x Ш x В) без скоба
- 16.60 x 12.49 x 2.90 cm (6.54 x 4.92 x 1.14 in.)
- Входни резолюции
- 3840 x 2160p 24 / 25 / 30 / 50 / 60 Hz (4:2:0)
- 4096 x 2160p 24 / 25 / 30 / 50 / 60 Hz (4:2:0)
- 1280 x 800 @ 60 Hz
- 1080p 24 / 25 / 30 / 50 / 60 Hz
- 1024 x 768 @ 60 / 70 / 75 Hz
- 1080i 50 / 60 Hz
- 800 x 600 @ 56 / 60 / 72 / 75 Hz
- 1920 x 1200 @ 60 Hz (Reduced Blanking)
- 720 x 480 @ 60 Hz (4:3 / 16:9)
- 1920 x 1080 @ 60 Hz
- 720p 50 / 60 Hz
- 1680 x 1050 @ 60 Hz
- 720 x 400 @ 70 Hz
- 1600 x 1200 @ 60 Hz
- 640 x 480 @ 60 (4:3)/ 67 / 72 / 75 Hz
- 1440 x 900 @ 60 Hz
- 576p 50 Hz (4:3 / 16:9)
- 1400 x 1050 @ 60 Hz
- 480p 60 Hz (4:3 / 16:9)
Фърмуер
