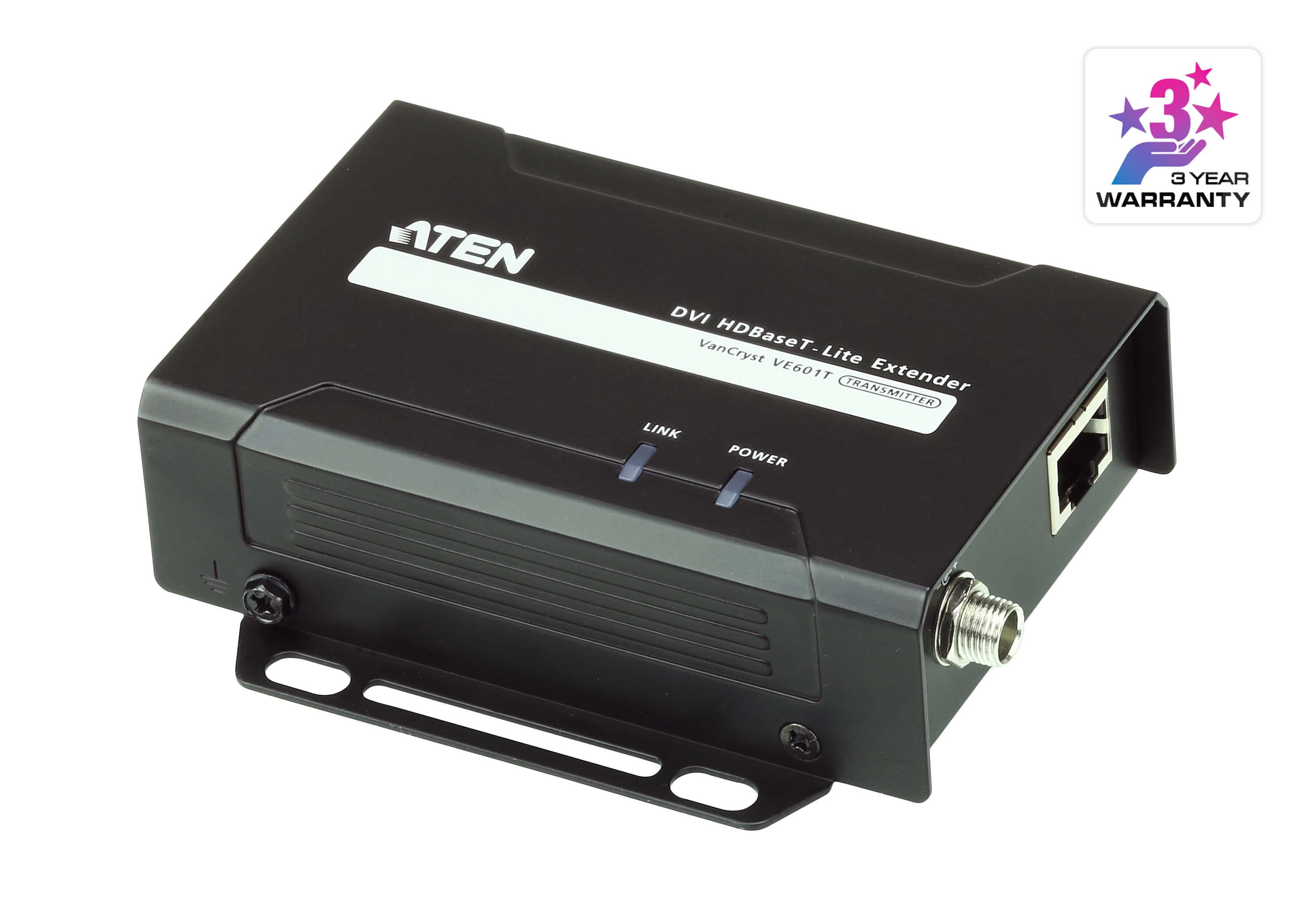

DVI HDBaseT-Lite Transmitter (1080p@70m) (HDBaseT Class B)
VE601T
Предавател DVI HDBaseT-Lite — работи с HDBaseT приемник по мрежов кабел; 1080p до 60 m (Cat 5e/6) или 70 m (Cat 6a), 1920 x 1200 до 40 m. HDCP 1.4.
Характеристики
- HDBaseT connectivity – extends a DVI connection up to 70 m
- Superior video quality – 1920 x 1200 @ 35 m (Cat 5e / 6) / 40 m (Cat 6a) ; 1080p @ 60 m (Cat 5e / 6) / 70 m (Cat 6a / ATEN 2L-2910)
- DVI (3D, Deep Color); HDCP 1.4 compliant
- HDBaseT Anti-Jamming – resists signal interference during video transmission
- Plug-and-play
- Rack-mountable

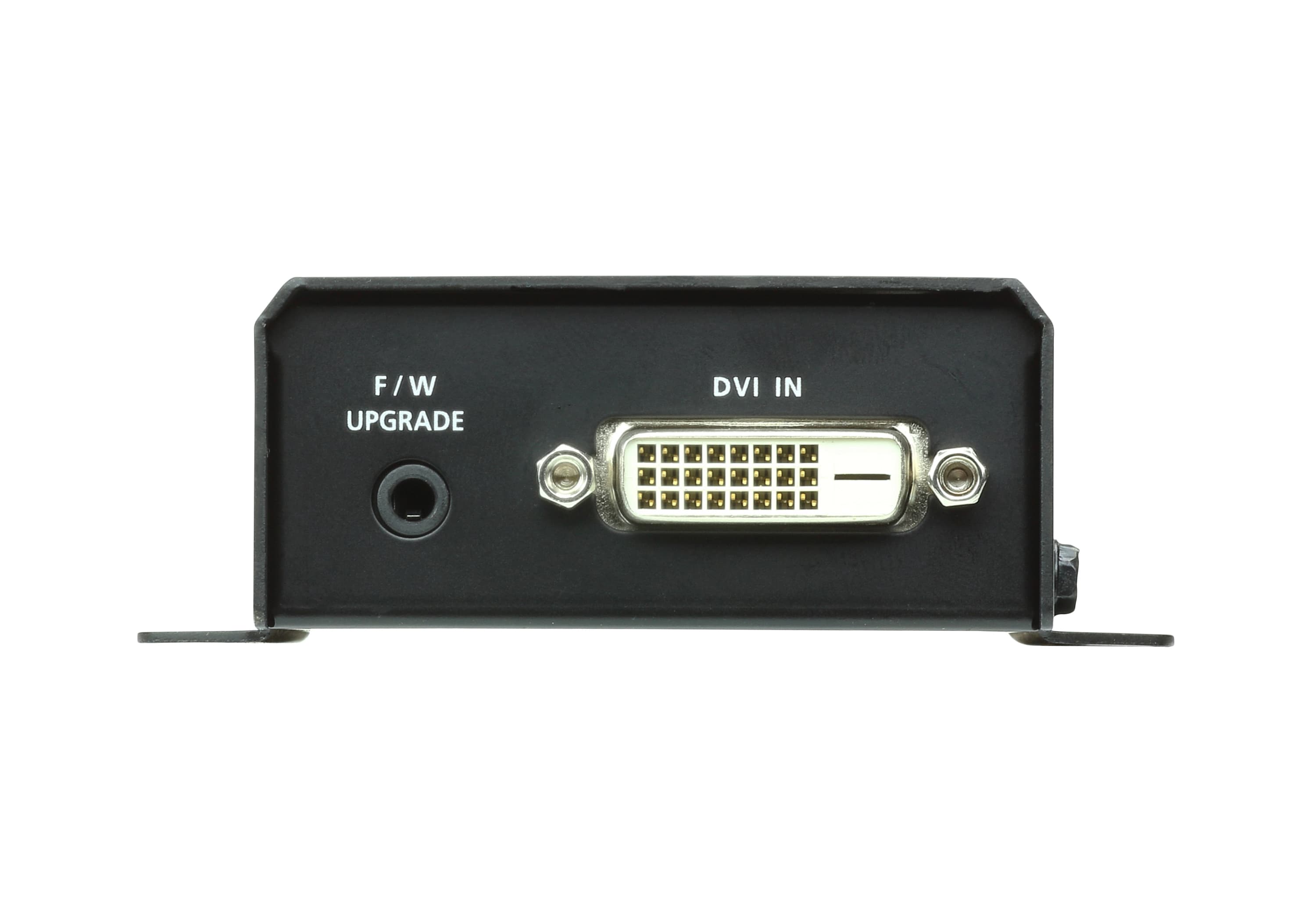

Видео вход
- Интерфейси
- 1 x DVI-D Female (White)
- Импеданс
- 100Ω
- Макс. разстояние
- Up to 1.8m
Видео
- Макс. пикселна честота
- 340 MHz
- Макс. скорост на данните
- 10.2Gbps (3.4Gbps per lane)
- Съответствие
- DVI (3D, Deep Color) HDCP compatible
- Макс. резолюция / разстояние
- Up to 1920x1200@35 m (Cat 5e/6) / 40 m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@60 m (Cat 5e/6) / 70 m (Cat 6a/ATEN 2L-2910 Cat6)
Конектори

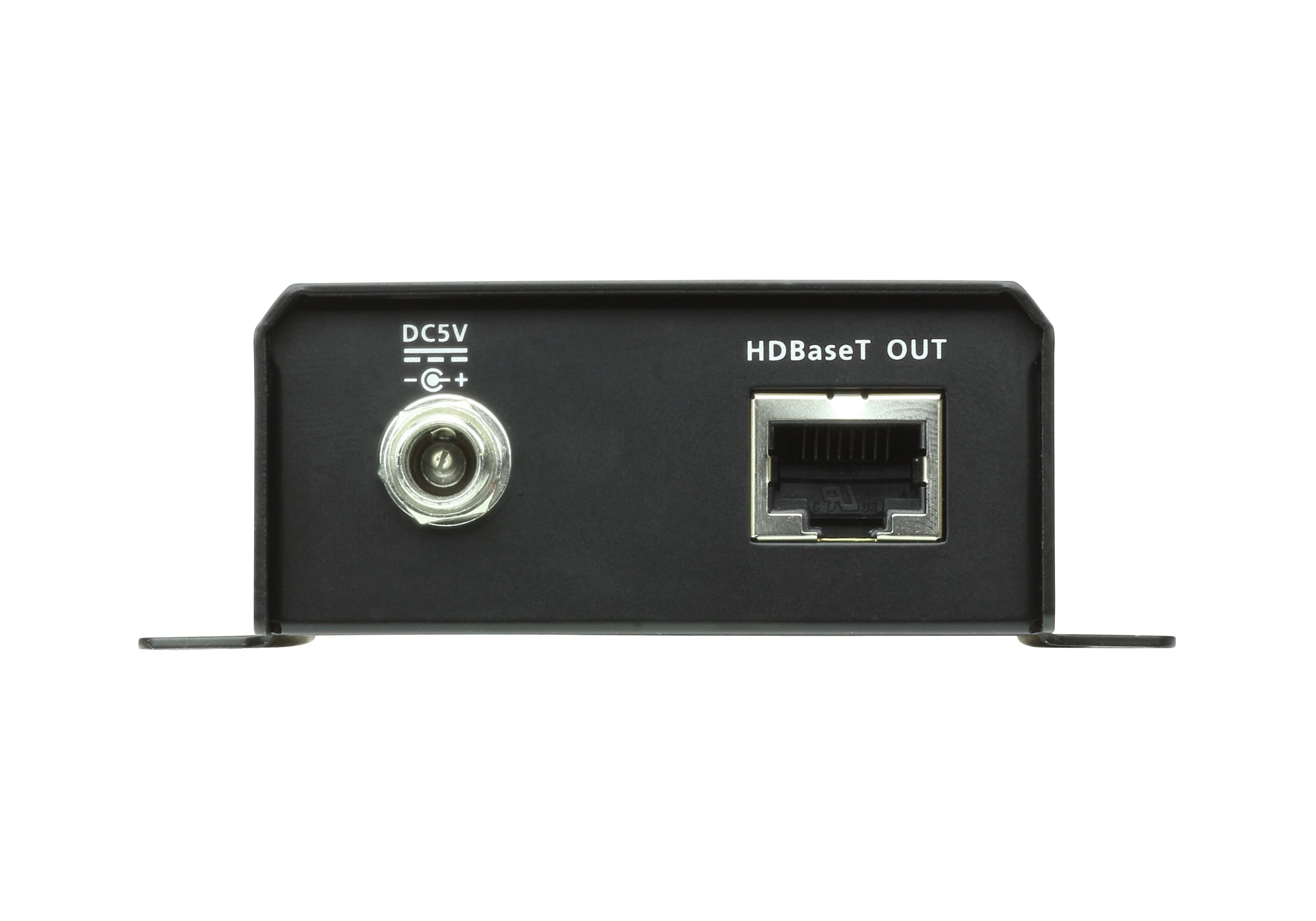

- Захранване
- 1 x DC Jack with locking
- Между устройства
- 1 x RJ-45 Female
- Консумация
- DC5V:1.84W:9BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Температура на съхранение
- -20 - 60°C
- Работна температура
- 0-50°C
- Влажност
- 0% - 80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.25 kg ( 0.55 lb )
- Размери (Д x Ш x В) със скоба
- 10.20 x 8.70 x 3.00 cm (4.02 x 3.43 x 1.18 in.)
- Размери (Д x Ш x В) без скоба
- 9.42 x 6.60 x 2.90 cm (3.71 x 2.6 x 1.14 in.)
