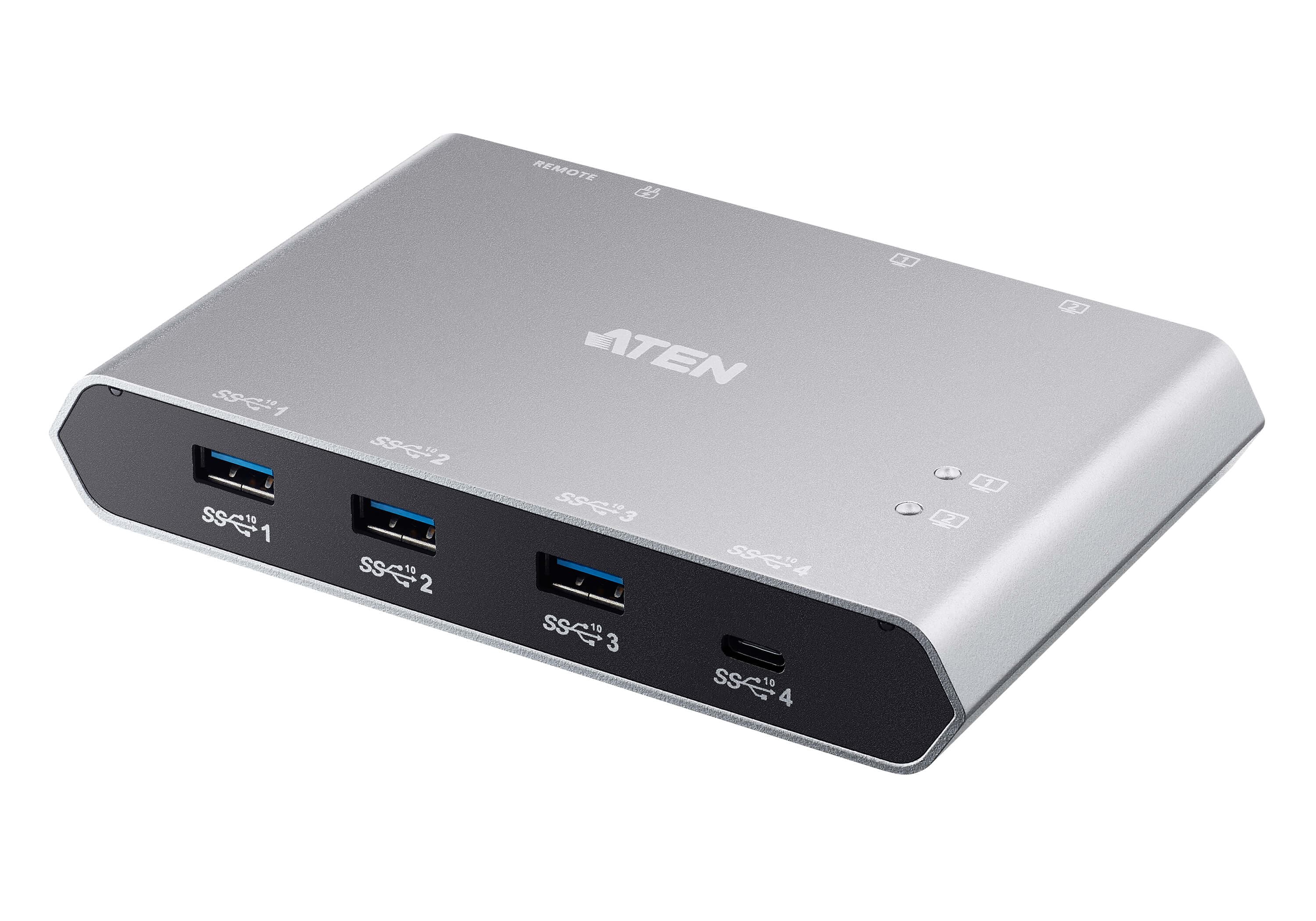

2-Port USB-C Gen 2 Sharing Switch with Power Pass-through
US3342
Позволява на 2 USB-C компютъра да споделят 4 USB 3.2 Gen 2 устройства с данни до 10 Gbps. Поддържа зареждане на лаптоп до 85W и обмен на файлове между Windows и Mac чрез BEZEL X.
Характеристики

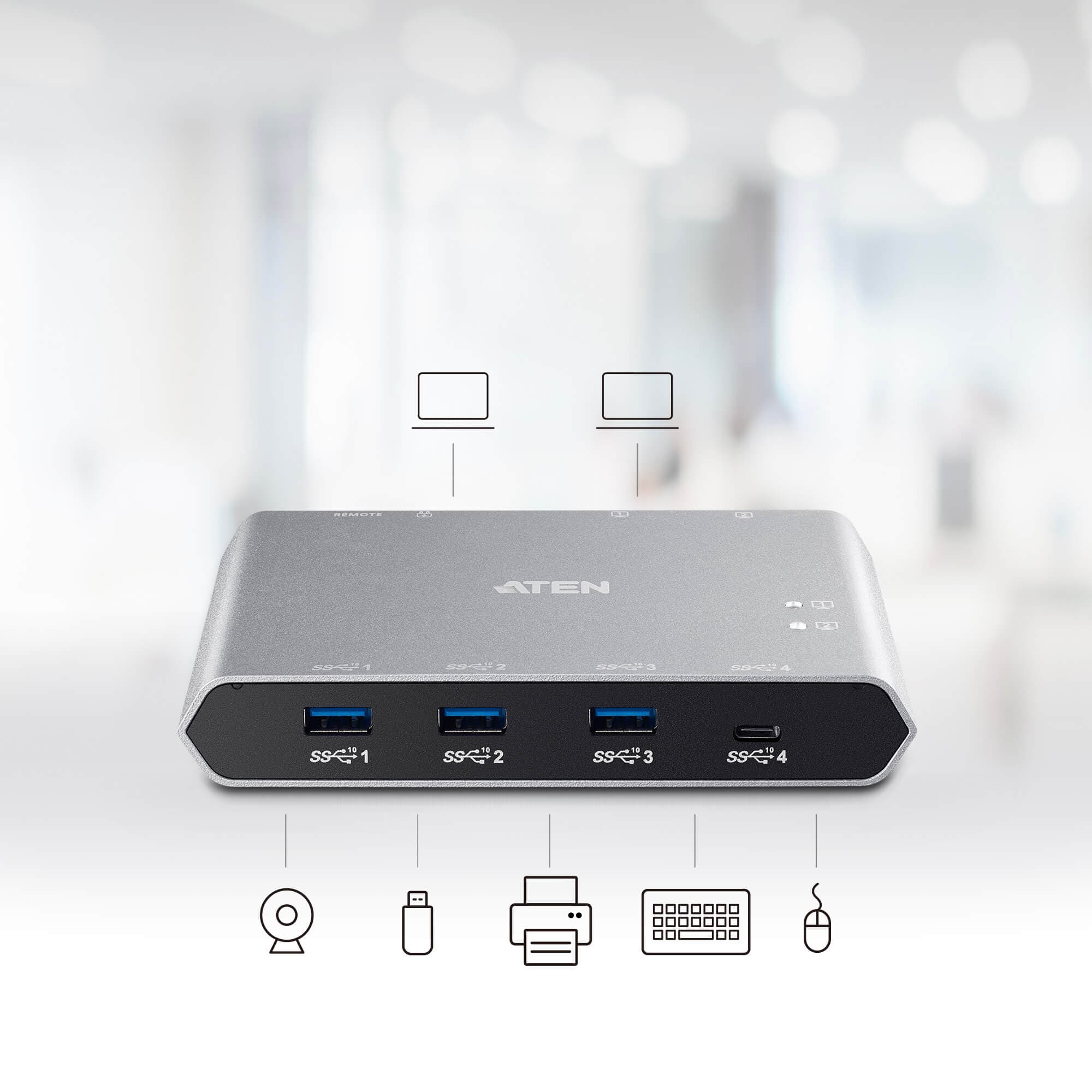

- Enables two USB-C computers to share 4 USB 3.2 Gen 2 peripheral devices with data transfer rates up to 10Gbps
- Supports USB-C Power Delivery 3.0 for laptop charging up to 85W (Additional USB-C Power Adapter is needed)*
- BEZEL X – Enable file transfer function and mice control cross two platforms, Windows and Mac
- Supports power profiles 5V, 9V, 15V, and 20V power specification
- Switch device via Remote Port Selector by pressing a button
- LEDs Console Indicator – Allow users to know which computer is active
- Plug and play – No drivers or external power adapter needed
- Over-current protection
- Apple M1 chip compatible (BazelX works with Rosetta on M1 Chipset) * For device charging, a Limited Power Source (LPS) certified single port USB-C PD Power Adapter over 65Watt is recommended. The minimum system power requirement for basic USB functions should be at least 5V, 3A.
Спецификация
- Връзки към компютри
- 2

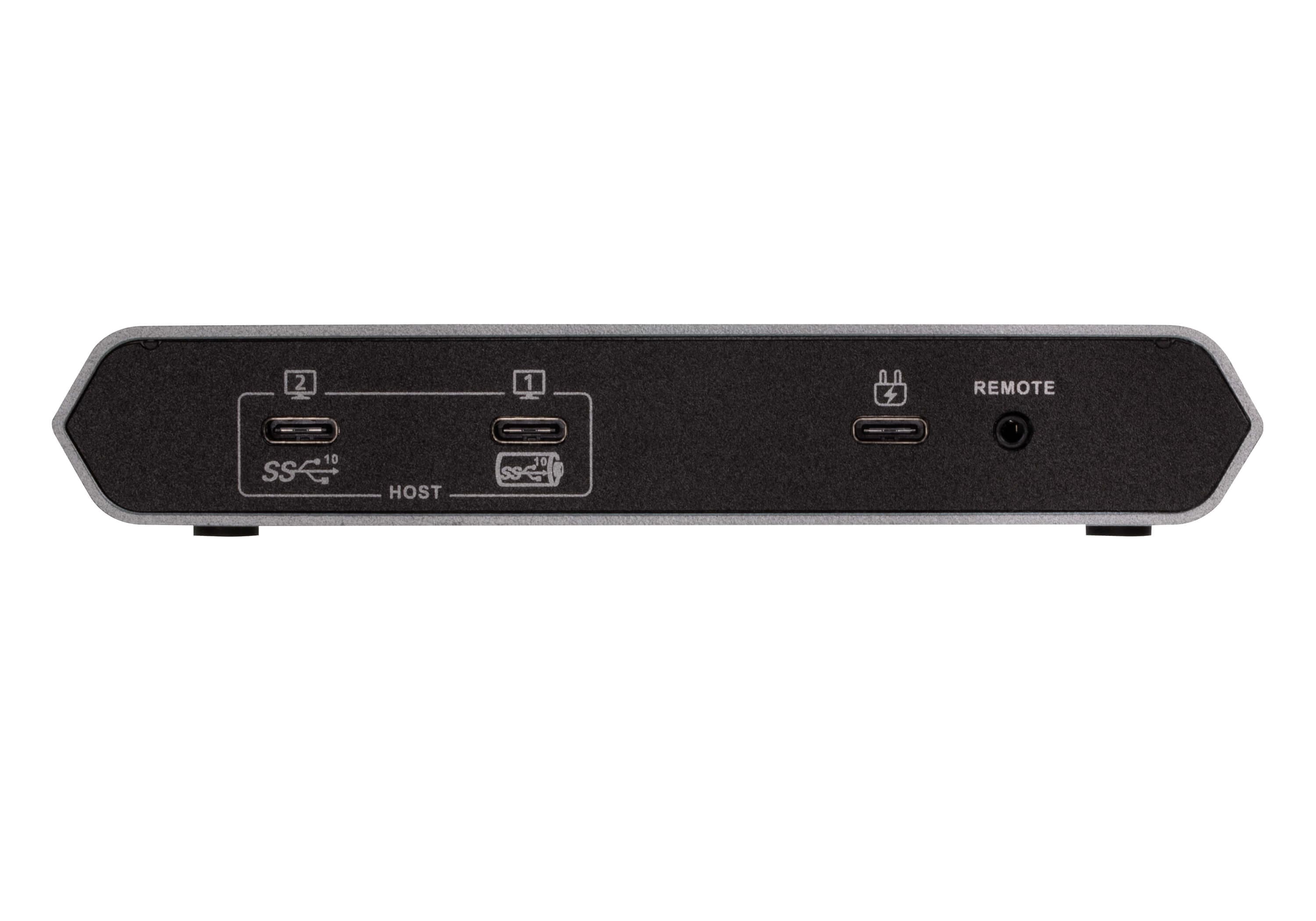

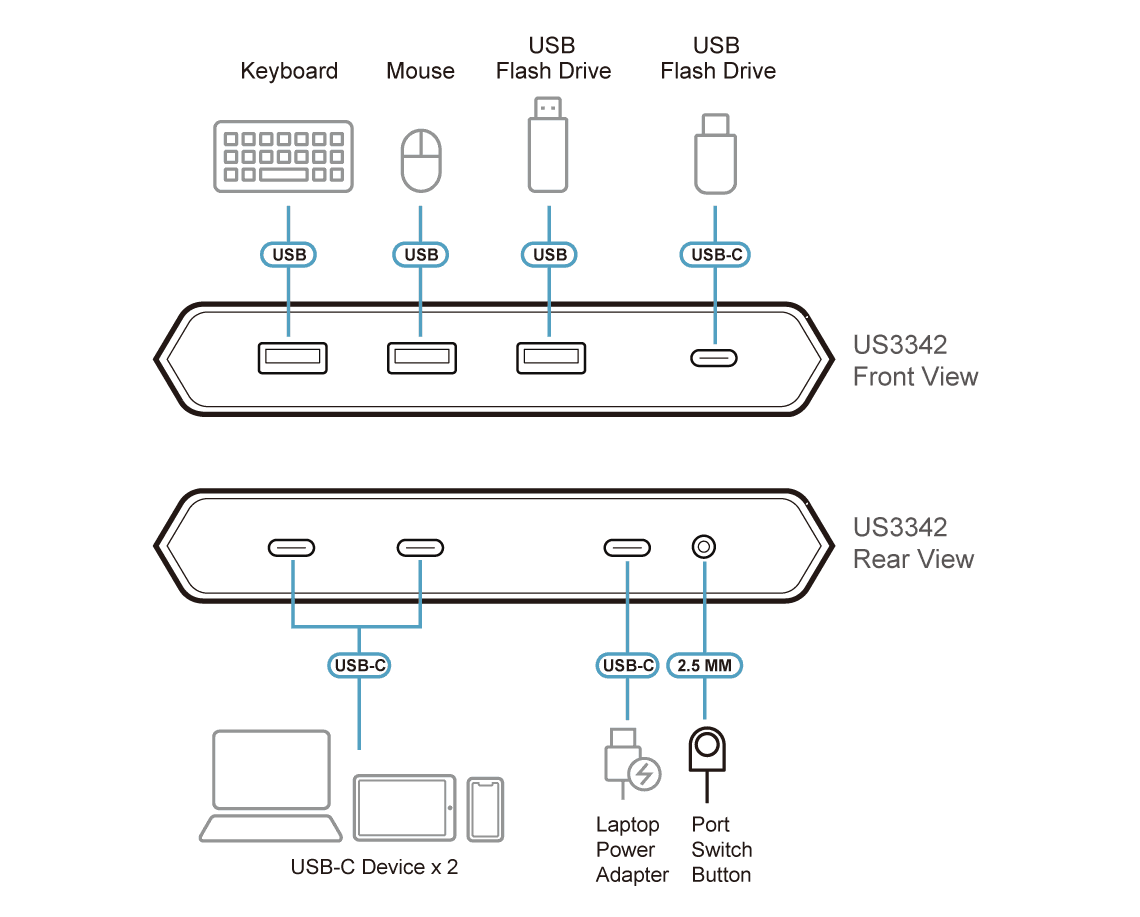

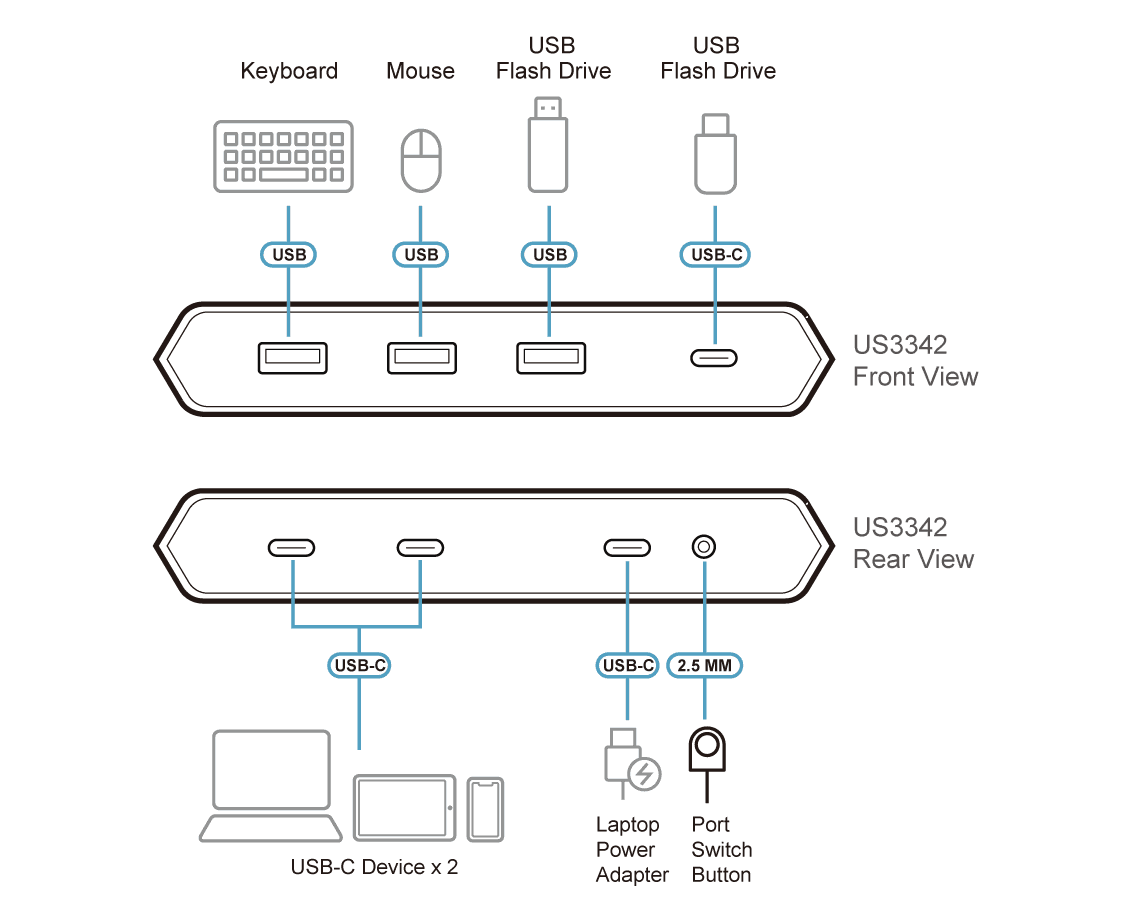

Конектори
- Компютър
- USB 3.2 Gen 2 Type-C Female (Black) x 2 Note: This USB-C port is for data transmission only, USB-C monitor is not supported.

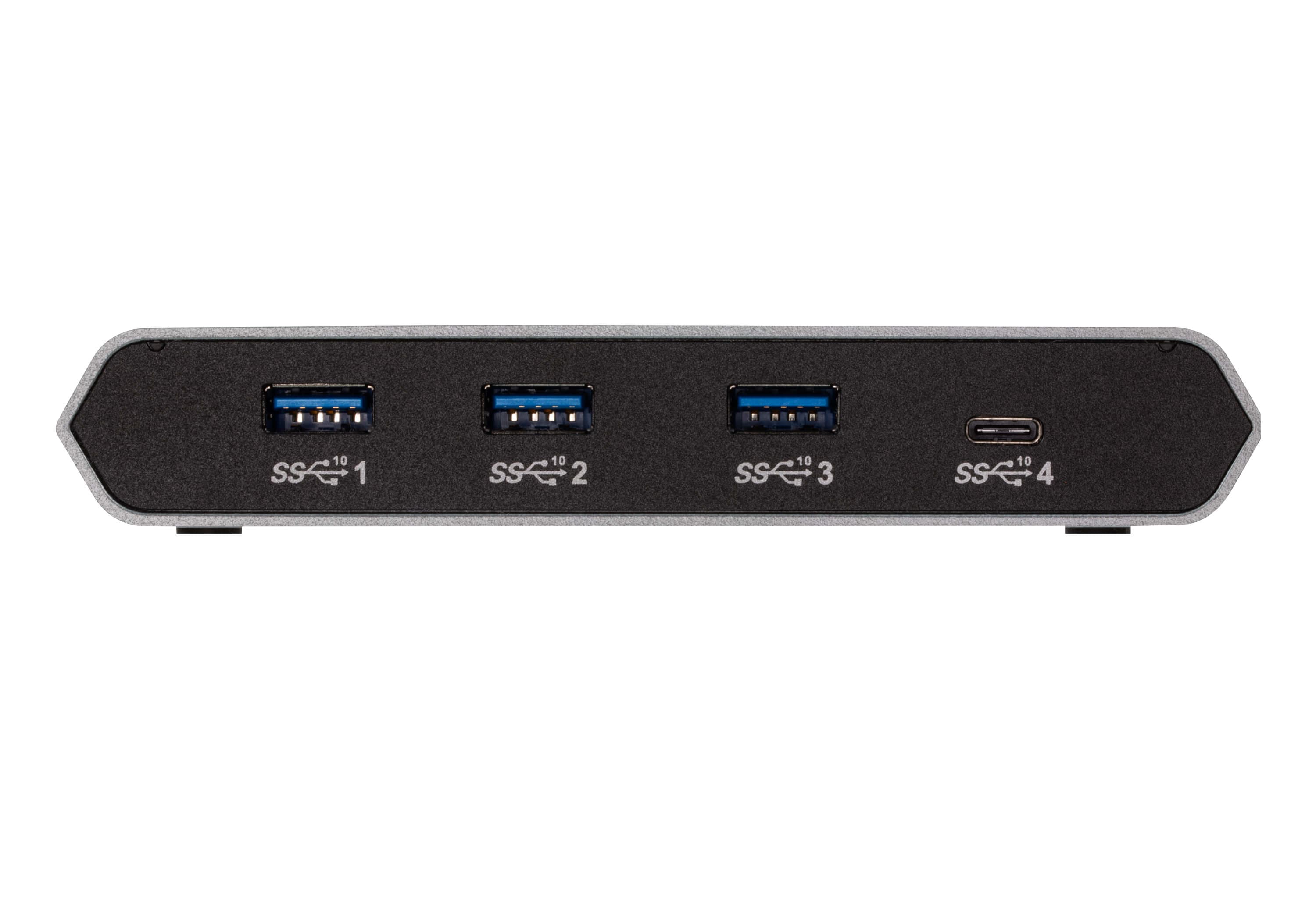

- Устройство
- USB 3.2 Gen 2 Type-A Female (Blue) × 3 USB 3.2 Gen 2 Type-C Female (black) x 1
- Захранване
- USB Type-C Female x 1, supports USB PD3.0 at 5V, 9V, 15V and 20V output* * For device charging, a Limited Power Source (LPS) certified single port USB-C PD Power Adapter over 65Watt is recommended. The minimum system power requirement for basic USB functions should be at least 5V, 3A.
Избор на порт
- Вход
- Remote port selector / software
- Консумация
- DC5V:0.43W:428BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Индикатори
- Избран
- 2 (White)
Работна среда
- Работна температура
- 0-40℃
- Температура на съхранение
- -20-60℃
- Влажност
- 0–80% RH, Non-condensing
Физически характеристики
- Корпус
- Aluminum
- Тегло
- 0.26 kg ( 0.57 lb )
- Размери (Д x Ш x В)
- 14.30 x 9.00 x 2.38 cm (5.63 x 3.54 x 0.94 in.)
- Забележка
- For macOS 14 or later, touchpad is not supported for mouse control across two platforms Windows and Mac through BEZEL X.
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
