165W 4-Port Smart Display Charger

UP5165

Зарядно устройство 165W с 4 изхода — три USB-C и един USB-A — за едновременно зареждане на четири устройства. Вграденият дисплей показва мощността в реално време, а GaN технологията намалява загряването.

Характеристики

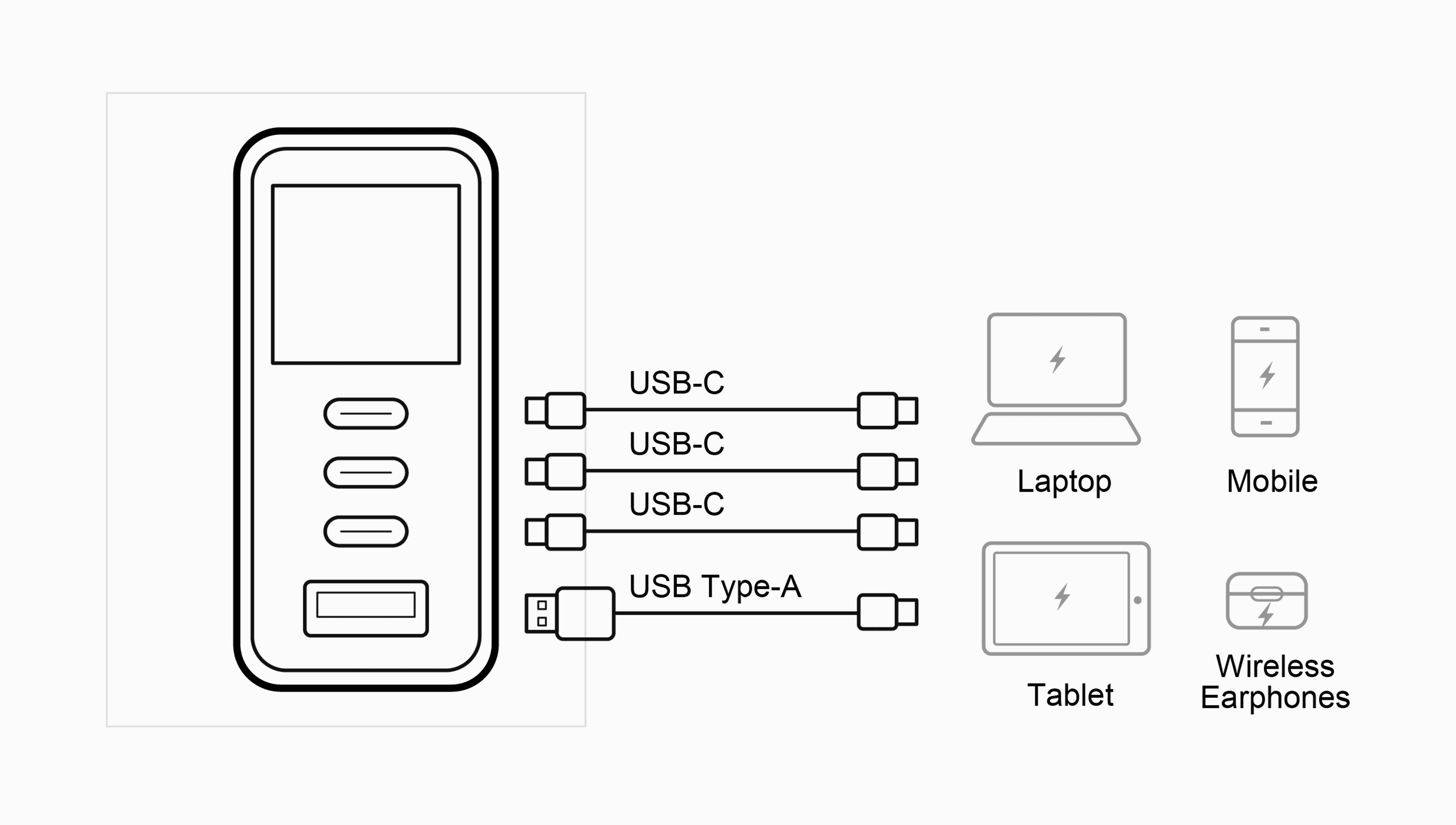

  • Contains an USB Type-A connector and three USB-C connectors to enable charging of up to four devices simultaneously at the highest possible speed with 165W of total power, and meanwhile, keeping your desktop organized and clean.

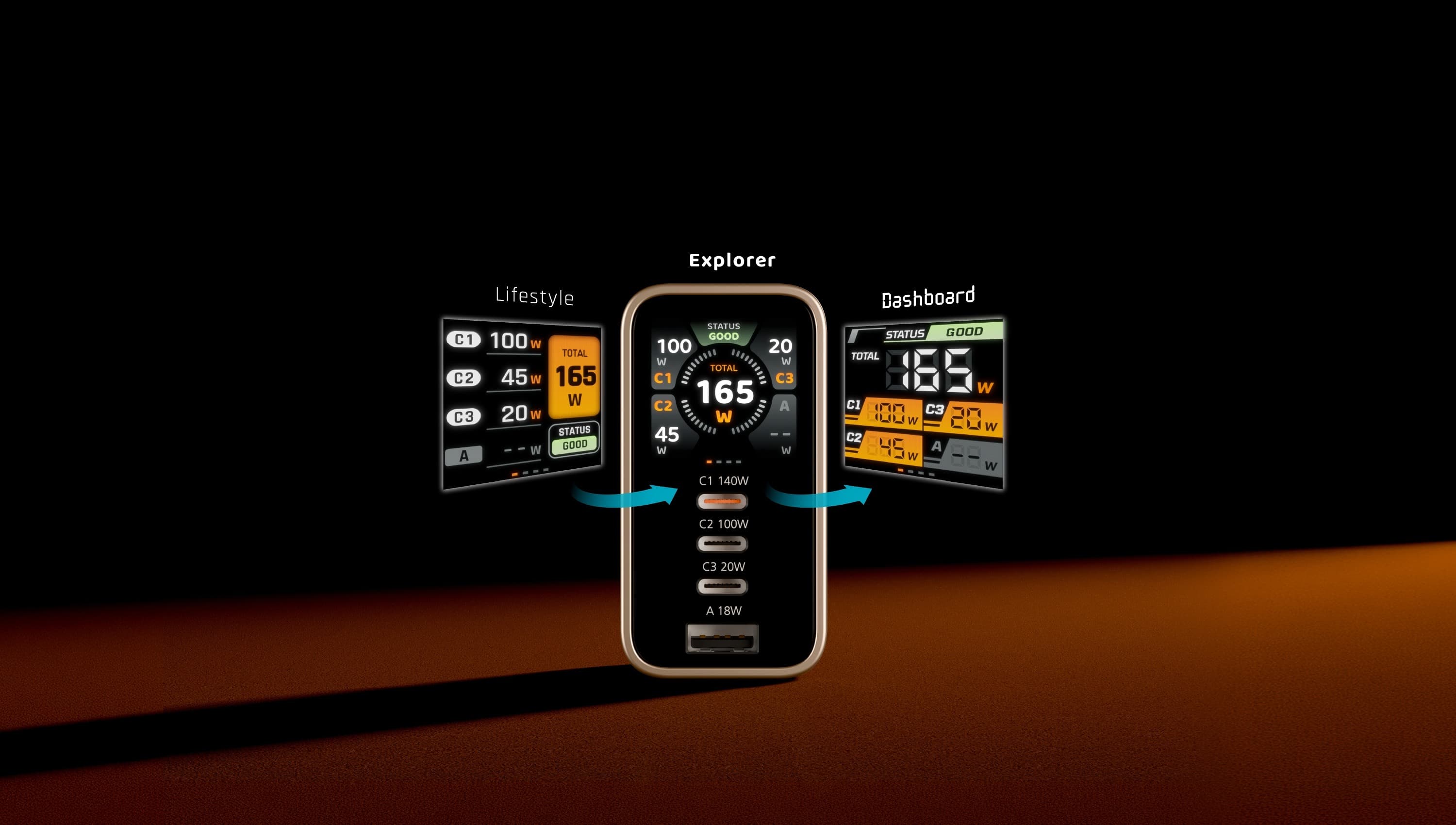

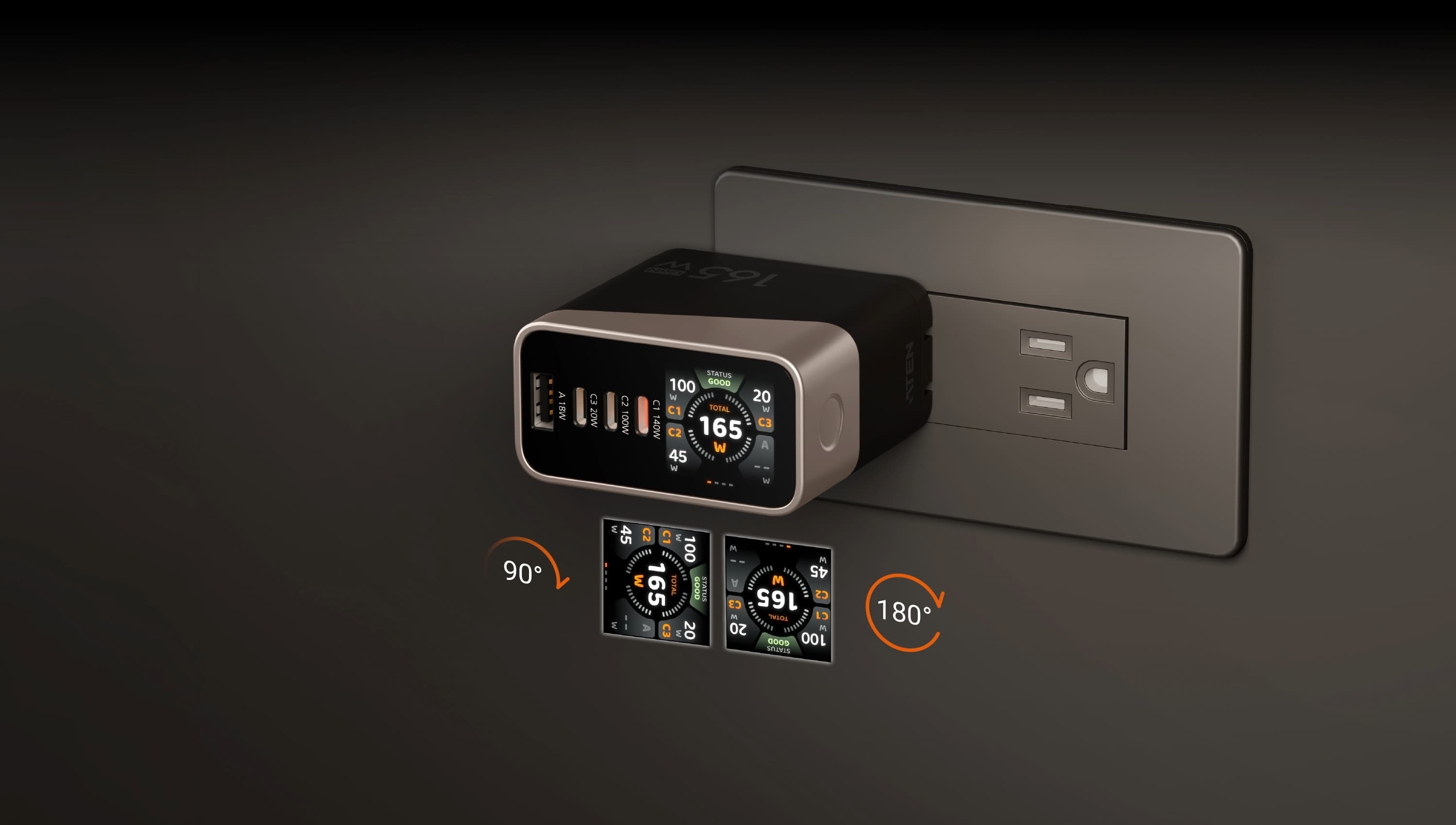

  • With three display themes to choose from, you get to see the real-time operation status, such as wattage output readouts and thermal condition, at a glance on the screen that matches your style.
  • Once the charger’s temperature exceeds safe threshold, it will automatically adjust the output power to simultaneously maximize charging speed and preserve device longevity.
  • Engineered with GaN technology to significantly reduce heat loss without compromising charging speed or safety in a compact form factor.
  • Integrated with ATEN CoreShield™ system, the charger features multi-layer defense against overvoltage, short-circuit, over temperature, overcurrent, surge, static, and EMI. Meanwhile, the charger is built with fire-resistant materials to minimize fire risks.
  • With the charging brick so compact and the plug foldable, the charger boasts a travel-friendly design to easily slide into your pocket. The foldable plug avoids scratching your tech gear screens and other belongings.
  • Firmly secures the charging by preventing accidental separation between the plug and the outlet.

Захранващ щепсел

Модел
UP5165-USUP5165-EUUP5165-KR
Тип щепсел
US Plug - FoldableEU Plug - FoldableKR Plug - Foldable
Размери (Ш x Д x В)
35.6 x 68.9 x 72.2mm35.6 x 80 x 70.2mm35.6 x 80 x 70.2mm
Тегло
259g274g274g

Вход

Диапазон на входното напрежение
100Vac - 240Vac
Диапазон на входната честота
50Hz / 60Hz
Номинален входен ток
2.3A max.

Изход

Мощност

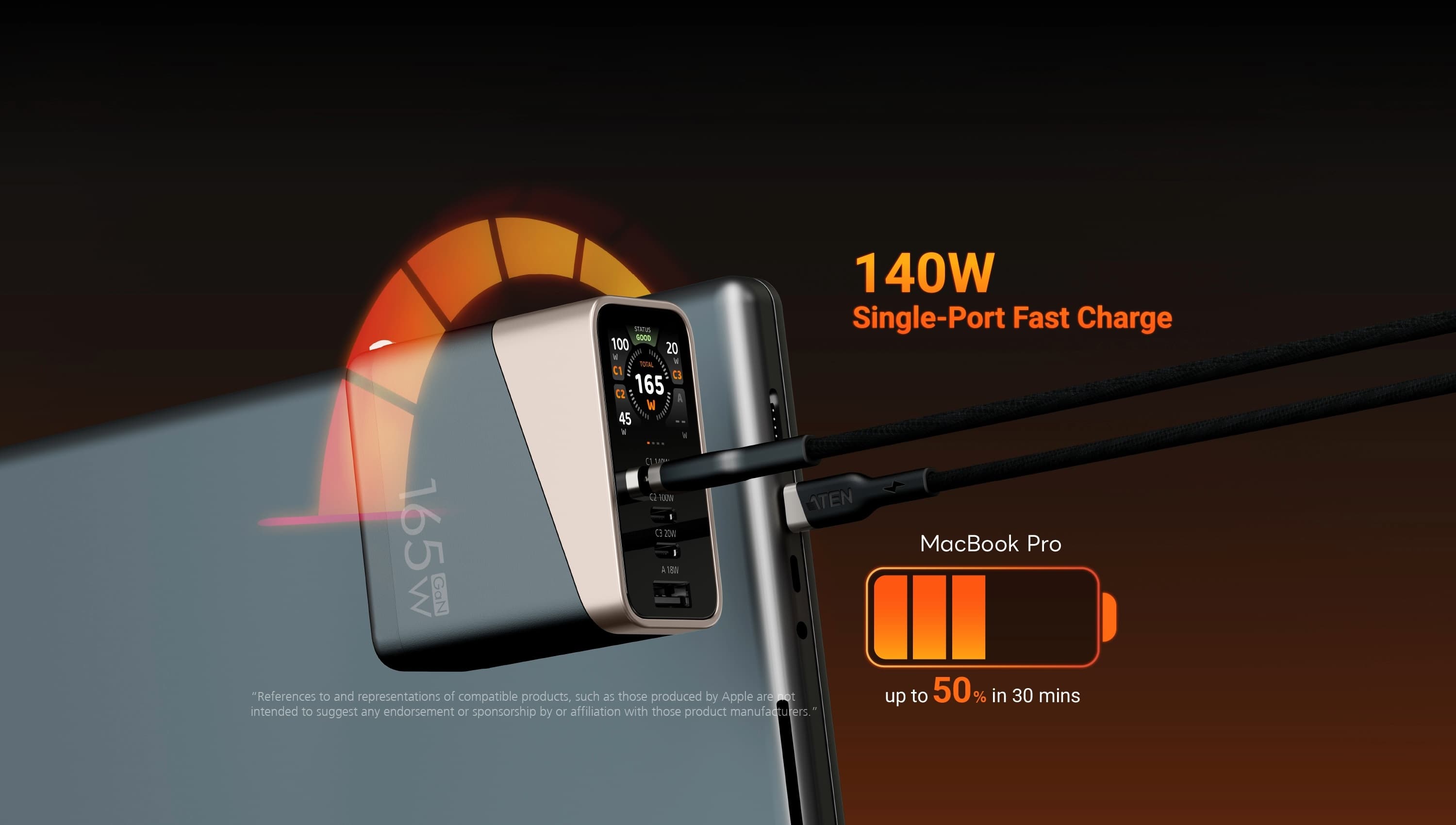

USB-C1: 140W max. (5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A, 28V⎓5A) USB-C2: 100W max. (5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A) USB-C3: 20W max. (5V⎓3A, 9V⎓2.22A, 12V⎓1.67A) USB-A: 18W max. (5V⎓3A, 9V⎓2A, 12V⎓1.5A) USB-C1+C2: 100W+65W max. USB-C1+C3: 140W+20W max. USB-C1+A: 140W+18W max. USB-C2+C3: 100W+20W max. USB-C2+A: 100W+18W max. USB-C3+A: 15W max. (5V⎓3A) USB-C1+C2+C3: 100W+45W+20W max. USB-C1+C2+A: 100W+45W+18W max. USB-C1+(C3+A): 140W+15W max. USB-C2+(C3+A): 100W+15W max. USB-C1+C2+(C3+A): 100W+45W+15W max. Total outputs: 165W max.

Физически характеристики

Тип изход
3x USB-C 1x USB Type-A
Индикатор за захранване
1x TFT Smart Display

Работна среда

Работна температура
0 - 35℃
Влажност
5 - 90 % RH, Non-Condensing
