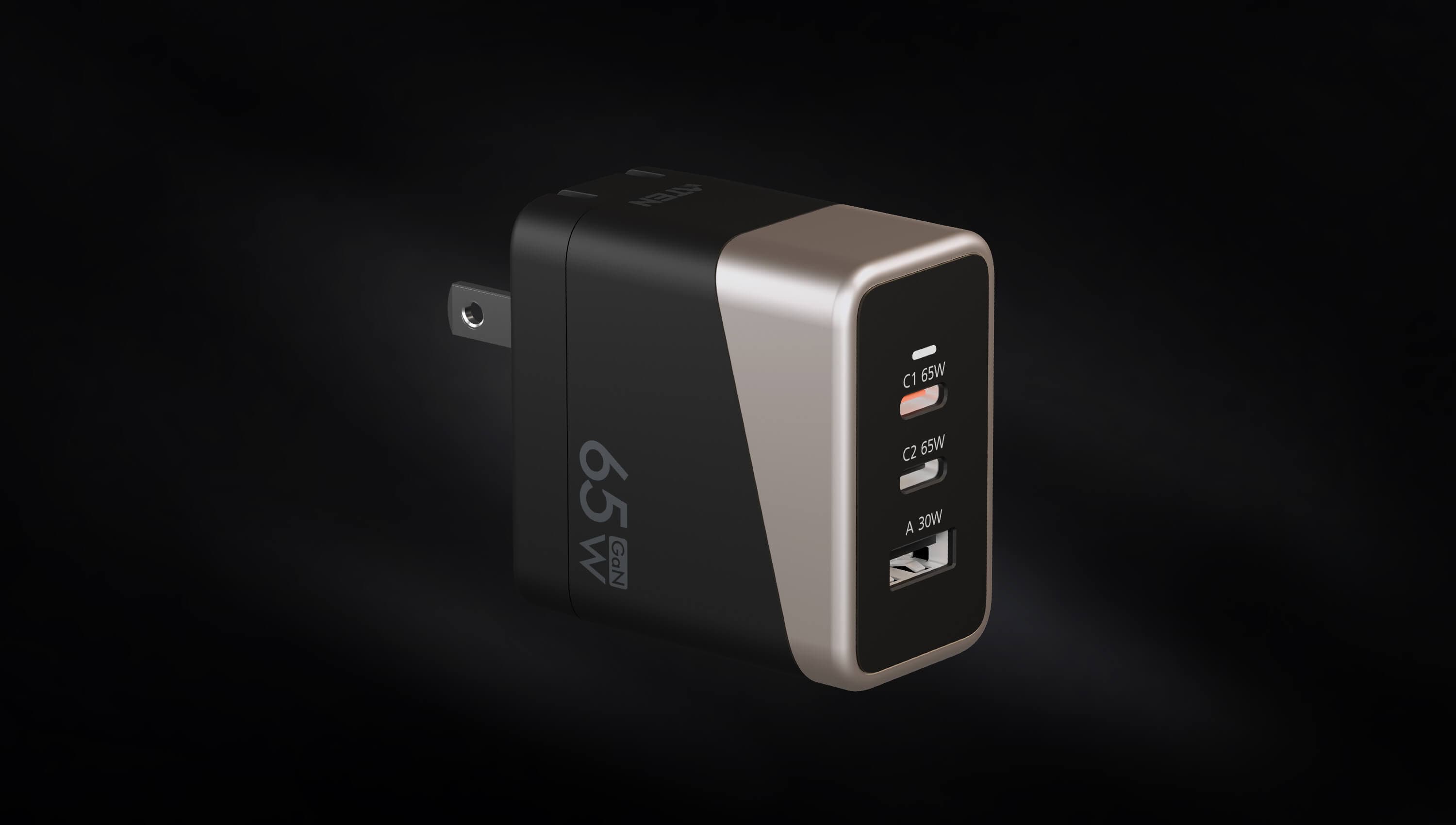

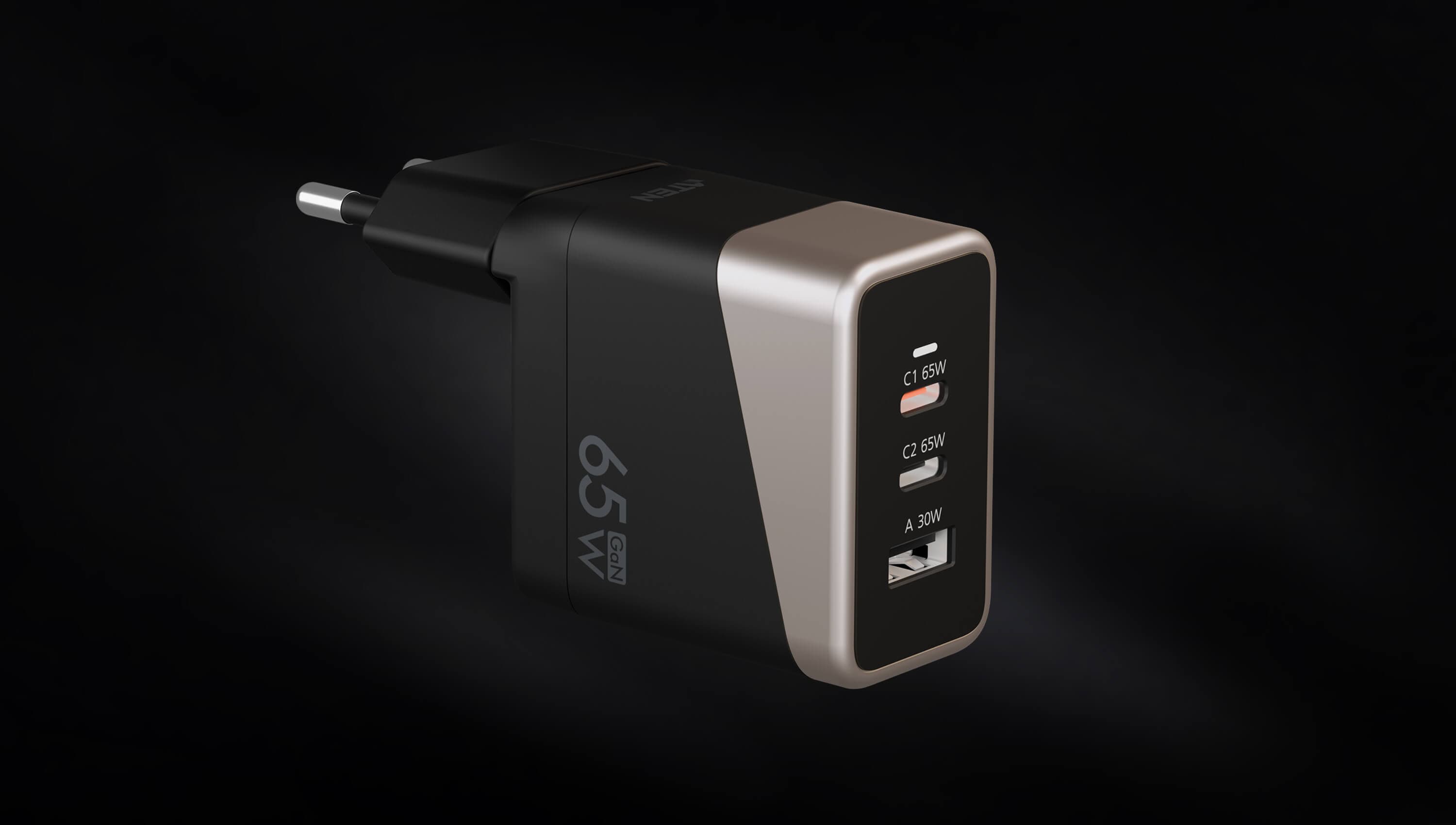

65W 3-Port GaN Charger

Name: 65W 3-Port GaN Charger
Brand: ATEN
SKU: UP365

UP365

Зарядно устройство 65W с GaN технология и 3 порта — два USB-C и един USB-A — за зареждане на до три устройства едновременно. Сгъваемият щепсел и компактният корпус го правят удобно за пътуване.

Характеристики

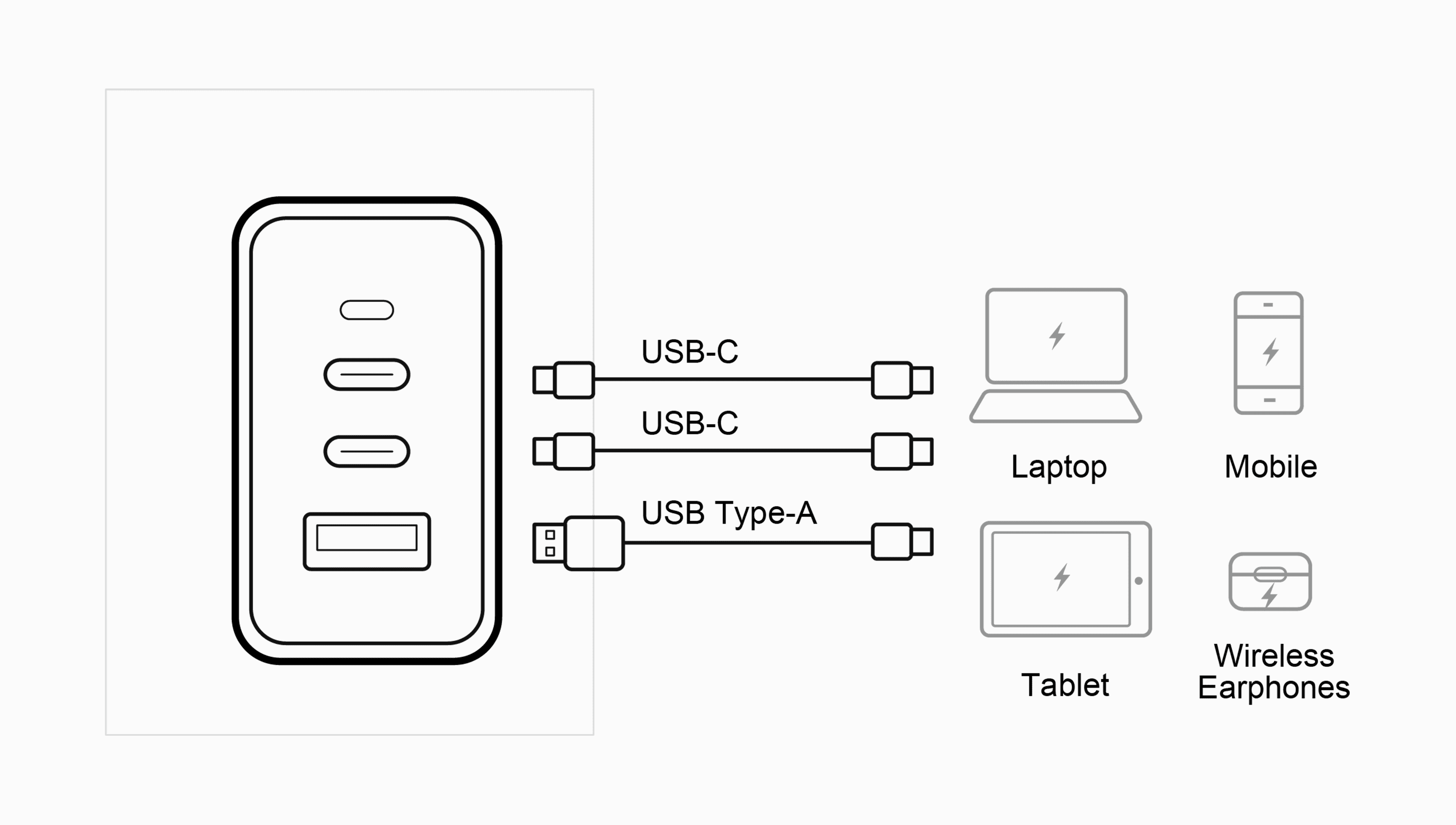

Contains an USB Type-A connector and two USB-C connectors to enable charging of up to three devices simultaneously at the highest possible speed with 65W of total power, and meanwhile,keeping your desktop organized and clean.
Engineered with GaN technology to significantly reduce heat loss without compromising charging speed or safety in a compact form factor.
Integrated with ATEN CoreShield™ system, the charger features multi-layer defense against overvoltage, short-circuit, over temperature, overcurrent, surge, static, and EMI. Meanwhile, the charger is built with fire-resistant materials to minimize fire risks.

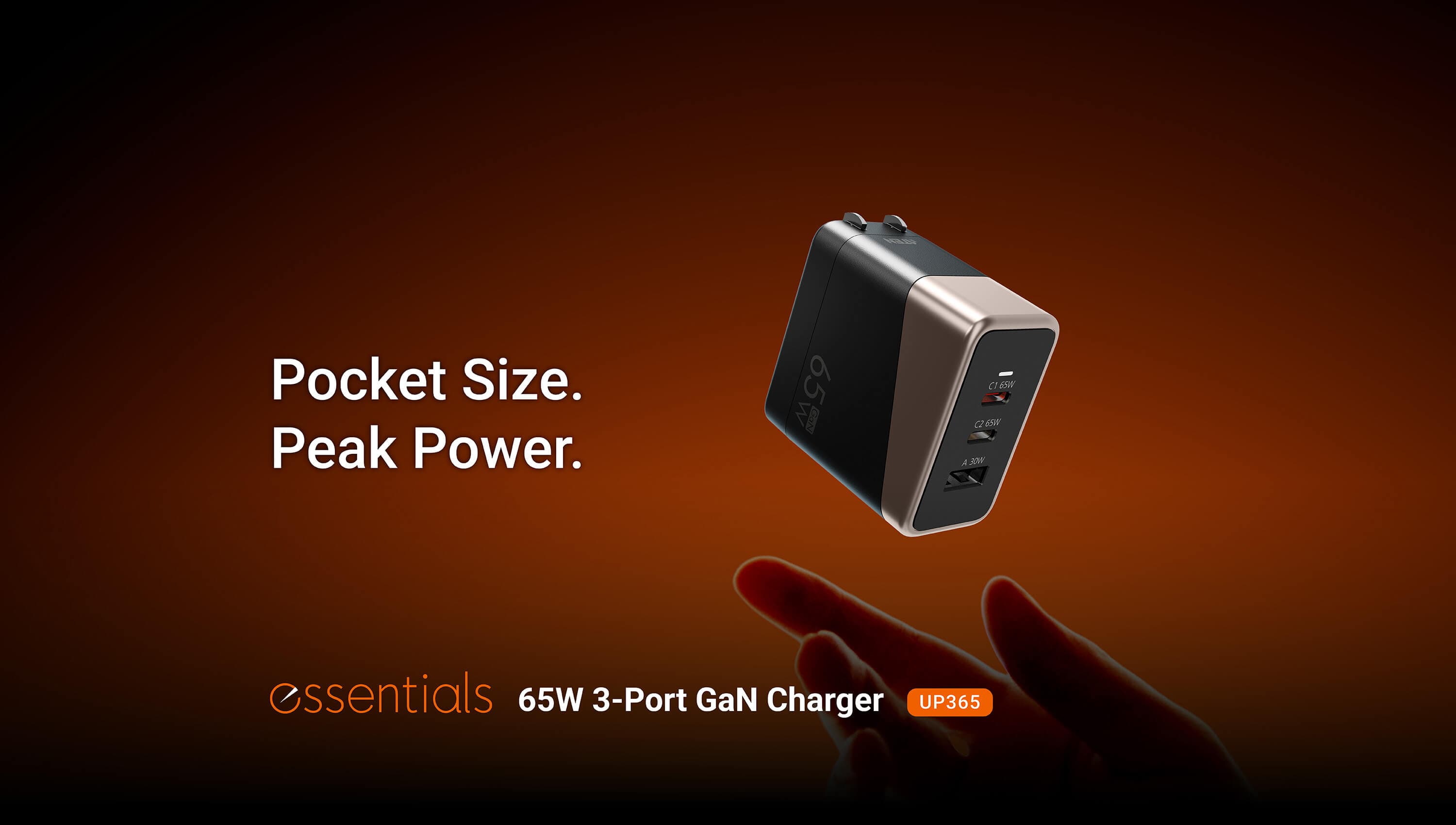

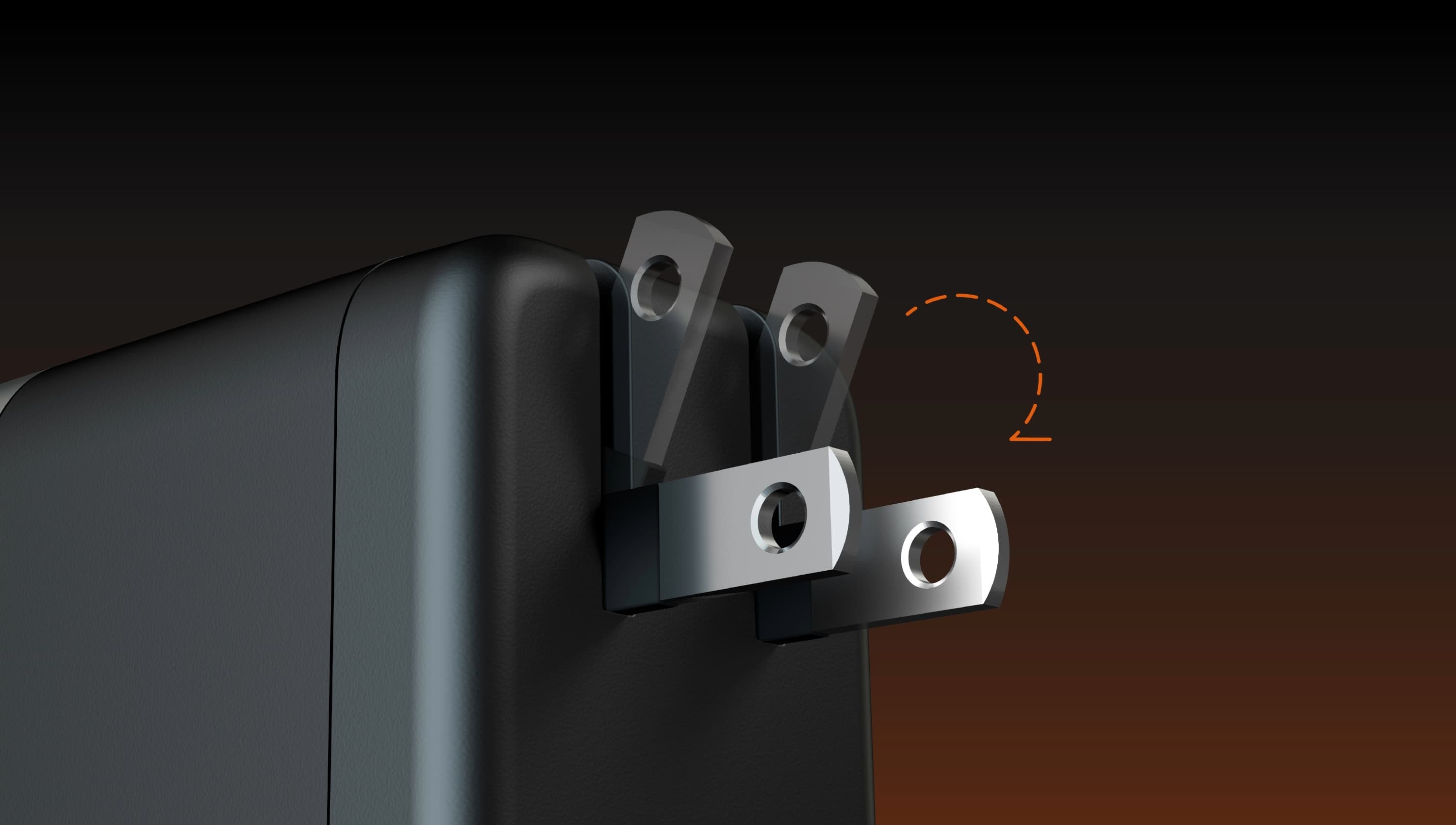

With the charging brick so compact and the plug foldable, the charger boasts a travel-friendly design to easily slide into your pocket. The foldable plug avoids scratching your tech gear screens and other belongings.
Firmly secures the charging by preventing accidental separation between the plug and the outlet.

Захранващ щепсел

Модел: UP365-USUP365-EUUP365-KR
Тип щепсел: US Plug - FoldableEU Plug - FoldableKR Plug - Foldable

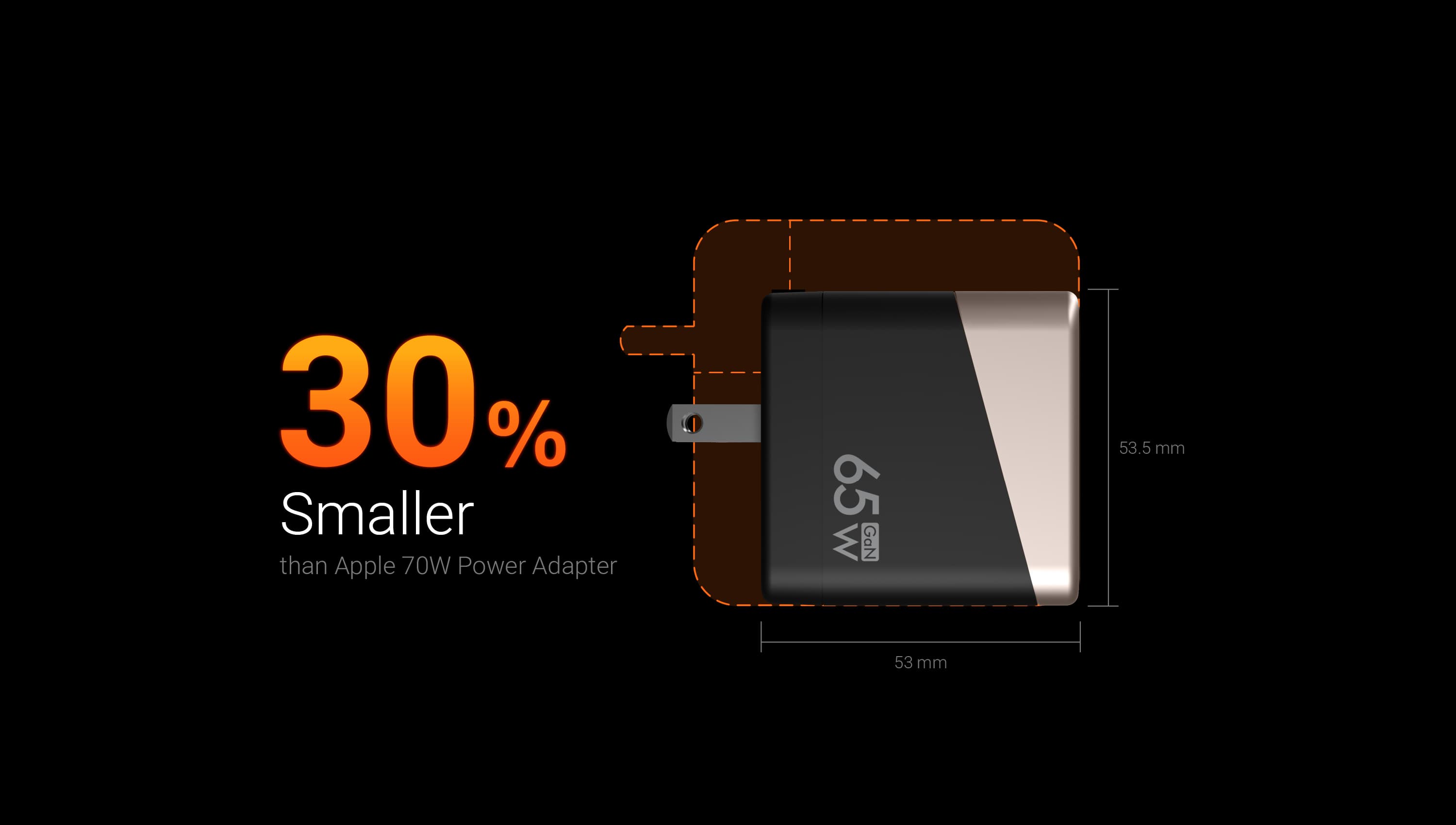

Размери (Ш x Д x В): 30 x 55.2 x 53mm30 x 64.6 x 53mm30 x 64.6 x 53mm
Тегло: 118g123g123g

Вход

Диапазон на входното напрежение: 100Vac - 240Vac
Диапазон на входната честота: 50Hz / 60Hz
Номинален входен ток: 1.5A max.

Изход

Мощност: USB-C1: 65W max. (5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3.25A) USB-C2: 65W max. (5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3.25A) USB-A: 30W max. (5V⎓3A, 9V⎓3A, 12V⎓2.5A, 20V⎓1.5A) USB-C1+C2: 45W+20W max. USB-C1+A: 45W+18W max. USB-C2+A: 24W max. (5V⎓4.8A) USB-C1+(C2+A): 45W+15W max. Total outputs: 65W max.
