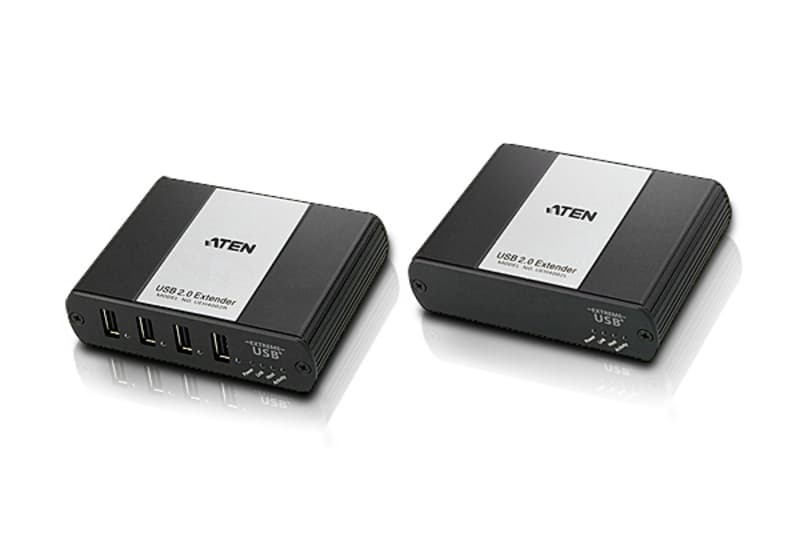

4-Port USB 2.0 Cat 5 Extender (up to 100m)

Name: 4-Port USB 2.0 Cat 5 Extender (up to 100m)
Brand: ATEN
SKU: UEH4002

UEH4002Снет от производство

Удължител за USB 2.0 по Cat 5 — 4 порта на отдалечения модул, разстояние до 100 m, поддържа устройства до 480 Mbps без драйвери.

Характеристики

Extends the USB transmission distance of up to 100 m
Supports all USB 2.0 devices up to 480 Mbps
ExtremeUSB® - supports transparent USB 2.0 signals and true plug-and-play (no software or drivers required)
Fully compliant with USB Electrical and Timing

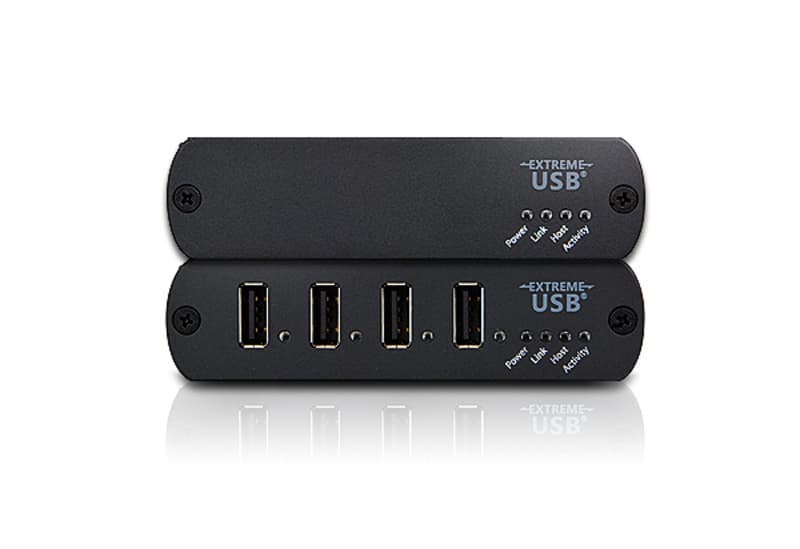

LED indicators display port focus
Works with all major operating systems: Windows®, OS X®, and Linux®

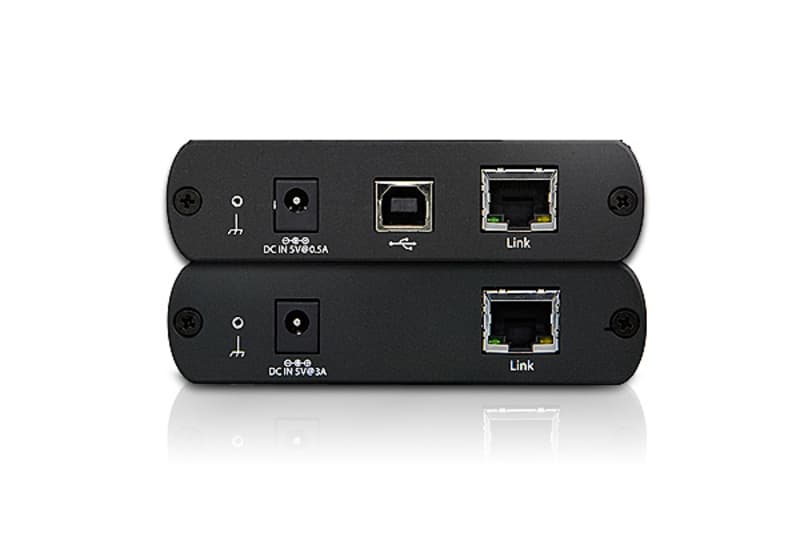

USB порт: 1 x USB Type B Female (White)
USB порт: 1 x RJ-45 Female
Downstream: 1 x RJ-45 Female
Downstream: 4 x USB Type A Female (White)
Захранване: 1 x DC Jack
Захранване: 1 x DC Jack
USB спецификация: 2.0 / 1.1 High / Full / Low Speed
USB спецификация: 2.0 / 1.1 High / Full / Low Speed
Поддържани USB устройства: N/A
Поддържани USB устройства: 4 USB Devices
Макс. брой USB устройства: N/A

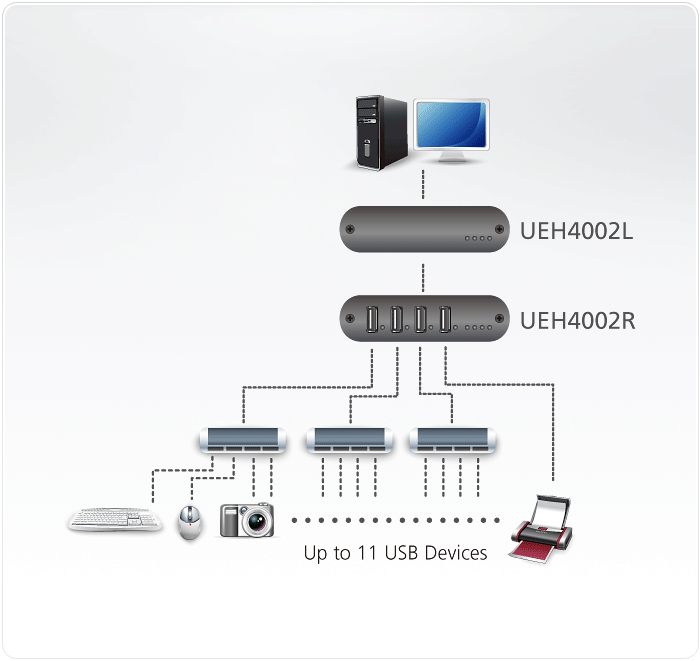

Макс. брой USB устройства: Direct: 4 devices Cascaded: 3 hubs, 11 devices
Консумация: DC 5V, 2.5W Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Консумация: DC 5V, 2.5W Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Корпус: Metal
Корпус: Metal
Тегло: 0.36 kg ( 0.79 lb )
Тегло: 0.36 kg ( 0.79 lb )
Размери (Д x Ш x В): 10.00 x 7.60 x 2.60 cm (3.94 x 2.99 x 1.02 in.)
Размери (Д x Ш x В): 10.00 x 7.60 x 2.60 cm (3.94 x 2.99 x 1.02 in.)
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
