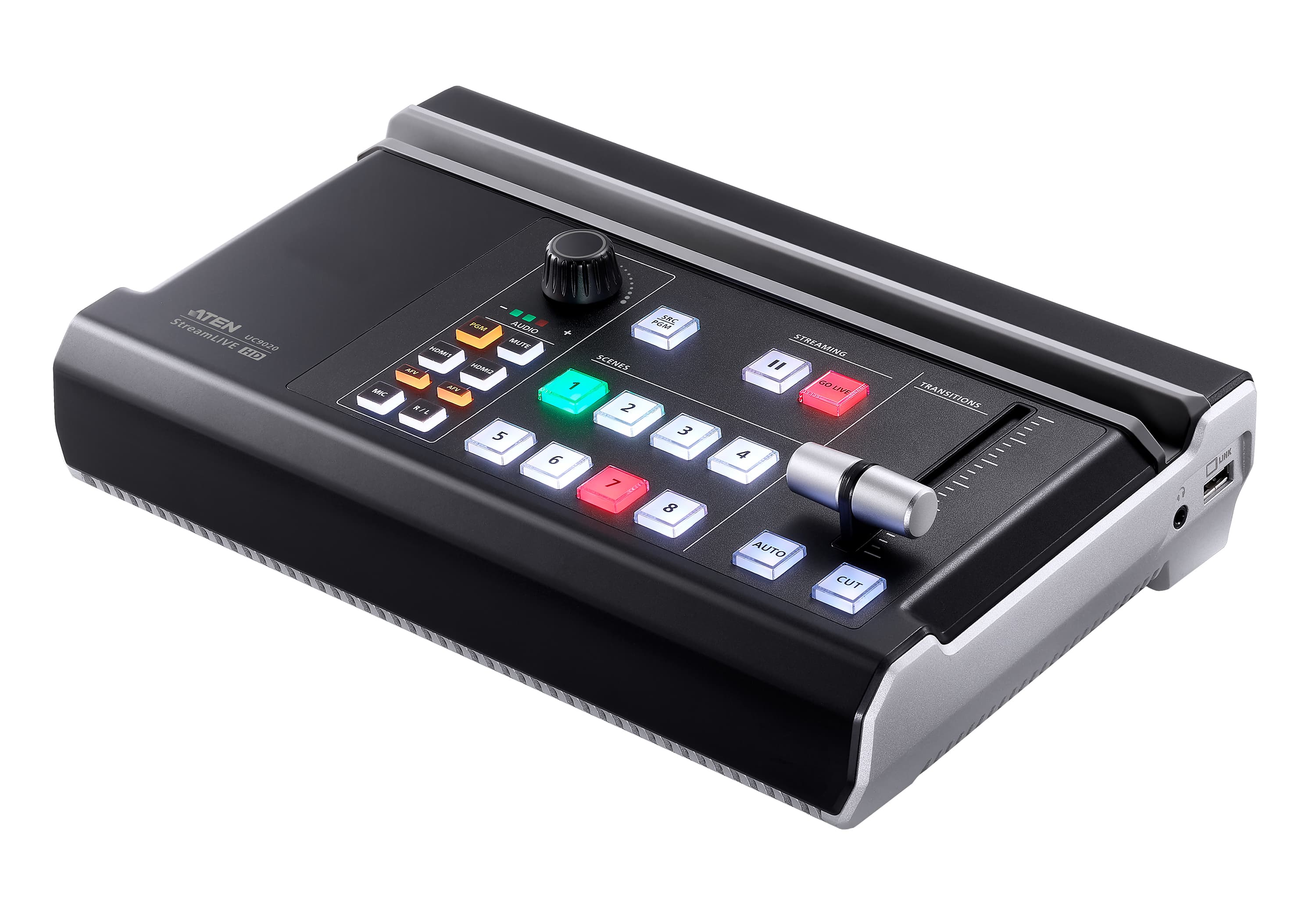

StreamLive™ HD All-in-one Multi-channel AV Mixer
UC9020Снет от производство
Многоканален AV миксер „всичко в едно“ за стрийминг на живо: превключва HDMI входове (един 4K и два 1080p), записва програмата в 1080p и излъчва към CDN платформи; управление през приложение.
Характеристики
- All-in-one design to simplify streaming workfl ow – integrates 1080p video capture, video recorder, video switch, streaming encoder, video converter, video splitter, and audio mixer
- Professional-quality live streaming to global audiences by any CDN platform. With a low entry threshold, even entry-level users can quickly get started
- 1080p recording – features media recording that can be used to record a program and save recordings directly to a connected external hard drive via USB

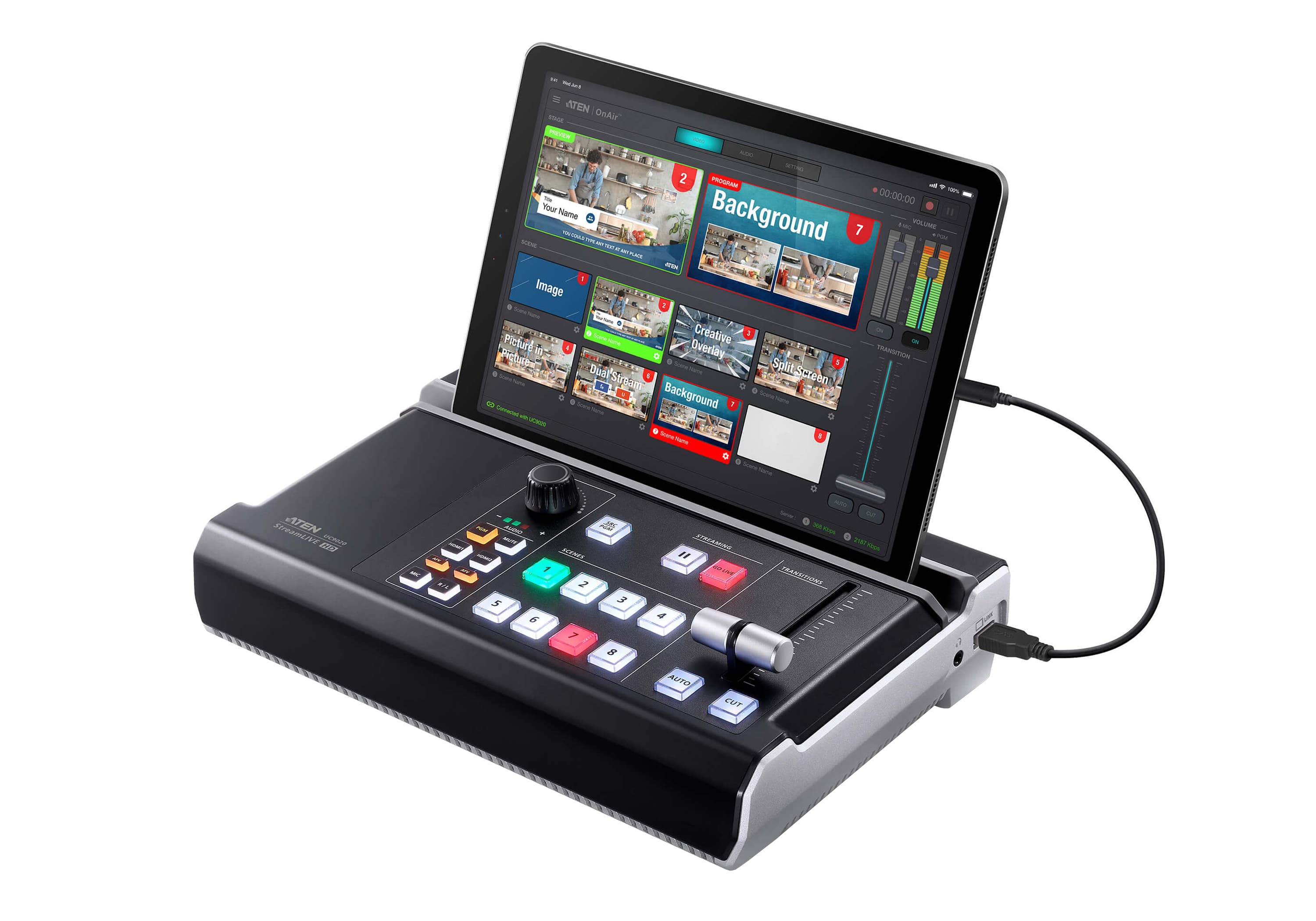

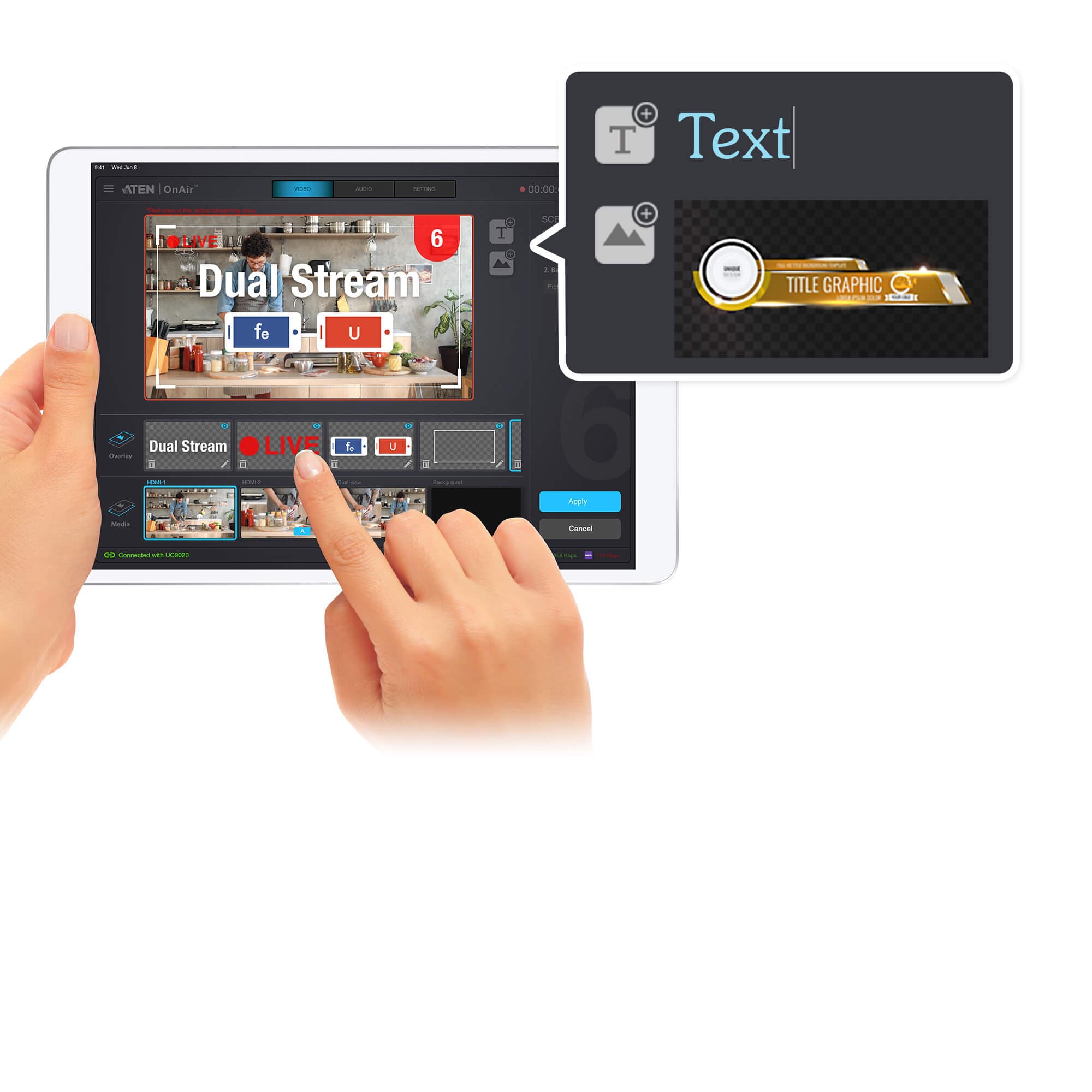

- Intuitive app for preview and program monitoring, change video layout in Full Screen / PBP / PiP settings, adding image and subtitles overlays, and smooth scenes transitions for a professional finish
- Storyboard-like management – presets up to 8 scenes for later while streaming and during performances to reduce the need to interact with hardware
- Compact mixer control panel – switches and mixes between multiple video & audio sources with the help of easily identifi able luminous keys
- Fanless and optimized thermal air fl ow system for quiet operation
- Multitask designed handle-stand to enhance portability and ergonomic comfort angle

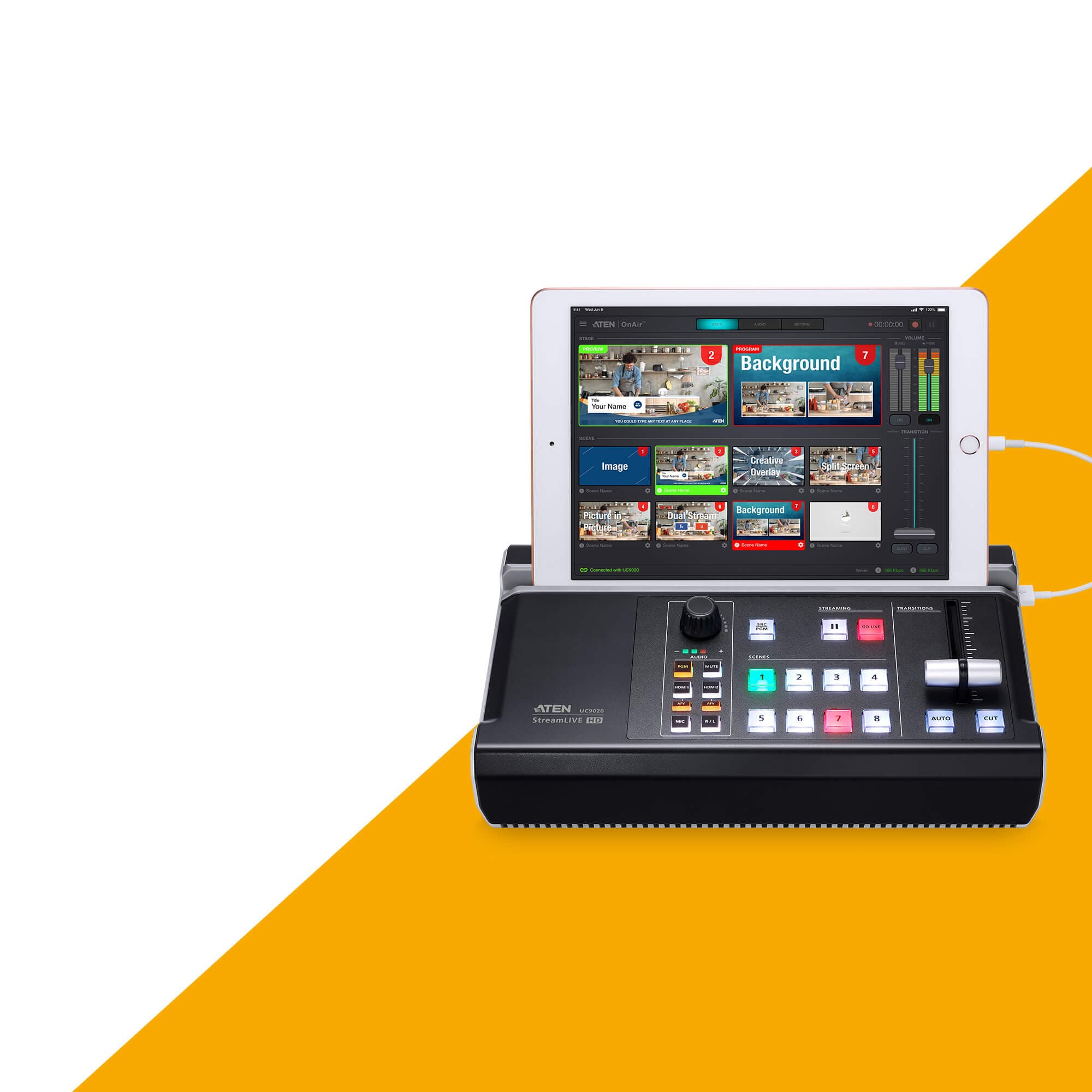

- Supports Android / Windows devices or iPads
- Works with ATEN Stream to USB software – converts streams from multiple StreamLIVE HDs into USB webcam signals for delivering remote presentations on Skype, Zoom, MS Teams, OBS and more
- Receives clean HDMI camera feed via ATEN OnAir Cam app – the app helps capture the iPhone / iPad camera feed and turn it into a clean 1080p @ 60 Hz HDMI video source without on-screen icons or overlays for the StreamLIVE HD's usage

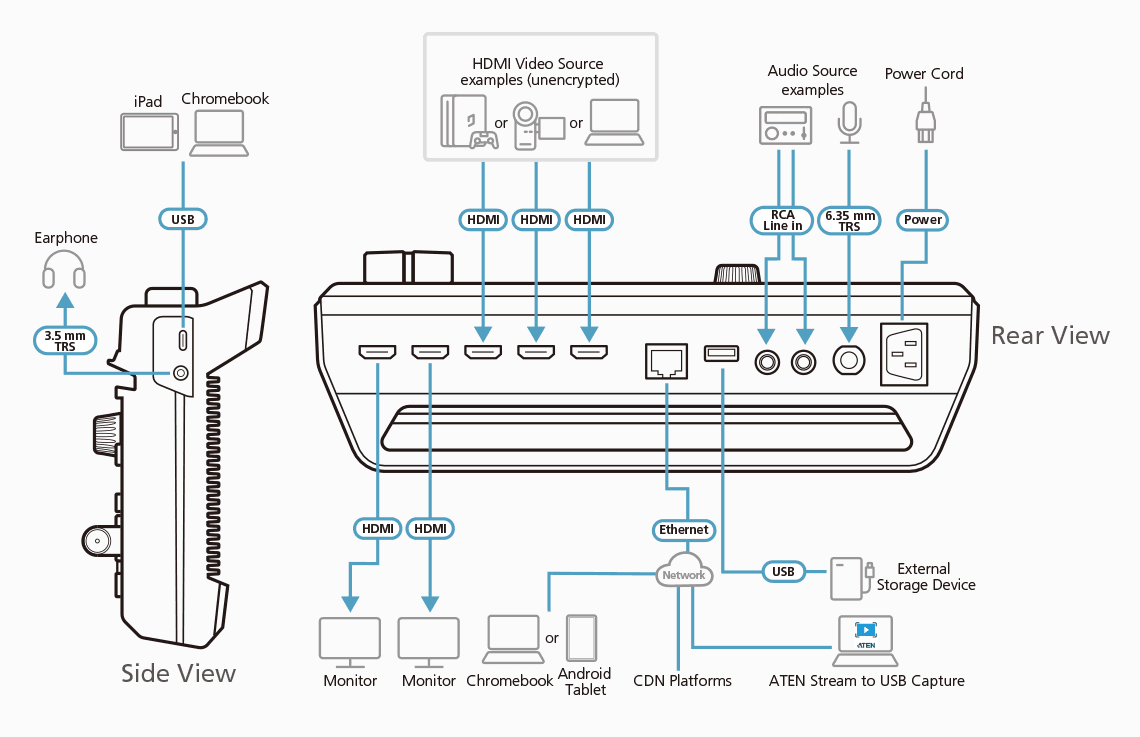

Видео вход
- Интерфейси
- 1 x 4K HDMI Type-A Female (up to 2160p60, unencrypted) 2 x HDMI Type-A Female (up to 1080p60, switcher, unencrypted )
Видео изход
- Интерфейси
- 1 x 4K Loop-Thru HDMI Type-A Female (up to 2160p60, unencrypted) 1 x PGM HDMI Type-A Female (up to 1080p60, unencrypted)
- Видео дискретизация
- 4:2:2 8-bit
- Цветово пространство
- 4:2:2 YUV
- Видео резолюция
- HDMI 1 Input: VGA(640x480@60), 480p60/50/30/25, SVGA(800x600@60), XGA(1024x768@60), 720p60/50/30/25, SXGA(1280x1024@60), WXGA+(1440x900@60), UXGA(1600x1200@60 RB), WUXGA+(1680x1050@60), 1080p60/50/30/25, 2160p60/50/30/25 HDMI 2A/2B Input:* VGA(640x480@60), 480p60/50/30/25, SVGA(800x600@60), XGA(1024x768@60), 720p60/50/30/25, SXGA(1280x1024@60), WXGA+(1440x900@60), UXGA(1600x1200@60 RB), 1080p60/50/30/25 *Only selected port show video, another one show non-video photo or graph. SRC/PGM HDMI Output: 480p60/50/30/25, 576p60/50/30/25, 720p60/50/30/25, 1080p60/50/30/25 HDMI Loop-Through Output: VGA(640x480@60), 480p60/50/30/25, SVGA(800x600@60), XGA(1024x768@60), 720p60/50/30/25, SXGA(1280x1024@60), WXGA+(1440x900@60), UXGA(1600x1200@60 RB), WUXGA+(1680x1050@60), 1080p60/50/30/25, 2160p60/50/30/25
Аудио входове
- Интерфейси
- HDMI captured inputs (stereo) 1 x Mic input, 1/4" TRS jack (dual mono) 1 x Line input, RCA jack, signal level: -10 dBV
Аудио изходи
- Интерфейси
- HDMI outputs (stereo) 1x 1/8" TRS jack (stereo)
- Мрежов протокол
- Dual-stream encoder supports direct live streaming to CDN sever over ethernet using Real Time Messaging Protocol (RTMP/RTMPS) ------------------------------------------------------- Video Encoding Format: H.264 Bit rate: 512Kbps~10Mbps Color format: YUV420 Resolution: 1080p30/25, 720p60/50/30/25, 480p60/50/30/25 ------------------------------------------------------------------- Audio Encoding Format: AAC Sampling Rate: 48kHz Bit rate: 128kbps
- Съхранение на записите
- Max. video resolution: 1080p30/25 File format：MP4 Support media: USB 3.x compatible mobile drive (HDD / SSD), at least 32GB of free space

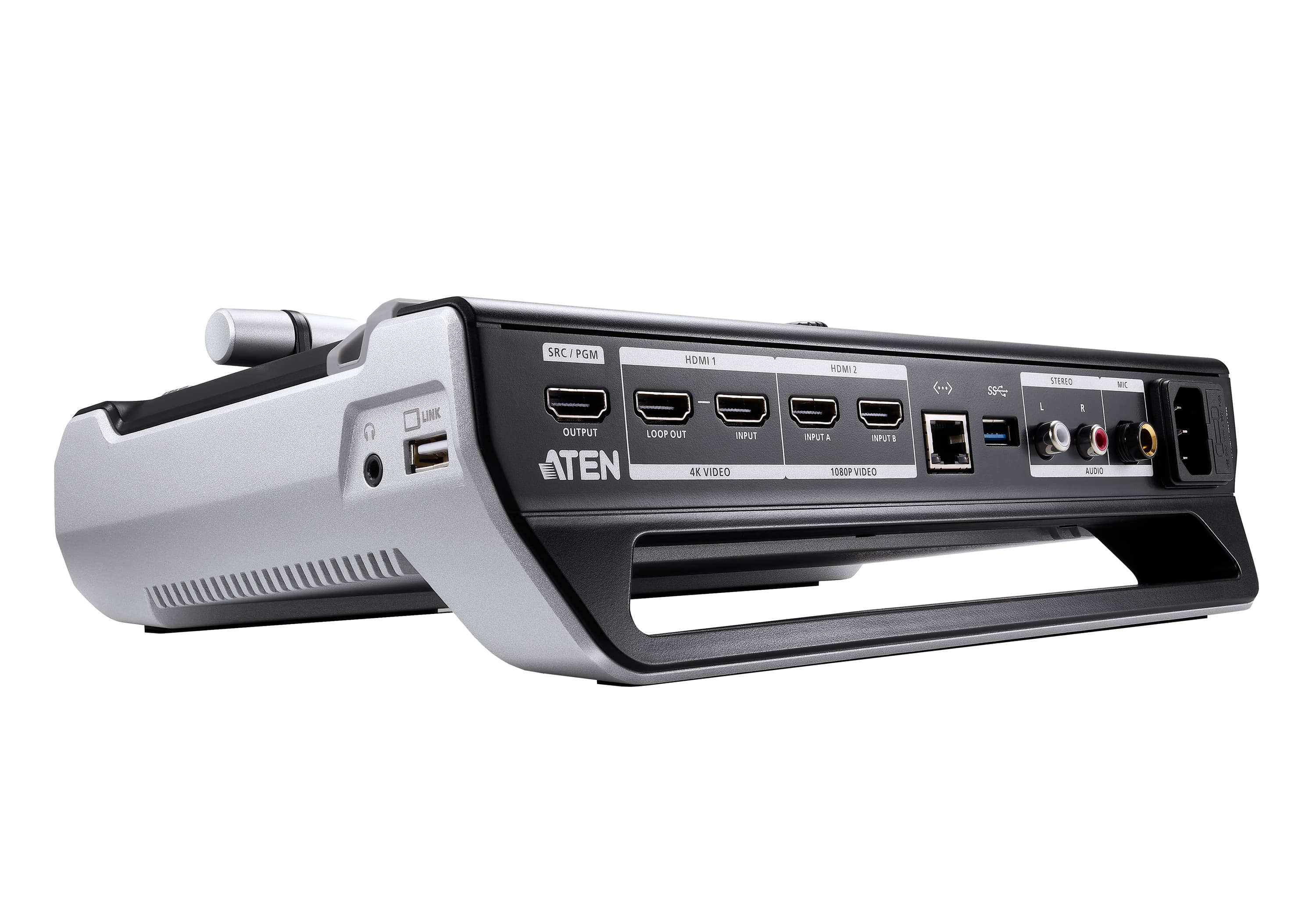

- Връзки
- 1x USB 3.1 Gen1 Type-A Female (Blue) 1x USB2.0 Type-A(White) 1x GbE LAN port
Работна среда
- Работна температура
- 0 - 40 ºC
- Температура на съхранение
- -20 – 60 ºC
- Влажност
- 0 - 80% RH, Non-Condensing
- Поддържани ОС
- System requirements for iPads: • iPad Pro (3rd gen or later) with iOS 11 and above The following iPad with iOS 11 and above (Additional Apple Lightning USB 3 Adapter is required): • iPad Pro (1st and 2nd gen) • iPad (5th gen or later) • iPad Air (3rd gen or later) • iPad Mini (5th gen or later) • OnAir App for iPadOS from Apple App Store System requirements for Android tablets: • Android 9 and above • Octa-Core ARM Cortex grade CPU and above • Minimum 2.75GB system RAM • OnAir App for Android from Google Play Store System requirements for Chromebook: • Chromebook with Android APP support • OnAir App for Android from Google Play Store System requirements for Windows PC: • A PC with Windows 10 version 17763.0 or higher, 32/64-bit • CPU: Intel® i3 Dual Core 2.8Ghz or higher • RAM: 4GB or more • OnAir App for Windows from Windows Store • UC9020 with Firmware Ver.1.6.153 and above is also required
Захранване
- Макс. входна мощност
- IEC C14, 100-240 Vac (w/250V fuse)
- Консумация
- AC110V:12.9W:80BTU/h AC220V:12.7W:79BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Физически характеристики
- Корпус
- Metal
- Тегло
- 1.89 kg ( 4.16 lb )
- Размери (Д x Ш x В)
- 28.85 x 18.99 x 9.66 cm (11.36 x 7.48 x 3.8 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
