Serial Device Server
SN3101Снет от производство
Сървър за серийни устройства с един софтуерно избираем RS-232/422/485 порт — дава достъп през IP до индустриално серийно оборудване; вградена 15KV ESD защита на порта.
Характеристики
- Provides over IP access for industrial serial devices.
- Software selectable RS-232/422/485 3-in-1 serial port
- Built-in 15KV ESD serial port protection
- Max. baud rate: 460 Kbps

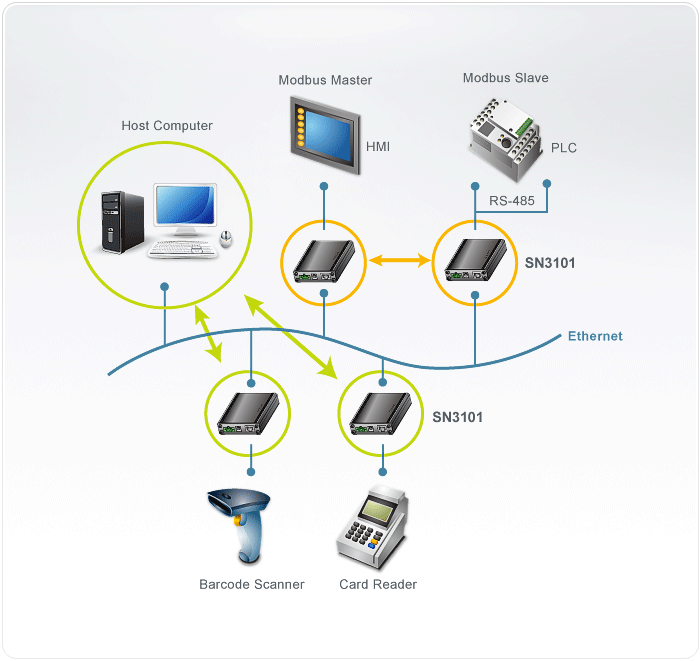

- Wide range of versatile serial operation modes - Console Management, Real COM, TCP Server, TCP Client, UDP, Modbus, Serial Tunnel and Virtual Modem
- High security via 128-bit/256-bit SSL (TLS v1.0) encryption for serial data transmission
- Redundancy support via multiple simultaneous Real COM, TCP Server, and TCP Client connections
- 64 Kbyte port buffer prevents data loss when the network is down
- Real COM driver for Windows 2000/XP/2003/Vista
- Real TTY driver for Linux, Fixed TTY driver for Unix*
- Modbus Ethernet-to-Serial support
- Modem emulation enables existing modem-based applications to make connections over IP networks
- Virtual Terminal support (VT320, VT52, VT100, VT220)
- System configuration via Web Console (HTTP/HTTPS), Telnet/SSH Console and Windows utility
- Backup/restore and firmware upgrading via Web Console(HTTP/HTTPS) and Windows utility
- Easy-to-use Windows utility (2000/XP/2003/Vista) for auto discovery, multiple device setting and monitoring
- Centralized external authentication support for RADIUS, LDAP(S), MS Active Directory
- SNMP MIB II and RS-232 MIB for network management
- SMTP and SNMP trap event notification
- Choice of power input: AC-DC adapter or DC direct * Fixed TTY Driver Supports 1) Sco Unix, Sco OpenServer; 2) Unix Ware 7, SVR 5; 3) Unix Ware 2.1, SVR 4.2; 4) QNX 4.25, QNX 6; 5) FreeBSD; 6) Solaris 10; 7) AIX 5.x; 8) HP-UX 11i

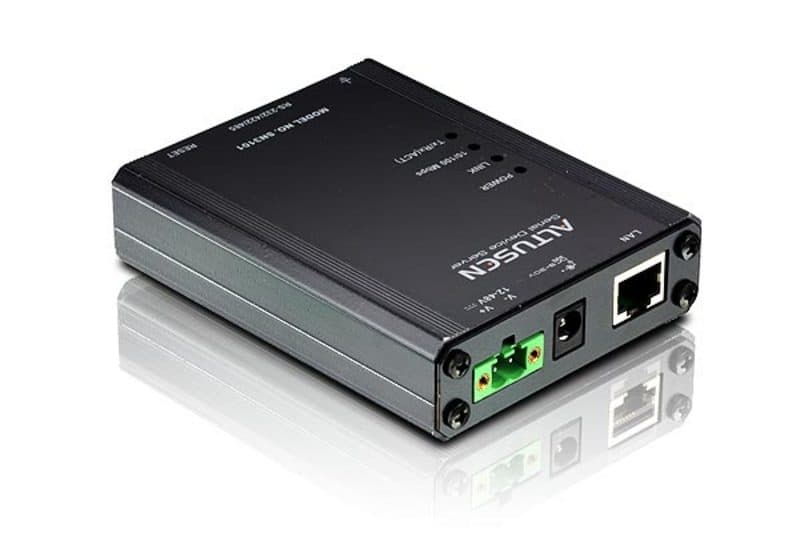

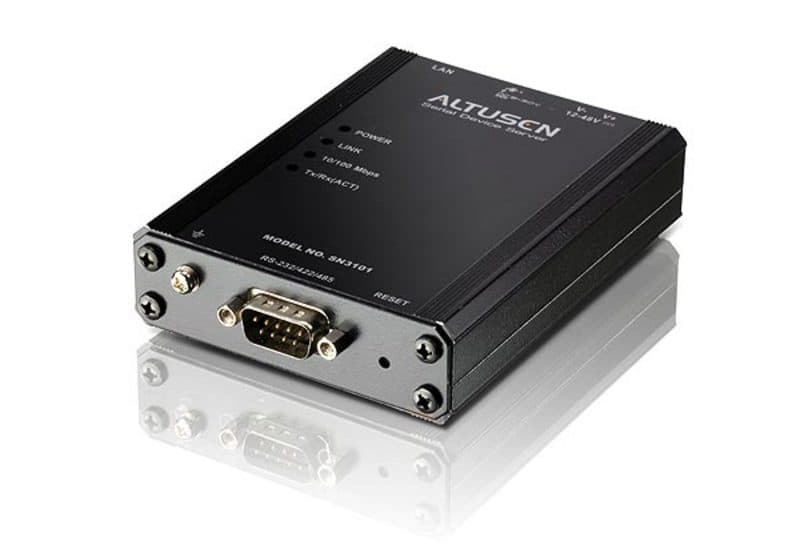

Конектори
- Сериен
- 1 x DB-9 Male (Black)
- Мрежа
- 1 x RJ-45 Female (Black)
- Захранване
- 1 x 2-pin Terminal Block (Green) 1 x DC Jack (Black)
Бутони и превключватели
- Нулиране
- 1 x Semi-recessed Pushbutton
Индикатори
- Захранване
- 1 (Green)
- Връзка
- 1 (Green)
- 10/100 Mbps
- 1 (Orange/Green)
- TxRx (ACT)
- 1 (Green)
Захранващи входове
- Захранващ адаптер
- 100-240V AC; 50/60 Hz
- Защита по захранващата линия
- 4KV burst (EFT), EN61000-4-4 2KV surge, EN61000-4-4
- Консумация
- DC9V:2.28W:11BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Интерфейси
- Сериен
- RS-232/422/485; Software selectable RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND RS-422: Tx+, Tx-, Rx+, Rx-, RTS+, RTS-, CTS+, CTS-, GND RS-485: Data+, Data-, GND Baud Rate: 460Kbps Protection: 15 KV ESD Protection for the serial port Parity: None, Even, Odd, Mark, Space Data Bits: 5, 6, 7, 8 Stop Bits: 1, 1.5, 2 Flow Control: None, XON/XOFF, RTS/CTS
- Мрежа
- 10/100BaseTX; Autosensing ARP, DHCP, DNS, HTTP, HTTPS, ICMP, IP, TCP, UDP, NTP, PPP, RADIUS, Telnet, SNMP, SNMP Trap, SMTP, SSH Protection: 1.5 KV Magnetic Isolation
- Съответствие
- FCC Class A, CE Class A, RoHS
Работна среда
- Работна температура
- 0 - 60°C
- Температура на съхранение
- -20 - 85°C
- Влажност
- 0 ~ 95% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.22 kg ( 0.48 lb )
- Размери (Д x Ш x В)
- 10.69 x 7.90 x 2.44 cm (4.21 x 3.11 x 0.96 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
