RCM Adapter Module with 60-pin and RS-232 Control for UF200SA Server
RCMA200SA
Адаптерен модул с 60-pin конектор и RS-232 контрол, който свързва сървъри UF200SA и UF300 към KVM комутатори от серията RCM за достъп от локална конзола в производствени линии.
Характеристики
- Designed for UF300 and UF200SA production line application

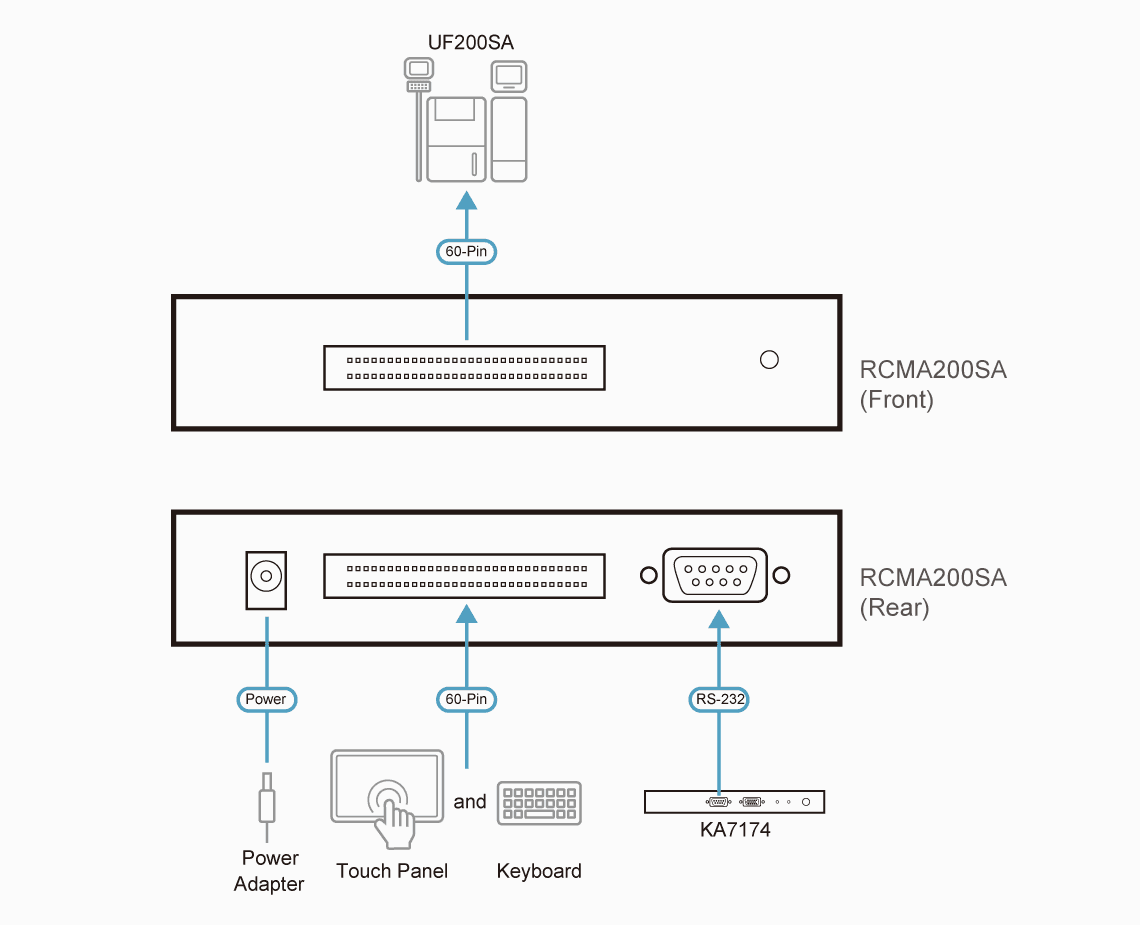

- With ATEN KA7174 and RCM series multi-port products (such as RCM816), the RCMA200SA can easily access from local console and over IP remote console
- Supports virtual keyboard for easy operation
- Firmware upgradable

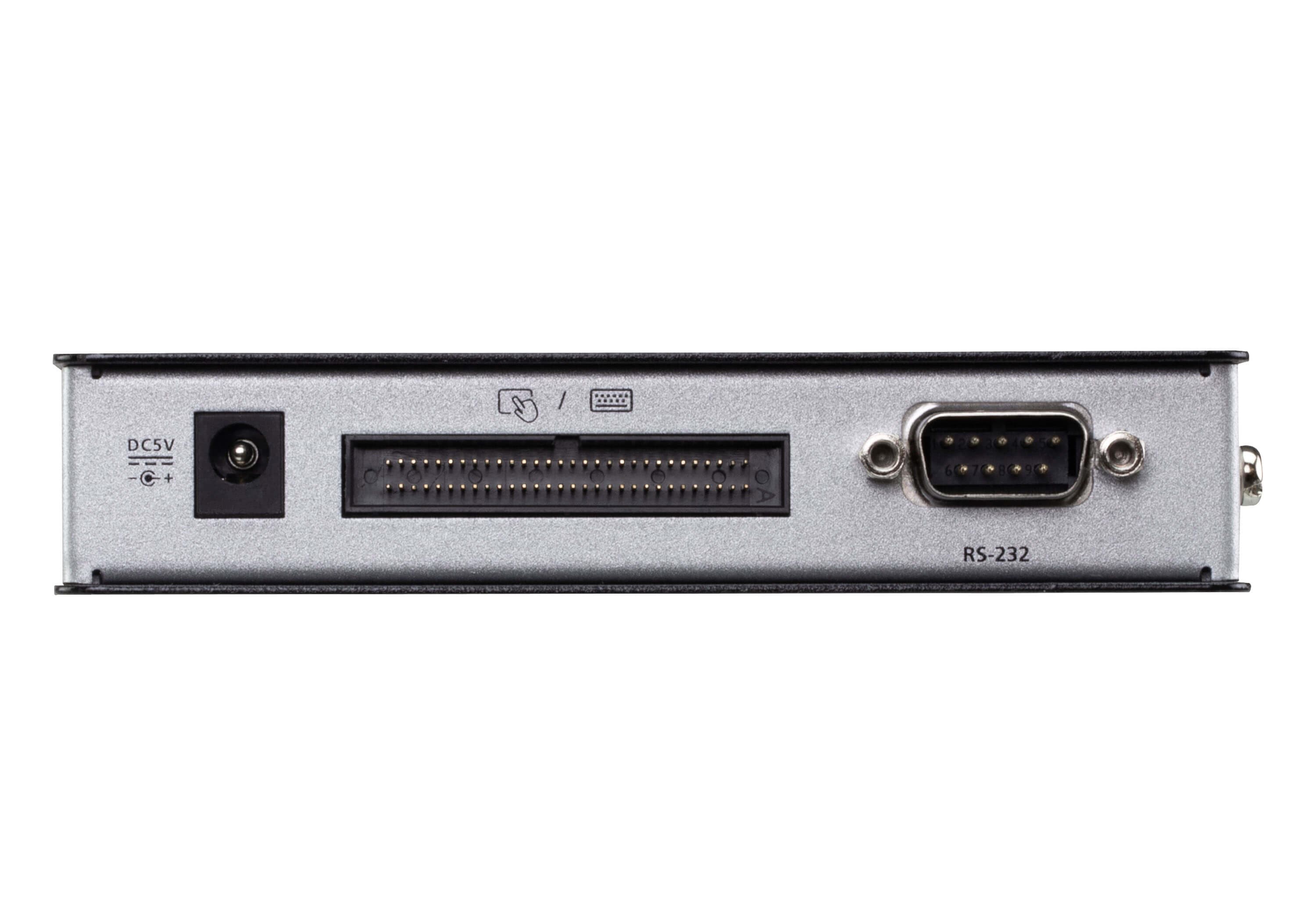

Конектори
- Конзолни портове
- 1 x Custom 60-pin Connector (Black)
- KVM портове
- 1 x Custom 60-pin Connector (Black)
- Захранване
- 1 x DC Jack (Black)
- RS-232
- 1 x DB-9 Male (Black)
Индикатори
- Захранване
- 1 (Green)
- Консумация
- DC5V:0.38W:2BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 50°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0–80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.31 kg ( 0.68 lb )
- Размери (Д x Ш x В)
- 12.80 x 8.16 x 2.50 cm (5.04 x 3.21 x 0.98 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
