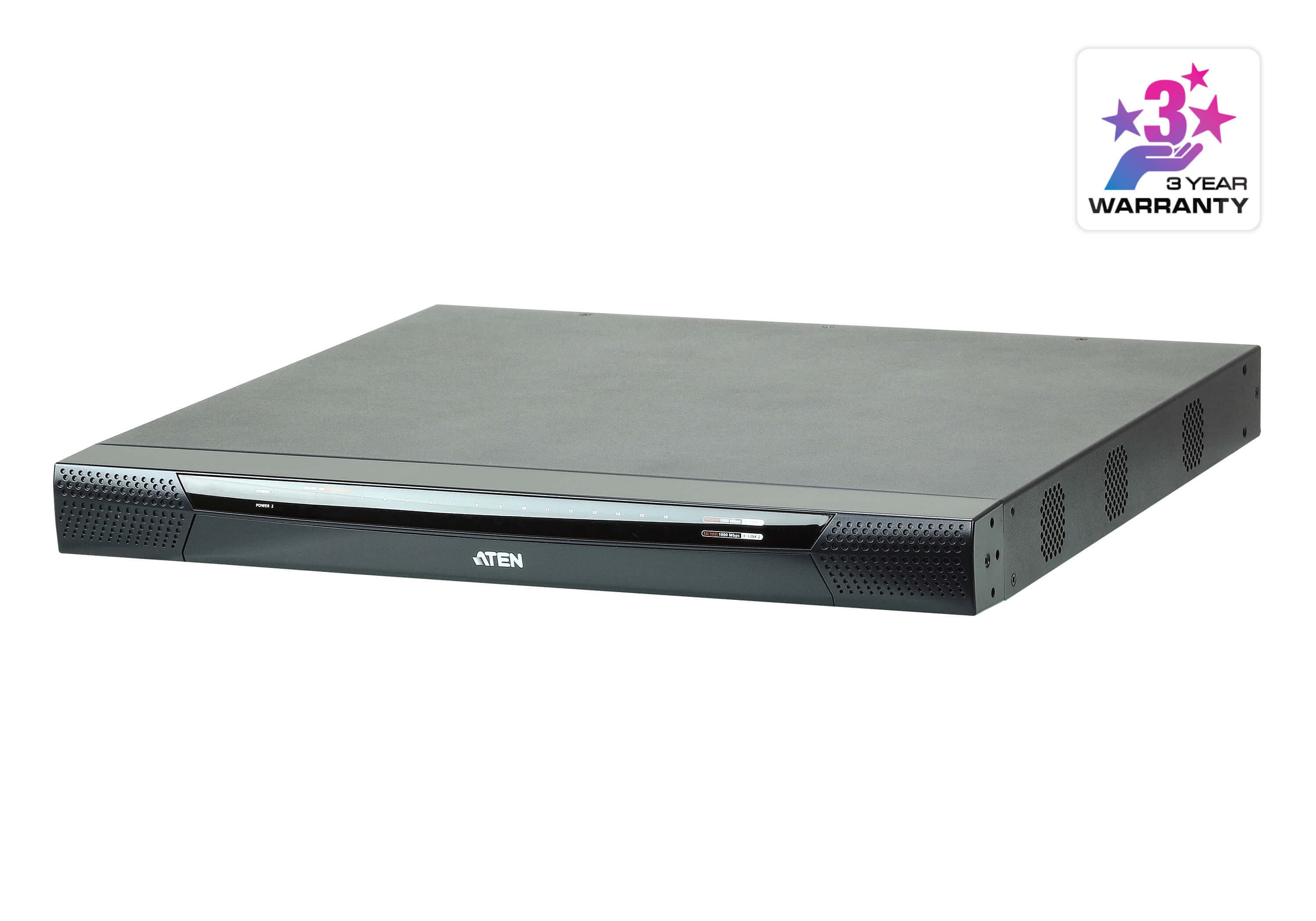

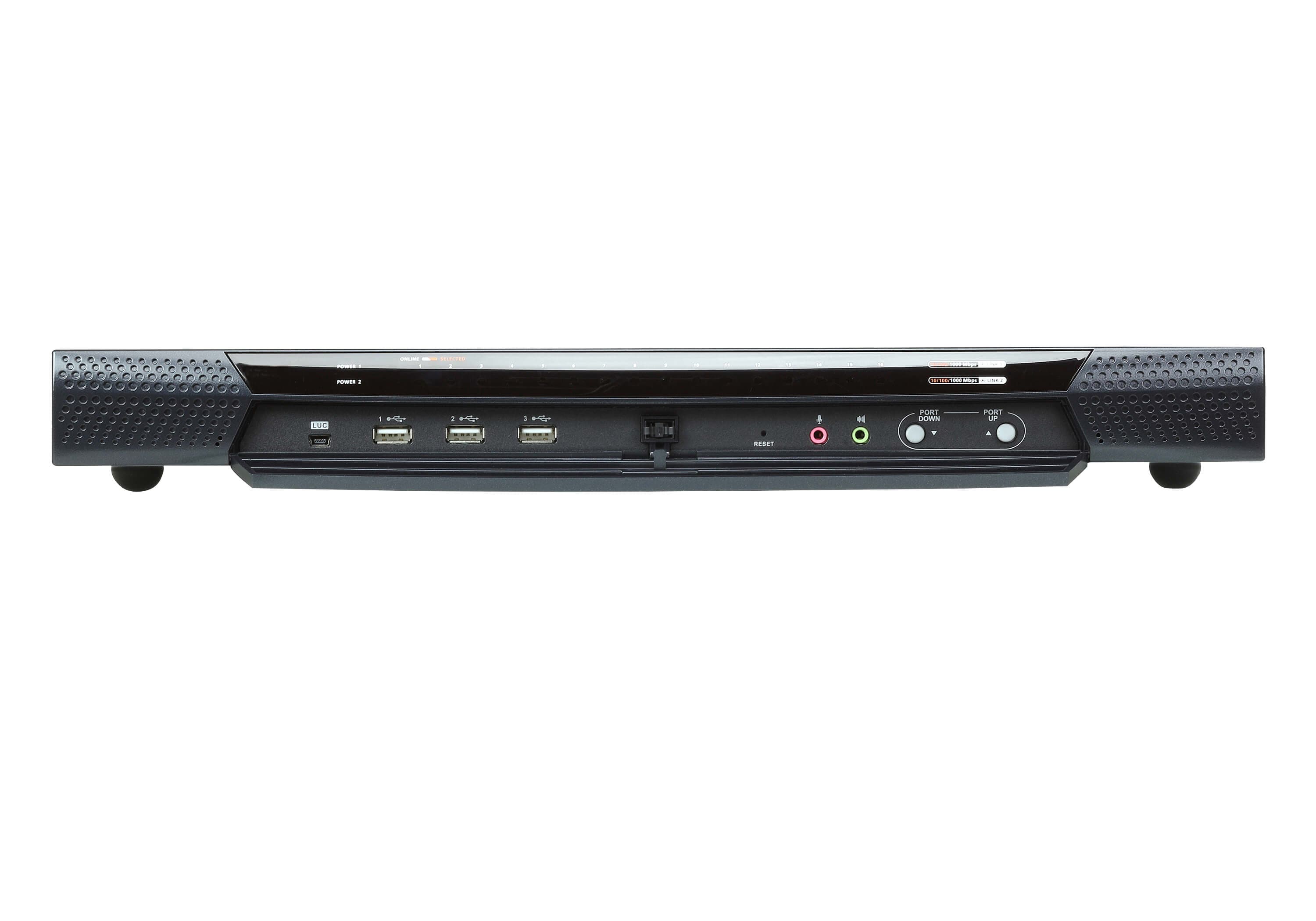

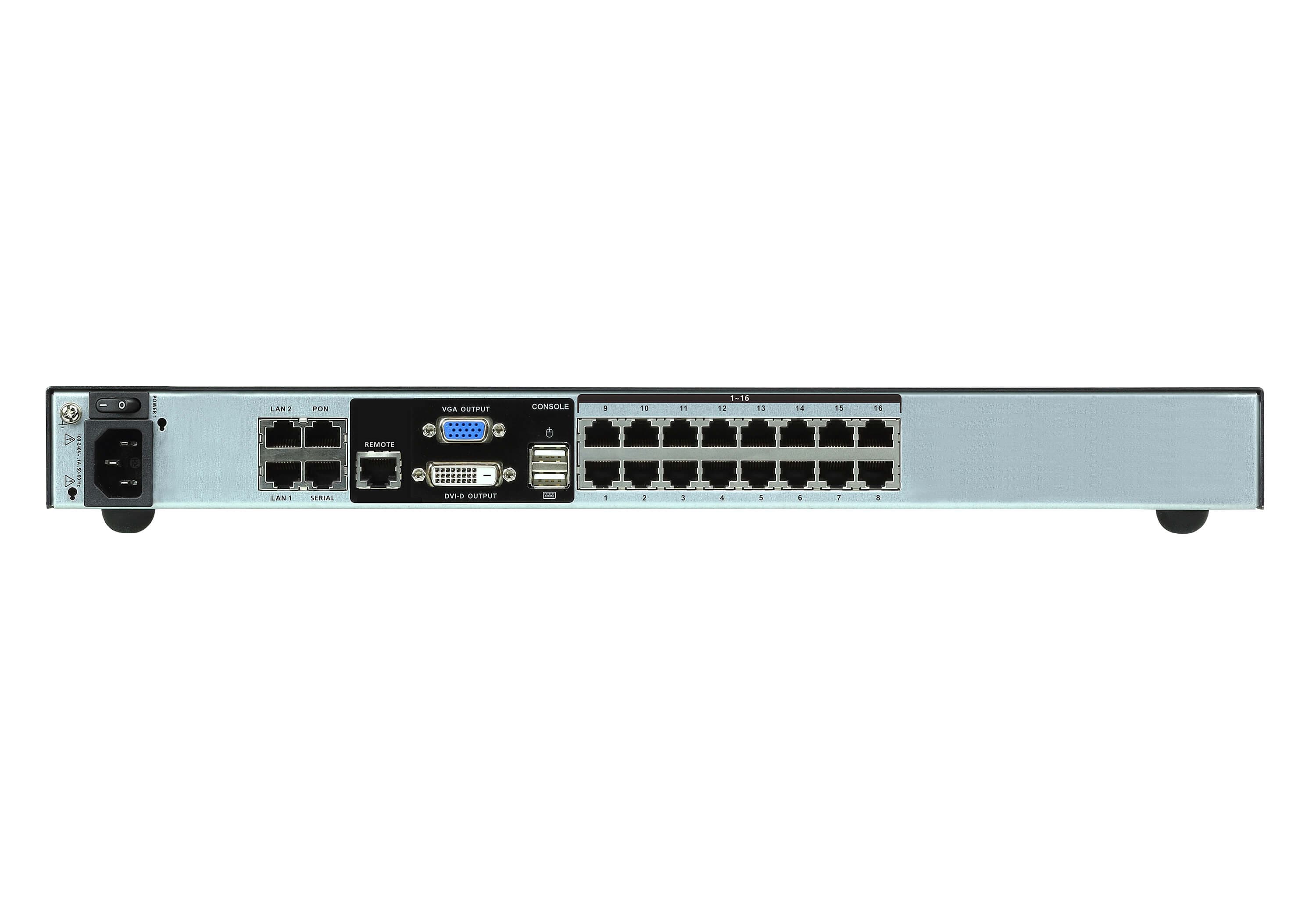

The Remote Control & Monitoring (RCM) Series of KVM over IP switches

Характеристики

• Supports ATEN Access Control Box for on-site enabling/disabling of remote control privilege
• Supports Panel Array to monitor all machines for operators with multiple RCM products
• Supports exclusive integrated RCM API (DLL) interface with various function for system integrators
• Supports OCR API (DLL) interface for optical character recognition
• High grade security – supports FIPS 140-2 level 1 security standards
• Extreme virtual media speed – 2 x faster virtual media transmission speed
• Advanced FPGA graphics processor – with an Full HD resolution of 1920 x 1200
• Simultaneously share one local console and one/two/four/eight independent connection(s) to the attached servers
• High port density – RJ-45 connectors and Cat 5e/6 cable for up to 16 ports in a 1U housing
• Laptop USB Console (LUC) – A dedicated USB port directly connects to a laptop for easy console operation
• One/two/four/eight separate buses for remote KVM over IP access
• Two 10/100/1000 Mbps NICs for redundant LAN or two IP operation
• Blade server support
• Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
• Local console provides USB keyboard and mouse support
• Supports multiplatform server environments: Windows, Mac OS X, Sun, Linux and VT100 based serial devices
• Audio enabled
• High video resolution – up to 1920 x 1200 @ 60Hz with 24-bit color depth at the switch’s local console and on remote session displays
• Monitor and control up to 16/64 computers on a single level, or control up to 512 computers in a cascade* * Cascade-compatible KVM Switches include the following: CS9134, CS9138, CS1308, CS1316, KH1508A, and KH1516A
• Up to 64 user accounts – up to 32 users simultaneously share the control
• Green IT-Fan speed varies according to temperature
• Event logging and Windows-based Log Server support
• Critical system event notification via SMTP email; SNMP trap and Syslog support
• Customizable events notification
• Firmware upgradeable
• Out-of-Band Access-Modem dial-in/dial-out/dial-back support
• Adapter ID Function: Stores port information allowing administrators to relocate the servers to different ports, without having to re-configure the adapters and switches
• Port Share Mode allows multiple users to gain access to a server simultaneously
• Power Association enables the switch’s KVM ports to be associated with ATEN PDUs power outlets for remote power management
• IPv6 capable
• ATEN Exclusive Panel Array Mode™ simultaneously monitoring for both local console operators and remote access users
• Local Console, browser-based, and AP GUIs offer a unified Multilanguage interface to minimize the user training time and increase productivity
• Multiplatform client support (Windows, Mac OS X, Linux, Sun)
• Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla, Netscape
• Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software package required
• Users can launch multiple virtual remote desktop sessions to control multiple servers during the same login
• Full-screen or sizable and scalable Virtual Remote Desktop
• Keyboard/Mouse Broadcast – keyboard and mouse inputs can be duplicated on all the attached servers
• Video syncing with the local console – local console monitor’s EDID information stored on the KVM Adapter Cables for display resolution optimization
• Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
• Supports TLS 1.2 data encryption and RSA 2048-bit certificates to secure users log in from browser
• Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES, 256-bit AES, 128-bit RC4, or Random for independent KB/Mouse, video, and virtual media data encryption
• Support for IP/MAC Filter
• Configurable user and group permissions for server access and control
• Automated CSR creation utility and third party CA certificate authentication
• Virtual media enables file applications, OS patching, software installation and diagnostic testing
• Works with USB enabled servers in operating system and BIOS level
• Support DVD/CD drives, USB mass storage devices, PC hard drives and ISO images
• Video quality can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
• Full screen video display or scalable video display
• Message Board for communication among remote users
• Mouse DynaSync-automatically synchronizes the local and remote mouse movements
• Exit Macros support
• On-screen keyboard with multi-language support
• BIOS-level access for trouble shooting
