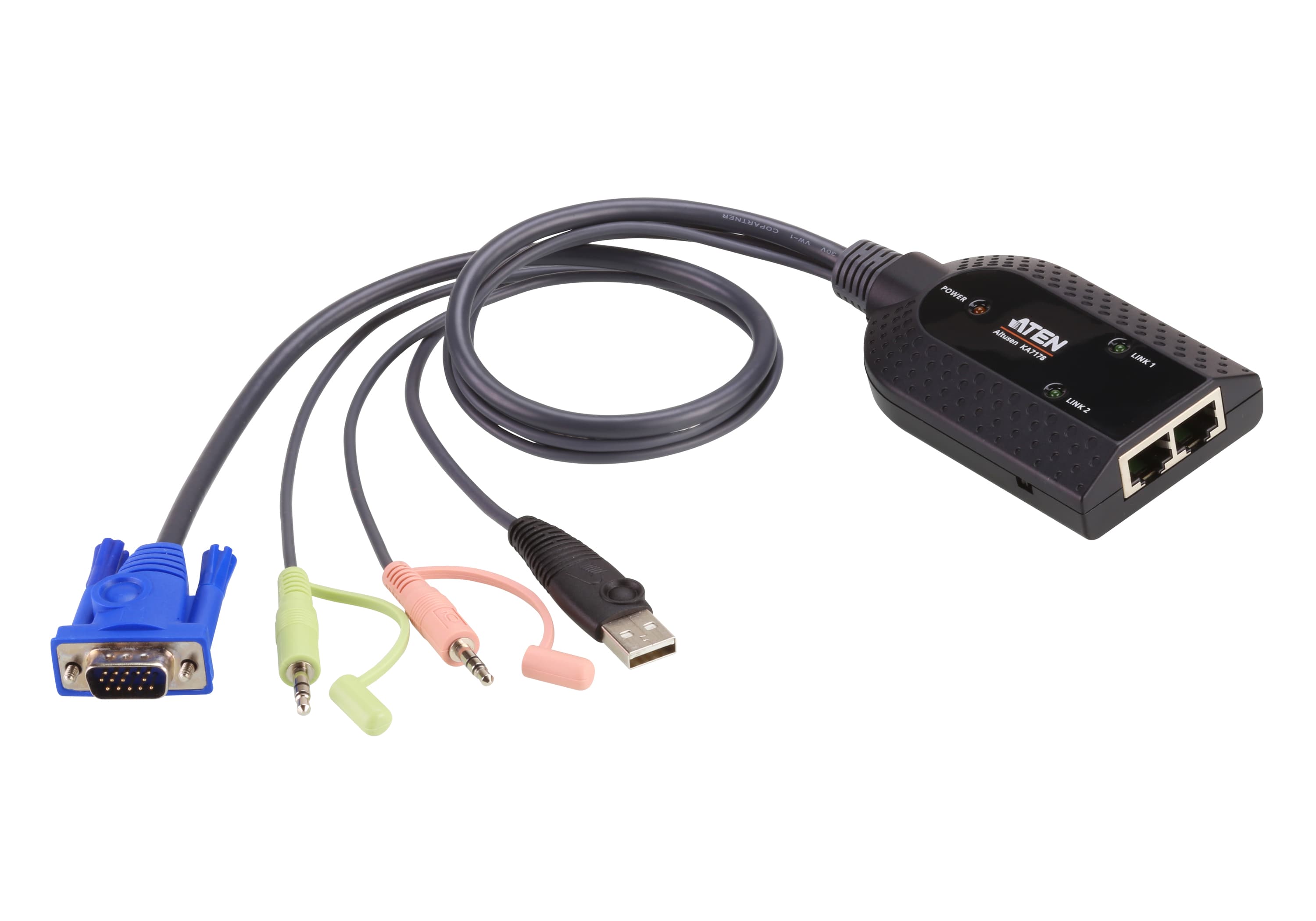

USB VGA/Audio Virtual Media KVM Adapter with Dual Output

KA7178
Заяви офертаDatasheet PDFCAD чертеж

Адаптер за връзка на VGA, USB и аудио портовете на компютъра с KVM превключвател. С два RJ-45 порта за двойна Cat 5e/6 връзка и поддръжка на Virtual Media.

Характеристики

  • Auto Signal Compensation (ASC), no DIP switch setting needed for the different distances
  • Dual Cat 5e/6 connections
  • Keyboard and mouse emulation – keeps your server functioning smoothly when it is disconnected from the switch's KVM port or relocated to different KVM port
  • Lifetime firmware upgrades
  • Superior video quality - supports resolution up to 1920 x 1200 (Reduced blanking)*
  • Built in ASIC for greater reliability and compatibility
  • Compact size
  • Virtual Media Support
  • Audio enabled * This maximum resolution may vary depending on the transmission distance. For more details, please refer to the product pages of the connected KVM switches. Both the video and audio signals might interfere while using an unshielded cable, and long-distance transmission can cause more serious interference. Generally, the interference happens when the transmission distance is over 40 meters.

Конектори

Връзка
2 x RJ-45 Female
Компютър
1 x USB Type A Male 1 x HDB-15 Male 2 x Mini Stereo Plug

Индикатори

Връзка
2 (Green)
Захранване
1 (Orange)

Работна среда

Работна температура
0–50°C
Температура на съхранение
-20–60°C

Физически характеристики

Корпус
Plastic
Тегло
0.17 kg ( 0.37 lb )
Размери (Д x Ш x В)
9.10 x 5.60 x 2.12 cm (3.58 x 2.2 x 0.83 in.)
Забележка
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
