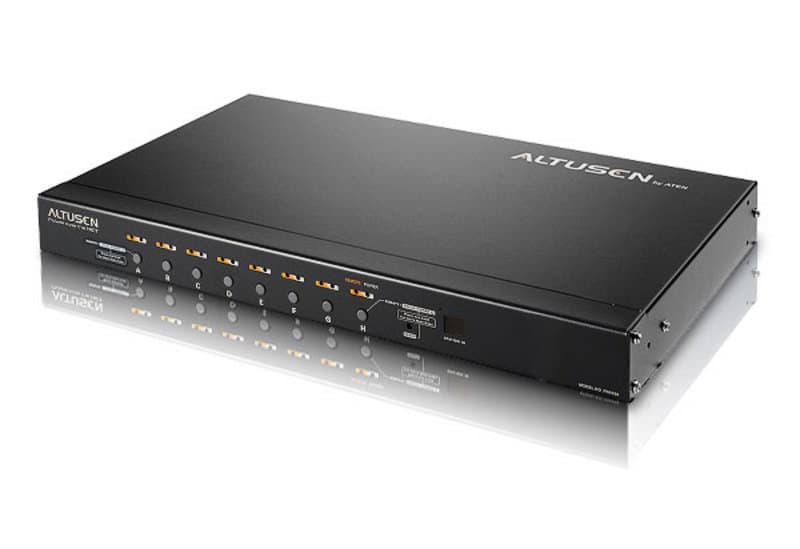

8-Port Power Over the NET™
PN9108Снет от производство
Устройство за отдалечено управление на захранването — включване, изключване и рестарт на 8 изхода IEC C13 през TCP/IP; daisy chain на до 15 допълнителни модула за общо 128 изхода.
Характеристики
- Remote power on / off / reboot control for eight outlets via TCP/IP and a built in 10/100 Ethernet port
- Local power on / off / reboot control via the PN9108’s RS-232 port to the computer’s RS-232 port

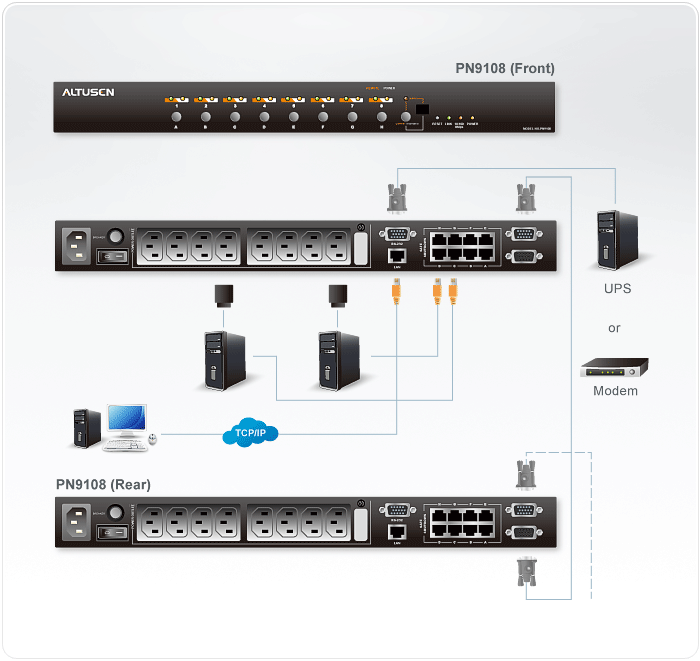

- Daisy chain up to 15 additional stations to control up to 128 outlets
- Manual switching between Local and Remote access for each port via front panel push button switches
- Individual control of each port - users can set the power on sequence and delay time for each port to allow equipment to be turned on in the proper order
- Easy setup and operation via a browser interface
- Provides three configuration/management methods: Browser; Telnet; or Console Terminal
- Safe shutdown and rebooting for Windows systems*
- Overcurrent protection and recovery for each AC port (110 V model only) plus total port overcurrent protection (both models) - remote users can monitor the outlet status via the GUI interface on their browsers
- Separate circuits for the unit’s power and the power to the devices - the power control status menu is still accessible even when an overload condition trips the devices' circuit breaker
- Cumulative load measurement - remote users can view load information in amperes via the GUI on their browsers
- On/Off scheduling - allows everything from a one-time start/shutdown, to daily, weekly, etc. starts/shutdowns at user-specified times
- Port grouping - perform the same action on a specified group of ports
- Current Display for easy current status monitoring
- Out of Band (OOB) operation via terminal or dialup connection
- Two level (Administrator and User) security
- Detachable front panel for convenient rack mounting
- UL/TUV approved
- Multiplatform support: Windows 2000/XP/Vista, Linux, Unix and FreeBSD.
- Network Interfaces: TCP/IP, PPP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, ARP, NTP, DNS, Telnet, 10Base-T/100Base-TX, auto sense, Ping *Safe shutdown and rebooting is supported if the Power Monitor utility has been installed
- For more information about KVMs which can connect to PN9108, see Compatible KVM Table
Спецификация

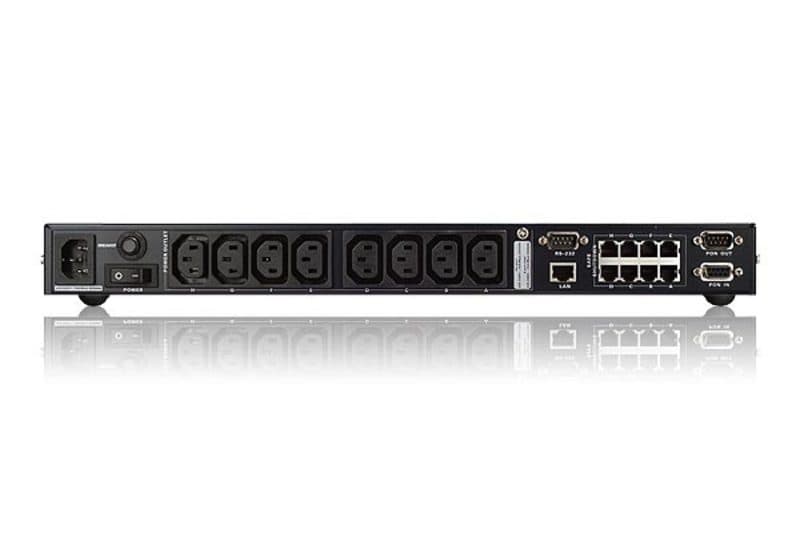

- Захранващи входове
- 1 x IEC 60320/C14 Male
- Захранващи входове
- 1 x IEC 60320/C14 Male
- Захранващи изводи
- 8 x IEC 60320/C13 Female
- Захранващи изводи
- 8 x IEC 60320/C13 Female
Конектори
- PON вход
- 1 x DB-9 Female (Black)
- PON вход
- 1 x DB-9 Female (Black)
- PON изход
- 1 x DB-9 Male (Black)
- PON изход
- 1 x DB-9 Male (Black)
- Безопасно изключване
- 8 x 6-pin Safe Shutdown Jacks Female (Black)
- Безопасно изключване
- 8 x 6-pin Safe Shutdown Jacks Female (Black)
- LAN портове
- 1 x RJ-45 Female (Black)
- LAN портове
- 1 x RJ-45 Female (Black)
- RS-232
- 1 x DB-9 Male (Black)
- RS-232
- 1 x DB-9 Male (Black)
Бутони и превключватели
- Нулиране
- 1 x Semi-Recessed Pushbutton
- Нулиране
- 1 x Semi-Recessed Pushbutton
- Захранване
- 1 x Rocker
- Захранване
- 1 x Rocker
- ID на станция
- 1 x Pushbutton
- ID на станция
- 1 x Pushbutton
- Дистанционно вкл./изкл.
- 8 x Pushbutton
- Дистанционно вкл./изкл.
- 8 x Pushbutton
- Вкл./изкл. на изводите
- 8 x Pushbutton
- Вкл./изкл. на изводите
- 8 x Pushbutton
Индикатори
- Захранващи изводи
- 8 (Orange)
- Захранващи изводи
- 8 (Orange)
- Отдалечено
- 8 (Green)
- Отдалечено
- 8 (Green)
- Връзка
- 1 (Green)
- Връзка
- 1 (Green)
- 10/100 Mbps
- 1 (Orange/Green)
- 10/100 Mbps
- 1 (Orange/Green)
- Захранване
- 1 (Blue)
- Захранване
- 1 (Blue)
- Ток
- 1 (Red)
- Ток
- 1 (Red)
- ID на станция
- 2 x 7 segment (Orange)
- ID на станция
- 2 x 7 segment (Orange)
- Макс. входна мощност
- 100-120 V AC; 50/60Hz; 12A
- Макс. входна мощност
- 220-240 V AC; 50/60Hz; 10A
- Консумация
- 120V; 60Hz; 1440W Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Консумация
- 230V; 50Hz; 2300W Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 ~ 40˚C
- Работна температура
- 0 ~ 40˚C
- Температура на съхранение
- -20 ~ 60˚C
- Температура на съхранение
- -20 ~ 60˚C
- Влажност
- 0 ~ 80% RH ,Non-condensing
- Влажност
- 0 ~ 80% RH ,Non-condensing
Физически характеристики
- Корпус
- Metal
- Корпус
- Metal
- Тегло
- 4.20 kg ( 9.25 lb )
- Тегло
- 4.20 kg ( 9.25 lb )
- Размери (Д x Ш x В)
- 43.72 x 26.31 x 4.40 cm (17.21 x 10.36 x 1.73 in.)
- Размери (Д x Ш x В)
- 43.72 x 26.31 x 4.40 cm (17.21 x 10.36 x 1.73 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
