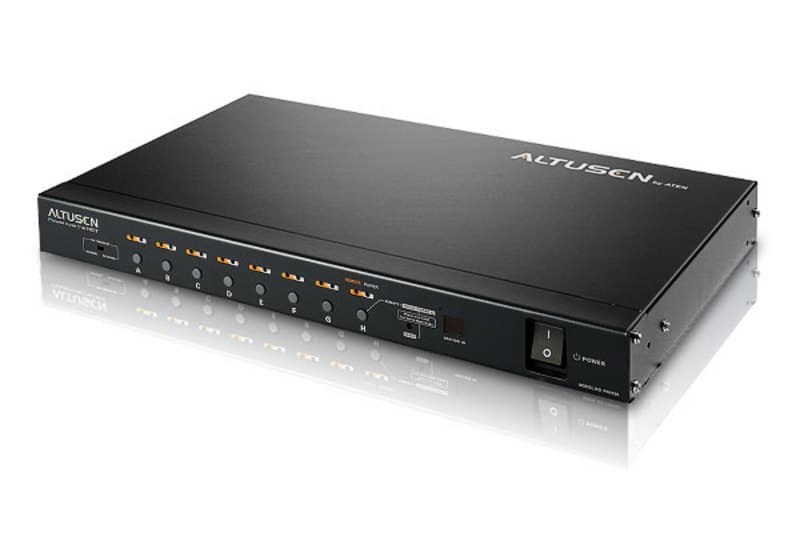

8-Port Power Over the NET™
PN0108Снет от производство
Контролер на захранването с 8 hot-pluggable изхода, управлявани поотделно със задаване на последователност и закъснение при включване; TCP/IP достъп и daisy chain до 128 изхода общо.
Характеристики
- Remote power on / off / reboot control for eight outlets via TCP/IP and a built in RS-232 PON (Power Over the NET™) port
- Local power on / off / reboot control via the PN0108's PON port to the computer's RS-232 port

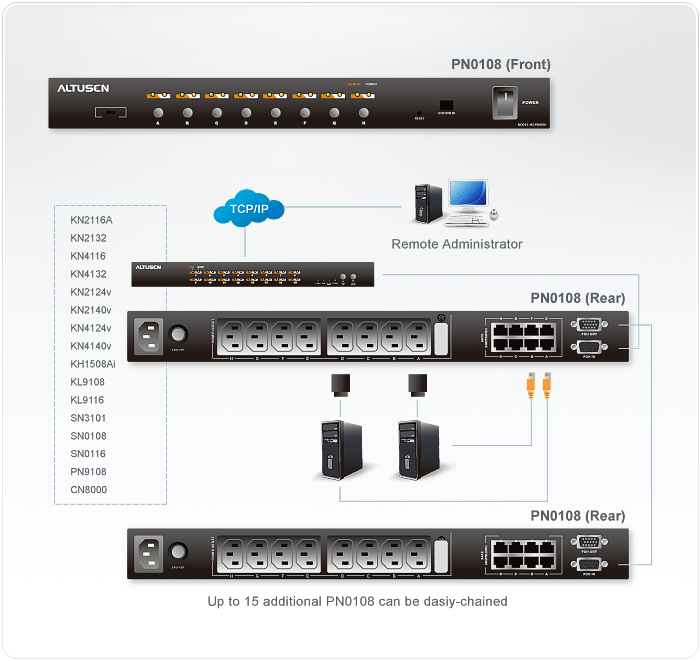

- Daisy chain up to 15 additional stations to control up to 128 outlets

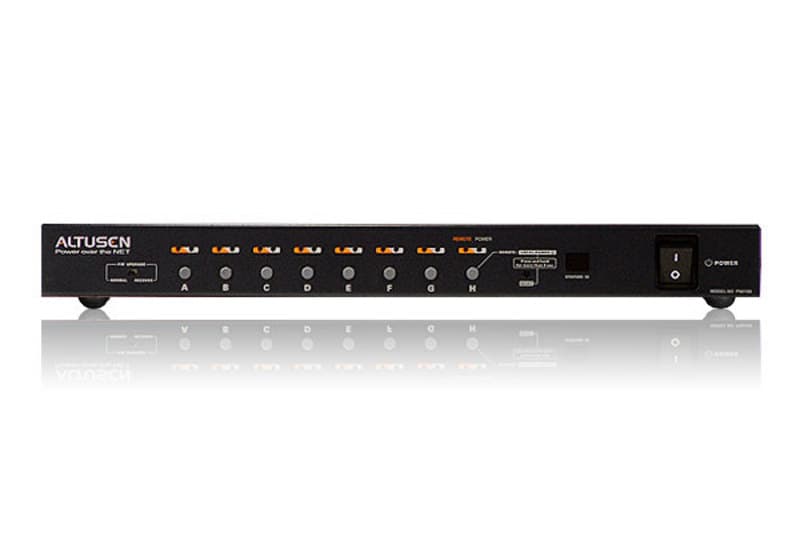

- Manual switching between Local and Remote access for each port via front panel push button switches
- Individual control of each port - users can set the power on sequence and delay time for each port to allow equipment to be turned on in the proper order
- Easy setup and operation via a GUI interface
- Provides three configuration/management methods: Browser; Telnet; or Console Terminal
- Safe shutdown and rebooting for Windows systems*
- Overcurrent protection and recovery for each AC port (110 V model only); total port overcurrent protection (both models) - remote users can monitor the outlet status via the GUI interface
- Separate circuits for the unit's power and the power to the devices - the power control status menu is still accessible even when an overcurrent condition trips the devices' circuit breaker
- On/Off scheduling - allows everything from a one-time start/shutdown, to daily, weekly, etc. starts/shutdowns at user-specified times
- Port grouping - perform the same action on a specified group of ports
- LEDs for easy status monitoring
- Two level (Administrator and User) security
- Configuration can be reset
- Firmware upgradeable - daisy chained stations receive the upgrade via the daisy chain bus
- UL/TUV approved
- Multiplatform support: Windows 2000/XP/Vista, Linux, Unix and FreeBSD. *Safe shutdown and rebooting is supported if the Power Monitor utility has been installed
- For more information about KVMs which can connect to PN0108, see Compatible KVM Table *The PN0108 is not a stand-alone unit. It must be connected to the CN6000, PN9108, SN0108 or SN0116 to access these features
Спецификация

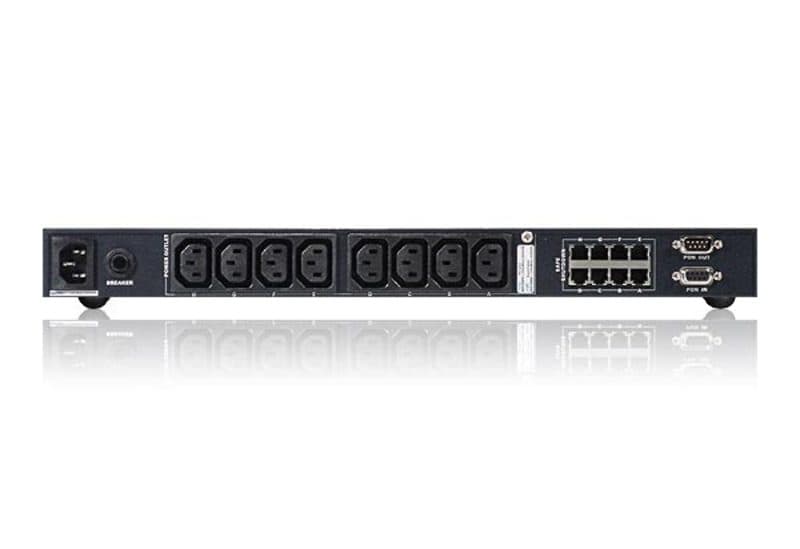

- Захранващи входове
- 1 x IEC 60320/C14 Male
- Захранващи изводи
- 8 x IEC 60320/C13 Female
Конектори
- PON вход
- 1 x DB-9 Female (Black)
- PON изход
- 1 x DB-9 Male (Black)
- Безопасно изключване
- 8 x 6-pin Safe Shutdown Jacks Female (Black)
Бутони и превключватели
- Нулиране
- 1 x Semi-Recessed Pushbutton
- Захранване
- 1 x Rocker
- Обновяване на фърмуера
- 1 x Slide
- Вкл./изкл. на изводите
- 8 x Pushbutton
- Дистанционно вкл./изкл.
- 8 x Pushbutton
Индикатори
- Захранващи изводи
- 8 (Orange)
- Отдалечено
- 8 (Green)
- ID на станция
- 2 x 7 segment (Orange)
- Макс. входна мощност
- 100 ~ 120V, 50/60Hz,12A 220 ~ 240V, 50/60Hz,10A
- Консумация
- 120V/1440W; 230V/2300W Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 ~ 40˚C
- Температура на съхранение
- -20 ~ 60˚C
- Влажност
- 0 ~ 80% RH ,Non-condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 3.70 kg ( 8.15 lb )
- Размери (Д x Ш x В)
- 43.72 x 21.83 x 4.40 cm (17.21 x 8.59 x 1.73 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
