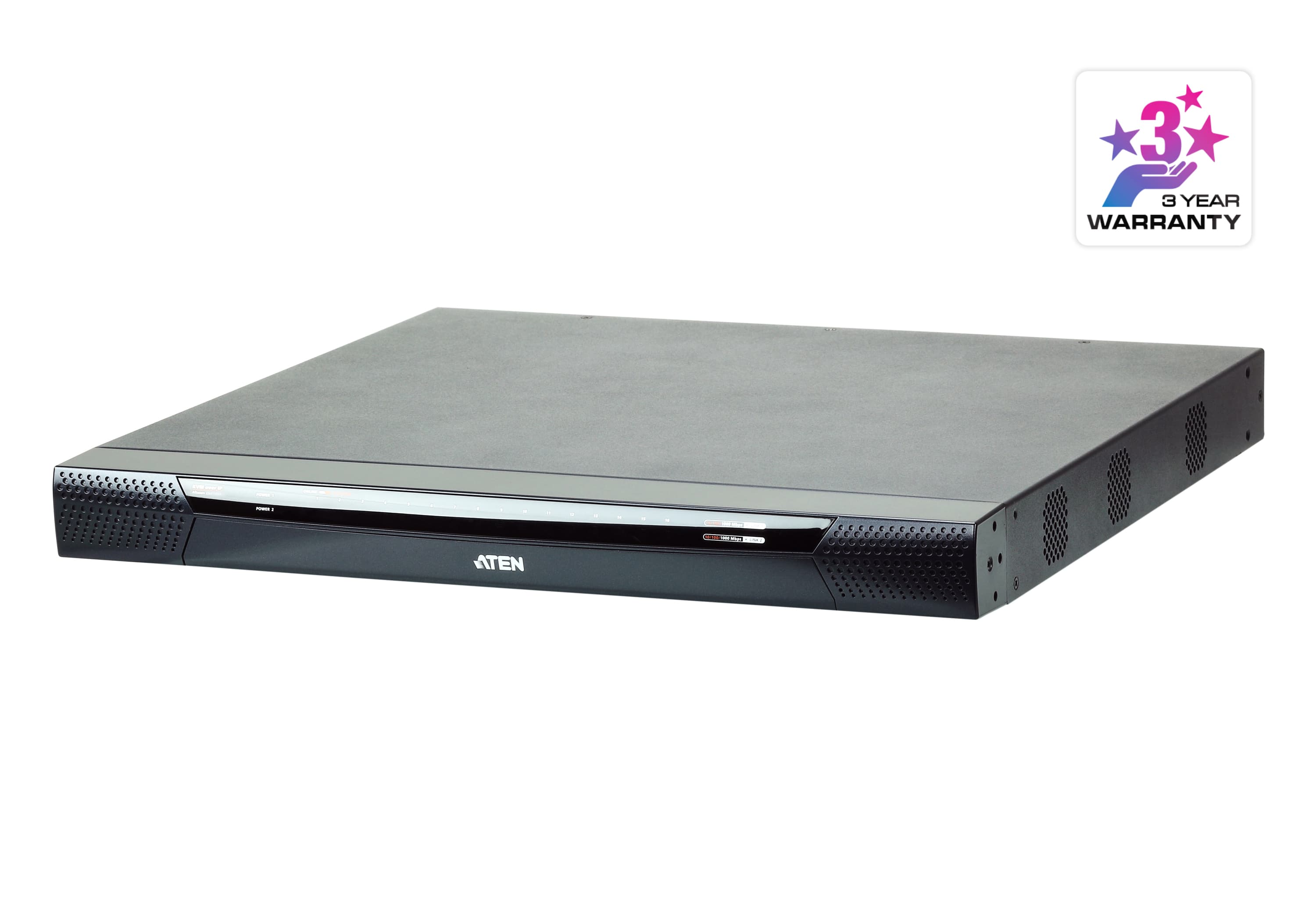

1-Local/4-Remote Access 16-Port Multi-Interface Cat 5 KVM over IP Switch
KN4116VA
Cat 5 KVM over IP превключвател за 16 компютъра, до 512 с каскадиране — една локална и 4 отдалечени сесии. Видео 1920 x 1200, сигурност FIPS 140-2 level 1.
Характеристики
- New KN Series Exclusive
- High-Grade Security – supports FIPS 140-2 level 1 security standards that use an embedded FIPS 140-2 certified OpenSSL cryptographic module (Certificate #1747, #2398, #2473)
- Extreme virtual media speed – 2 x faster virtual media transmission speed
- Advanced FPGA graphics processor – with an Full HD resolution of 1920 x 1200
- Simultaneously share one local console and four independent connections to the attached servers
- Hardware
- High port density – RJ-45 connectors and Cat 5e/6 cable for up to 16 ports
- Laptop USB Console (LUC) – A dedicated USB port directly connects to a laptop for easy Console operation
- Four separate buses for remote KVM over IP access
- Two 10/100/1000 Mbps NICs for redundant LAN or two IP operation
- Blade server support
- Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
- Local console provides USB keyboard and mouse support
- Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
- Audio enabled
- Dual Power Supply
- High video resolution – up to 1920 x 1200 @ 60Hz (50m) with 24-bit color depth at the switch’s local console and on remote session displays
- Monitor and control up up to 16 computers on a single level, or control up to 256 computers in a cascade* * Cascade-compatible KVM Switches include the following: CS9138, CS1308, CS1316, KH1508A, KH1516A and KH1532A
- Management
- Up to 64 user accounts
- Up to 32 concurrent logins
- Green IT-Fan speed varies according to temperature
- Event logging and Windows-based Log Server support
- Critical system event notification via SMTP email; SNMP trap and Syslog support
- Customizable events notification
- Firmware upgradeable
- Out-of-Band Access-Modem dial-in/dial out/dial back support
- Adapter ID Function: Stores port information allowing administrators to relocate the servers to different ports, without having to re-configure the adapters and switches
- Port Share Mode allows multiple users to gain access to a server simultaneously
- Integration with ATEN CC2000 Management Software
- Supports ATEN KVM over IP Console Station (KA8270 / KA8280 / KA8278 / KA8288)
- Integration with ATEN CCVSR Video Session Recording Software*
- Power Association enables the switch’s KVM ports to be associated with ATEN PDUs power outlets for remote power management
- IPv6 capable *supports recording computer operations accessed through the local console and via remote sessions.
- Ease-to-Use Interface
- ATEN Exclusive Panel Array Mode™ simultaneously monitoring for both local console operators and remote access users
- Local Console, browser-based, and AP GUIs offer a unified Multilanguage interface to minimize the user training time and increase productivity
- Multiplatform client support (Windows, Mac OS X, Linux, Sun)
- Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla, Netscape
- Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software package required
- Users can launch multiple virtual remote desktop sessions to control multiple servers during the same login
- Full-screen or sizable and scalable Virtual Remote Desktop
- Keyboard/Mouse Broadcast – keyboard and mouse inputs can be duplicated on all the attached servers
- Video syncing with the local console – local console monitor’s EDID information stored on the KVM Adapter Cables for display resolution optimization
- Advanced Security
- Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
- Supports TLS 1.2 data encryption and RSA 2048-bit certificates to secure users log in from browser
- Flexible encryption design allows users to choose any combination of DES, 3DES, AES, RC4, or Random for independent KB/Mouse, video, and virtual media data encryption
- Support for IP/MAC Filter
- Configurable user and group permissions for server access and control
- Automated CSR creation utility and third party CA certificate authentication
- Virtual Media
- Virtual media enables file applications, OS patching, software installation and diagnostic testing
- Works with USB enabled servers in operating system and BIOS level
- Support DVD/CD drives, USB mass storage devices, PC hard drives and ISO images
- Virtual Remote Desktop
- Video quality can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
- Full screen video display or scalable video display
- Message Board for communication among remote users
- Mouse DynaSync-automatically synchronizes the local and remote mouse movements
- Exit Macros support
- On-screen keyboard with multilanguage support
- BIOS-level access for trouble shooting
Конзолни връзки
- Локално
- 1
- Отдалечено
- 4
Връзки към компютри
- Директно
- 16
- Максимум
- 512 (via Cascade)
- Избор на порт
- Pushbuttons, Hotkeys, GUI

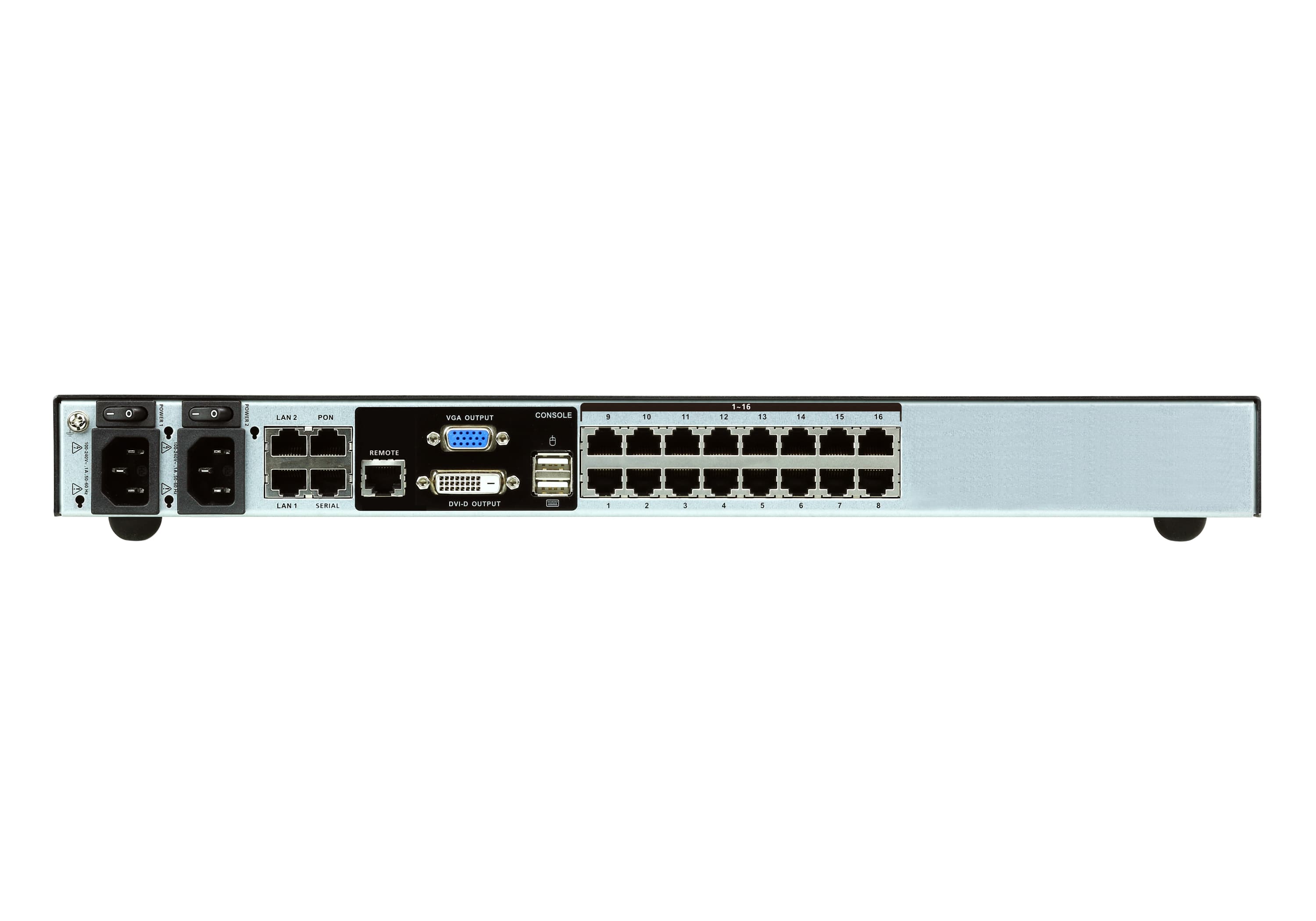

Конектори
- Конзолни портове
- 2 x USB Type-A Female (White) 1 x DVI-D Female (White) 1 x VGA HDB-15 (Blue) 1 x RJ-45 Female (Black)
- USB порт
- 3 x USB Type-A Female
- Аудио
- 2 x Audio Jack Female
- Laptop USB Console (LUC) порт
- 1 x USB Mini-B Female
- KVM портове
- 16 x RJ-45 Female
- Сериен
- 1 x RJ-45 Female
- PON
- 1 x RJ-45 Female
- LAN портове
- 2 x RJ-45 Female
- Захранване
- 2 x IEC 60320/C14
Бутони и превключватели
- Избор на порт
- 2 x Pushbuttons
- Нулиране
- 1 x Semi-recessed Pushbutton
- Захранване
- 2 x Rocker Switches
Индикатори
- Онлайн / избран
- 16 (Green/Orange)
- Връзка 10/100/1000 Mbps
- 2 (Red/Orange/Green)
- Захранване
- 2 (Blue)
Емулация
- Клавиатура / мишка
- PS/2; USB
Видео
- Локално
- 1920 x 1200 @ 60Hz
- Отдалечено
- 1920 x 1200 @ 60Hz
- Интервал на сканиране
- 1 – 255 Sec
- Макс. входна мощност
- 100–240V~ ; 50-60Hz; 1A
- Консумация
- AC110V:50.3W:272BTU/h AC220V:48.9W:266BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 40˚C
- Температура на съхранение
- -20 - 60˚C
- Влажност
- 0 - 80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 5.60 kg ( 12.33 lb )
- Размери (Д x Ш x В)
- 43.36 x 41.21 x 4.40 cm (17.07 x 16.22 x 1.73 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
