1-Local/1-Remote Access 16-Port Cat 5 KVM over IP Switch with Virtual Media (1920 x 1200)

Name: 1-Local/1-Remote Access 16-Port Cat 5 KVM over IP Switch with Virtual Media (1920 x 1200)
Brand: ATEN
SKU: KN1116VA

KN1116VA

Заяви оферта Datasheet PDF Ръководство Бърз старт CAD чертеж

KVM over IP комутатор с 16 RJ-45 порта в 1U корпус за 1 локален и 1 отдалечен достъп по отделни шини. Поддържа Virtual Media, резолюция до 1920 x 1200 и каскадиране до 256 компютъра.

Характеристики

High port density – RJ-45 connectors for up to 16 ports in a 1U housing
Laptop USB Console (LUC) – A dedicated USB port directly connects to a laptop for easy console operation
Two separate buses for one local console access and one remote over IP access
Two 10/100/1000 Mbps NICs for redundant LAN or two IP operation
Blade server support
Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
Local console provides PS/2 and USB keyboard and mouse support
Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
Audio enabled
Virtual Media support lets you map DVD-CD-ROMs and other storage media to a remote server
Dual Power Supply
High video resolution – up to 1920 x 1200 @ 60Hz for local and remote sessions1
Monitor and control up to 16 computers on a single level, or control up to 256 computers in a cascade2. Note: 1. 1920 x 1200 only supported by KA7166, KA7168, KA7169, KA7175, KA7176, KA7177, KA7170, and KA7178 2. Cascade-compatible KVM Switches include the following: CS9134, CS9138, CS1308, CS1316, KH1508A, and KH1516A
Up to 64 user accounts
UP to 32 concurrent logins
End session feature – administrators can terminate running sessions
Event logging and Windows-based Log Server support
Critical system event notification via SMTP email; SNMP trap and Syslog support
Firmware upgradeable
Out-of-Band Access – Modem dial-in/dial-out/dial-back support
Adapter ID Function: Stores port information allowing administrators to relocate the servers to different ports, without having to re-configure the adapters and switches
Port Share Mode allows multiple users to gain access to a server simultaneously
Integration with ATEN CC2000 Management Software
Integration with ATEN CCVSR Video Session Recording Software1
Supports ATEN KVM over IP Console Station (KA8270 / KA8280 / KA8278 / KA8288)
Power Association enables the switch’s KVM ports to be associated with ATEN’S PDUs power outlets for remote power management of the servers from the switch’s interface
Power Over the NET™ integration for remote power control, plus support for 3rd party power distribution units (PDUs)
Manage browser access methods (Browser, http, https)
IPv6 capable Note: 1. Supports recording computer operations accessed via remote sessions
Local Console, browser-based, and AP GUIs offer a unified multilanguage interface to minimize the user training time and increase productivity
Multiplatform client support (Windows, Mac OS X, Linux, Sun)
Multi-browser support: Edge, Chrome, Firefox, Safari, and Opera
Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software package required
Supports web-friendly KVM-over-IP access with HTML5 WebClient viewer – users can remotely access all the connected servers and PCs without Java or browser plug-in installation
Magic Panel – a special hideaway control panel with configurable function icon
Full-screen or sizable and scalable Virtual Remote Desktop
Panel Array Mode available to both local console operators and remote access users
Keyboard/Mouse Broadcast – keyboard and mouse inputs can be duplicated on all the attached servers
Video syncing with the local console – local console monitor’s EDID information stored on the KVM Adapter Cables for display resolution optimization
High-grade security – supports TLS 1.3 and an embedded FIPS 140-2 certified OpenSSL cryptographic module (Certificate #4282)
Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
Supports TLS 1.3 data encryption and RSA 2048-bit certificates to secure users log in from browser
Flexible encryption design allows users to choose any combination of DES, 3DES, AES, RC4, or Random for independent KB/Mouse, video, and virtual media data encryption
IP/MAC Filter for enhanced security protection
Configurable user and group permissions for server access and control
Automated CSR creation utility and third party CA certificate authentication
Virtual media enables file applications, OS patching, software installation and diagnostic testing
Works with USB enabled servers in operating system and BIOS level
Support DVD/CD drives, USB mass storage devices, PC hard drives and ISO images
Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
Full screen video display or scalable video display
Message Board for communication among remote users
Mouse DynaSync™ - automatically synchronizes the local and remote mouse movements
Keyboard pass through support
Exit Macros support
On-screen keyboard with multilanguage support
BIOS-level access

Конзолни връзки

Локално: 1
Отдалечено: 1

Връзки към компютри

Директно: 16
Максимум: 256 (via Cascade)
Избор на порт: Pushbuttons, GUI, Hotkeys

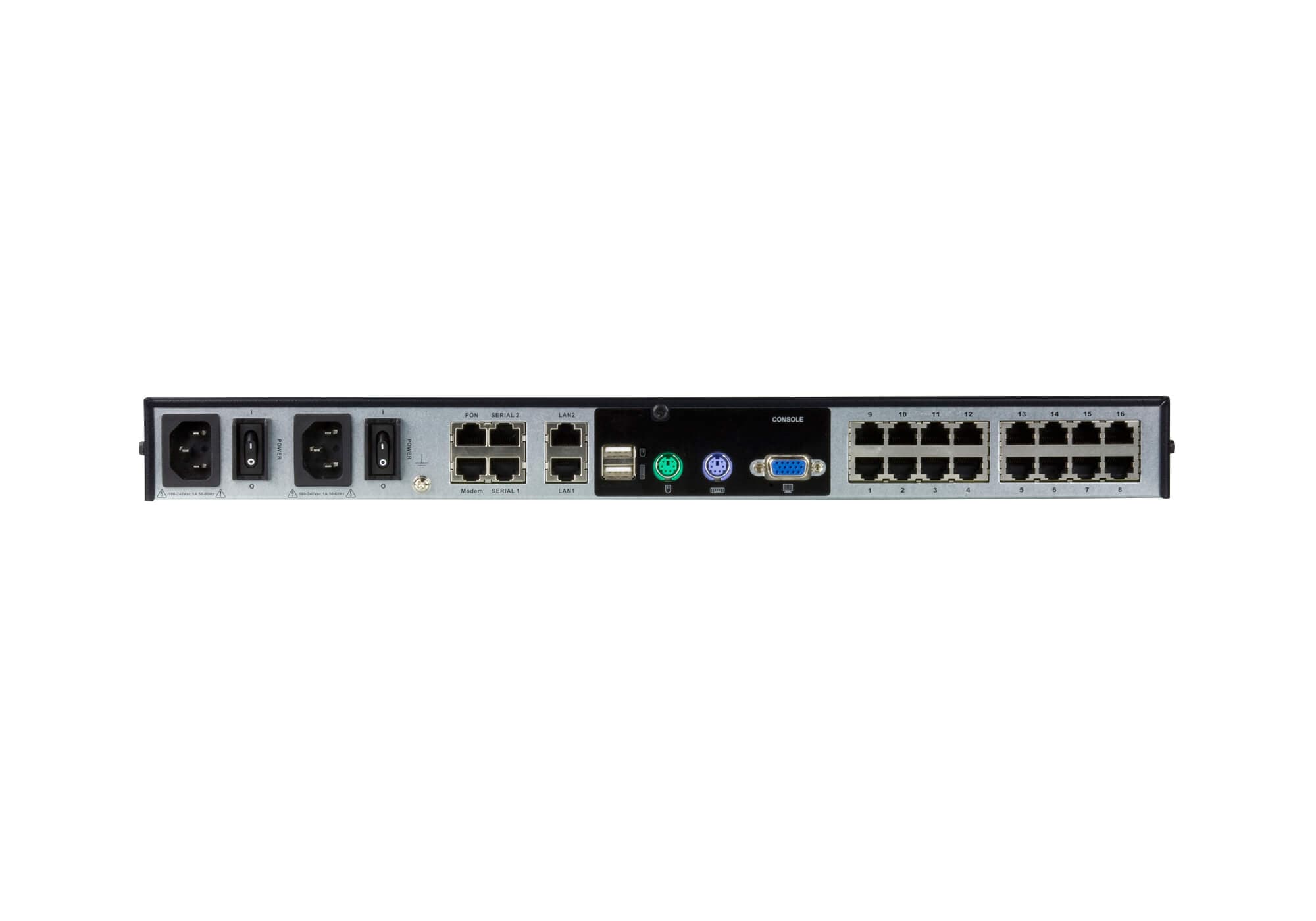

Конектори

Конзолни портове: 2 x USB Type-A Female (White) 1 x 6-pin Mini-DIN Female (Purple) 1 x 6-pin Mini-DIN Female (Green) 1 x HDB-15 Female (Blue)
USB порт: 3 x USB Type-A Female
Аудио: 2 x Audio Jack Female
Laptop USB Console (LUC) порт: 1 x USB Mini-B Female
KVM портове: 16 x RJ-45 Female
Сериен: 2 x RJ-45 Female
PON: 1 x RJ-45 Female
Модем: 1 x RJ-45 Female
LAN портове: 2 x RJ-45 Female
Захранване: 2 x IEC 60320/C14

Бутони и превключватели

Избор на порт: 2 x Pushbutton
Нулиране: 1 x Semi-recessed Pushbutton
Захранване: 2 x Rocker

Индикатори

Онлайн: 16 (Green)
Връзка 10/100/1000 Mbps: 2 (Red/Orange/Green)
Захранване: 2 (Blue)

Емулация

Клавиатура / мишка: PS/2 / USB

Видео

Локално: 1920 x 1200@60 Hz
Отдалечено: 1920 x 1200@60 Hz
Интервал на сканиране: 1-255 Seconds
Макс. входна мощност: 100-240V AC, 50-60Hz, 1A
Консумация: AC110V:14W:102BTU/h AC220V:15W:107BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Работна среда

Работна температура: 0 - 40˚C
Температура на съхранение: -20 - 60˚C
Влажност: 0 - 80% RH, Non-condensing

Физически характеристики

Корпус: Metal
Тегло: 3.56 kg ( 7.84 lb )
Размери (Д x Ш x В): 43.84 x 28.78 x 4.40 cm (17.26 x 11.33 x 1.73 in.)
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
