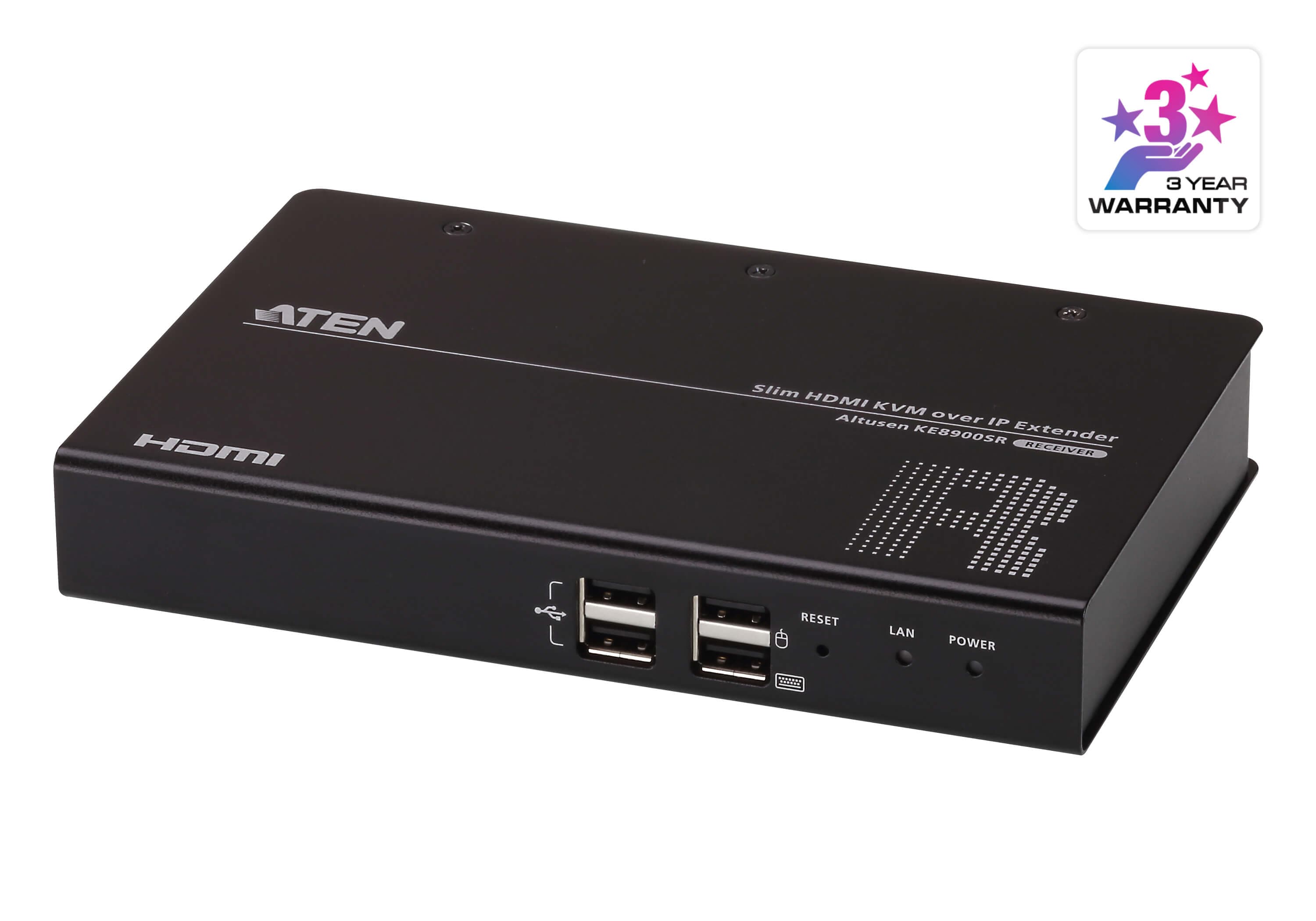

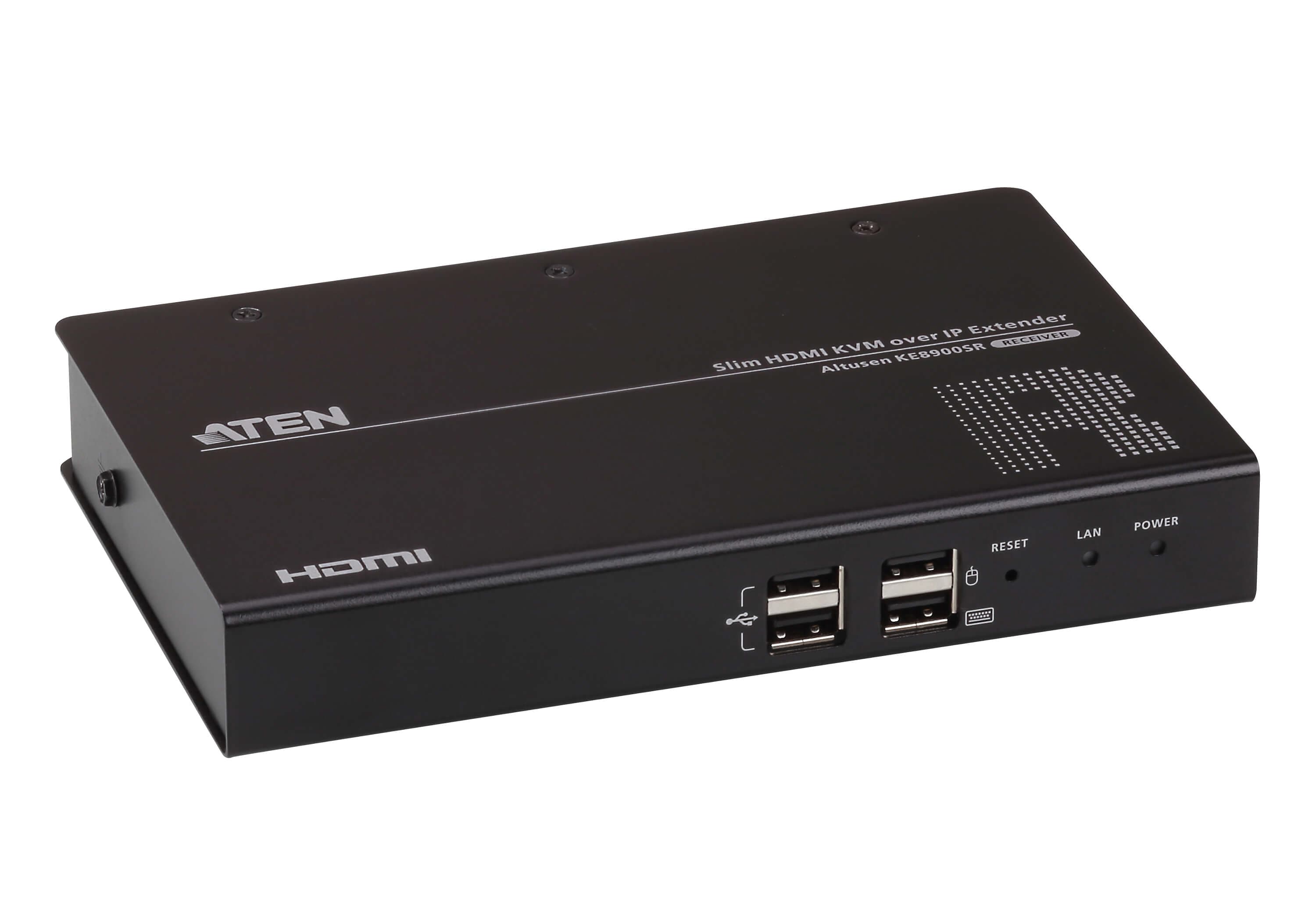

Slim HDMI Single Display KVM over IP Receiver
KE8900SR
Компактен приемник за KVM over IP с HDMI изход до 1920 x 1200 @ 60 Hz и USB портове. Поддържа ATEN Matrix Link за матрични инсталации и превключване между сървъри за 0.3 s.
Характеристики
- Visually lossless video compression up to 1920 x 1200 @ 60Hz with low latency; 8-bit RGB (24-bit total color)
- ATEN Matrix Link– allows users to instantly link transmitters and receivers to perform real-time port and profile switching on an iPad
- Fast Switching – 0.3-second switching between transmitter-connected servers of any resolution
- Flexible connections – allows multiple extender and matrix connections for multi-display installations and video wall applications
- “Push” and “Pull”– share content instantly by just one click
- Boundless Switching – simply moves the mouse cursor across screen borders to switch between different receivers (Rx)
- Video Walls – creates multiple video walls with up to 12 x 12 (144 displays max.) in each layout
- Advanced Scheduling – improves efficiency and saves costs by allowing connections to be set based on time and date
- Virtual Transmitter – independently streams video, audio, USB, and serial sources from different Tx
- Internal and external authentication support – LDAP, Active Directory, RADIUS and TACACS+
- Advanced User Authorization Settings – administrators can set up to four access modes on Tx devices for collaboration or prevention of interference among users
- Configurable user and group permissions for access and control of the KVM over IP extenders
- Tx grouping of up to 4 sets of KVM over IP transmitters to support multi-display applications Note: *These advanced functions are supported when the KVM over IP extenders are managed by CCKM
- Works without CCKM centralized management
- Fast Switching – switching between different remote video resolutions on a local display within 0.3 second (OSD available only with Slim Matrix Mode)
- Hotkey switch ports – supports to switch to the other transmitters by pre-defined hotkeys Ctrl + F1 ~ Ctrl + F12
- Supports primary server reconnect notification
- The housing meets IEC 60945 standards for maritime control room use and has passed environmental tests
- High speed USB Storage Transmission support
- Compliant with HDMI
- Auto-MDIX – automatically detects cable type
- Built-in 8 KV / 15 KV ESD protection and 1 KV surge protection
- Slim, light and fanless design for silent operations that are energy efficient
- Support connection via Gigabit Ethernet port
- Wall mounting, and rack mounting available
- OSD (On Screen Display) – enables configuration of both Tx / Rx devices on the receiver’s display screen
- EDID Expert™ – selects optimum EDID settings to prevent video compatibility issue caused by different monitors
- Video Compression Level – allows users to increase/decrease the video quality to adjust for appropriate network bandwidth
- Command Line Interface – administrators can control all KVM over IP extenders via RS-232 or Telnet by issuing commands or 3rd-party application
- RS-232 serial ports – allow you to connect to a serial terminal for text menu, CLI, or serial devices such as touch screens and barcode scanners
- Compatible with all KE extenders
- Dedicated LAN port for KE direct connections – can be isolated from the corporate network
- Secure data transmission – AES encryption to secure Video/Keyboard/Mouse/Data transmission
- Supports industry standard Transport Layer Security (TLS) protocol
- USB Storage Transmission mode enhances data transmission performance, ideally for file transfers, OS patching, software installations and diagnostic testing
- Support USB 2.0 DVD/CD drives, USB mass storage devices, PC hard drives and ISO images
- Support Smart Card/CAC Reader

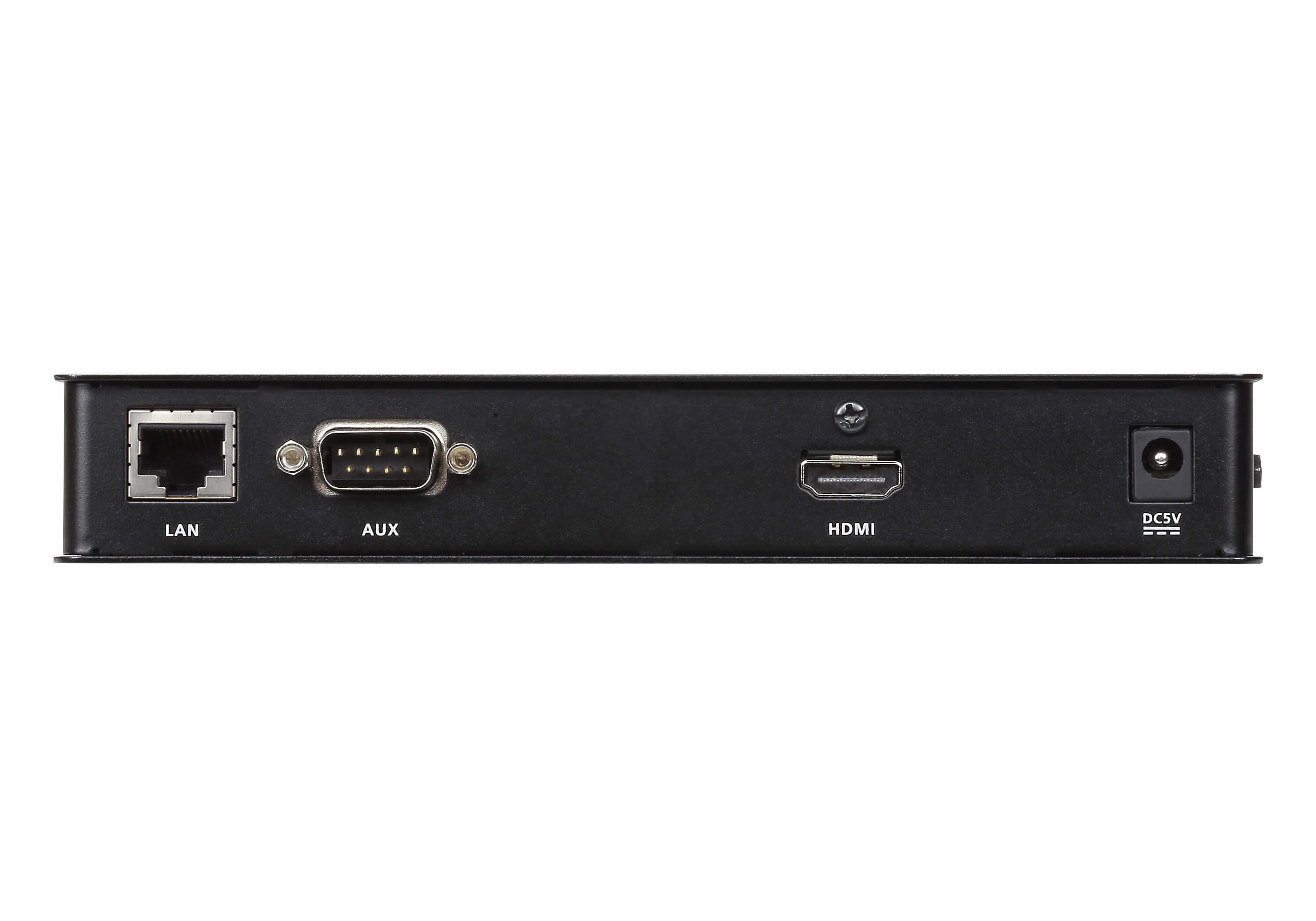

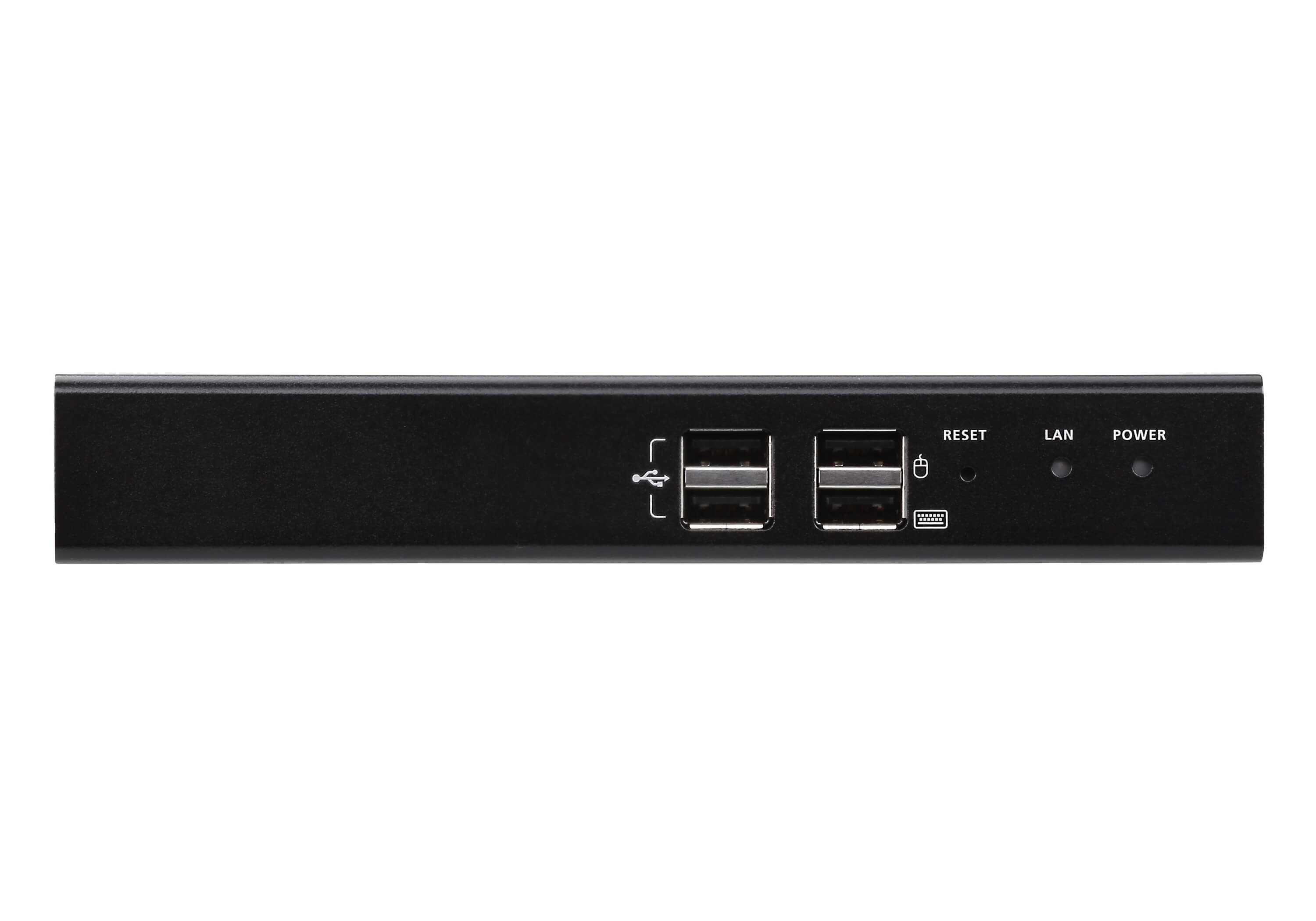

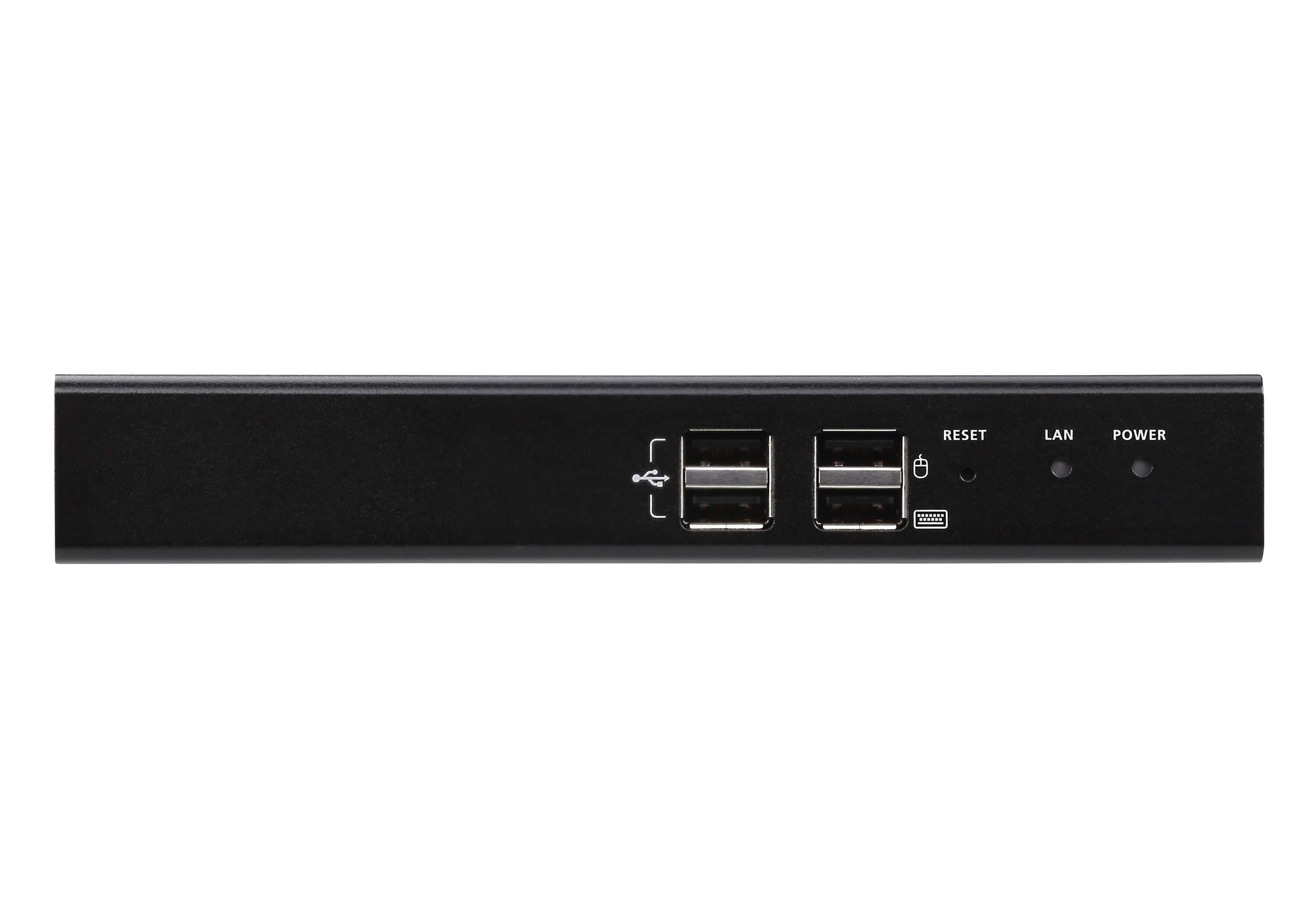

Конектори
- Виртуална медия
- 2 x USB Type A Female (Black)
- Конзолни портове
- 2 x USB Type A Female (Black) 1 x HDMI Female (Black) 1 x DB-9 Male (Black)
- Захранване
- 1 x DC Jack (Black)
- LAN портове
- 1 x RJ-45 (Black)
Бутони и превключватели
- Нулиране
- 1 x Semi-recessed Pushbutton
Индикатори
- 10/100/1000 Mbps
- 1 (10: Orange / 100: Orange & Green / 1000: Green)
- Захранване
- 1 (Blue)
Емулация
- Клавиатура / мишка
- USB
- Консумация
- DC5V:4.35W:46BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Видео резолюция
- Up to 1920 x 1200 @ 60Hz
- Закъснение
- < 48ms
Работна среда
- Работна температура
- 0–50°C
- Температура на съхранение
- -20–60°C
- Влажност
- 0–95% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.64 kg ( 1.41 lb )
- Размери (Д x Ш x В)
- 18.20 x 11.75 x 2.87 cm (7.17 x 4.63 x 1.13 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
