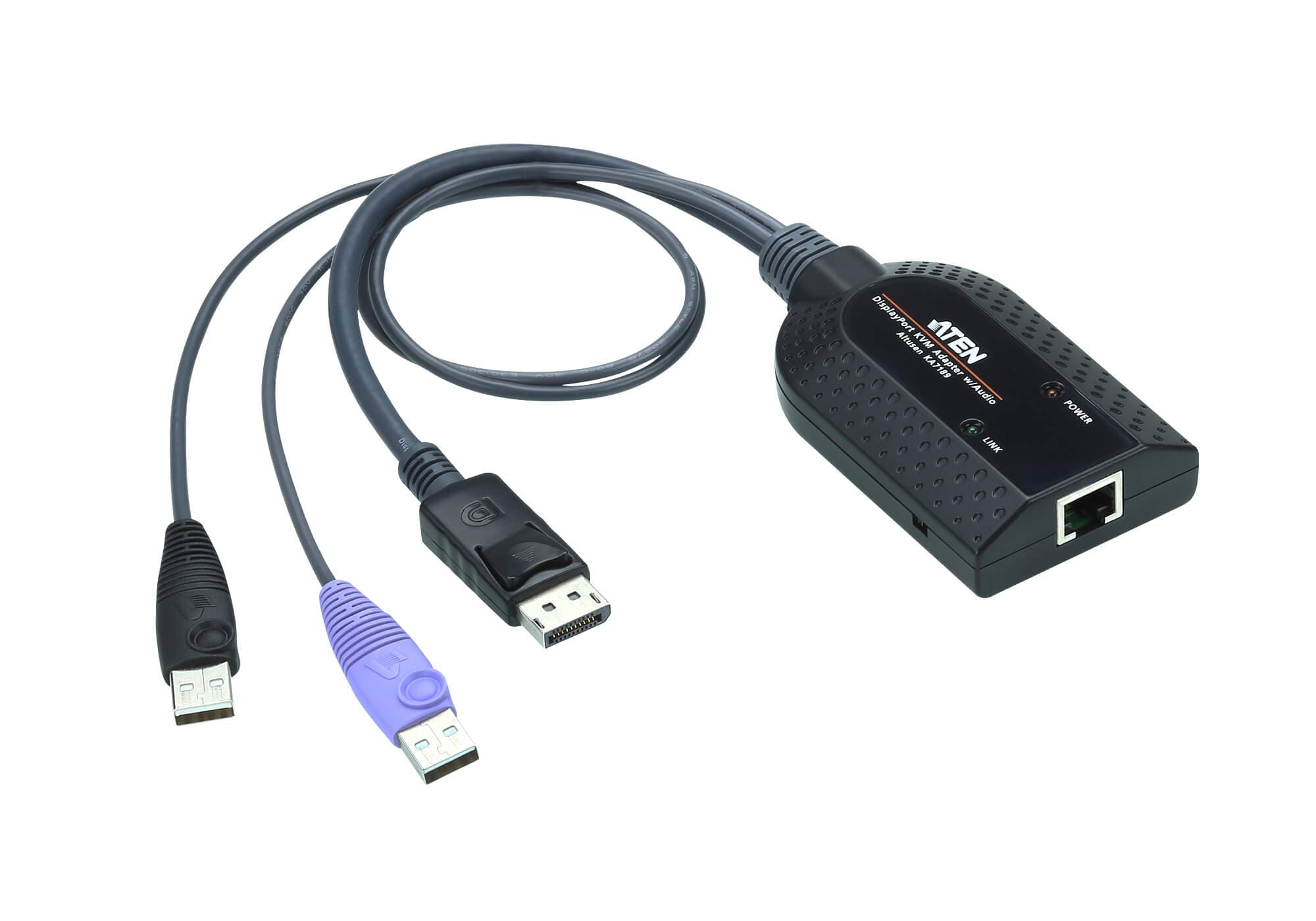

USB DisplayPort Virtual Media KVM Adapter (Support Smart Card Reader and Audio De-Embedder)
KA7189
KVM адаптер, който свързва DisplayPort и USB портовете на сървър към KVM комутатор по RJ-45. Поддържа Virtual Media, четец на смарт карти, Audio De-Embedder и автоматична компенсация на сигнала (ASC).
Характеристики

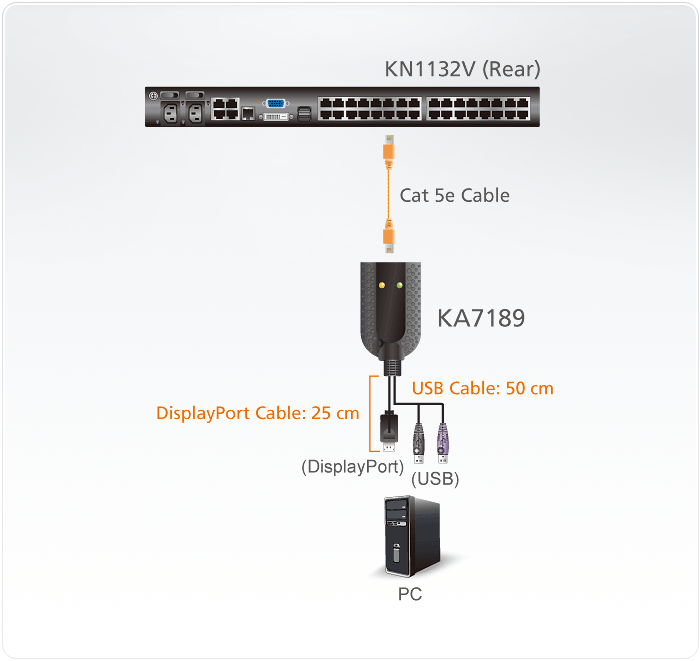

- Connects a KVM switch to the DisplayPort video and USB ports of a target computer*
- Supports Audio De-Embedder
- Auto Signal Compensation (ASC), no DIP switch setting needed for different distances
- Keyboard and mouse emulation – keeps your server functioning smoothly when it’s disconnected from the switch's KVM port or is relocated to a different KVM port
- Virtual Media Support**
- Smart Card / CAC Reader Support**
- Superior video quality - supports resolution up to 1920 x 1200 (Reduced blanking)***
- Built in ASIC for greater reliability and compatibility
- Compact size
- Firmware upgradeable Note: *Both USB connectors must be plugged into USB ports on the target computer for the KA7189 to receive sufficient power. **Please refer to the webpage of KVM Adapter Cable Compatibility List (https://www.aten.com/global/en/products/kvmtool/kacablecompatibility/) for information about compatible KVM Switches. ***This maximum resolution may vary depending on the transmission distance. For more details, please refer to the product pages of the connected KVM switches. Both the video and audio signals might interfere while using an unshielded cable, and long-distance transmission can cause more serious interference. Generally, the interference happens when the transmission distance is over 40 meters.
Конектори
- Връзка
- 1 x RJ-45 Female
- Компютър
- 2 x USB Type A Male 1 x DisplayPort Male
Индикатори
- Връзка
- 1 (Green)
- Захранване
- 1 (Orange)
Работна среда
- Работна температура
- 0-50°C
- Температура на съхранение
- -20–60°C
Физически характеристики
- Корпус
- Plastic
- Тегло
- 0.11 kg ( 0.24 lb )
- Размери (Д x Ш x В)
- 9.10 x 5.60 x 2.14 cm (3.58 x 2.2 x 0.84 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
