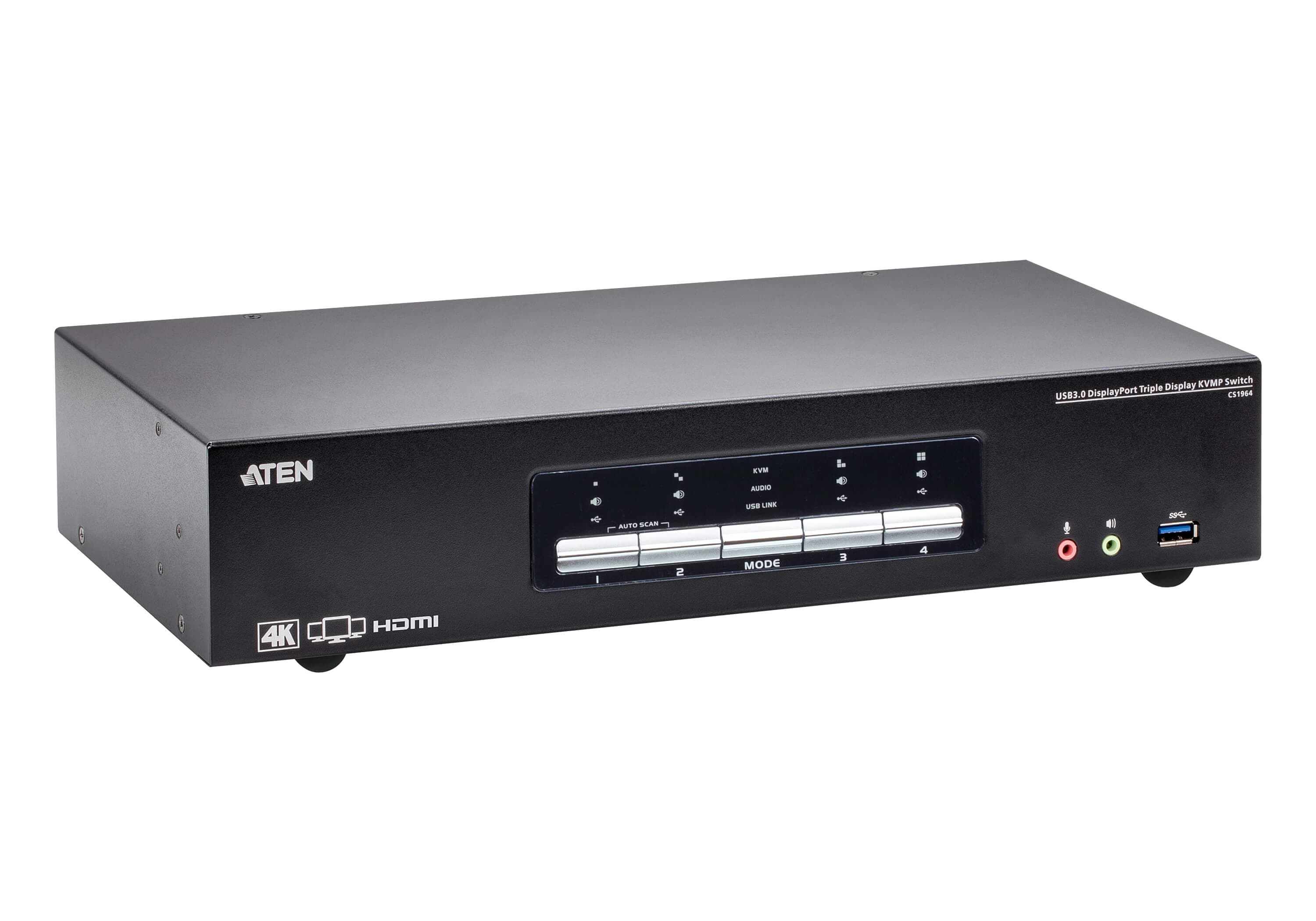

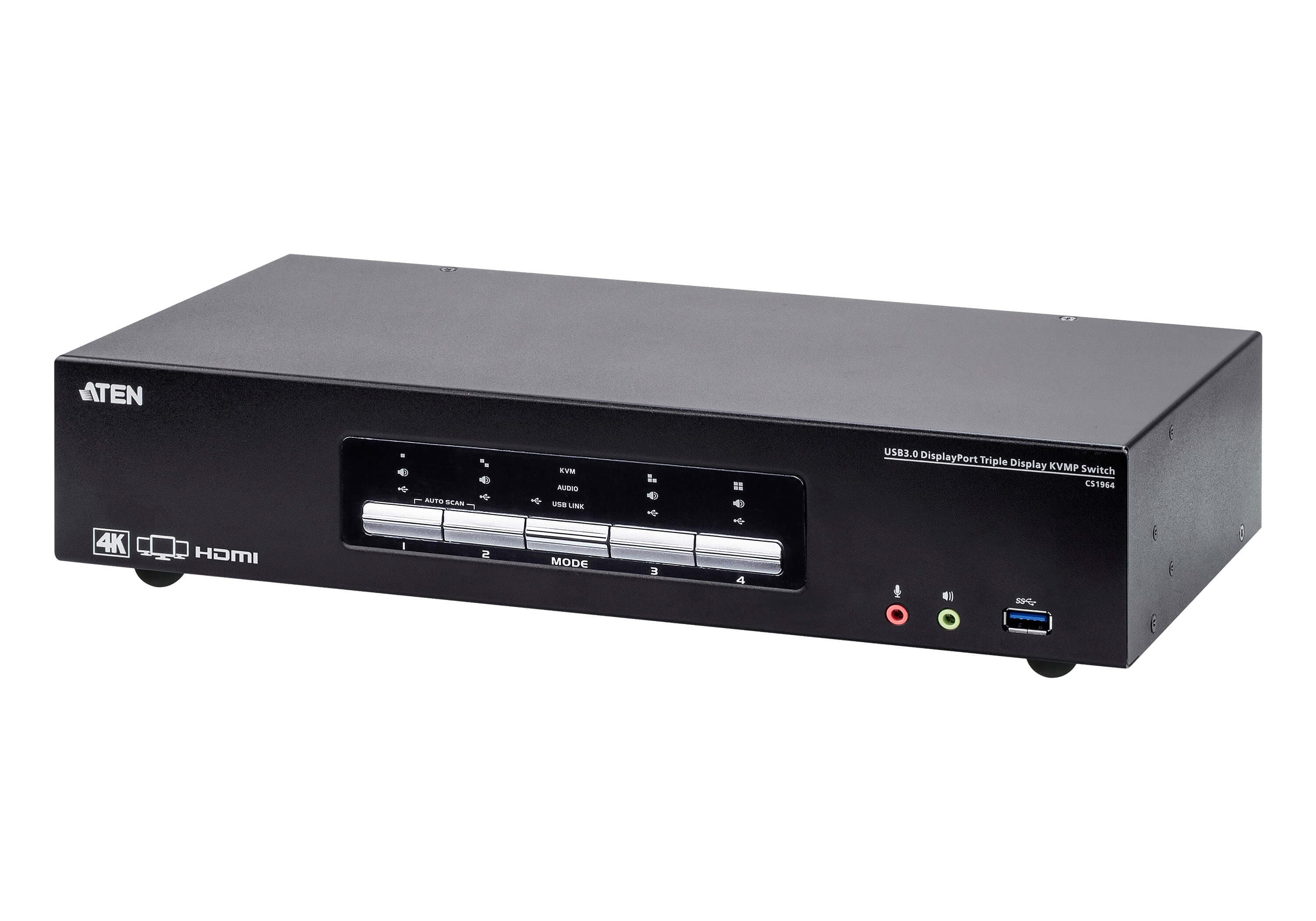

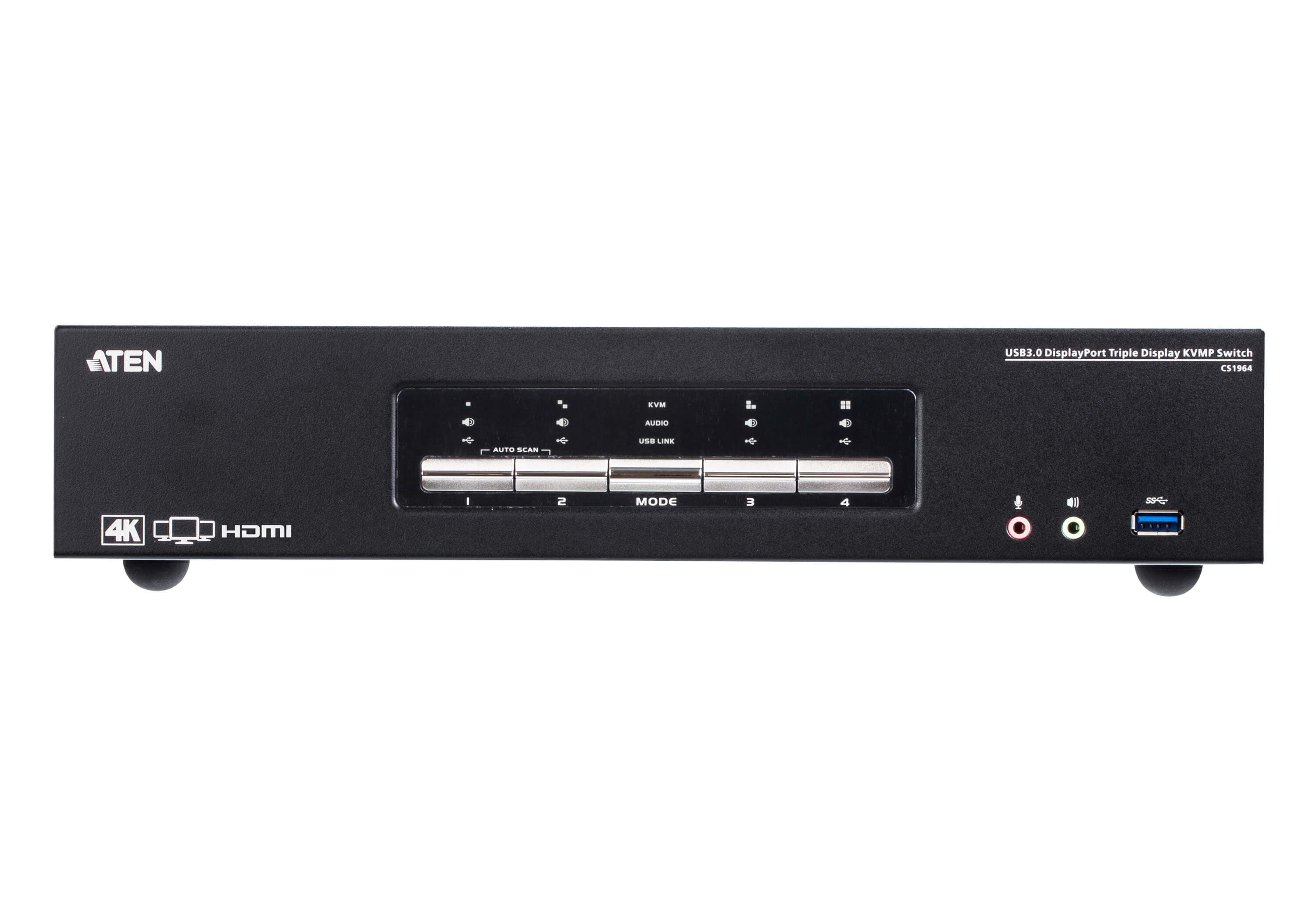

4-Port USB3.0 4K DisplayPort Triple Display KVMP™ Switch
CS1964
KVM превключвател за 4 компютъра с DisplayPort и три HDMI монитора на конзолата (Triple Display), до 4K DCI 4096x2160@60Hz. Избор на компютър с бутони, клавишни комбинации, мишка или RS-232.
Характеристики
- One USB keyboard/mouse and three HDMI monitors control four DisplayPort computers
- Supports superior video quality – up to 4K DCI (4096 x 2160 @ 60Hz)
- DisplayPort 1.2 compliant, HDMI compliant, HDCP 2.2 compliant
- Computer selection via pushbuttons, hotkeys, mouse1, and RS-232 Commands2
- Supports N-key Rollover3 (NKRO) – permits collision-free keying
- Video DynaSync™ – an exclusive ATEN technology that optimizes display resolution, speeds up switching between systems, and ensures that windows opened on an extended desktop will not revert to their default configurations on the main display when switching between ports
- Supports six displays by connecting two triple display KVM switches
- Built-in 2-Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
- Supports Console keyboard emulation/bypass feature
- Supports Console mouse emulation/bypass feature
- Independent switching of KVM, USB peripheral, and audio focus4
- Supports HD Audio4
- Firmware upgradable Note: 1. Mouse port switching is only supported under mouse emulation mode and by USB 3-key wheel mice. 2. Slide the DCC switch to the s position to allow the KVM switch to receive RS-232 commands via an RJ-45-to-DB9 cable. Please refer to the CS1964 RS-232 Commands document. 3. N-key Rollover supports up to 15 simultaneous keystrokes. 4. HD audio through DisplayPort-HDMI cannot be switched independently.
Спецификация
- Връзки към компютри
- 4
- Избор на порт
- Hotkey, Pushbutton, Mouse, RS-232 Commands

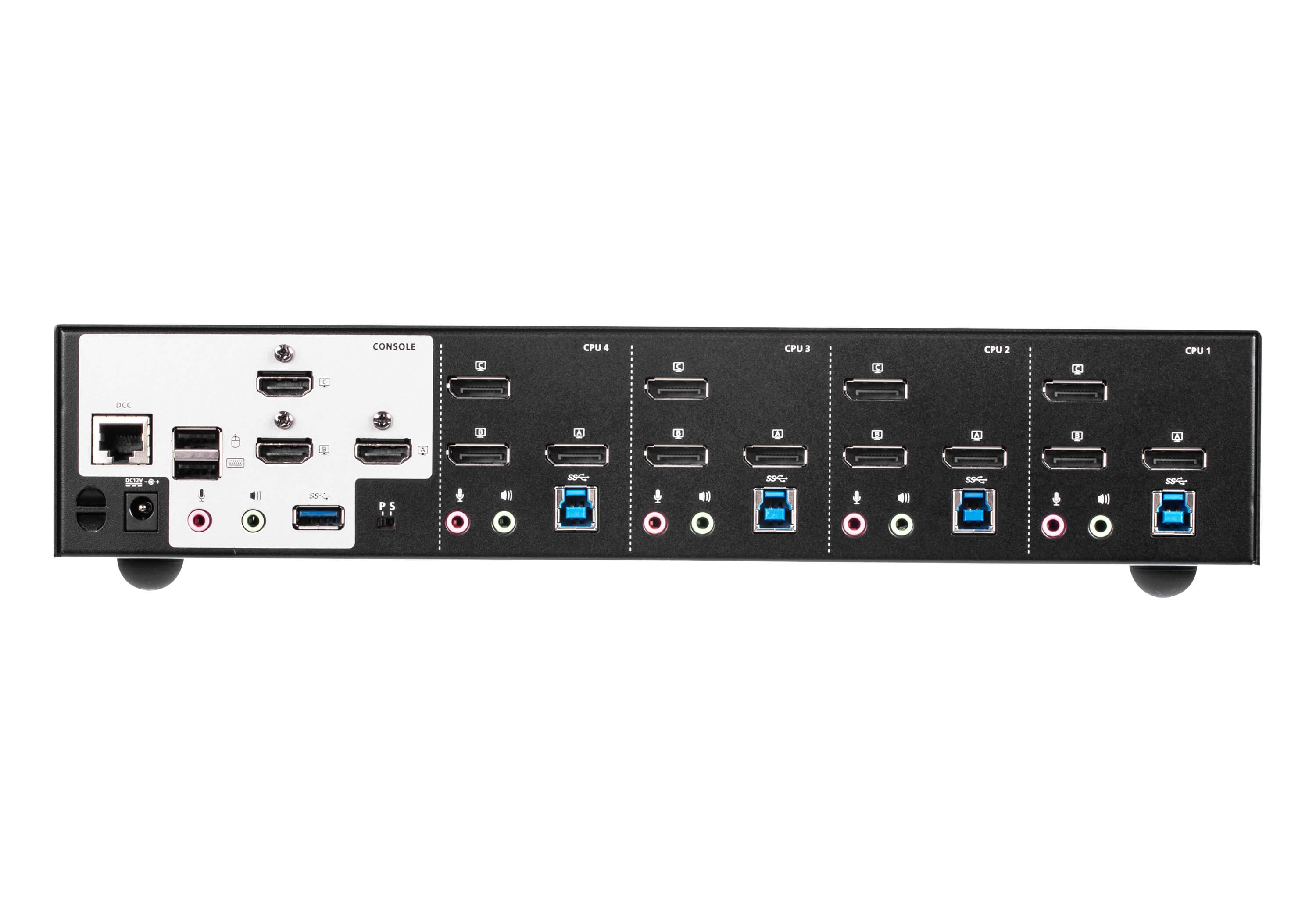

Конектори
- Конзолни портове
- 2 x USB Type A Female 3 x HDMI Female (Black) 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear) 2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear)
- KVM портове (компютри)
- 4 x USB3.1 Gen1 Type B Female (Blue) 12 x DisplayPort Female (Black) 4 x 3.5mm Audio Jack Female (Green) 4 x 3.5mm Audio Jack Female (Pink)
- Daisy Chain портове
- 1 x RJ-45 Female
- Захранване
- 1 x DC Jack
- USB хъб
- 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear)
Бутони и превключватели
- Избран
- 5 x Pushbutton
- Избор на станция
- 1 x Slide Switch
Индикатори
- USB връзка
- 5 (Green)
- Аудио
- 5 (Green)
- KVM
- 5 (Orange)
Емулация
- Клавиатура / мишка
- USB
- Видео
- 4096 x 2160 @ 60Hz; 2560 x 1440 @144Hz
- Интервал на сканиране
- 1-99 seconds (default: 5 seconds)
- Консумация
- DC12V:15.49W:115BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0–50°C
- Температура на съхранение
- -20–60°C
- Влажност
- 0-80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 1.93 kg ( 4.25 lb )
- Размери (Д x Ш x В)
- 33.50 x 15.60 x 6.55 cm (13.19 x 6.14 x 2.58 in.)
- Забележка
- For a full video resolution supported list, please go to ATEN website > Product > Desktop KVM Switches, and scroll down to see Max. Resolution tab for more information.
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
