4-Port USB 3.0 8K DisplayPort Dual-Display KVMP™ Switch (Cables included)

Name: 4-Port USB 3.0 8K DisplayPort Dual-Display KVMP™ Switch (Cables included)
Brand: ATEN
SKU: CS1944DPA

CS1944DPA

Заяви оферта Datasheet PDF Ръководство Бърз старт CAD чертеж

KVMP превключвател за 4 компютъра с два DisplayPort дисплея — видео до 7680 x 4320 @ 60 Hz. Два USB 3.1 Gen 1 порта с 5 Gbps; два свързани превключвателя осигуряват Quad-Display.

Характеристики

Supports Quad-Display by connecting two Dual-Display KVM switches
Superior video quality – up to 7680 × 4320 @ 60 Hz, 5120 × 2880 @ 60 Hz and 4096 × 2160 @ 240 Hz
Two USB 3.1 Gen 1 ports with SuperSpeed 5 Gbps transfer rates
Supports DisplayPort Dual-Mode technology (DP++)1
Supports MST (Multi-Stream Transport) 2
DisplayPort 1.4 compliant
HDCP compliant
Supports HDR 10+
Supports HD Audio3
Supports hot-plugging
One USB keyboard and mouse control four DisplayPort computers and share two USB peripherals

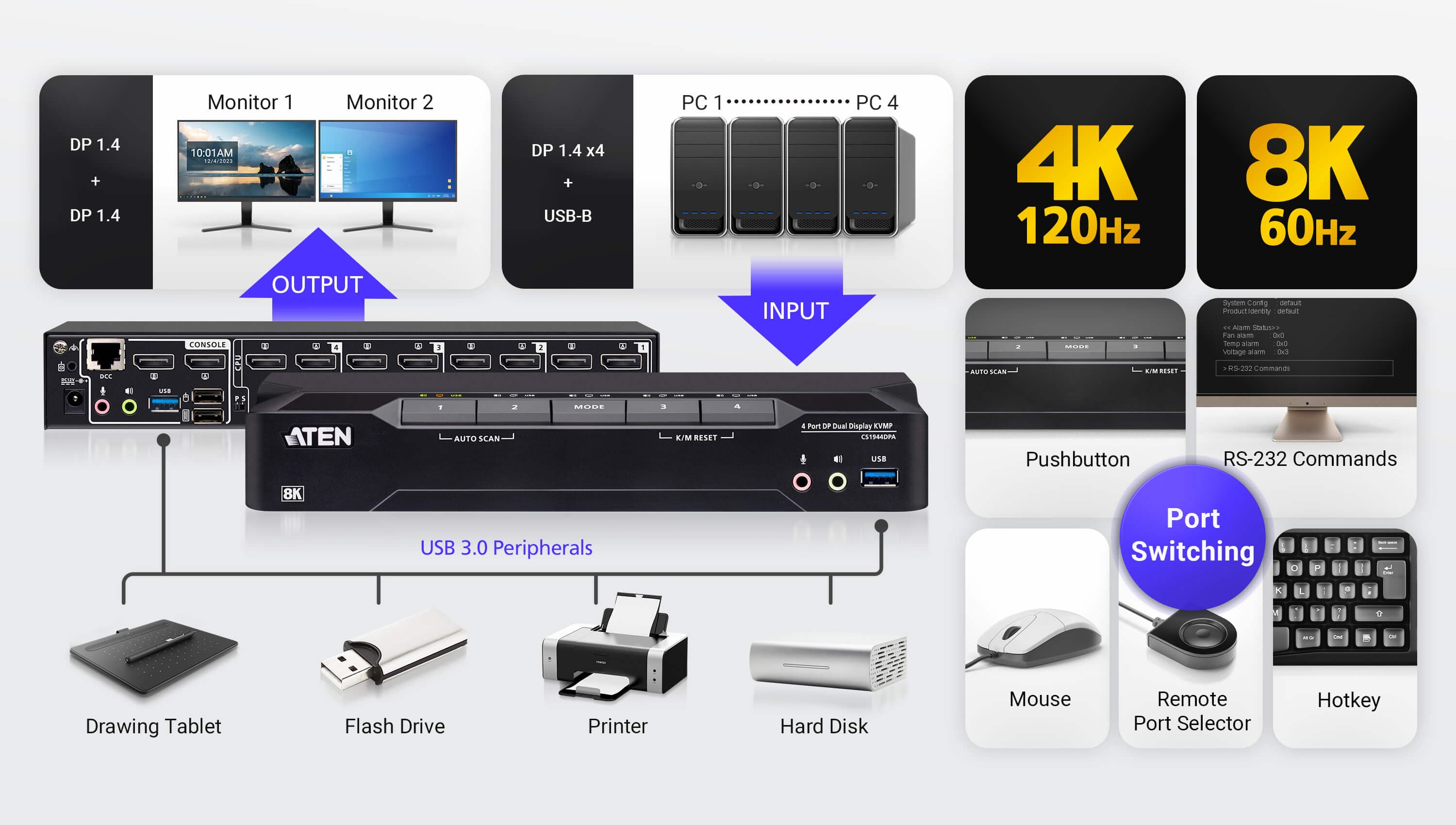

Computer selection via pushbuttons, remote port selector, hotkeys, mouse4, and RS-232 commands
Independent switching of KVM, USB, and Audio
Console keyboard/mouse emulation/bypass support
Power-on detection automatically switches to the next active computer
Firmware upgradabl – esupports performance optimization and compatibility improvements through firmware updates
Multilingual keyboard mapping – supports English, Japanese, French, and German keyboards5
Plug & play

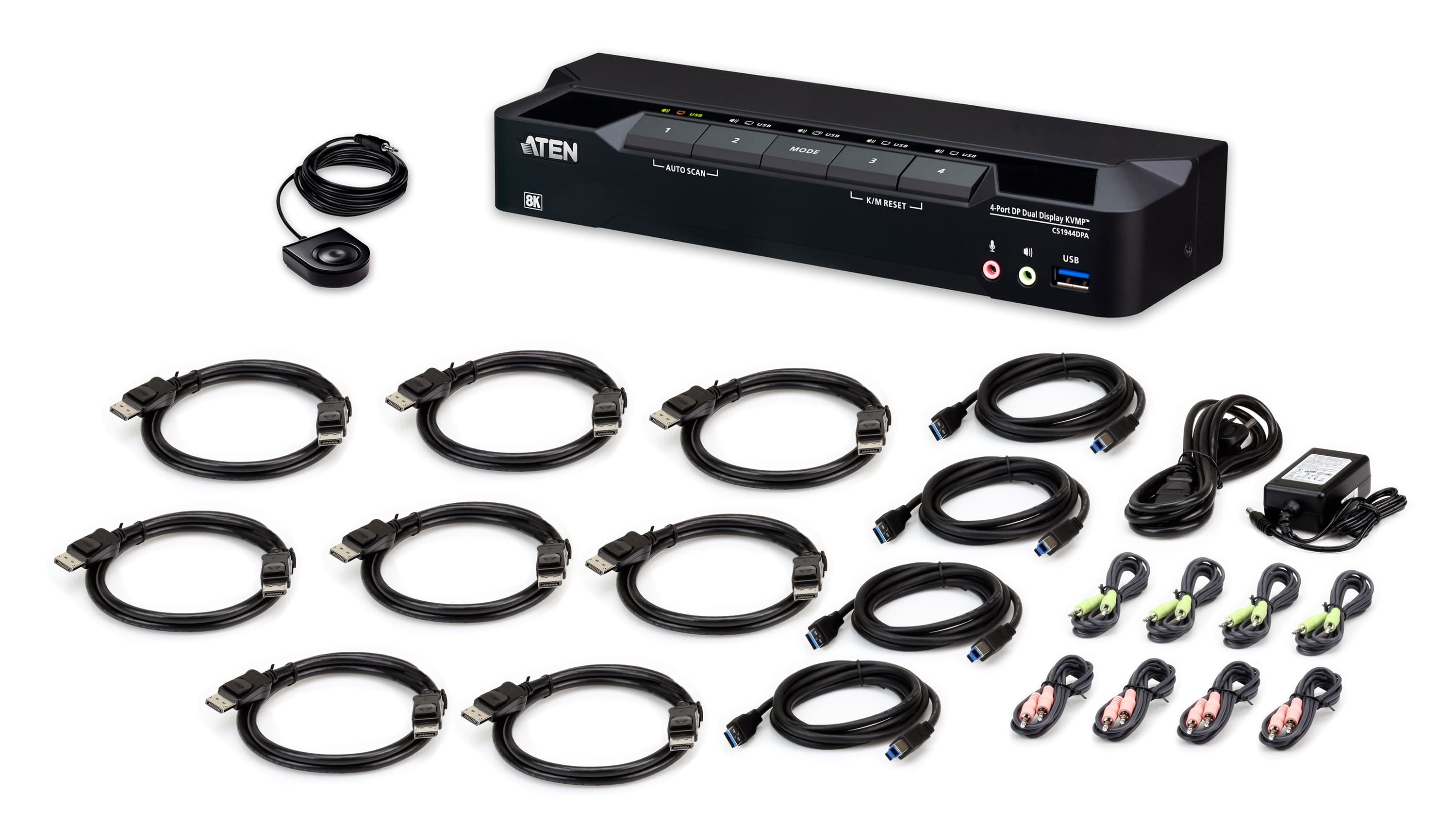

All DisplayPort/USB cables and power adapter included for hassle-free installation – no extra purchases needed
Multiplatform support – Windows, Mac, and Linux Note: 1. DP++ (DP Dual Mode) requires a DP++ adapter (powered DP++ adapter recommended). The graphics source must be DP++ compliant. 2. MST (Multi-Stream Transport) requires monitors capable of DisplayPort 1.4 daisy-chaining or the use of a powered DisplayPort MST hub. The PC source must be DisplayPort 1.4 compliant. A DisplayPort 1.1a or 1.2 display can be the last display in a DisplayPort 1.4 chain. 3. HD audio through HDMI cannot be switched independently. 4. For 3-button USB wheel mouse only. Mouse-port switching is supported only under mouse emulation mode. 5. PC keyboard combinations emulate Mac keyboards. Mac keyboards only work with Mac computers.

Спецификация

Връзки към компютри: 4
Избор на порт: Hotkey, Pushbutton, Mouse wheel, RS-232 Commands, Remote port selector

Конектори

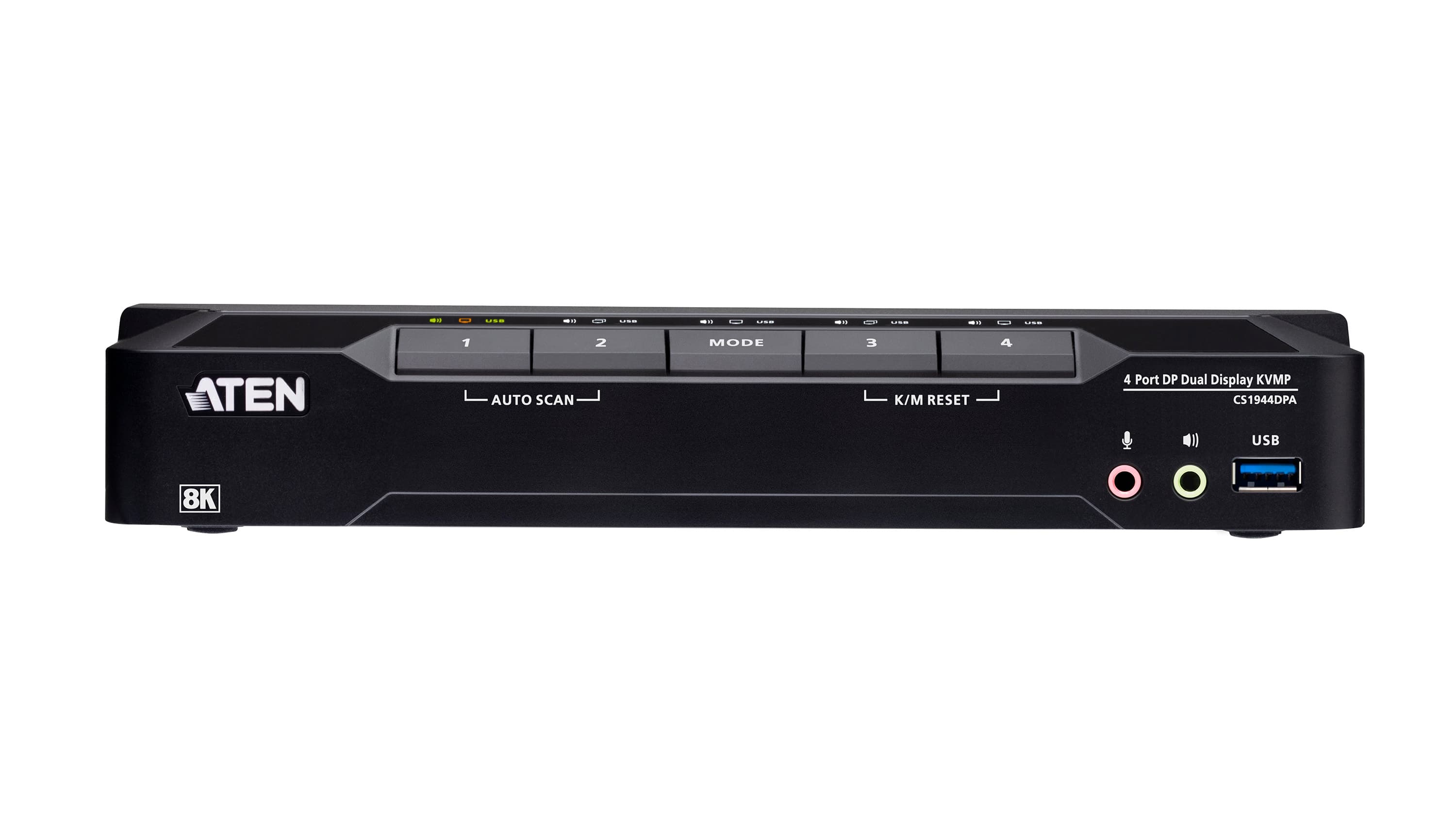

Конзолни портове: 2 x USB Type A Female 2 x DisplayPort Female (Black) 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear) 2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear)

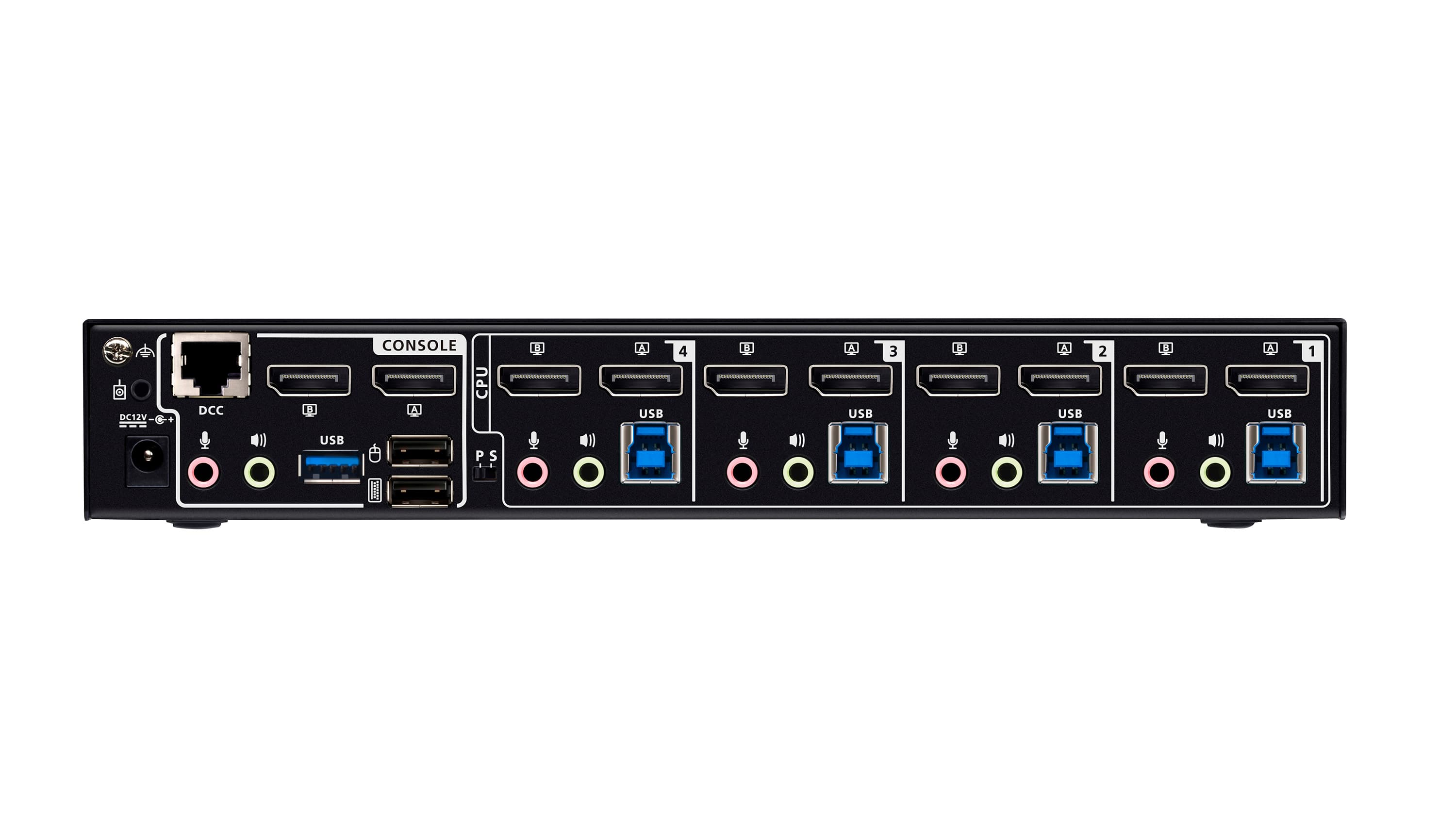

KVM портове (компютри): 4 x USB3.1 Gen1 Type B Female (Blue) 8 x DisplayPort Female (Black) 4 x 3.5mm Audio Jack Female (Green) 4 x 3.5mm Audio Jack Female (Pink)
Daisy Chain портове: 1 x RJ-45 Female
Захранване: 1 x DC Jack
USB хъб: 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear)

Индикатори

KVM: 5 (Orange)
Аудио: 5 (Green)
USB връзка: 5 (Green)

Бутони и превключватели

Избран: 5 x Pushbutton
Избор на станция: 1 x Slide Switch

Емулация

Клавиатура / мишка: USB
Видео: Up to 7680 x 4320 @ 60 Hz, 5120 x 2880 @ 60Hz, 4096 x 2160 @ 240Hz
Интервал на сканиране: 1-99 seconds (default: 5 seconds)
Консумация: DC12V:4.88W:144BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Работна среда

Работна температура: 0–50°C
Температура на съхранение: -20–60°C
Влажност: 0-80% RH, Non-condensing

Физически характеристики

Корпус: Metal
Тегло: 0.62 kg ( 1.37 lb )
Размери (Д x Ш x В): 26.00 x 7.18 x 4.30 cm (10.24 x 2.83 x 1.69 in.)
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
