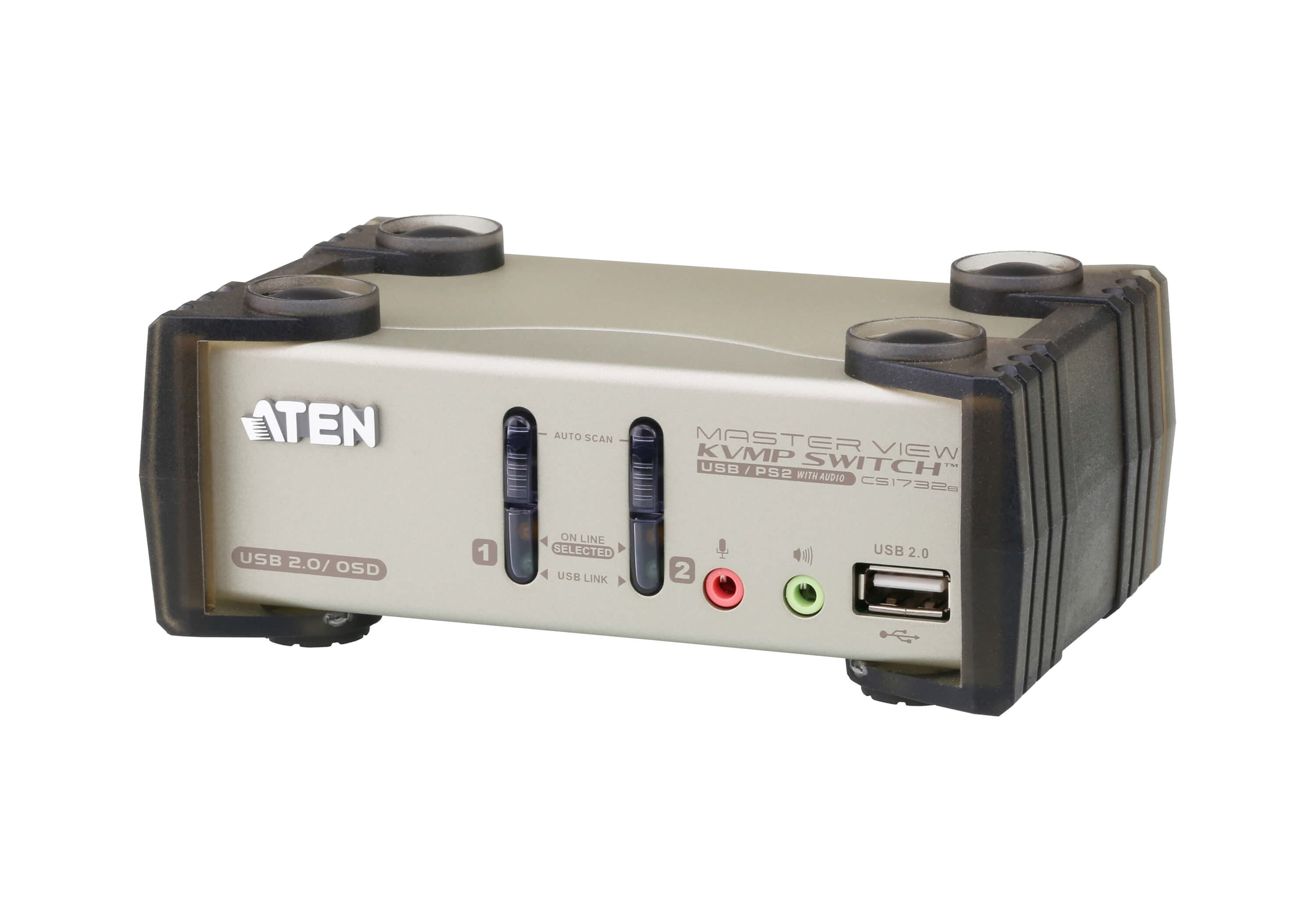

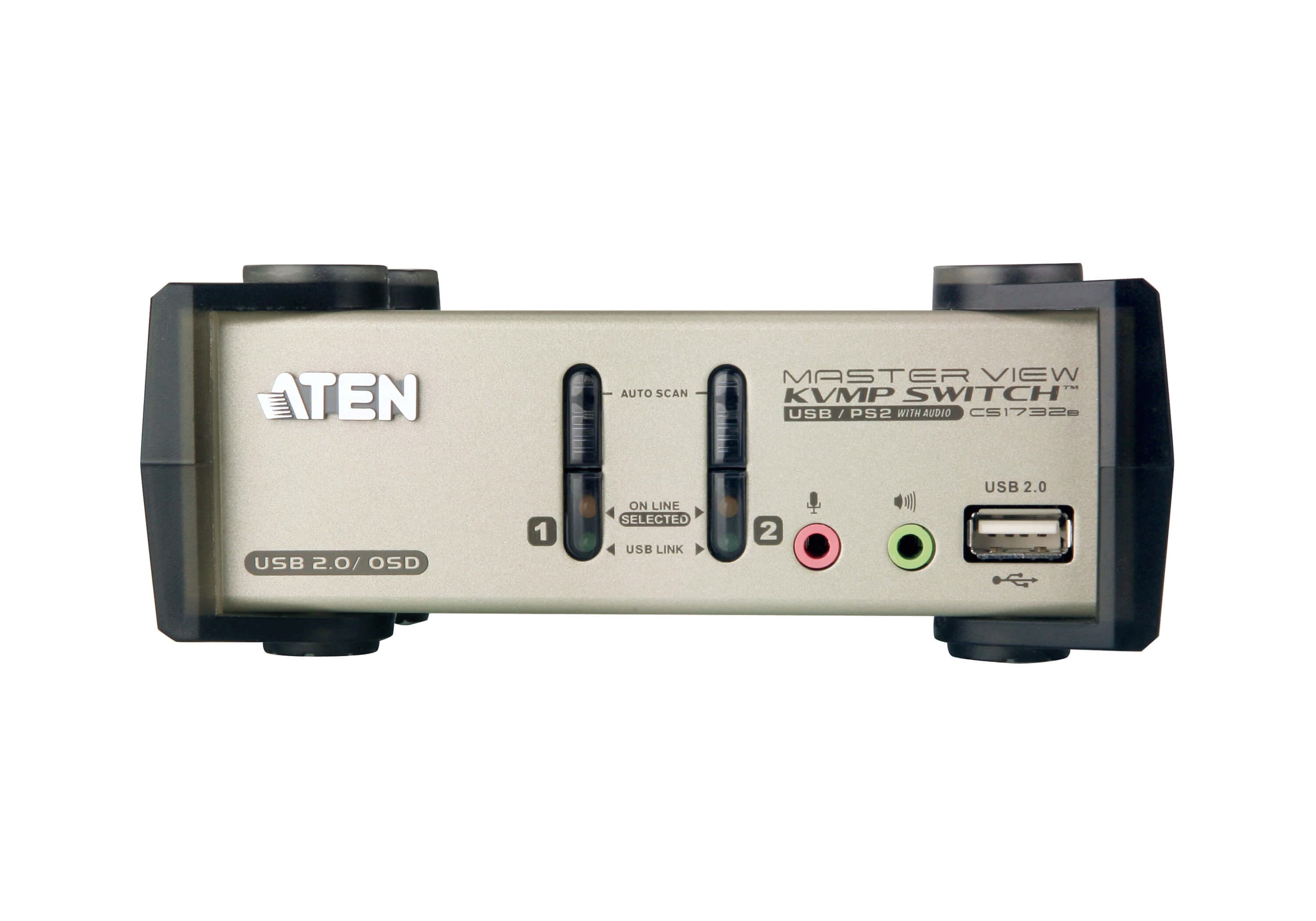

2-Port PS/2-USB VGA/Audio KVMP™ Switch with OSD
CS1732B
VGA KVMP превключвател за 2 компютъра с вграден 2-портов USB 2.0 хъб и 2.1 съраунд аудио. Избор на порт през OSD, бутони, клавишни комбинации или мишка.
Характеристики
- 2-port KVM switch with USB 2.0 support and 2.1 surround sound audio
- One console controls two computers and two additional USB devices
- 2-port USB 2.0 hub built in
- USB 2.0 compliant
- Dual interface - supports computers with PS/2 or USB keyboard and mouse configurations
- Audio enabled - full bass response provides a rich experience for 2.1 surround sound systems
- Console audio ports on front panel for easy access - ideal for IP phone users
- Independent switching of KVM, USB, and Audio focus
- Superior video quality; 2048 x 1536; DDC2B
- Supports widescreen resolutions
- Computer selection via front panel pushbuttons, multilingual OSD (On Screen Display), hotkeys and mouse
- Multiplatform support - Windows , Mac, and Sun
- Console mouse port emulation / bypass feature supports full mouse driver and multifunction mice
- Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
- Complete keyboard emulation for error-free booting
- Sun/Mac keyboard support and emulation*
- Auto Scan Mode for monitoring all computers
- LED Display for easy status monitoring
- Easy installation no software required
- Firmware upgradeable *1.PC keyboard combinations emulate Sun/Mac keyboards 2.Sun/Mac keyboards only work with their own computers
Спецификация
- Връзки към компютри
- 2
- Избор на порт
- Hotkey, Pushbutton, OSD, Mouse

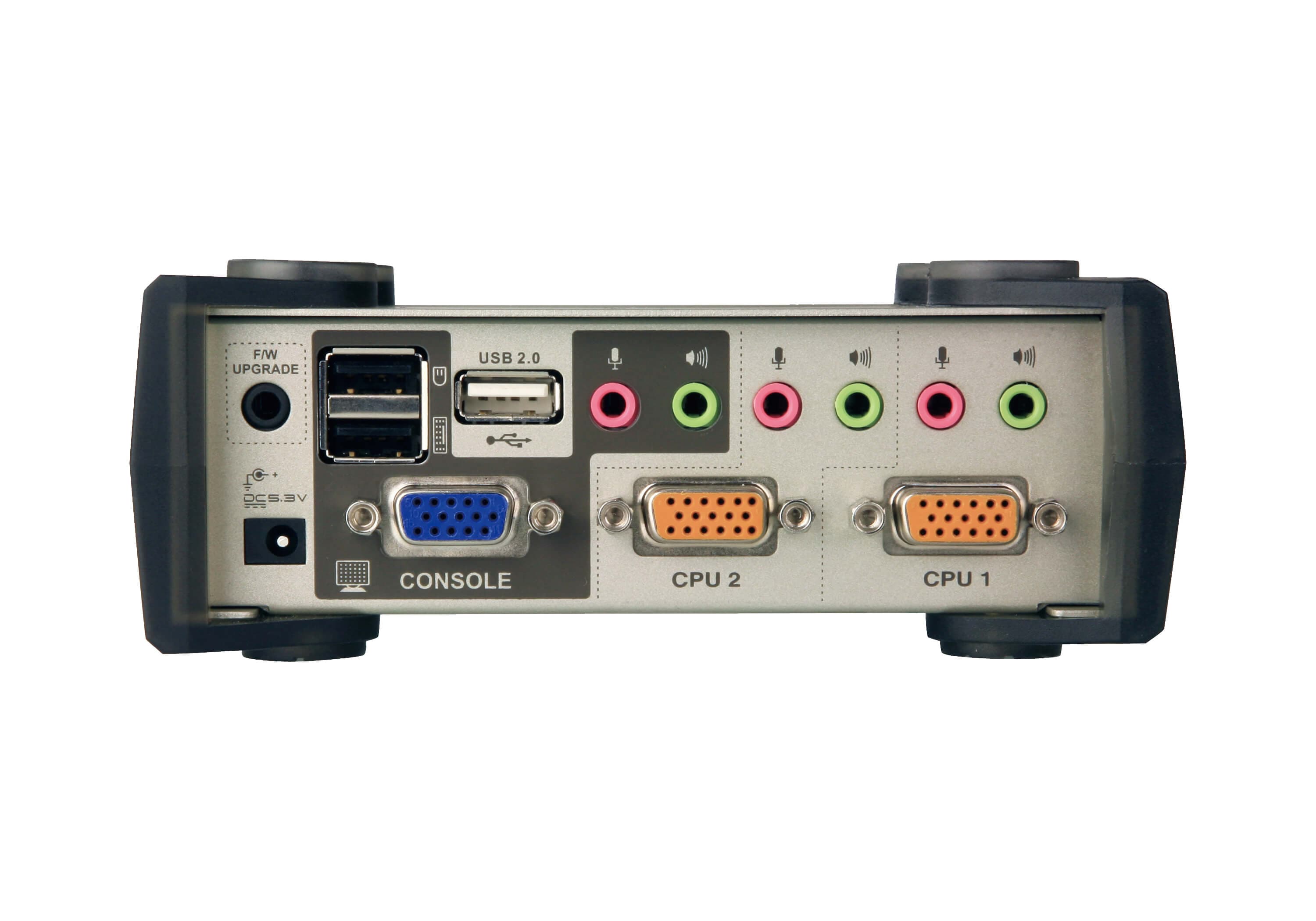

Конектори
- Конзолни портове
- 2 x USB Type A Female (Black) 1 x HDB-15 Female (Blue) 2 x 3.5mm Audio Jack Female (Green) 2 x 3.5mm Audio Jack Female (Pink)
- KVM портове
- 2 x SPHD-15 Female (Yellow) 2 x 3.5mm Audio Jack Female (Green) 2 x 3.5mm Audio Jack Female (Pink)
- Обновяване на фърмуера
- 1 x 4-conductor 3.5mm Jack (Black)
- Захранване
- 1 x DC Jack
- USB хъб
- 2 x USB Type A Female (White)
Бутони и превключватели
- Избран
- 2 x Pushbutton
Индикатори
- Онлайн / избран
- 2 (Orange)
- USB връзка
- 2 (Green)
Емулация
- Клавиатура / мишка
- PS/2; USB
- Видео
- 2048 x 1536 @ 60Hz; DDC2B
- Интервал на сканиране
- 1-255 Seconds (Default: 5 sec.)
- Консумация
- DC5.3V:2.53W:37BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-50°C
- Температура на съхранение
- -20-60°C
- Влажност
- 0-80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.55 kg ( 1.21 lb )
- Размери (Д x Ш x В)
- 14.00 x 8.80 x 5.55 cm (5.51 x 3.46 x 2.19 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Фърмуер
