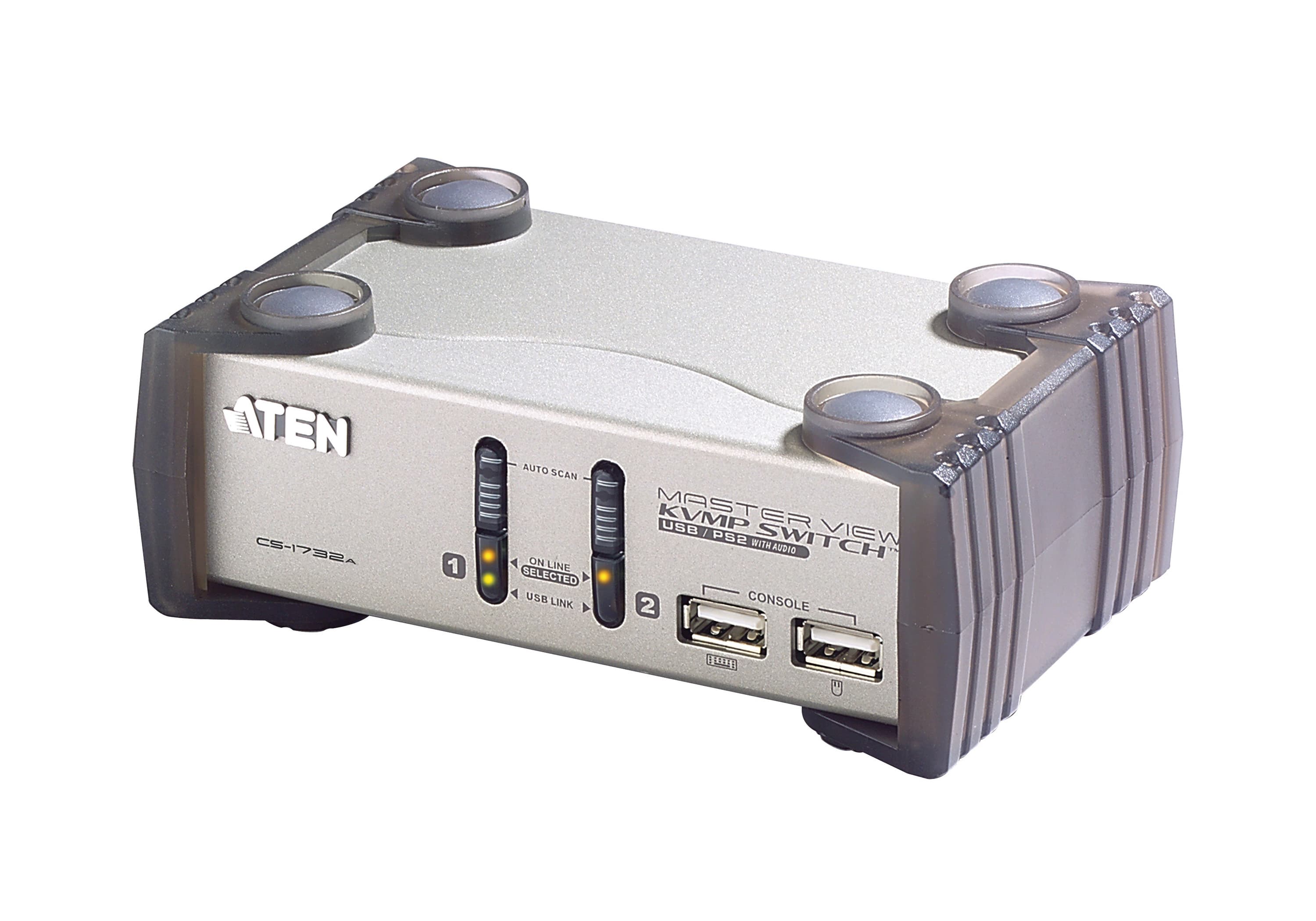

2-Port PS/2-USB VGA/Audio KVMP™ Switch
CS1732AСнет от производство
VGA KVM превключвател за 2 компютъра с аудио и 2-портов USB хъб — поддържа машини с PS/2 или USB клавиатура и мишка.
Характеристики

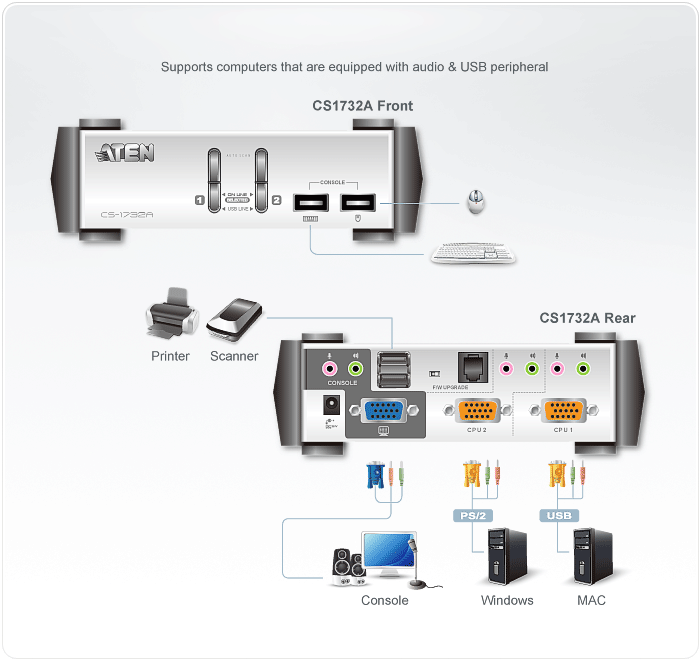

- One USB console controls 2 computers and two additional USB devices
- 2 port USB Hub built in
- Dual interface supports computers with PS/2 or USB keyboards and mice
- Multiplatform support: compatible with all operation platforms PC (Windows, Linux and most others), Mac and Sun
- With speaker and microphone support
- Bi-directional switching and flexible interoperability; switch permits independent PC, independent peripheral, and independent audio function, regardless of KVM switch focus
- Auto PS/2 and USB interface detection
- Buzzer On/Off via hotkey
- Keyboard and mouse emulation for error free booting

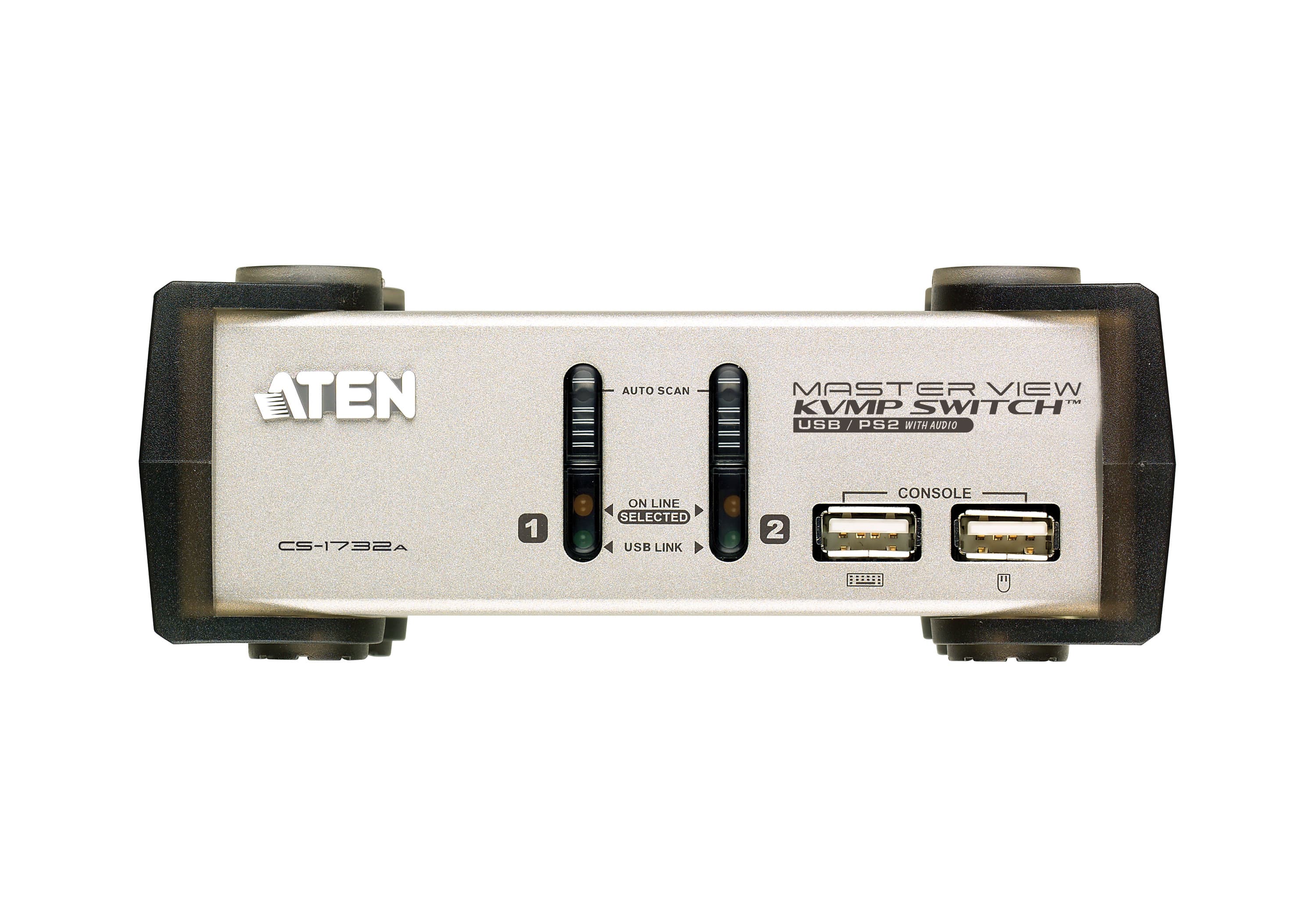

- Computer selection via front panel pushbuttons and hotkeys
- Superior video quality - up to 2048 x 1536; DDC2B
- Firmware upgradable
- OS Support:Windows 2000, Windows XP, Windows Vista, LINUX, Mac, Sun and FreeBSD
- SUN/Mac keyboard support and emulation* *1.PC keyboard combinations emulate SUN/Mac keyboards. *2.SUN/Mac keyboards only work with their own computers
Спецификация
- Връзки към компютри
- 2
- Избор на порт
- Hotkey, Pushbutton
- Избор на USB / аудио порт
- Hotkey

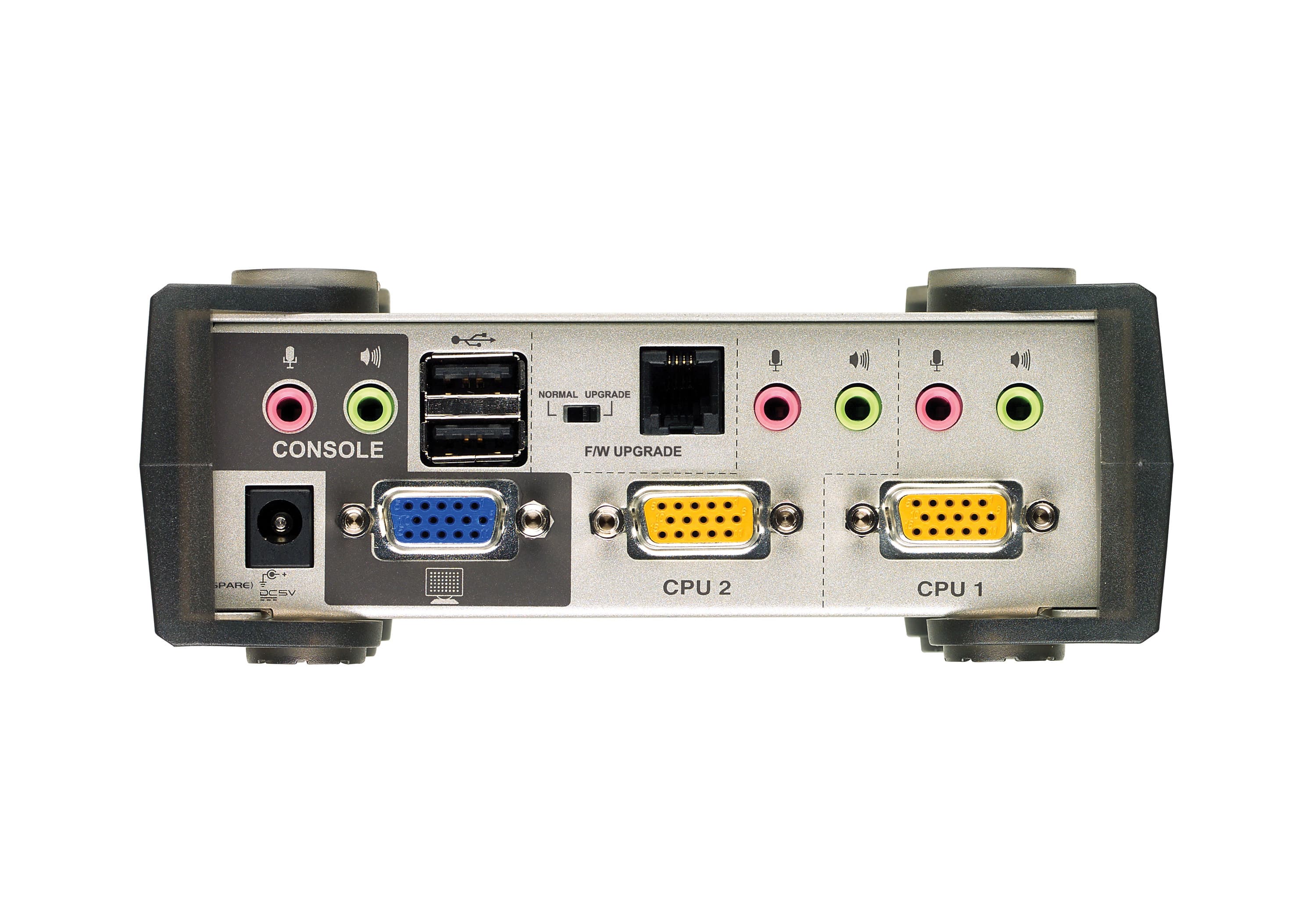

Конектори
- Конзолни портове
- 2 x USB Type A Female (White) 1 x HDB-15 Female (Black) 1 x Mini Stereo Jack Female(Green) 1 x Mini Stereo Jack Female (Pink)
- KVM портове
- 2 x SPHD-15 Female (Yellow) 2 x Mini Stereo Jack Female (Green) 2 x Mini Stereo Jack Female (Pink)
- USB хъб
- 2 x USB Type A Female (Black)
- Обновяване на фърмуера
- 1 x RJ-11 Female (Black)
- Захранване
- 1 x DC Jack
Бутони и превключватели
- Портове
- 2 x Pushbutton
- Обновяване на фърмуера
- 1 x Slide
Индикатори
- Онлайн / избран
- 2 (Orange)
- USB връзка
- 2 (Green)
Емулация
- Клавиатура / мишка
- USB
- Видео
- 2048 x 1536; DDC2B
- Интервал на сканиране
- 1-99 seconds
- Консумация
- DC5V:0.94W:30BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-50°C
- Температура на съхранение
- -20-60°C
- Влажност
- 0-80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.55 kg ( 1.21 lb )
- Размери (Д x Ш x В)
- 14.00 x 8.80 x 5.55 cm (5.51 x 3.46 x 2.19 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Фърмуер
