4-Port USB HDMI Multi-View Dual Rail WideScreen LCD KVM Switch

Name: 4-Port USB HDMI Multi-View Dual Rail WideScreen LCD KVM Switch
Brand: ATEN
SKU: CL3884NW

CL3884NW

Заяви оферта Datasheet PDF Ръководство Бърз старт CAD чертеж

LCD KVM конзола с Multi-View режим — показва до четири HDMI източника на един екран в режими Quad View и Picture in Picture. Превключва 4 компютъра, каскадно до 16; поддържа втора конзола през USB/HDMI.

Характеристики

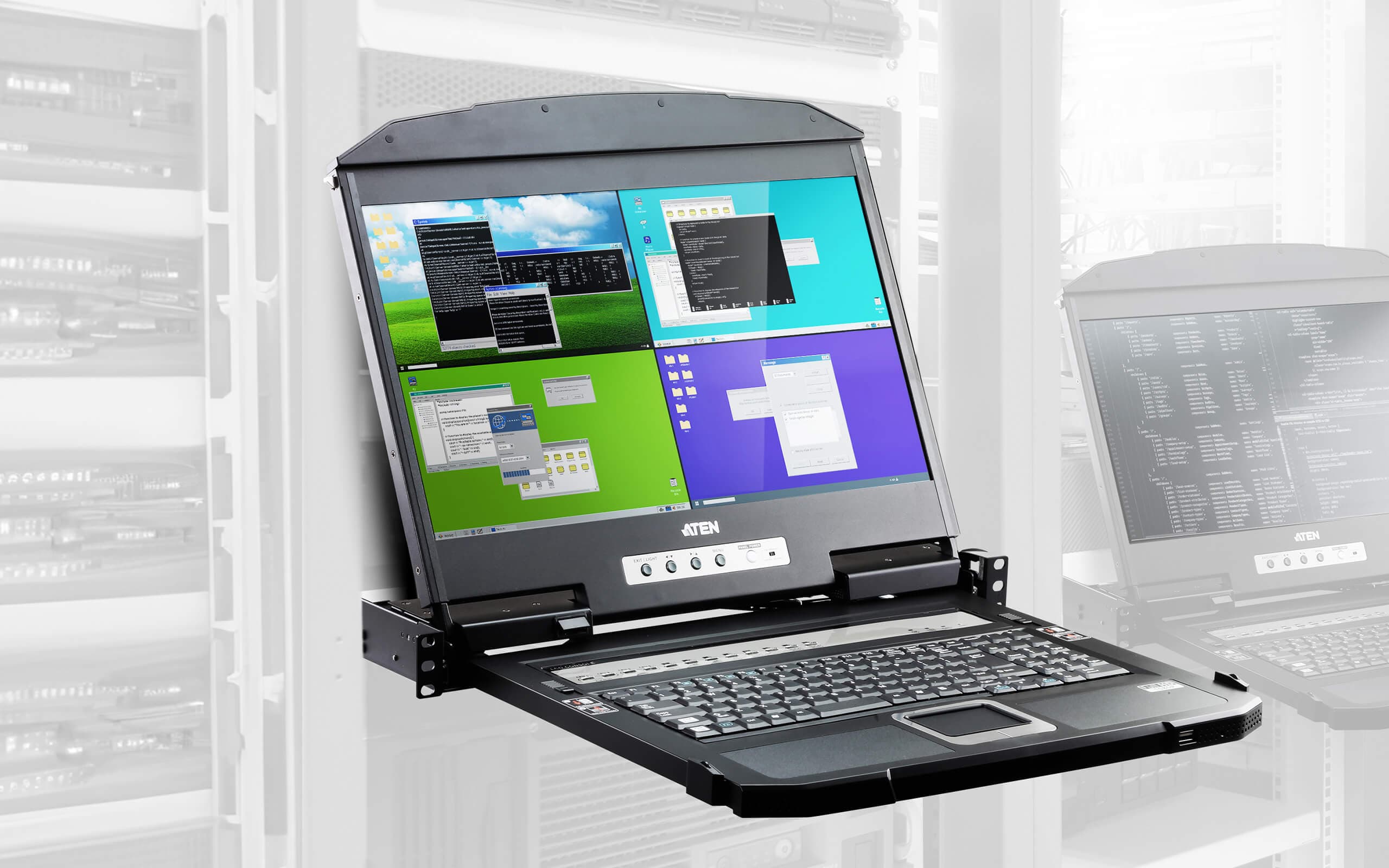

Multi-view console controls up to four video sources on one screen with display modes including Quad View, Picture in Picture (PiP), Picture by Picture (PbP), and Picture on Picture (PoP)
Quick Access Toolbar – intuitive user interface for editing
Supports an extra console via USB/HDMI connectors for up to two console displays*
Display mode layout customization
Superior video quality – 1920 x 1200 @ 60 Hz
Computer selection via pushbuttons, hotkeys, OSD, and RS-232 commands
Boundless Switching – simply moves the mouse cursor across windows to switch to other video sources
Video DynaSync™ – an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources
Easily resizes and/or repositions any PiP or PbP to suit users’ viewing needs
EDID Expert™ – selects optimum EDID settings for smooth power- up, high-quality display and use of the best video resolution across different screens
Cascade up to 2 levels – controls up to 16 computers (with up to 4 x 4 Multi-View mode)
Auto Scan mode – enables continuous monitoring of user-selected computers
Broadcast mode – allows users to send commands from the console to all computers to perform operations simultaneously
Additional hot-pluggable USB peripheral port on front panel *Both outputs can provide a combination of multi-view display modes simultaneously. However, users can only have one of the two outputs set to full-screen mode.
Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions

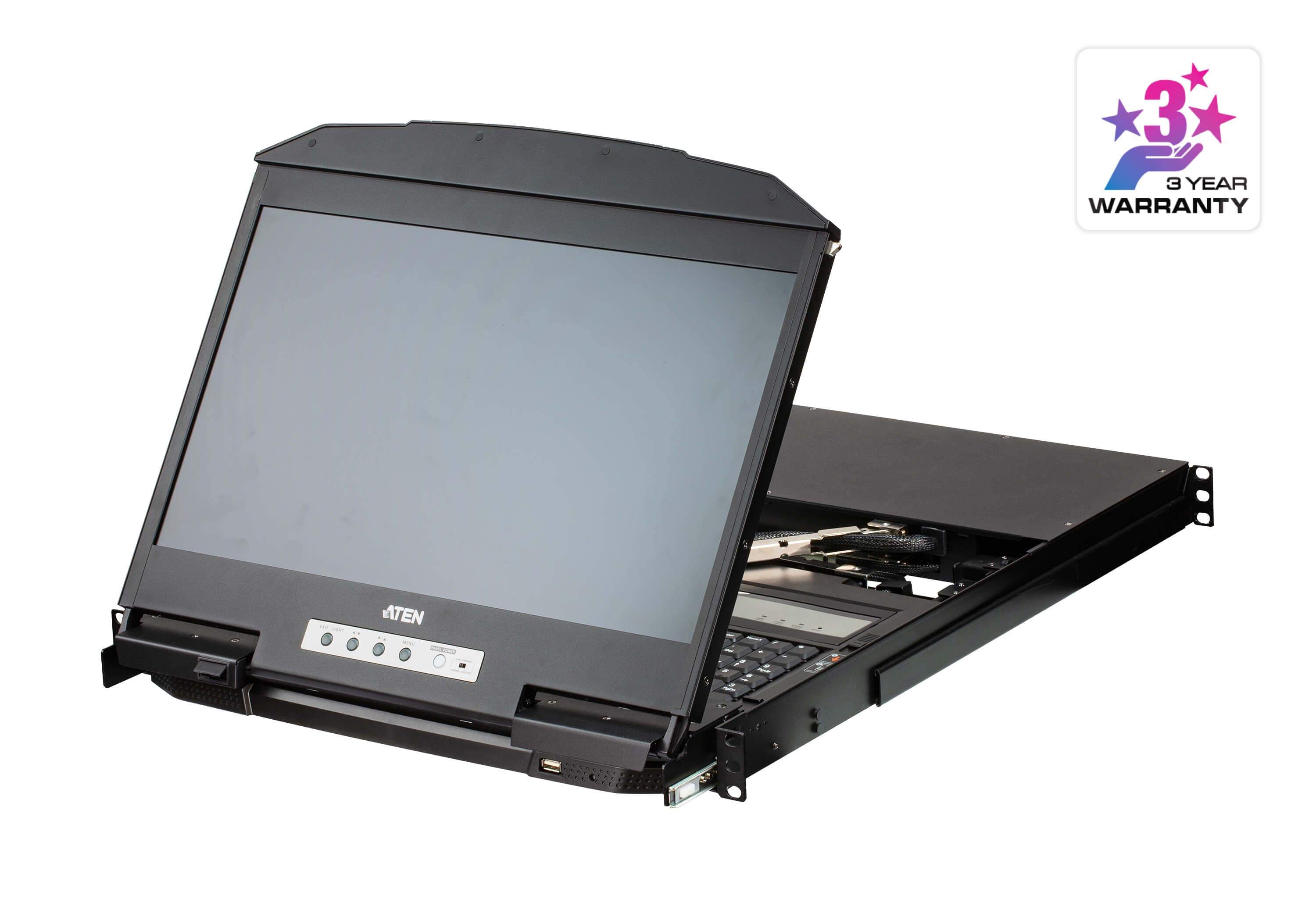

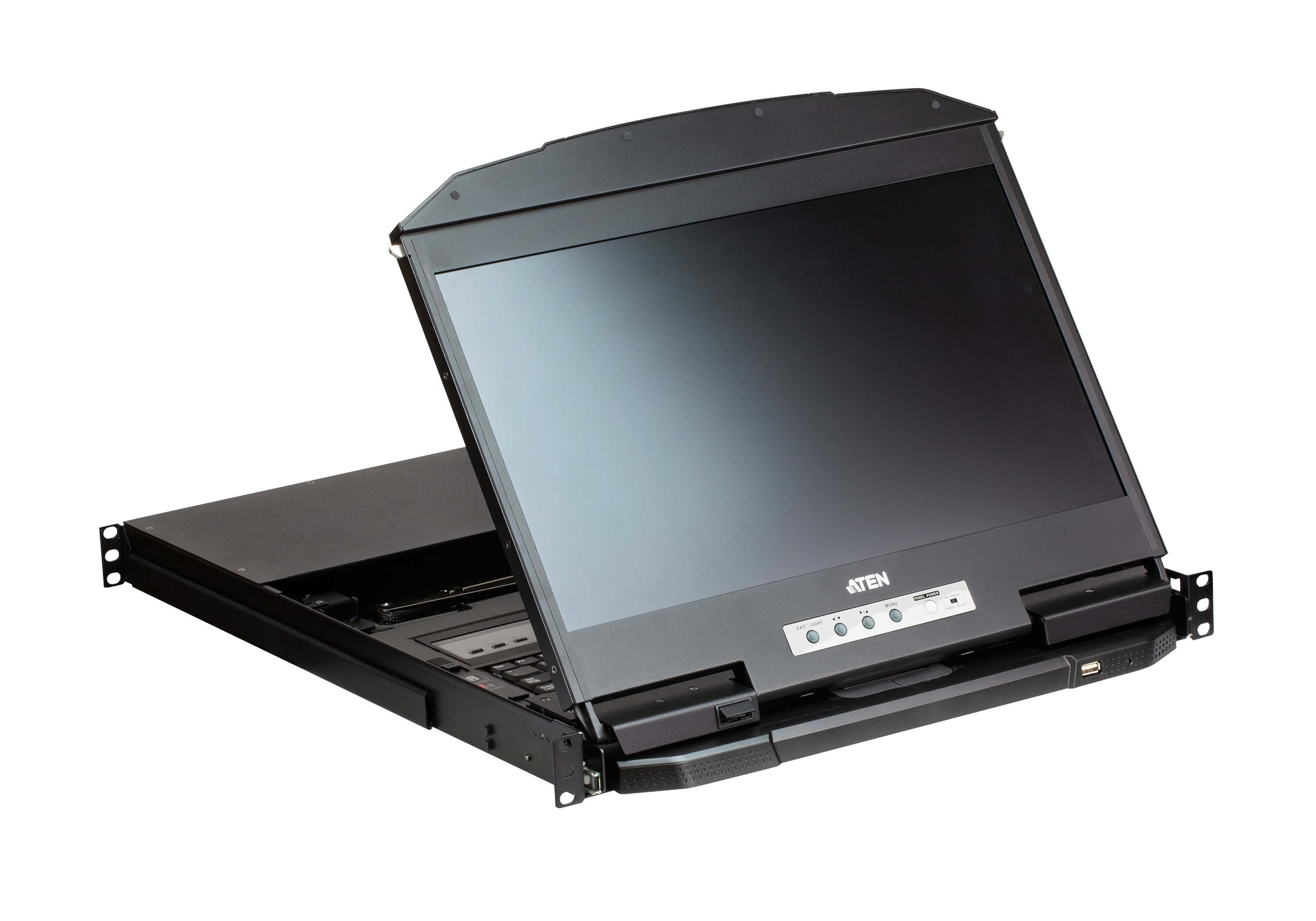

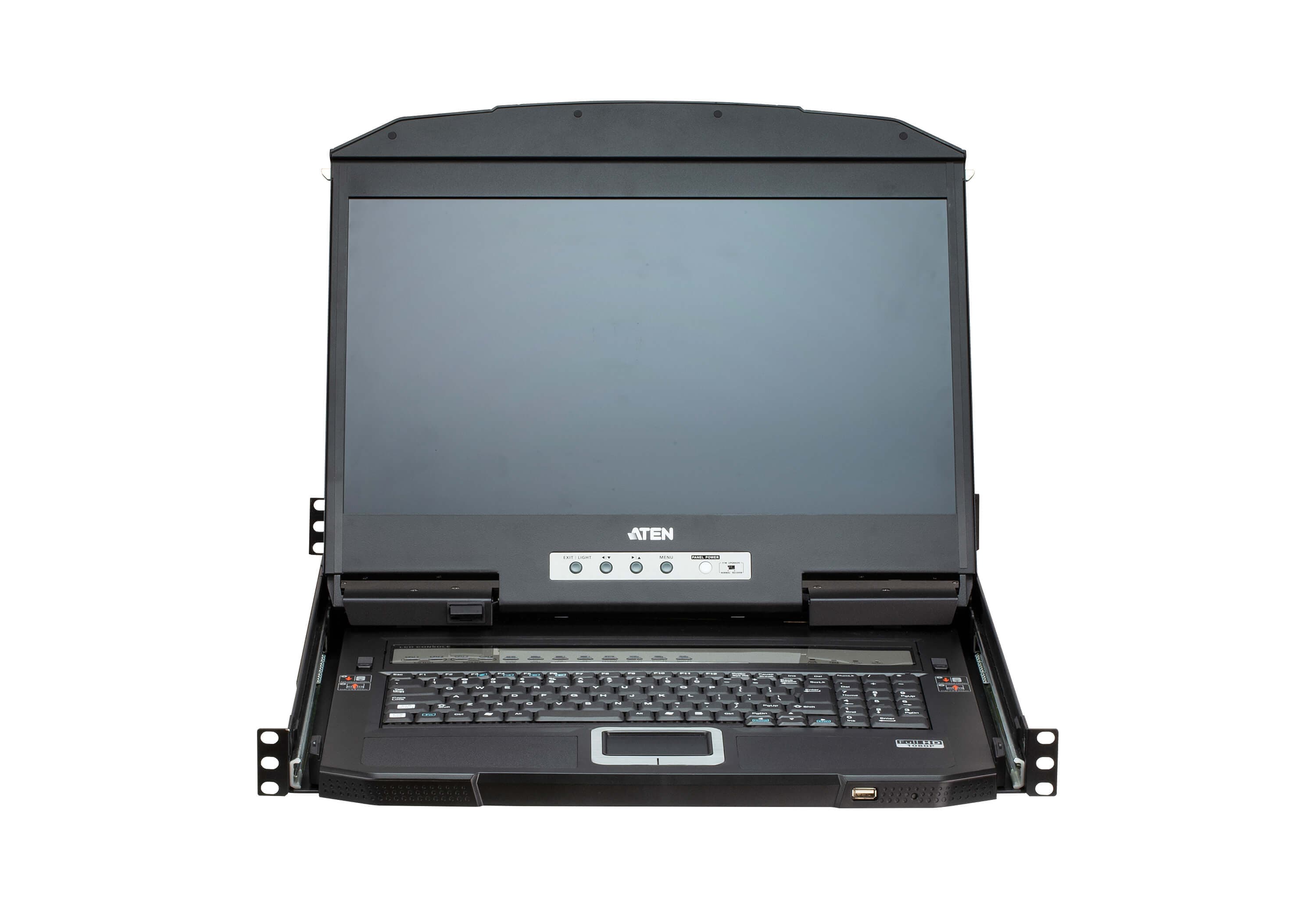

Integrated KVM console with an 18.5” LED-backlit widescreen LCD monitor in a dual rail housing with top and bottom clearance for smooth operation in a 1U high system rack

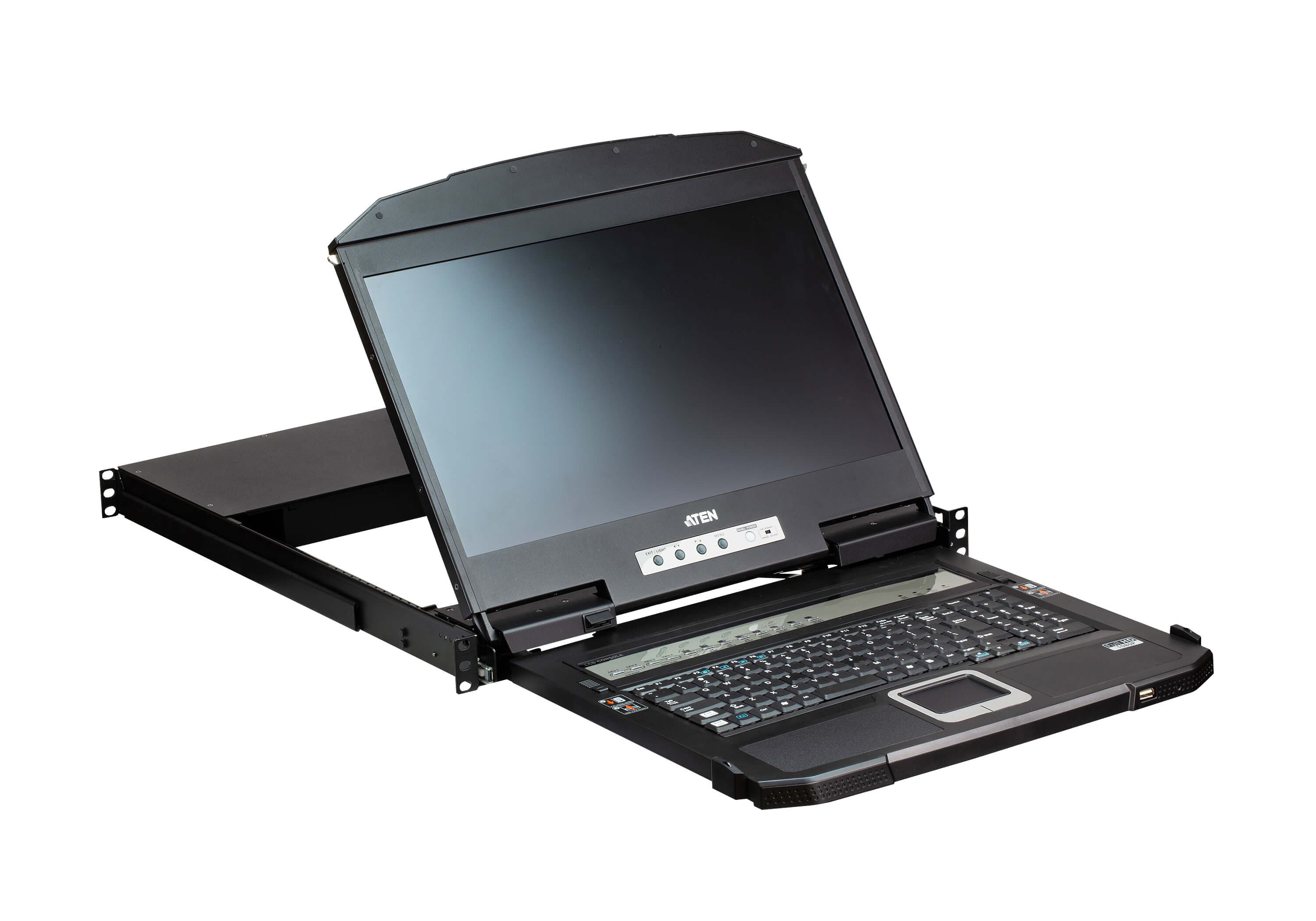

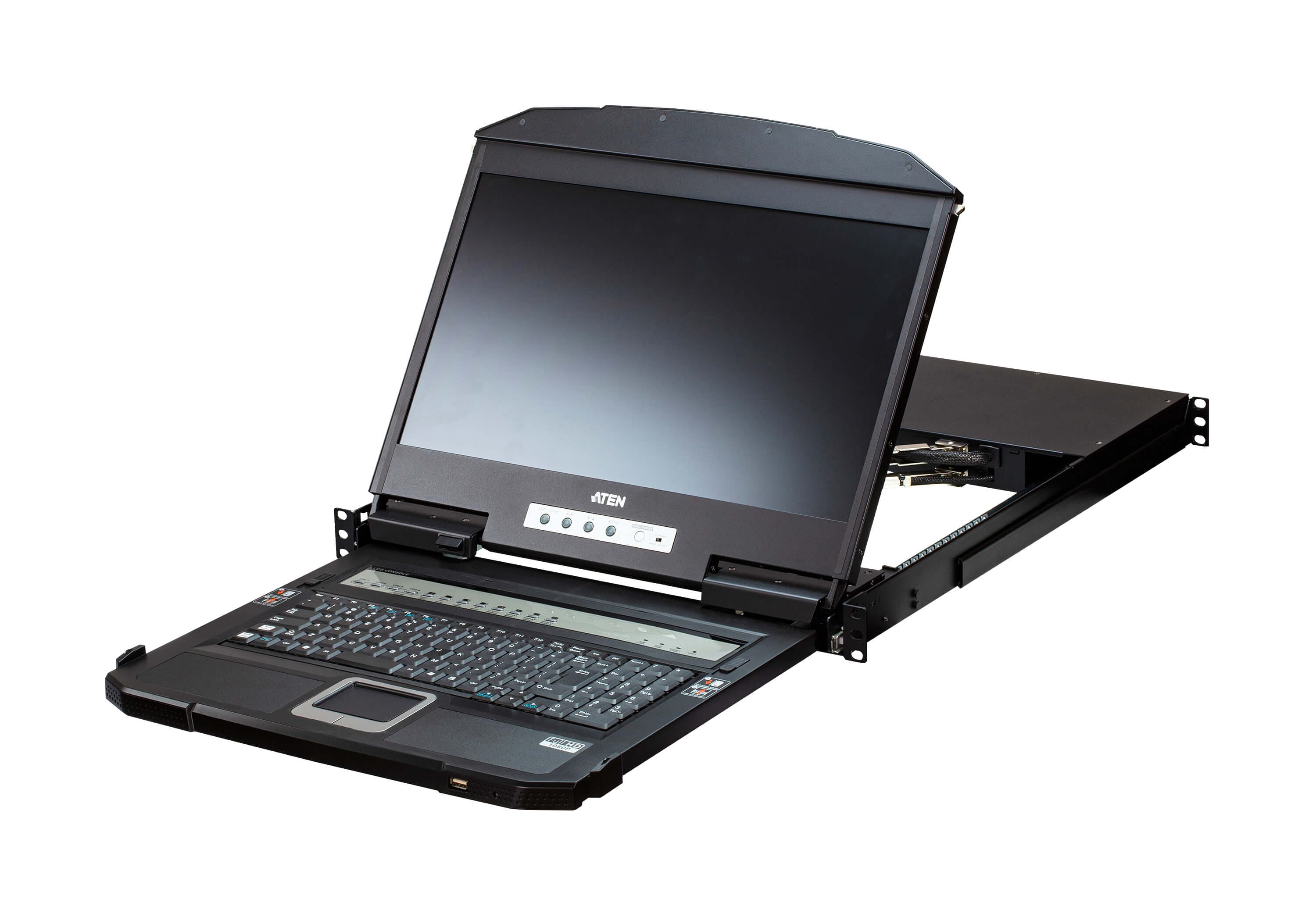

Dual rail design allows LCD monitor and keyboard/touchpad modules to operate independently
Console lock – enables the console drawer to remain securely locked away in position when not in use
Standard rack mount kit included
Optional rack mount kits available, including easy installation options*
No software required
Firmware upgradable
Supports hot-plugging More information about "Easy Rack Mounting"...

Връзки към компютри

Директно: 4
Максимум: 16 (via Cascade)
Избор на порт: OSD, Hotkey, Pushbutton, RS-232 Command

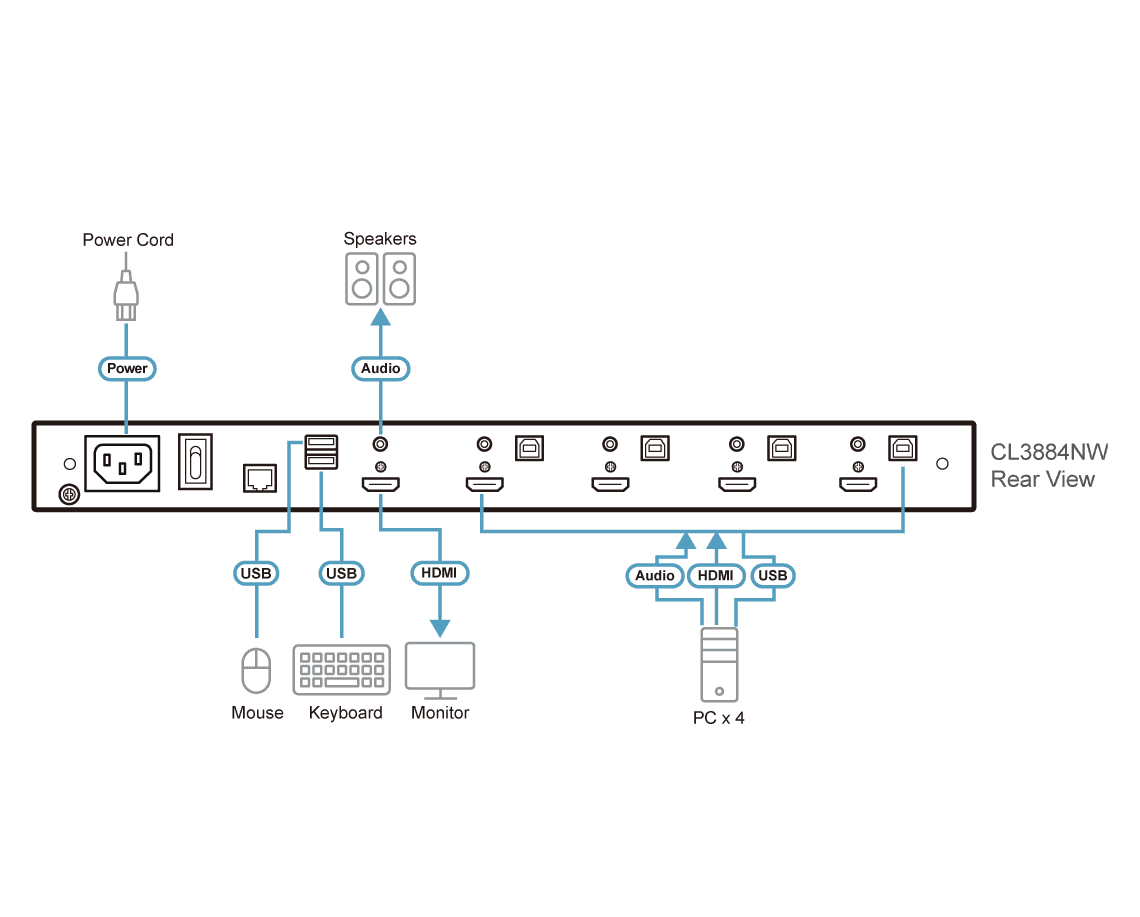

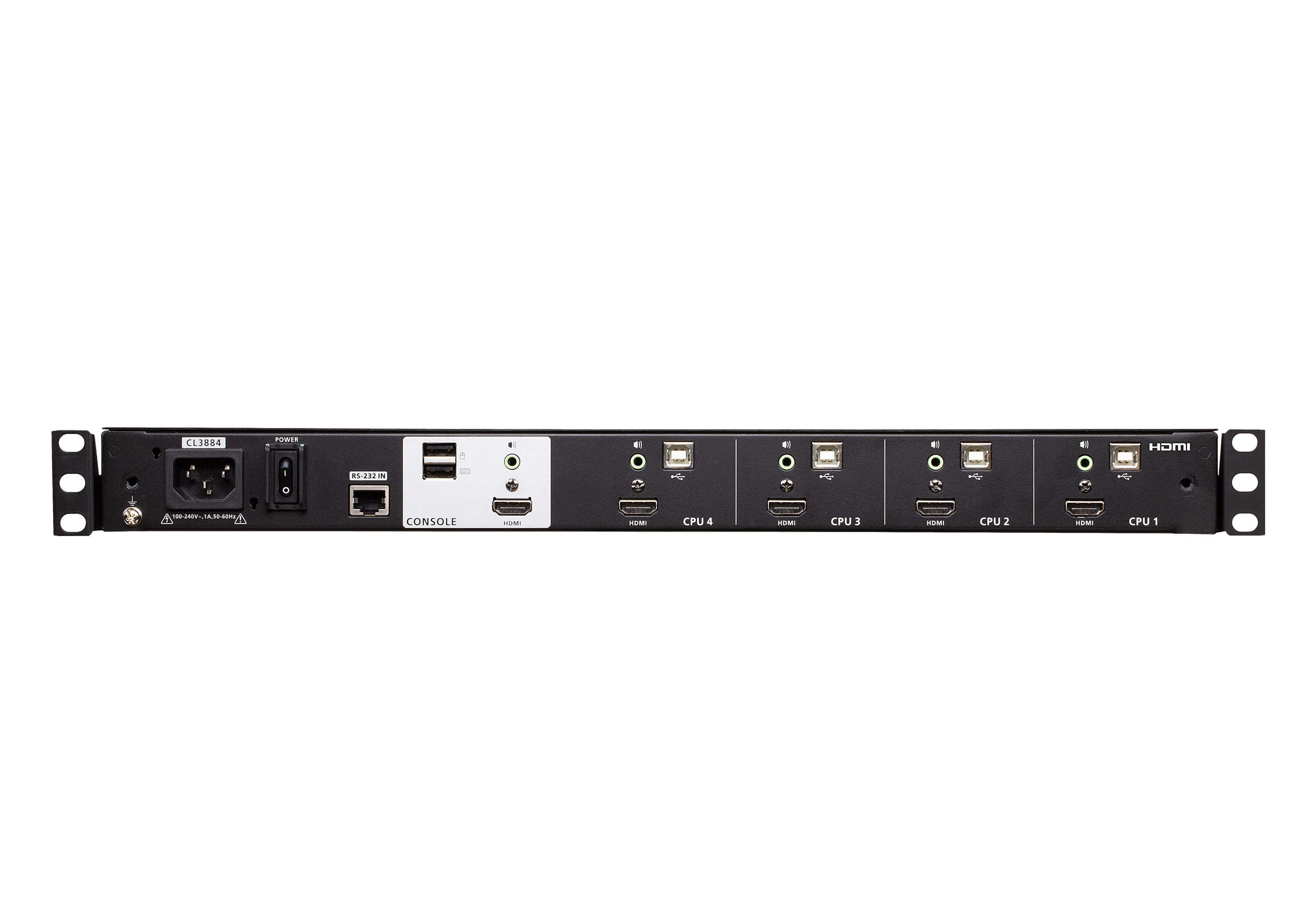

Конектори

KVM портове: 4 x HDMI Female 4 x USB Type B Female 4 x 3.5mm Audio Jack Female (Green)
Захранване: 1 x IEC 60320/C14
Сериен: 1 x RJ-45 Female
Външни конзолни портове: 1 x HDMI Female 2 x USB Type A Female 1 x 3.5mm Audio Jack Female (Green)
USB порт: 1 x USB Type A Female (Front)

Бутони и превключватели

Избор на порт: 4 x Pushbutton
Multi-View режим: 5 x Pushbutton
Режим на дисплея: 3 x Pushbutton
Нулиране: 1 x Semi-recessed Pushbutton
Обновяване на фърмуера: 1 x Slide Switch
Захранване: 1 x Rocker Switch
Управление на дисплея: 4 x Pushbutton
Захранване на дисплея: 1 x LED Pushbutton

Индикатори

Захранване: 1 (Dark Green)
Заключване: 1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green)
LED осветление: 1 x LED Illumination Light

Панел

LCD модул: 18.5" TFT-LCD
Резолюция: 1920 x 1080 @ 60 Hz
Време за реакция: 20 ms
Зрителен ъгъл: 178° (H), 178° (V)
Поддържани цветове: 16.77M colors
Контраст: 1000 : 1
Яркост: 350 cd/m²

Видео

Входна видео резолюция: 1920 x 1200 @ 60 Hz
Втора конзола: 1920 x 1200 @ 60 Hz
Интервал на сканиране: 5, 10, 15, 30, 60, 90 seconds (default: 5 seconds)

Емулация

Клавиатура / мишка: USB
Макс. входна мощност: 100-240V AC, 50-60Hz, 1A
Консумация: AC110V:35.2W:171BTU/h AC220V:35.7W:174BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Работна среда

Работна температура: 0-40°C
Температура на съхранение: -20-60°C
Влажност: 0-85% RH, Noncondensing

Физически характеристики

Корпус: Metal
Тип релси: Dual Rail
Тегло: 11.20 kg ( 24.67 lb )
Размери (Д x Ш x В): 48.06 x 63.10 x 4.28 cm (18.92 x 24.84 x 1.69 in.)
Размери на корпуса (Д x Ш x В): 44.92 x 58.40 x 4.28 cm (17.68 x 22.99 x 1.69 in.)
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
