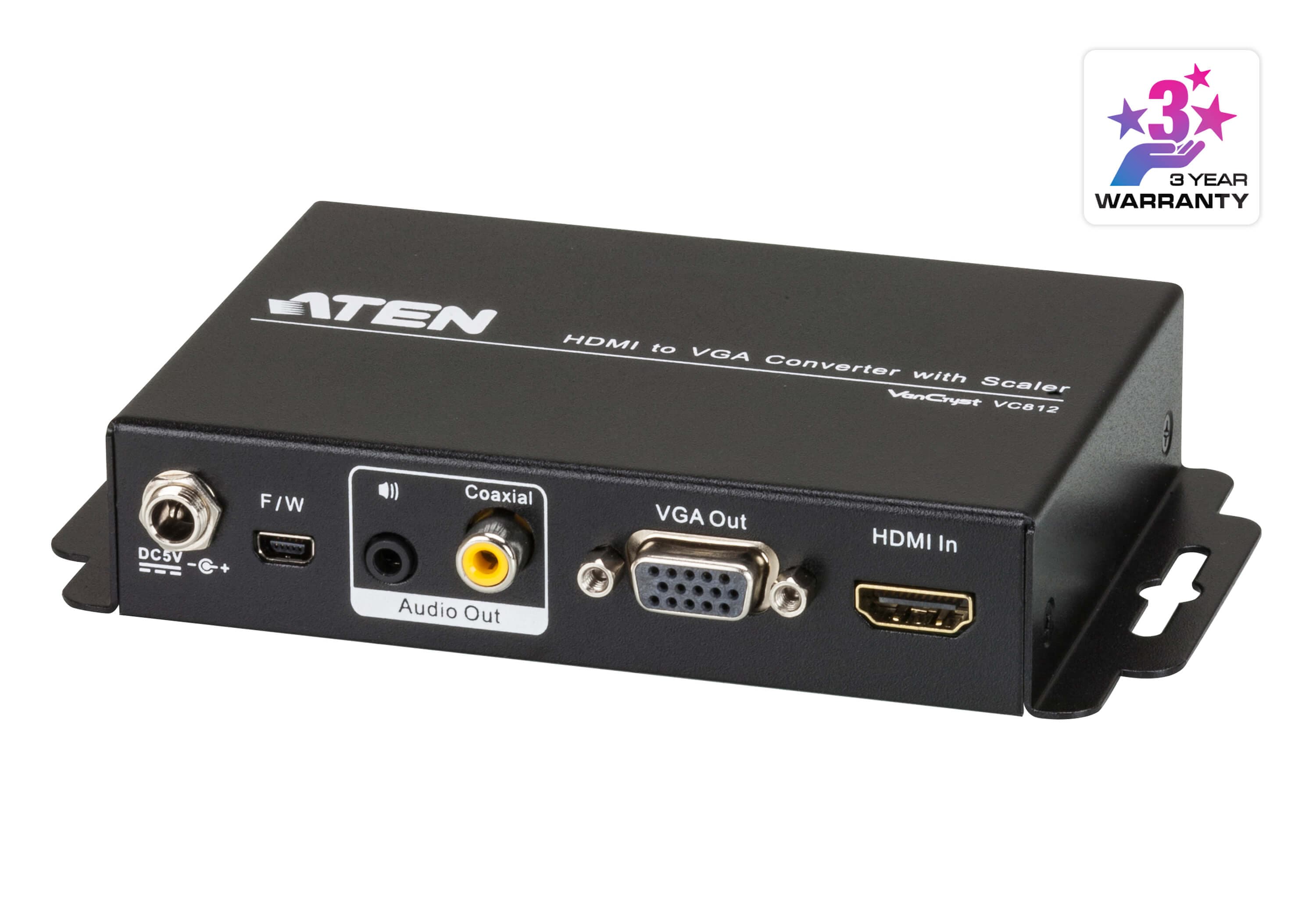

HDMI to VGA/Audio Converter with Scaler
VC812

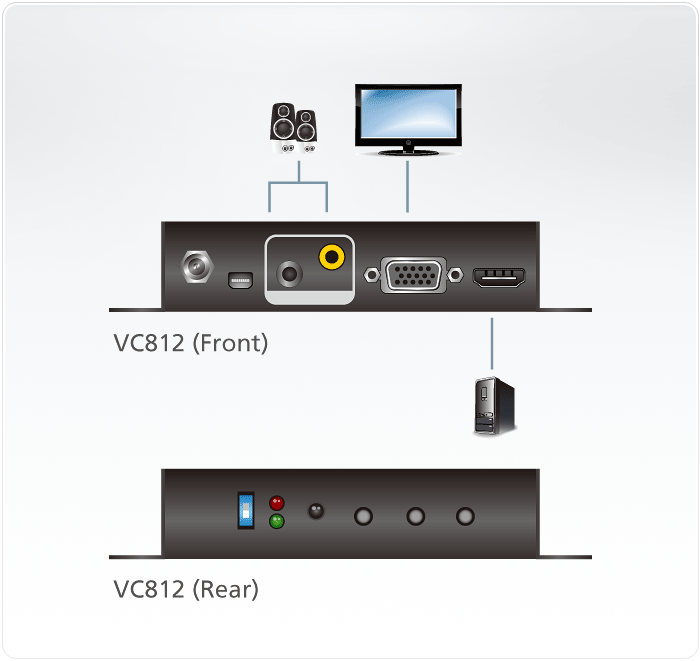

The VC812 HDMI to VGA converter with Scaler offers an easy and convenient way of converting HDMI input signals into analog video (VGA). The VC812 carries a high-performing scaling engine
Features
- Converts HDMI signals to VGA output
- Supports analog/digital audio
- Superior video quality – up to 1080p; 1920 x 1200
- Features a built in high-performance scaler function for best image quality
- Scaler - a premium scaling engine that converts various input video resolutions into the display's native resolution, while adjusts picture ratio automatically for maximum viewing comfort
- 3D Deinterlacing - increases image clarity for ultimate viewing quality by processing and scanning digital video signals
- Features a superior de-interlacer function for smooth video playback quality
- Built-in OSD function for video and system settings configuration
- Integrated superior video noise reduction
- Integrated next generation color engine – automatic picture quality/color adjustment and enhancement
- Automatically detects video input signals

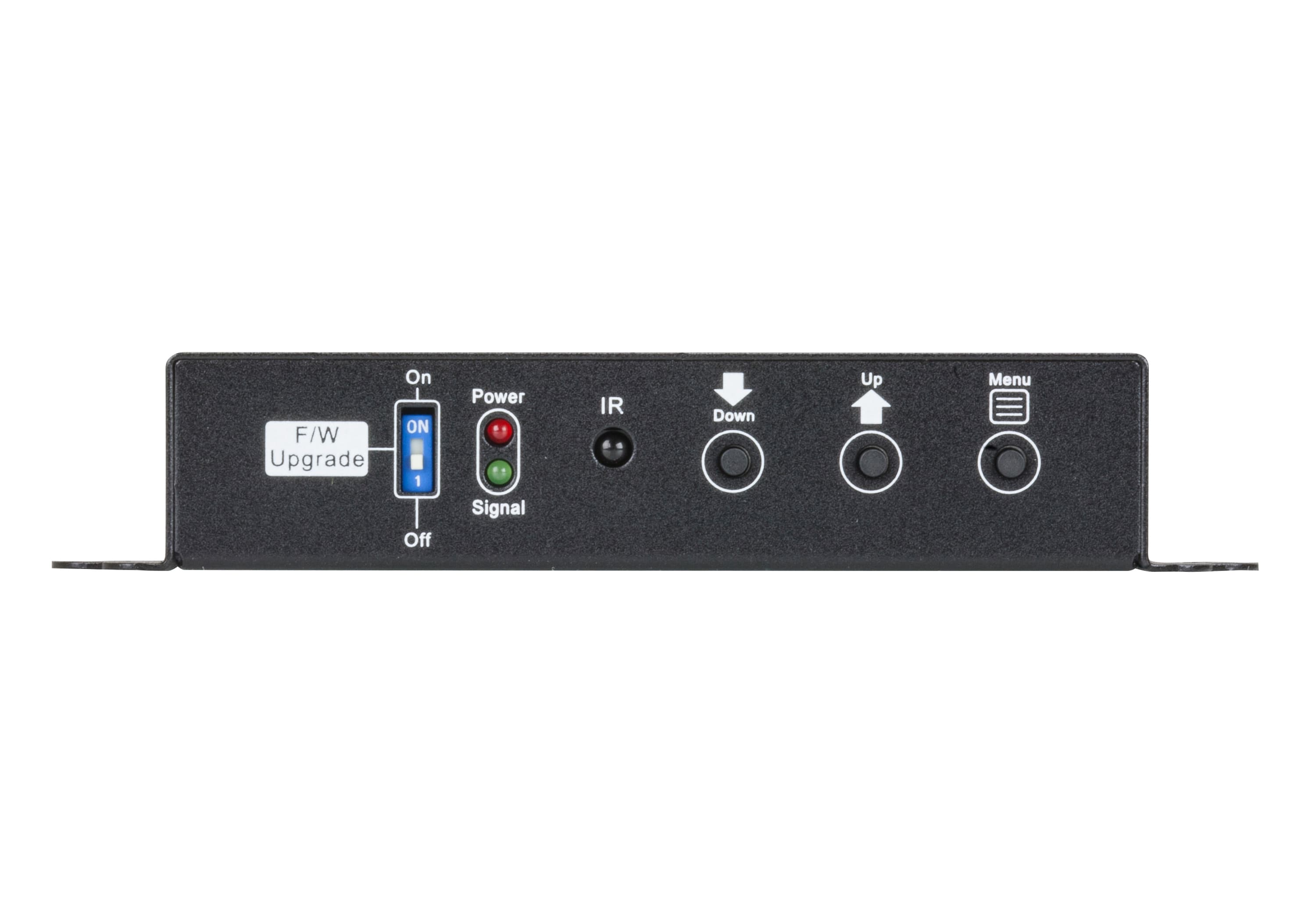

- LED indication of power status and source device
- No software required – eliminates incompatibility and installation issues Note: The VC812 does not support HDCP

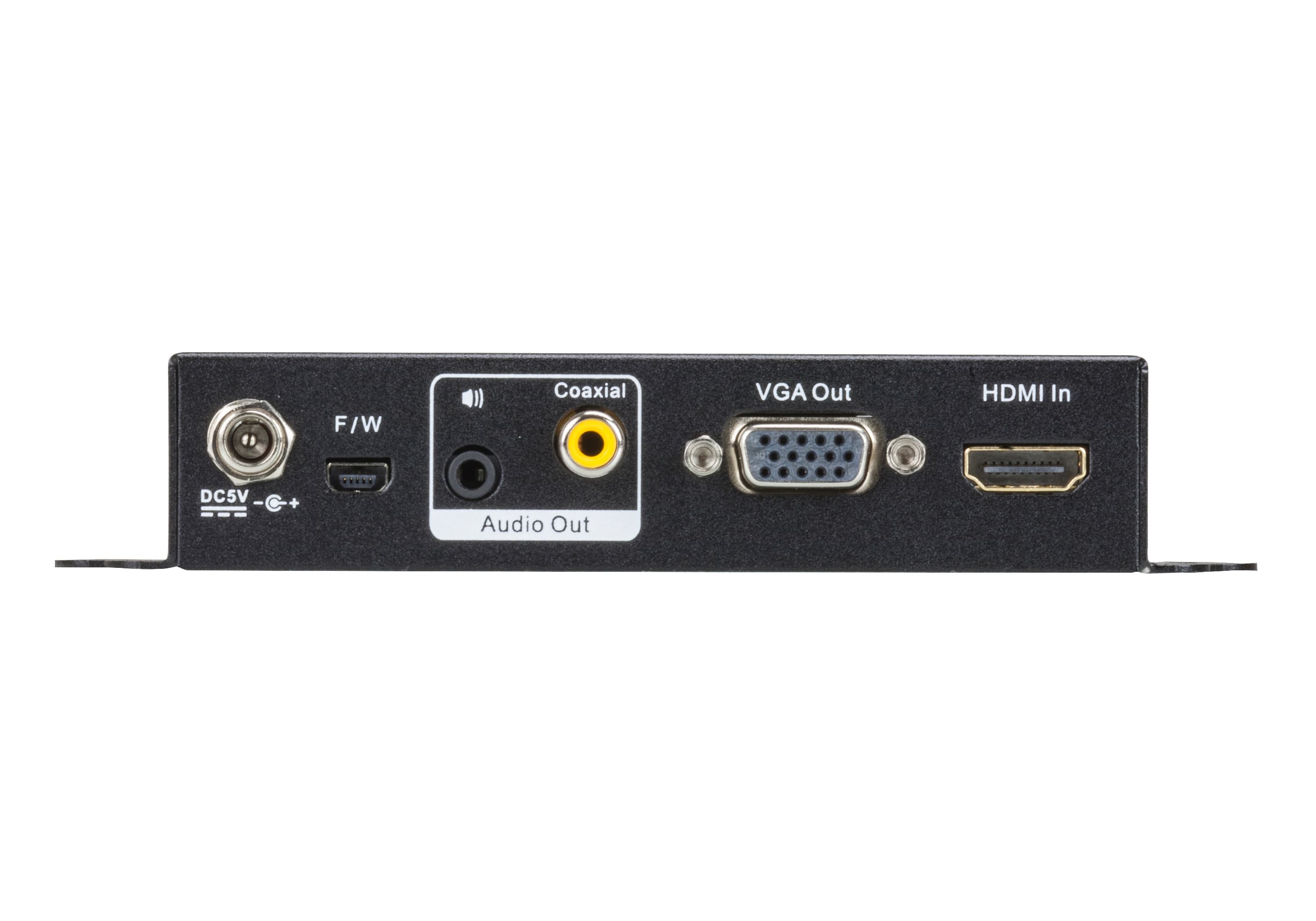

Video Input
- Interfaces
- 1 x HDMI Type A Female (Black)
- Impedance
- 100 Ω
Video Output
- Interfaces
- 1 x HDB-15 Female (Black)
- Impedance
- 75 Ω
Video
- Max. Pixel Clock
- 165 MHz
- Max. Resolution
- Up to 1920 x 1200
- Scaler Resolutions
- 480p; 576p; 800 x 600; 1024 x 768; 1280 x 720; 1280 x 1024; 1360 x 768; 1440 x 900; 1600 x 1200; 1680 x 1050; 1080i; 1080p; 1920 x 1200
Audio
- Output
- Analog: 1 x Mini Stereo Jack Female (Black) Digital: 1 x RCA (Yellow)
Connectors
- Power
- 1 x DC Jack
- Power Consumption
- DC5V:2.125WBTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
- Operating Temperature
- 0 - 40 ºC
- Storage Temperature
- -20 - 60 ºC
- Humidity
- 20 - 90% RH, Non-Condensing
Physical Properties
- Housing
- Metal
- Weight
- 0.29 kg ( 0.64 lb )
- Dimensions (L x W x H)
- 11.00 x 8.30 x 2.80 cm (4.33 x 3.27 x 1.1 in.)
- Carton Lot
- 5 pcs
- Note
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
