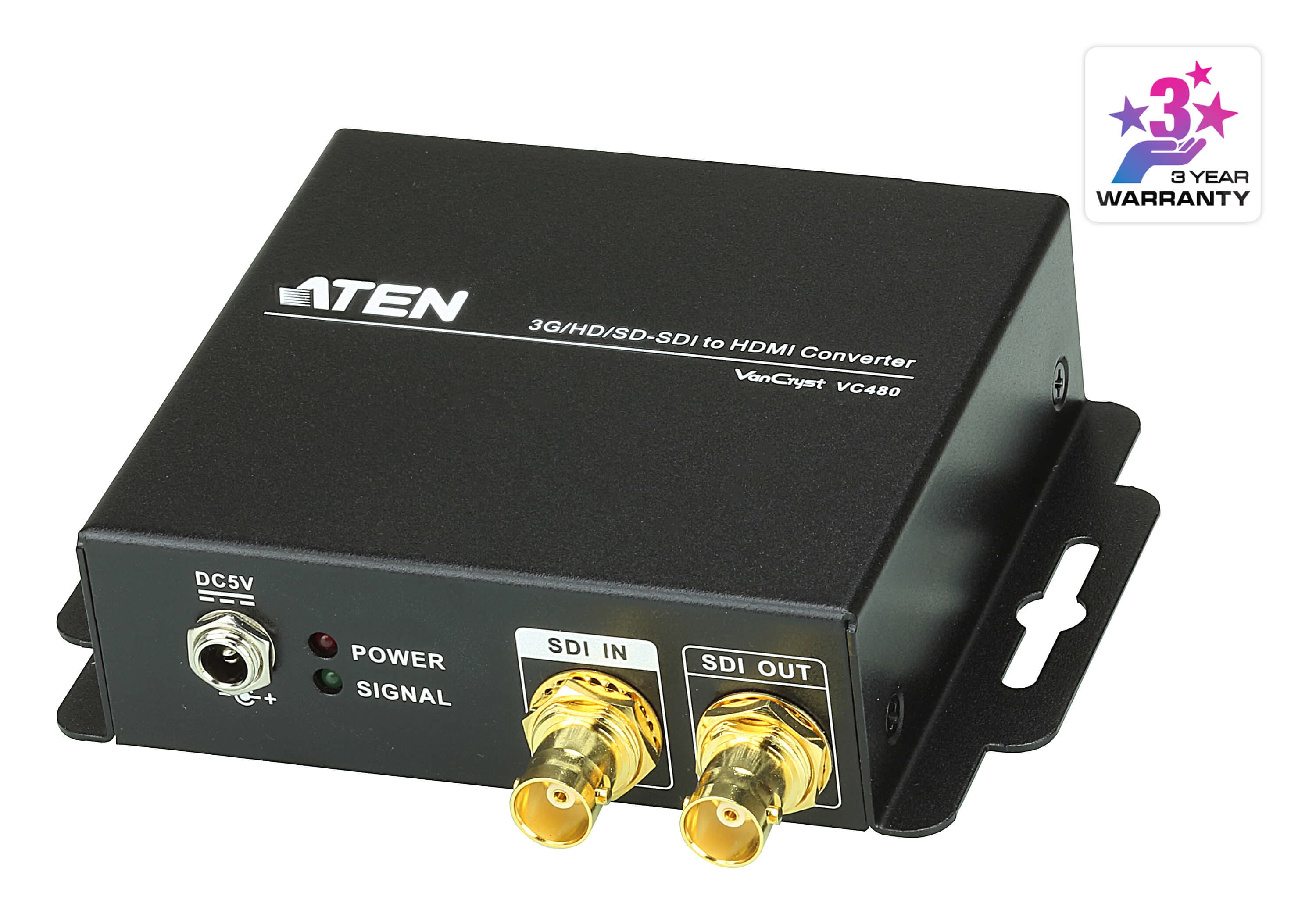

3G-SDI to HDMI/Audio Converter

Name: 3G-SDI to HDMI/Audio Converter
Brand: ATEN
SKU: VC480

VC480

Request a quote Datasheet PDF Quick start guide CAD drawing

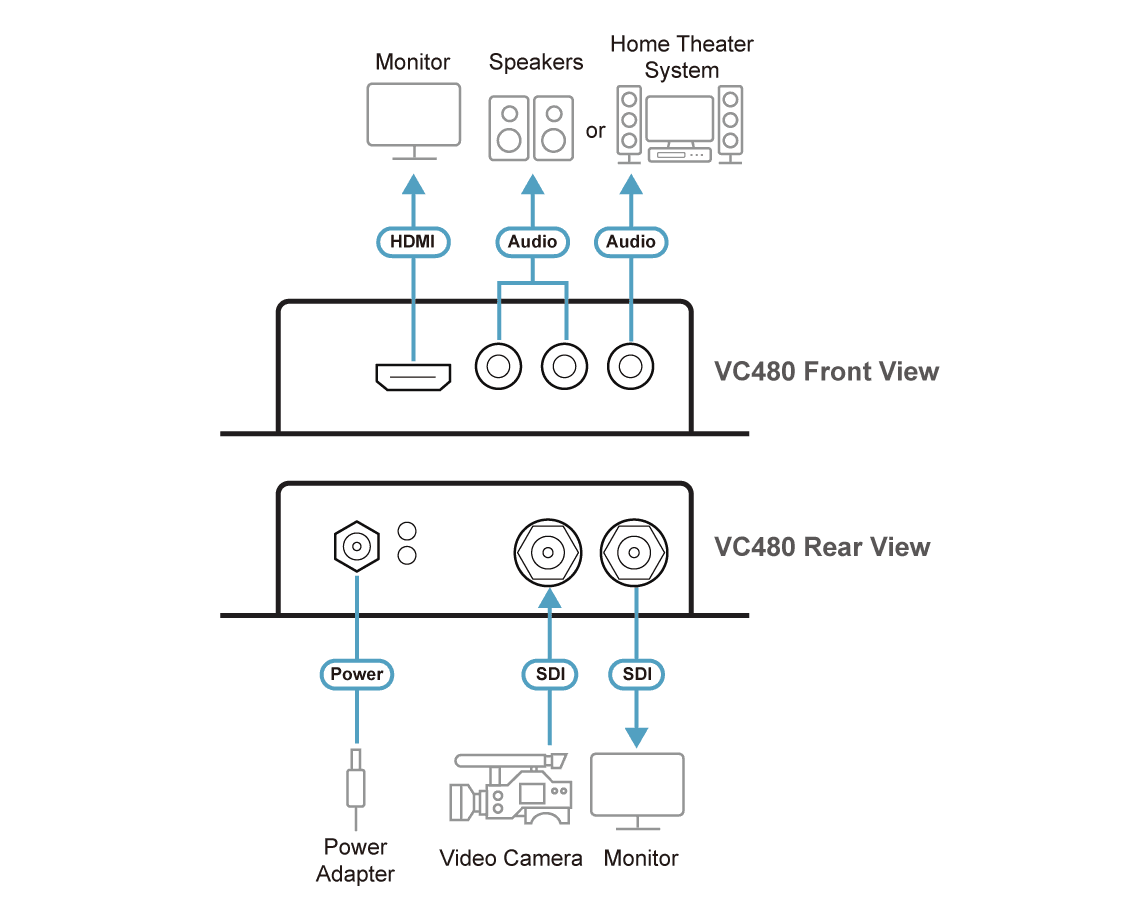

The VC480 3G/HD/SD SDI to HDMI Converter provides a professional way to exchange high definition signals in real time. The SDI and HDMI signal conversion is 100% digital and guarantees

Features

Converts an 3G/HD/SD-SDI input signal to HDMI formats in real time while avoiding transformation loss for both audio and video signals
Supports additional analog stereo audio and coaxial digital audio
HDMI (Deep Color)

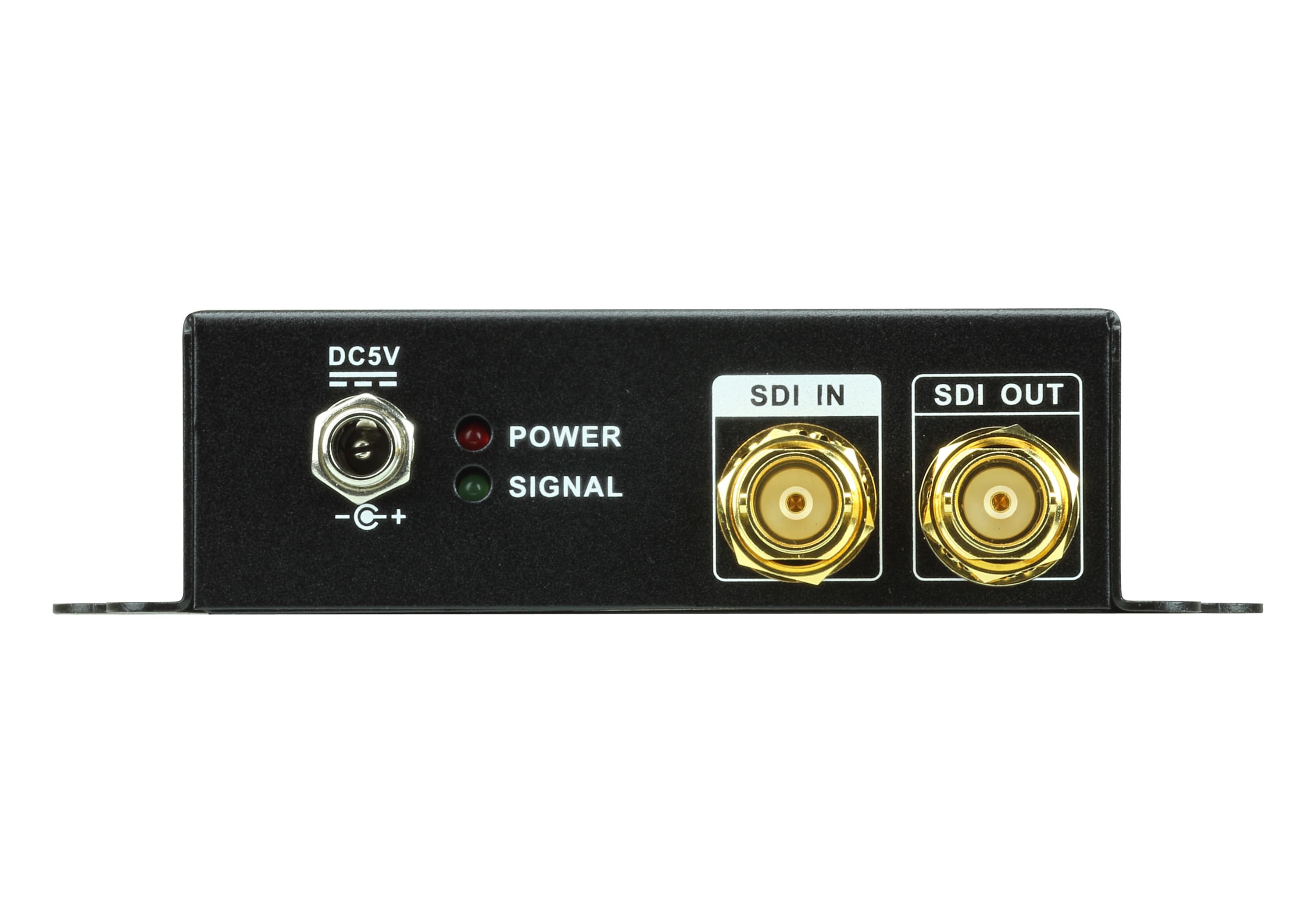

LED indication of power and signal status
Supports an SDI distance of up to 90M (3G-SDI), 150M (HDSDI) or 300M (SD-SDI) of RG6
Supported SDI formats: • SD-SDI (SMPTE 259M, up to 270Mbps) • HD-SDI (SMPTE 292M, 296M, up to 1.485Gbps) • 3G-SDI (SMPTE 424M, 425M level A,B, up to 2.97Gbps)
Video support: [email protected], 625i@50 [email protected]/24/25/29.94/30/50/59.94/60 1080i@50/59.94/60 [email protected]/24/25/29.97/30/50/59.94/60
Buffered loop-through output provides extended monitoring
Supports PCM 8 audio channels @48kHz rate
Features automatic detection of 3G/HD/SD-SDI signals
Reclocking SDI signals for cascading and thus longer transmission
Locking power connector for secure communications

Video Input

Interfaces: 1 x BNC (Gold)
Impedance: 75 Ω

Video Output

Interfaces: 1 x HDMI Type A Female (Black); 1 x BNC (Gold)
Impedance: 100 Ω
Max. Distance: 15m at 1920*1080@60 (4:4:4) - HDMI

Video

Max. Data Rate: 2.97 Gbps
Max. Pixel Clock: 148.5 MHz
Supported Resolutions: [email protected], PAL@50 Hz; 720p@50/59.94/60 Hz; 1080i@50/59.94/60 Hz; [email protected]/24/25/29.97/30/50/59.94/60 Hz
Max. Distance: 90m (3G-SDI); 150m (HD-SDI); 300m (SD-SDI)
SDI Formats: SD-SDI (SMPTE 259M, up to 270 Mbps) HD-SDI (SMPTE 292M, 296M, up to 1.485 Gbps) 3G-SDI (SMPTE 424M, 425M level A, up to 2.97 Gbps)

Audio

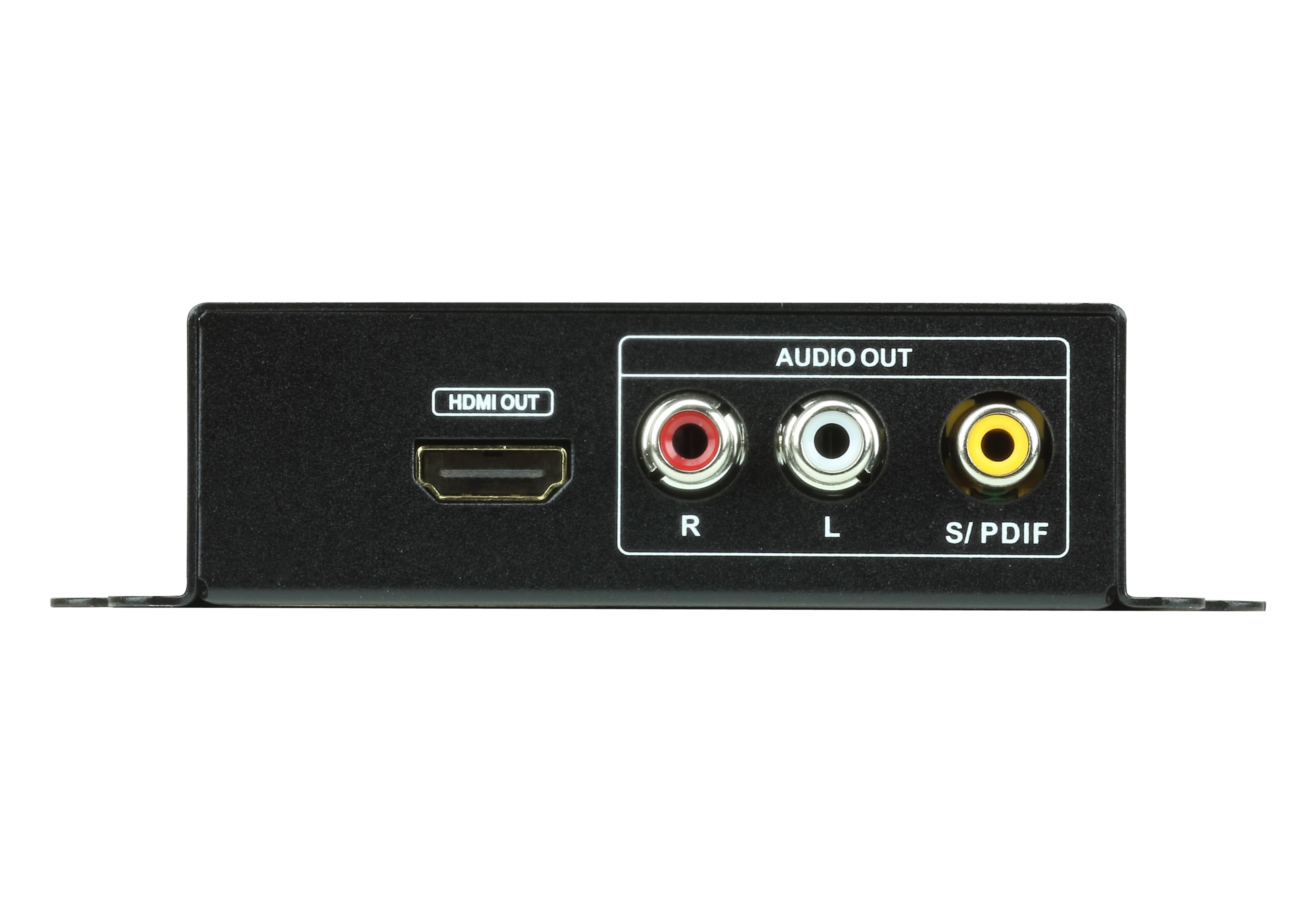

Output: Analog: 2 x RCA (Red/White) Digital: 1 x RCA (Yellow)
Format: Input: PCM 2/5.1/7.1 Channel @48kHz sampling rate Output: PCM 2 Channel (Analog/Digital)

Connectors

Power: 1 x DC Jack
Power Consumption: DC5V:3.635WBTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Environmental

Operating Temperature: 0 - 40 ºC
Storage Temperature: -20 - 60 ºC
Humidity: 20 - 90% RH, Non-Condensing

Physical Properties

Housing: Metal
Weight: 0.29 kg ( 0.64 lb )
Dimensions (L x W x H): 12.30 x 10.87 x 3.05 cm (4.84 x 4.28 x 1.2 in.)
Carton Lot: 5 pcs
Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
