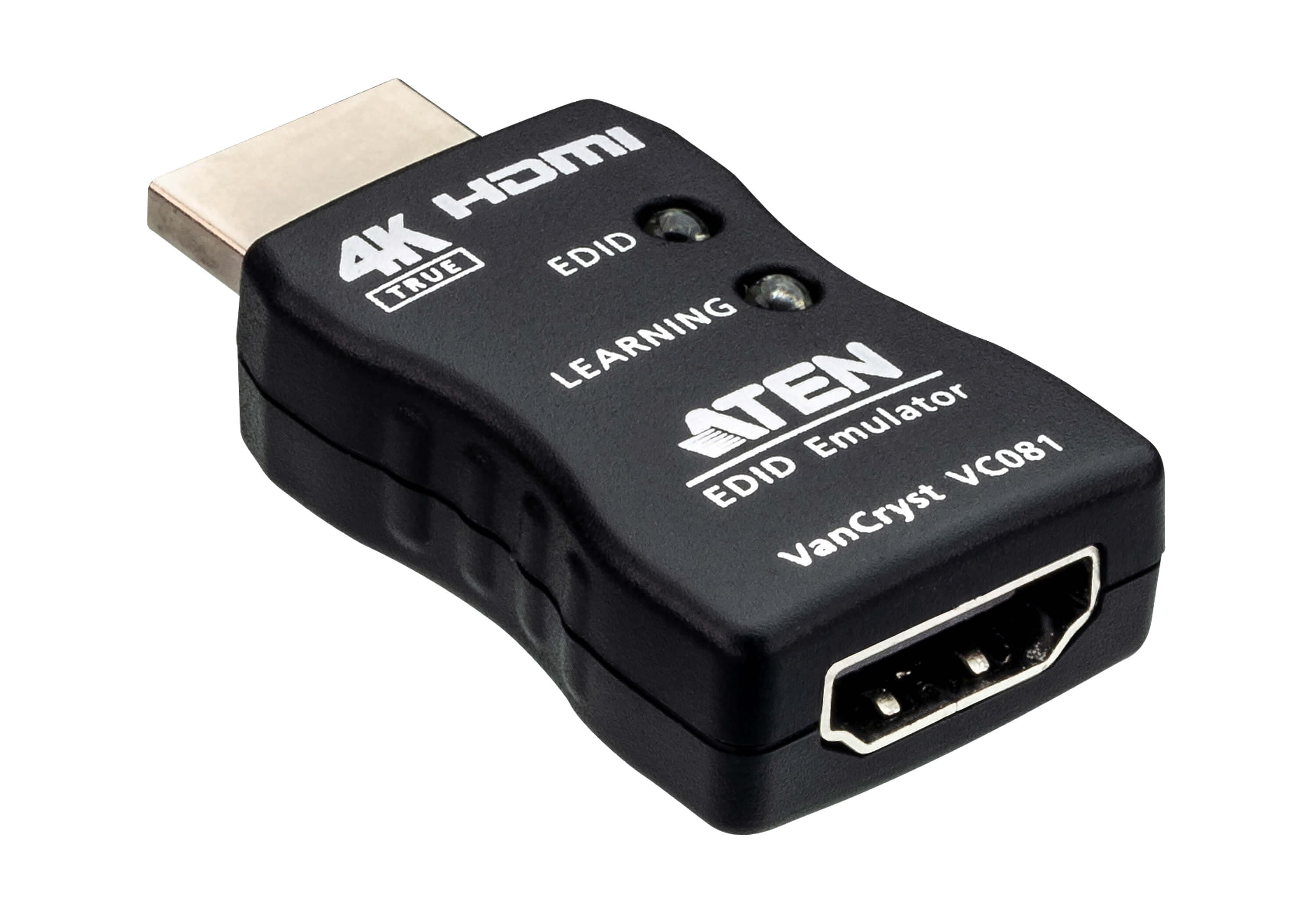

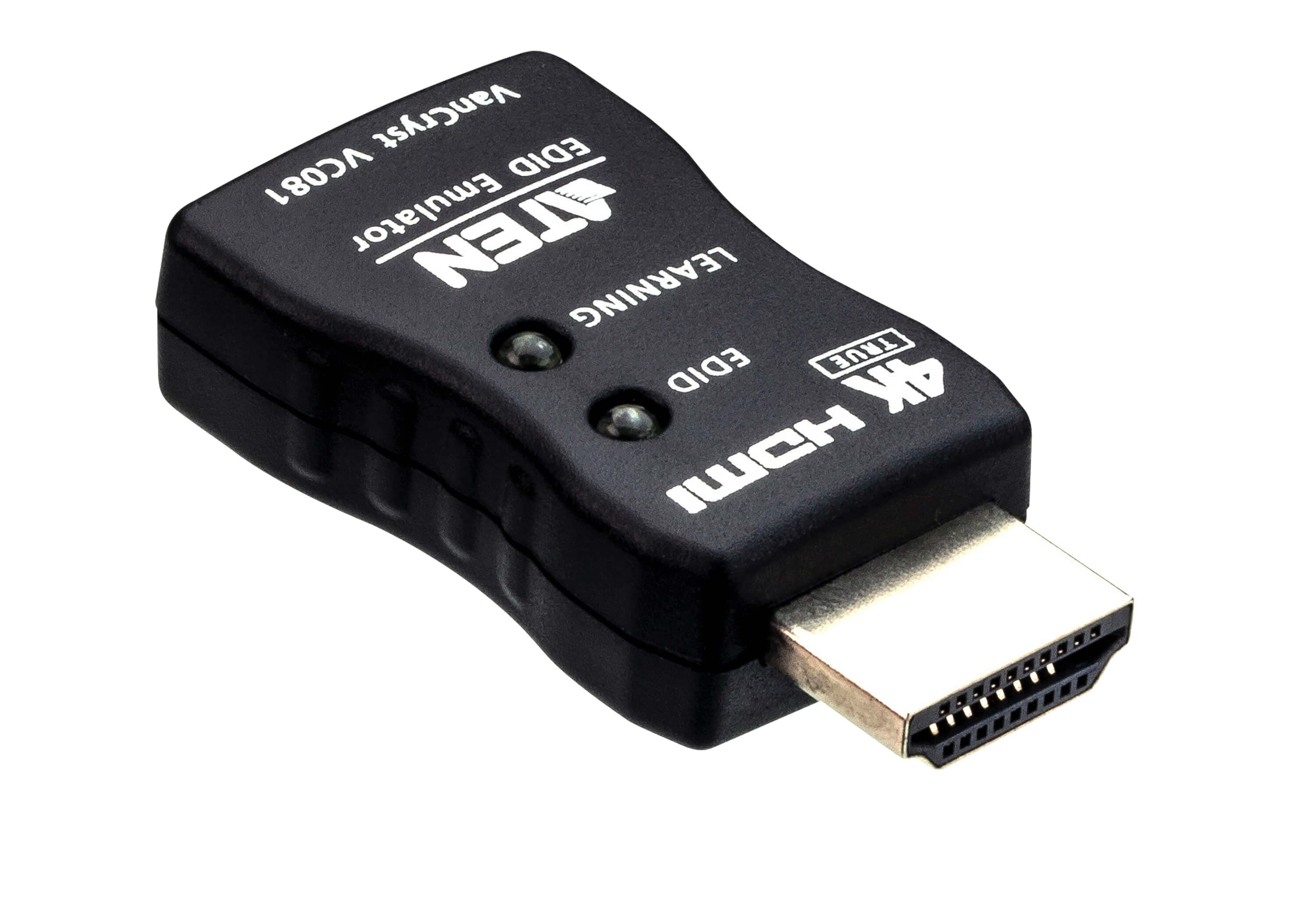

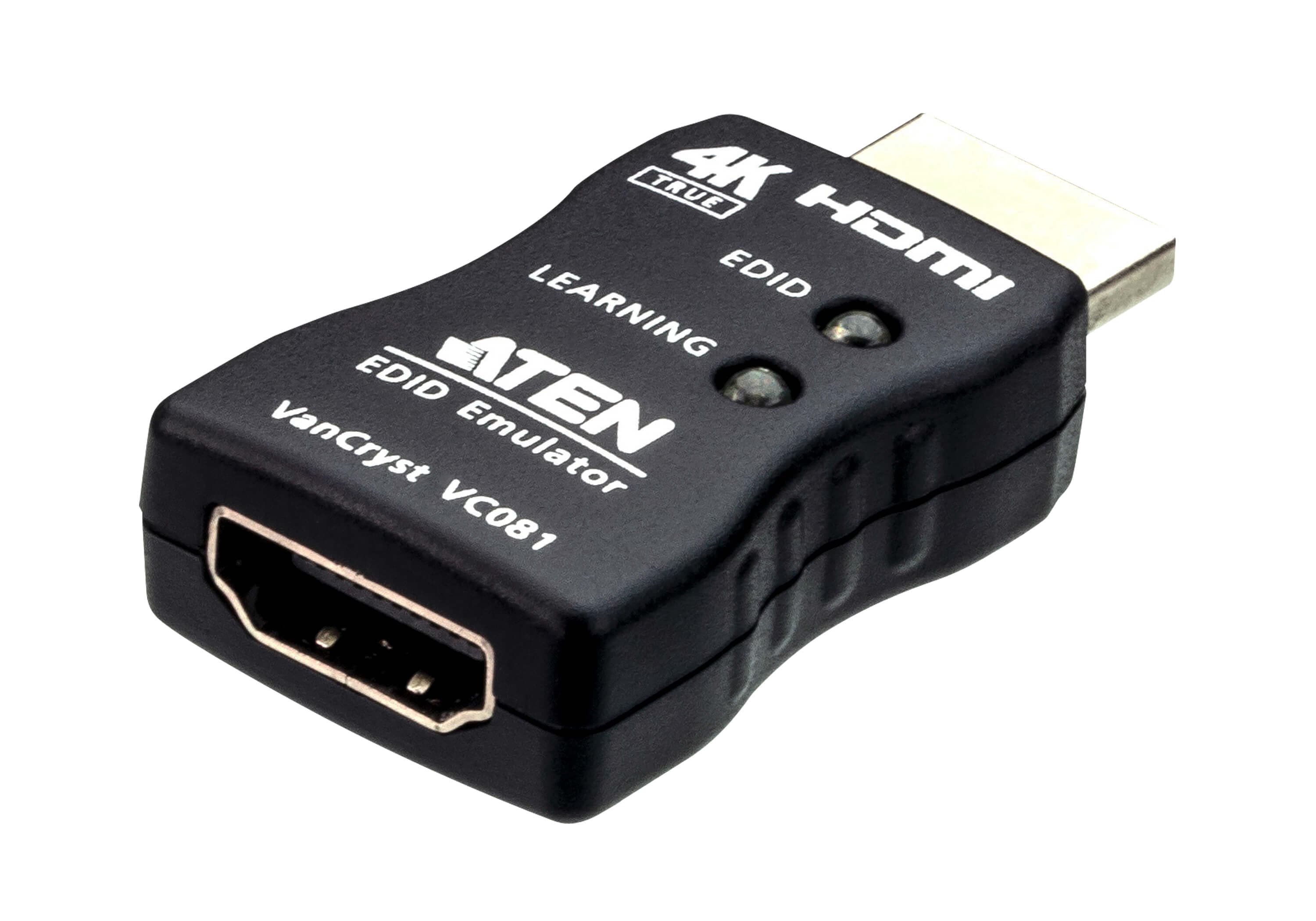

EDID emulator that learns a display's EDID and relays it to the video source; supports True 4K signals up to 3840 x 2160 at 60 Hz (4:4:4).
Features
- Manages EDID communication between connected devices

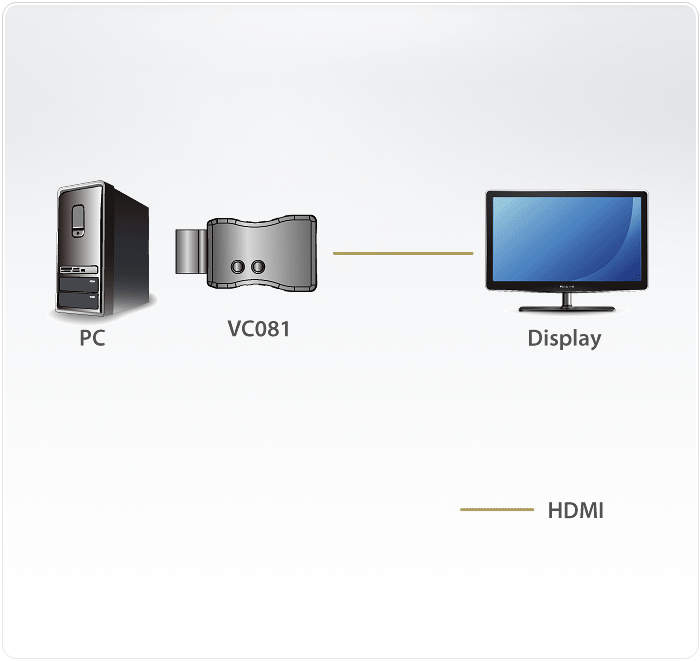

- Effectively learn the EDID from the HDMI display and relay it to the video source
- HDMI 2.0 (3D, Deep Color, True 4K); HDCP 2.2 compliant
- Superior video quality – up to True 4K (3840 x 2160 @ 60Hz 4:4:4)
- LED indicators to show device status
- Powered by HDMI source
- Compact and lightweight design
LEDs
- Power
- Power status (Green x 1)
- Status
- Learning (Blue x 1)
Video Input
- Interfaces
- 1 x HDMI Type A Male (Black)
- Impedance
- 100 Ω
Video Output
- Interfaces
- 1 x HDMI Type A Female (Black)
- Impedance
- 100 Ω
Video
- Compliance
- HDMI 2.0 (3D, Deep Color) HDCP 2.2 Compatible Consumer Electronic Control (CEC)
- EDID Settings
- EDID Mode: Default / Learning
Connectors
- Power
- Bus-powered (5 VDC from source device)
- Power Consumption
- DC5V:0.1W:0.4BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
- Operating Temperature
- 0 - 50 ºC
- Storage Temperature
- -20 - 60 ºC
- Humidity
- 0 - 80% RH, Non-Condensing
Physical Properties
- Housing
- Plastic (ABS)
- Weight
- 0.08 kg ( 0.18 lb )
- Dimensions (L x W x H)
- 4.40 x 2.40 x 1.18 cm (1.73 x 0.94 x 0.46 in.)
- Carton Lot
- 20 pcs
- Note
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
