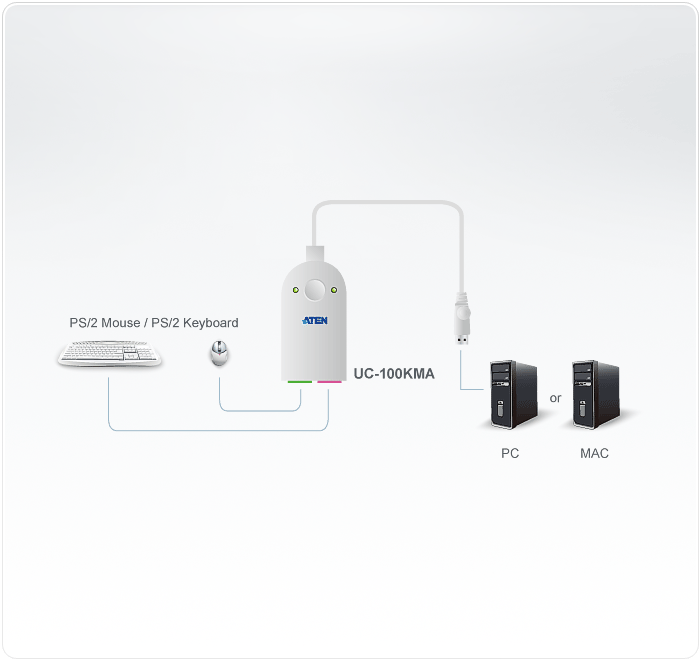

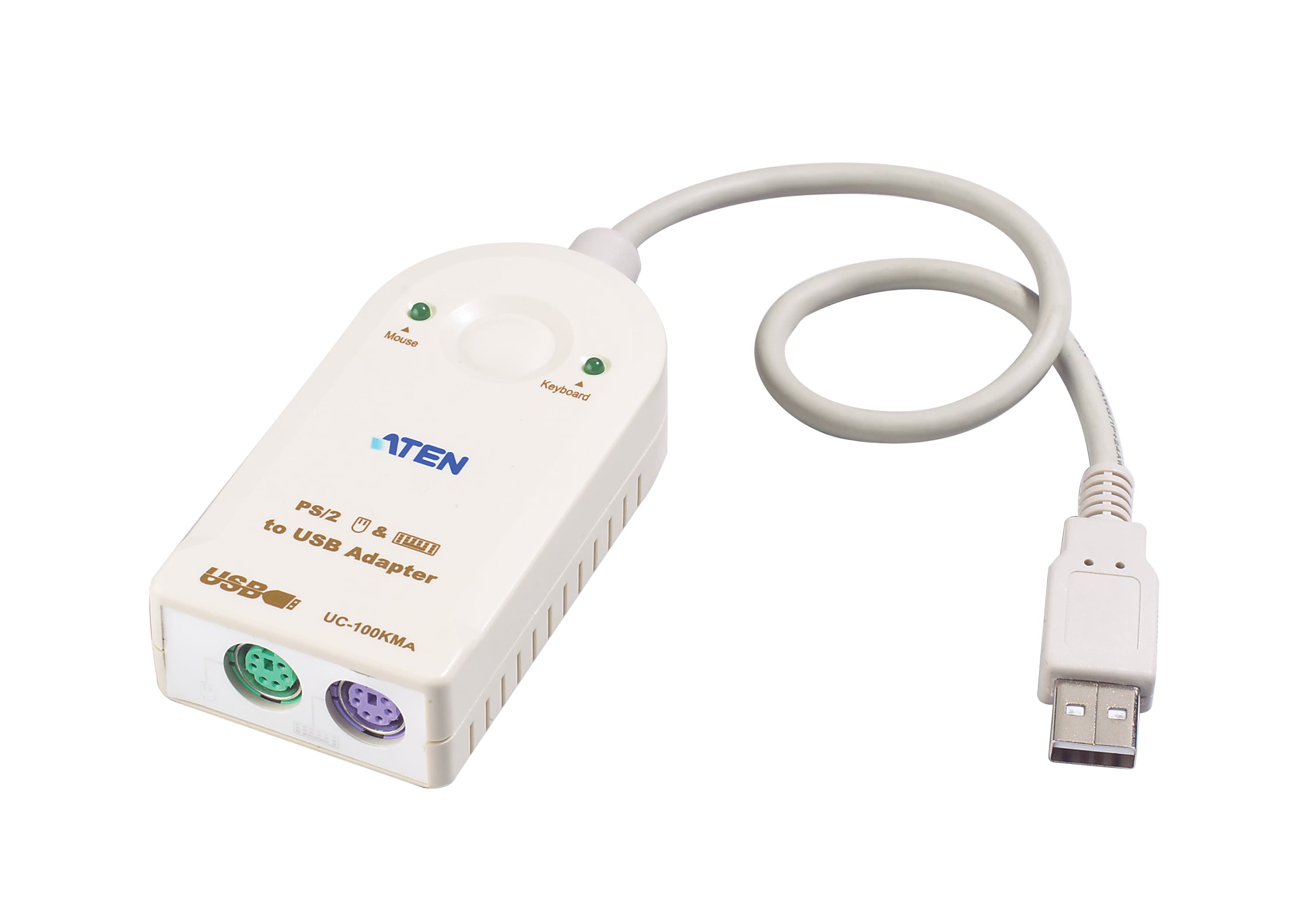

UC100KMA is a signal converter with a 30cm cable. It can convert signals of PS/2 devices (keyboard and mouse) into USB signals, and supports multiple operating systems to fulfill the
Features
- Two PS/2 devices (keyboard and mouse) to USB Interface converter
- Supports PS/2 mice and microsoft IntelliMouse
- Hotkey selection for OS and keyboard language supports
- Compatible with KVM Switches
- USB specification compliant
- External power adapter not required
- Easy installation - no software required
- OS Support:Windows 2000, Windows XP, Windows Vista, LINUX, Mac, Sun and FreeBSD
Connectors
- USB Port
- 1 x USB Type A Male (White)
- PS/2 Keyboard
- 1 x 6-pin Mini-DIN Female (Purple)
- PS/2 Mouse
- 1 x 6-pin Mini-DIN Female (Green)
LEDs
- Link
- 2 (Green)
- Cable Length
- 30 cm
- Platforms
- Windows 2000/XP/Vista/Linux Mac OS 8.6 or Higher SUN Solaris 8
- Data Rate
- 12 Mbps
- Power Mode
- Bus Powered (via the USB cable)
Environmental
- Operating Temperature
- 0–50°C
- Storage Temperature
- -20–60°C
- Humidity
- 0–80% RH, Non-condensing
Physical Properties
- Housing
- Plastic
- Weight
- 0.08 kg ( 0.18 lb )
- Dimensions (L x W x H)
- 9.15 x 4.70 x 2.50 cm (3.6 x 1.85 x 0.98 in.)
- Power Consumption
- DC5V:0.374W:6BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Note
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
