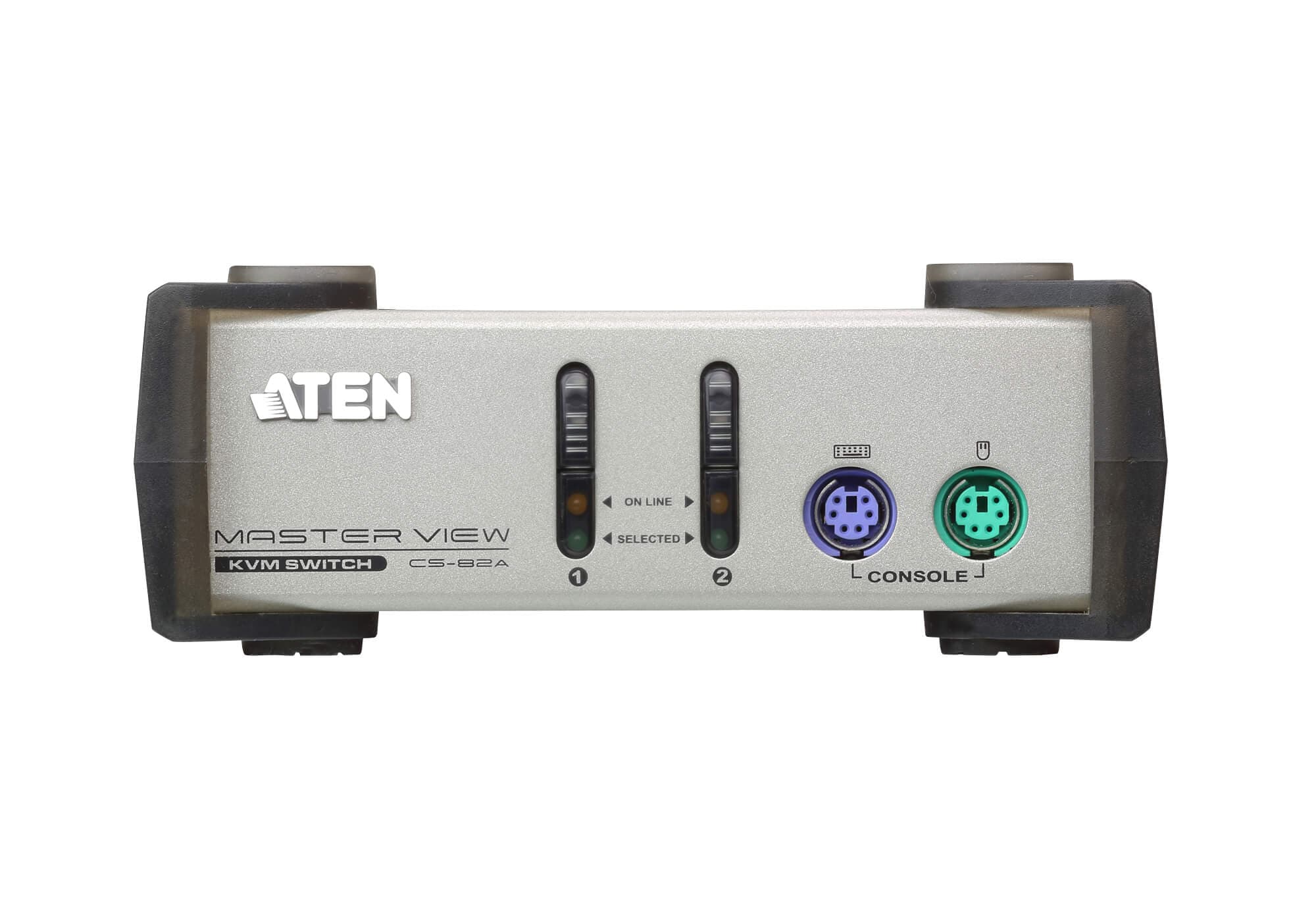

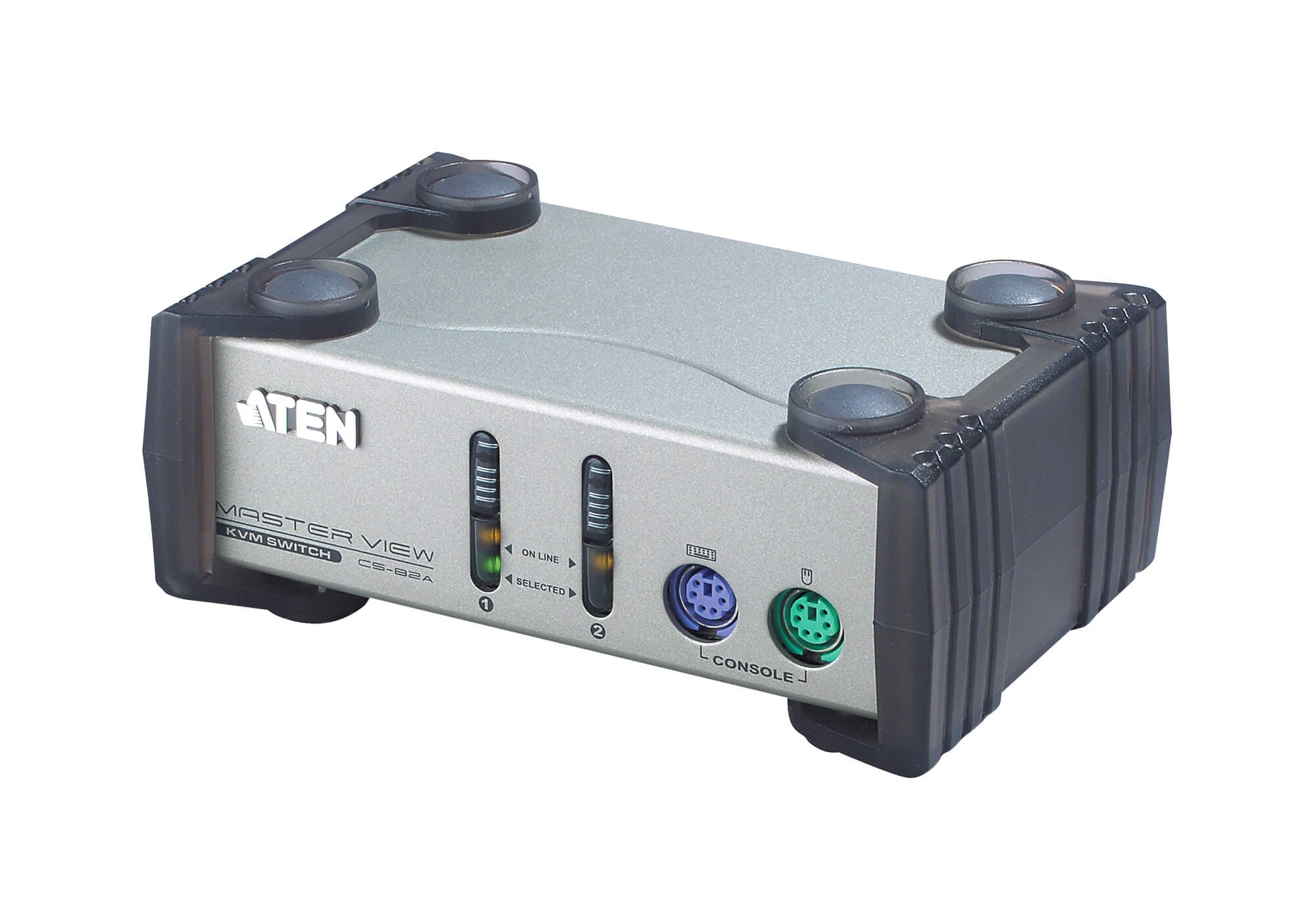

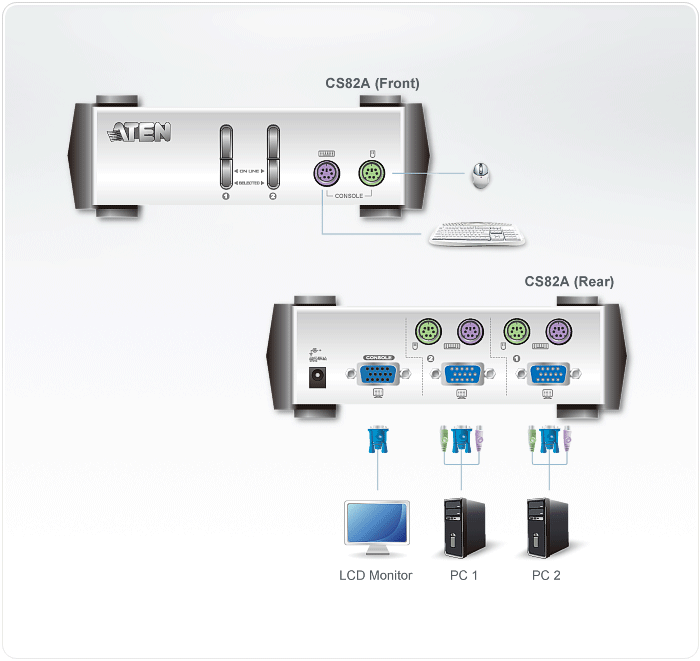

CS82A is a KVM switch with built-in PS/2 on each of the front and rear panels. It can control 2 servers via a single console and allows users to switch
Features
- One PS/2 console controls 2 computers.
- Computer selection via front panel pushbuttons and hotkeys.
- Superior video quality- up to 1920 x 1440; DDC2B.
- Supports Microsoft IntelliMouse, Logitech MouseMan, FirstMouse and IBM Scrollpoint Mouse.
- Compact, Sturdy, Durable Metal Housing.
- Keyboard and mouse emulation for error free booting.
- Auto Scan function to monitor computer operation.
- Bus-Powered.
- OS Compatibility: DOS, WIN 98, WIN ME, WIN NT, WIN 2K, WIN XP, WIN 2003, Windows Vista, LINUX. Mac 8.6/9/10 and SUN Solaris 8/9 (with optional adapter).
Specifications
- Computer Connections
- 2
- Port Selection
- Hotkey, Pushbutton

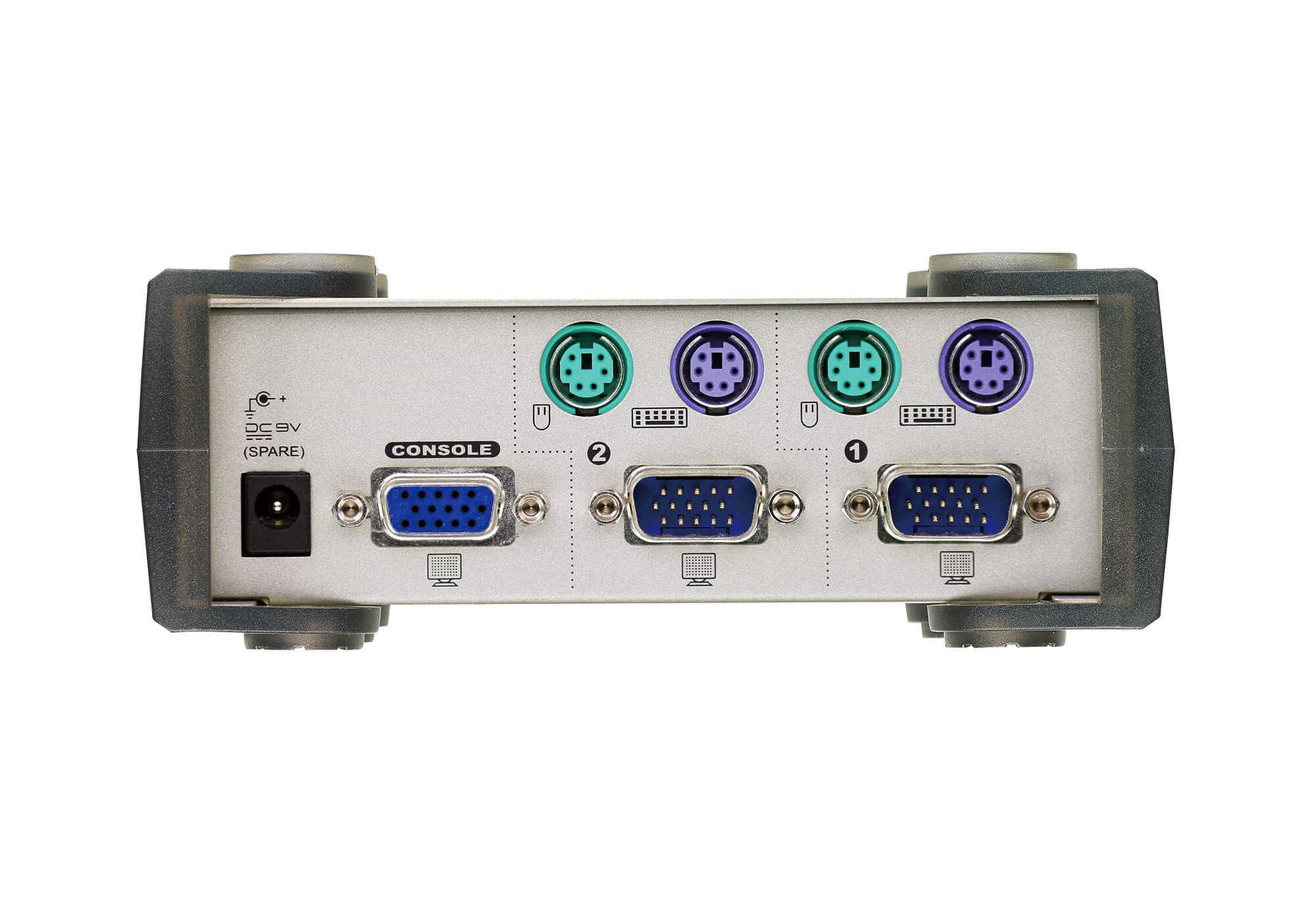

Connectors
- Console Ports
- 1 x HDB-15 Female (Blue) 1 x 6-pin Mini-DIN Female (Purple) 1 x 6-pin Mini-DIN Female (Green)
- KVM Ports
- 2 x HDB-15 Male (Blue) 2 x 6-pin Mini-DIN Female (Purple) 2 x 6-pin Mini-DIN Female (Green)
- Power
- 1 x DC Jack
Switches
- Ports
- 2 x Pushbutton
LEDs
- Online
- 2 (Orange)
- Selected
- 2 (Green)
Emulation
- Keyboard / Mouse
- PS/2
- Video
- 1920 x 1440 @ 60Hz; DDC2B
- Scan Interval
- 3, 5, 10, 20 Seconds
- Power Consumption
- DC9V:0.3W:6BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
- Operating Temperature
- 0°~50°C
- Storage Temperature
- -20°~60°C
- Humidity
- 0~80% RH, Non-condensing
Physical Properties
- Housing
- Metal
- Weight
- 0.54 kg ( 1.19 lb )
- Dimensions (L x W x H)
- 14.00 x 8.80 x 5.55 cm (5.51 x 3.46 x 2.19 in.)
- Note
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
