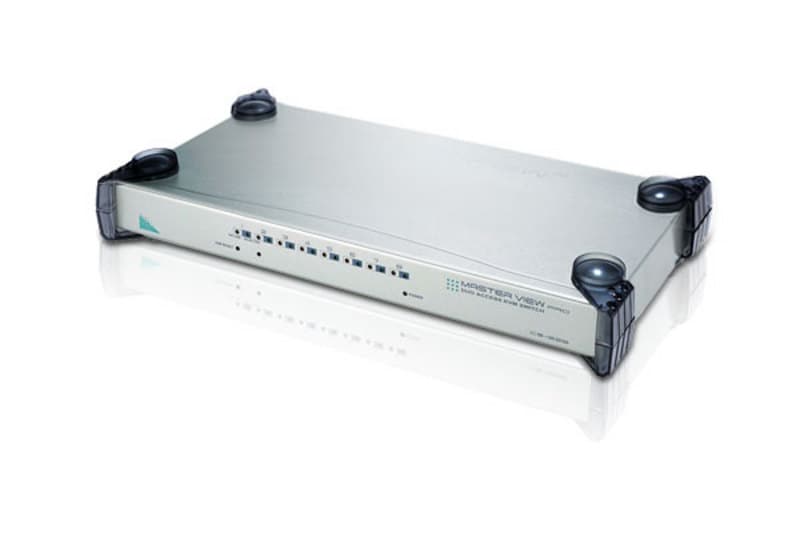

4-Console 8-Port PS/2 VGA/Audio KVM Switch
CS428Discontinued

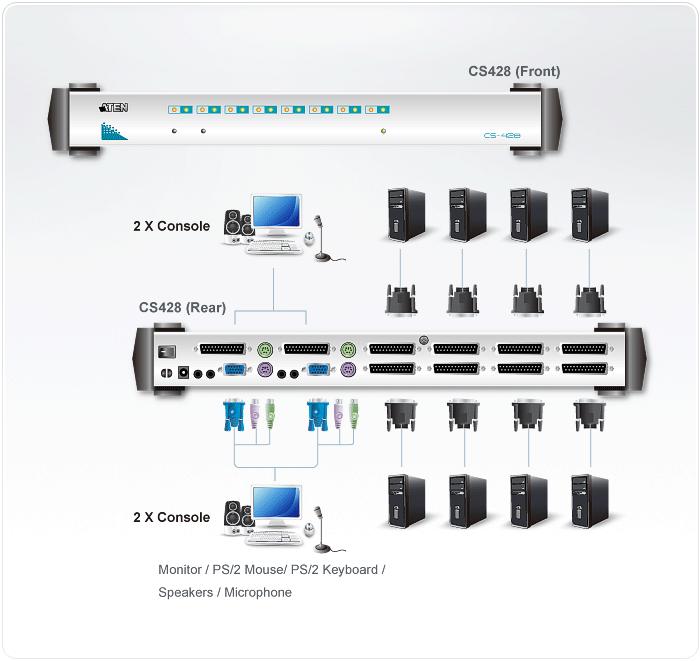

CS428 is a high-efficiency KVM switch which provides the most efficient solution. Its console with 2 built-in PS/2 and 2 DB-25 allows users to control 8 servers either alone or
Features
- 4 PS/2 console control 8 computers.
- Up to four users can operate up to 64 computers (via cascade to CS88A and CS9138*) at the same time.
- Each console has its own access control
- Two-level (Administrator/User) password authorization for enhanced security protection.
- Administrator can access any computer completely independently of the other users.
- Each user has his own access control list
- Computer selection via On Screen Display (OSD)
- Supports Microsoft IntelliMouse, Logitech MouseMan, FirstMouse, IBM Scrollpoint Mouse.
- OSD automatically adjusts to resolution changes.
- Auto Scan function to monitor computer operation.
- With speaker and microphone support.
- Superior video quality: Up to 1920 x 1440; DDC2B.
- Special design for easy stacking.
- Rack mountable in 19" (1U) system rack. * CS88A and CS9138 do not support audio features of audio enabled KVM switches.
- Multiplatform support: Windows 2000/XP/Vista, Linux and FreeBSD.
- For more information about KVMs which can connect to CS428, see Compatible KVM Table.
Computer Connections
- Direct
- 8
- Maximum
- 64 (via Cascade to CS9138)
- Port Selection
- OSD

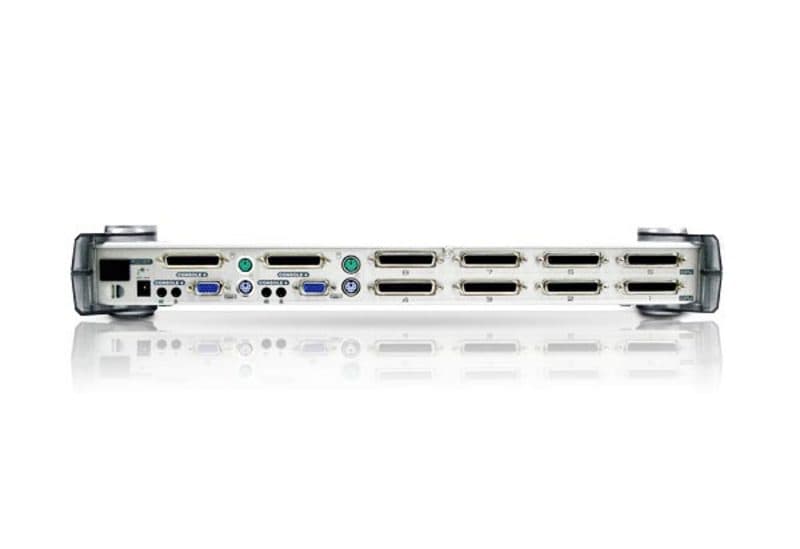

- Console 1 & 2 connectors
- 4 x 6-pin Mini-DIN Female 1 x HDB-15 Female 4 x Mini Stereo Jack Female
- Console 3 & 4 connectors
- 2 x 25 pin D-Type female
- Computer port connectors
- 8 x 25 pin D-Type female
LEDs
- Online
- 8 (Orange)
- Selected
- 8 (Green)
- Power
- 1 (Blue)
- Video
- 1920 x 1440; DDC2B
- Scan Interval
- 1-255 Seconds
Emulation
- Keyboard
- PS/2 & PC/AT
- Mouse
- PS/2 & Serial
- Power Consumption
- DC9V, 6.3W Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
- Operating Temperature
- 5-40˚C
- Storage Temperature
- -20-60˚C
- Humidity
- 0-80% RH, Non-condensing
Physical Properties
- Housing
- Metal
- Weight
- 4.20 kg ( 9.25 lb )
- Dimensions (L x W x H)
- 43.72 x 25.90 x 4.40 cm (17.21 x 10.2 x 1.73 in.)
- Note
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
