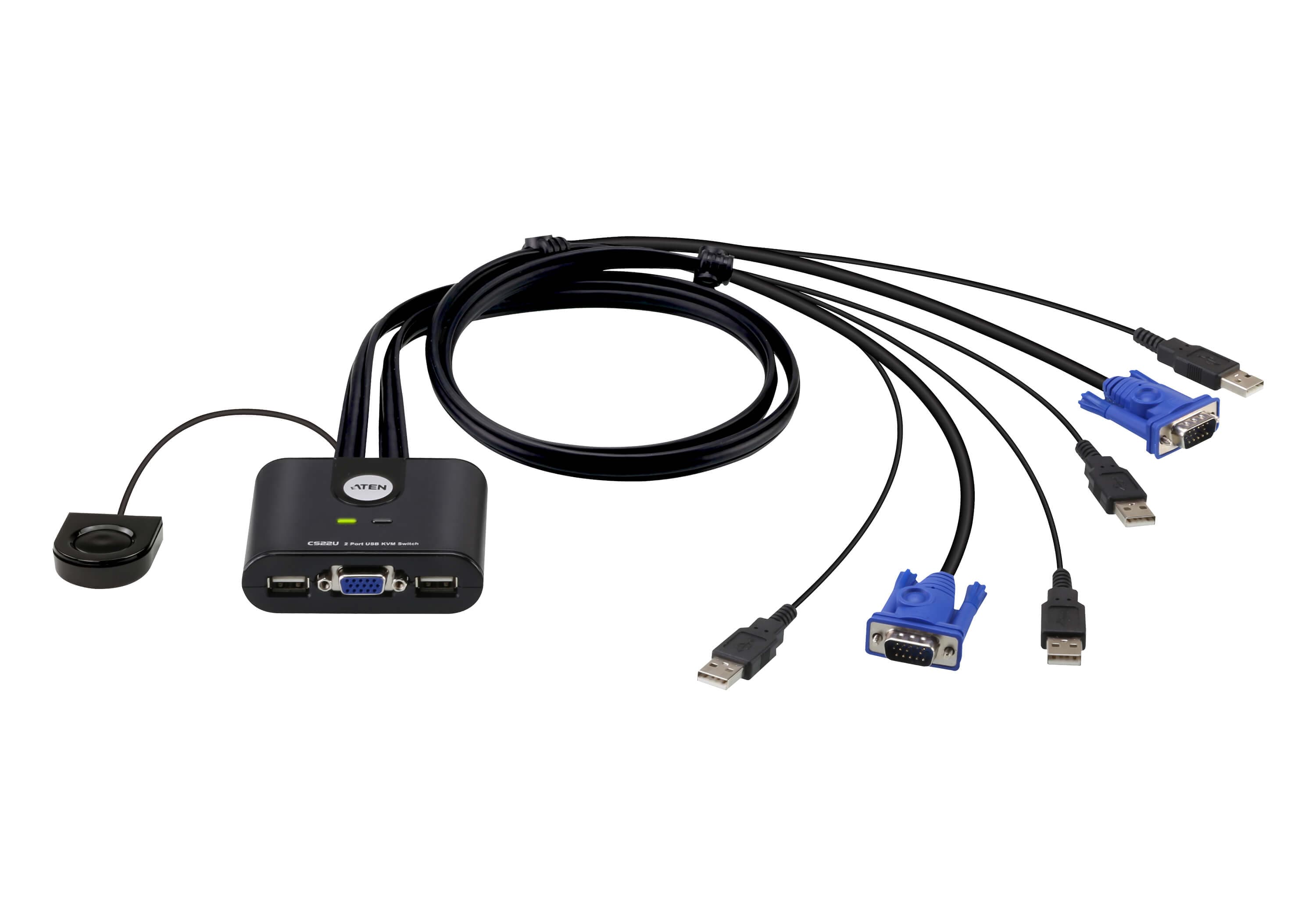

2-Port USB VGA Cable KVM Switch with Remote Port Selector
CS22U

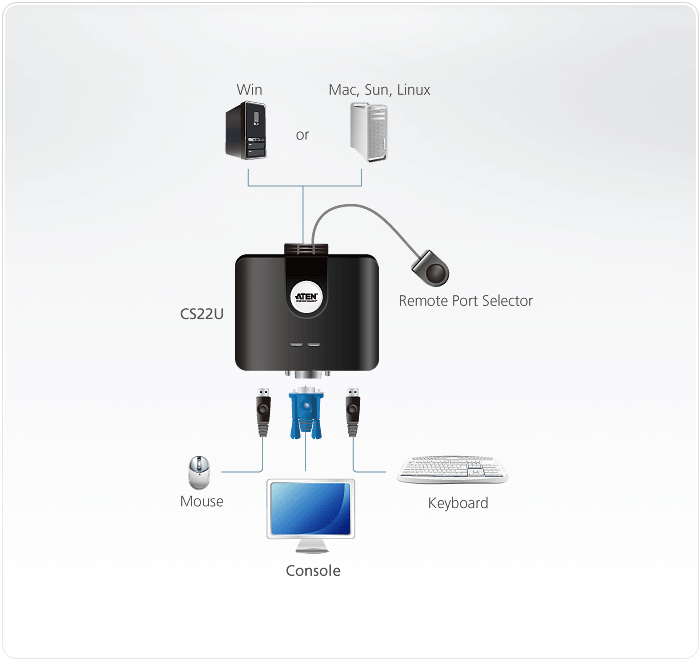

The CS22U is a 2-port USB Cable KVM Switch that provides a simple and quick method of selecting computers - a built-in remote port selector. This allows the CS22U unit
Features
- One USB console controls two USB computers
- Supports multifunction mice
- Multiplatform support - Windows, Mac, Linux and Sun
- The console USB ports can be used for USB peripheral sharing
- Superior video quality - up to 2048 x 1536; DDC2B
- Bus-Powered
Specifications
- Computer Connections
- 2
- Port Selection
- Remote Port Selector
Connectors

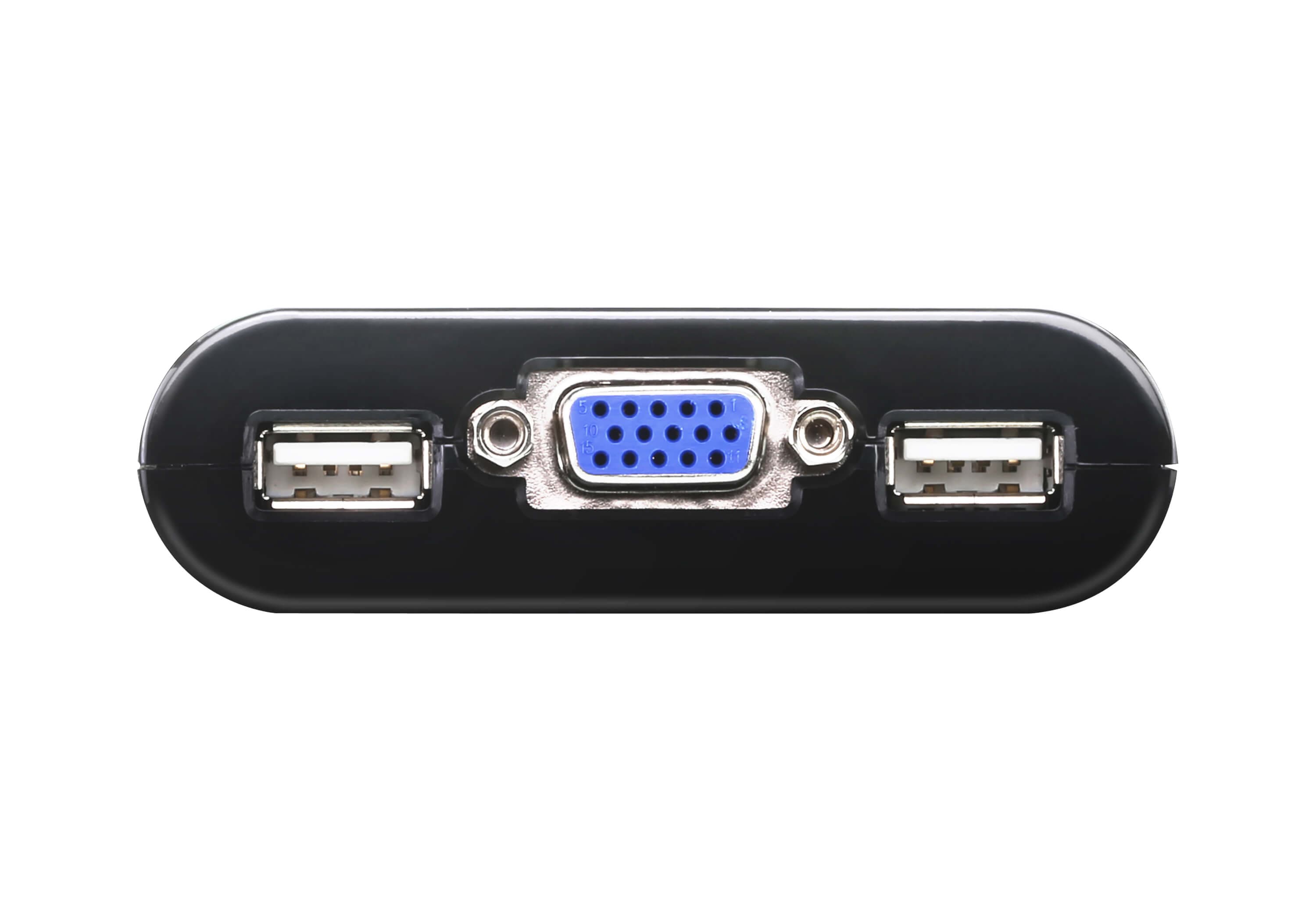

- Console Ports
- 1 x HDB-15 Female (Blue) 2 x USB Type A Female
- KVM Ports
- 2 x HDB-15 Male (Blue) 4 x USB Type A Male (Black)
LEDs
- Selected
- 2
Cable Length
- Computer
- 2 x 0.9 m
- Remote Port Selector
- 1.8 m
- Video
- 2048 x 1536, DDC2B
- Power Consumption
- DC5V:0.14W:13BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
- Operating Temperature
- 0-50°C
- Storage Temperature
- -20-60°C
- Humidity
- 0-80% RH, Non-condensing
Physical Properties
- Housing
- Plastic
- Weight
- 0.30 kg ( 0.66 lb )
- Dimensions (L x W x H)
- 8.24 x 7.01 x 2.46 cm (3.24 x 2.76 x 0.97 in.)
- Note
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
