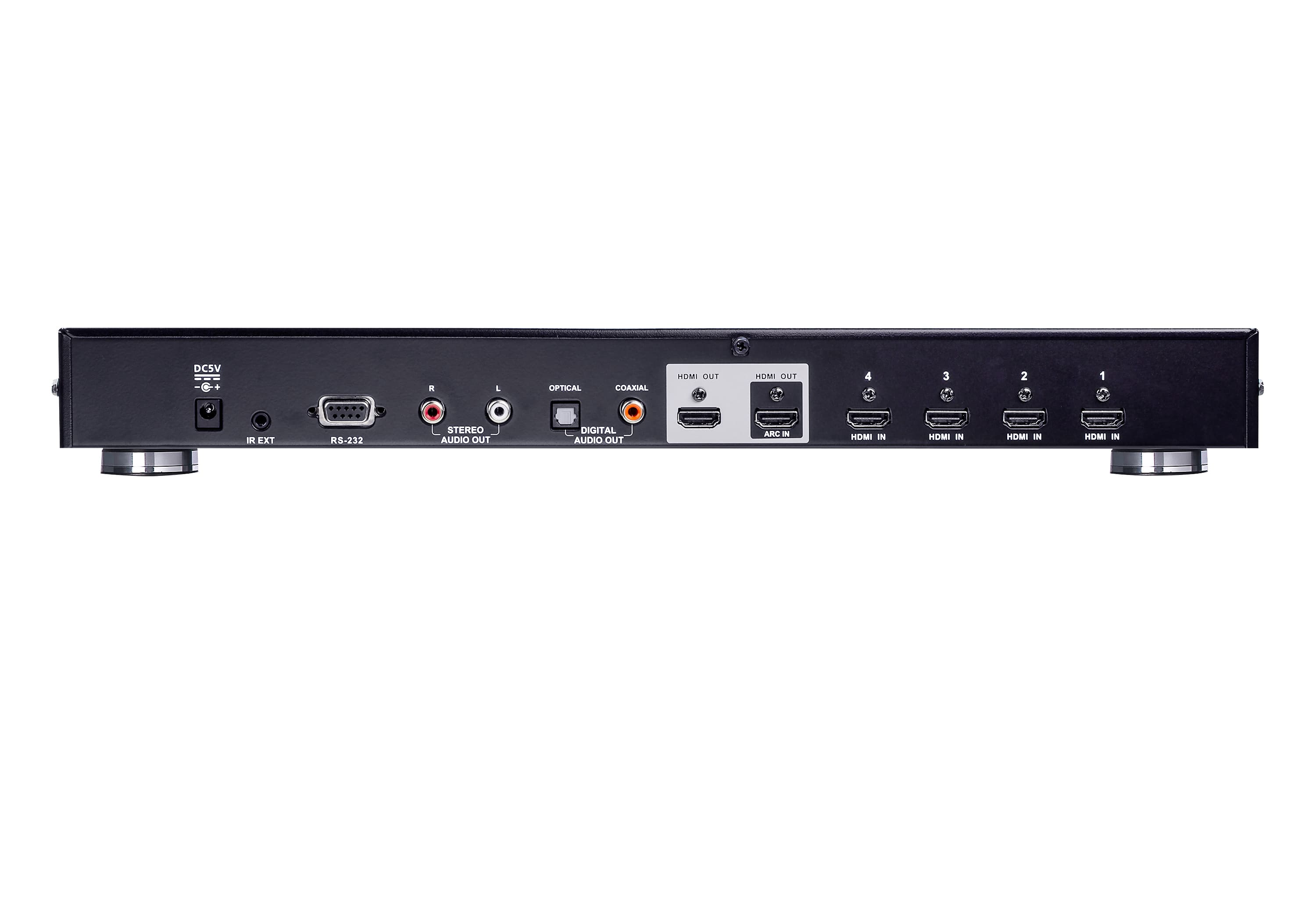

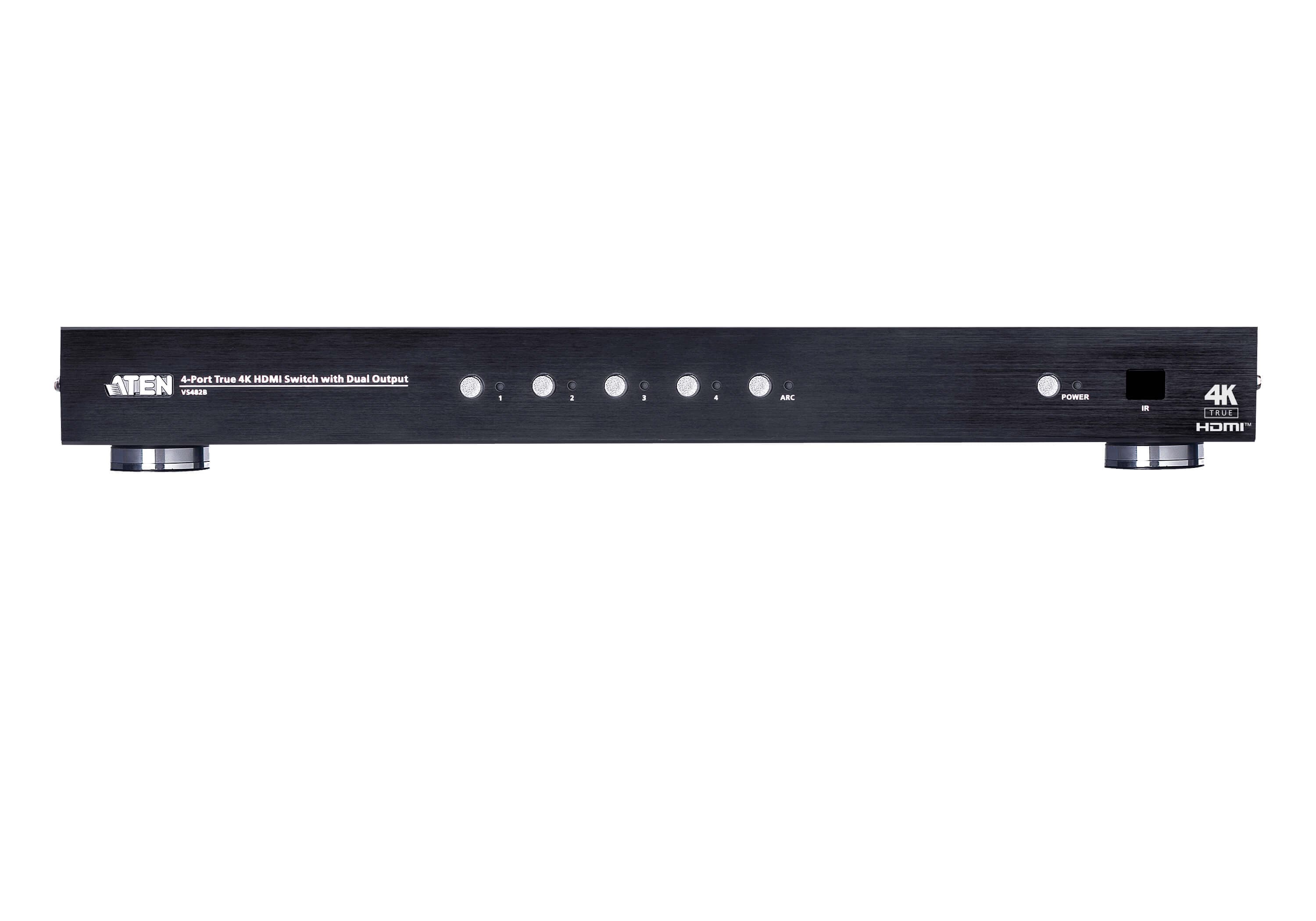

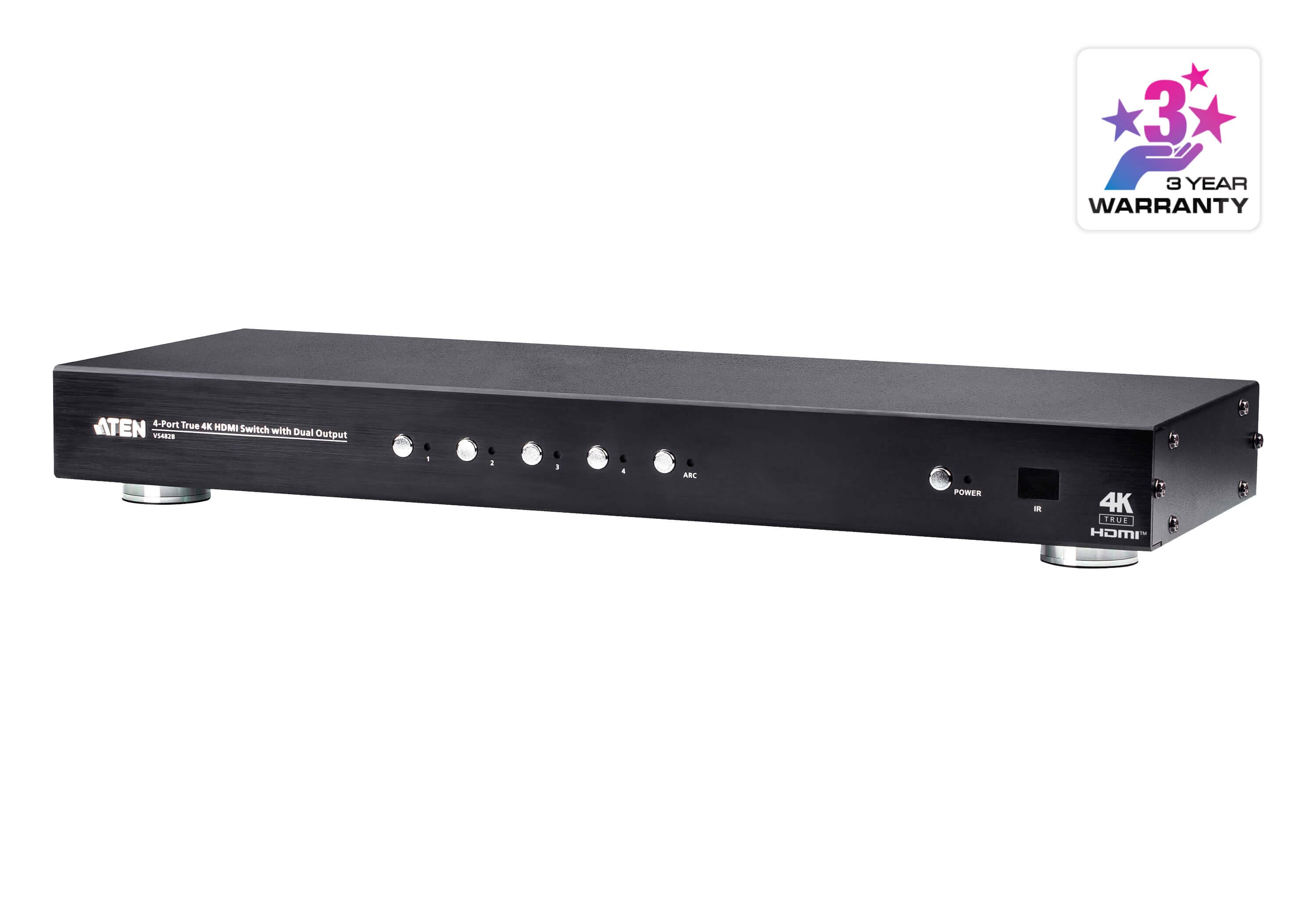

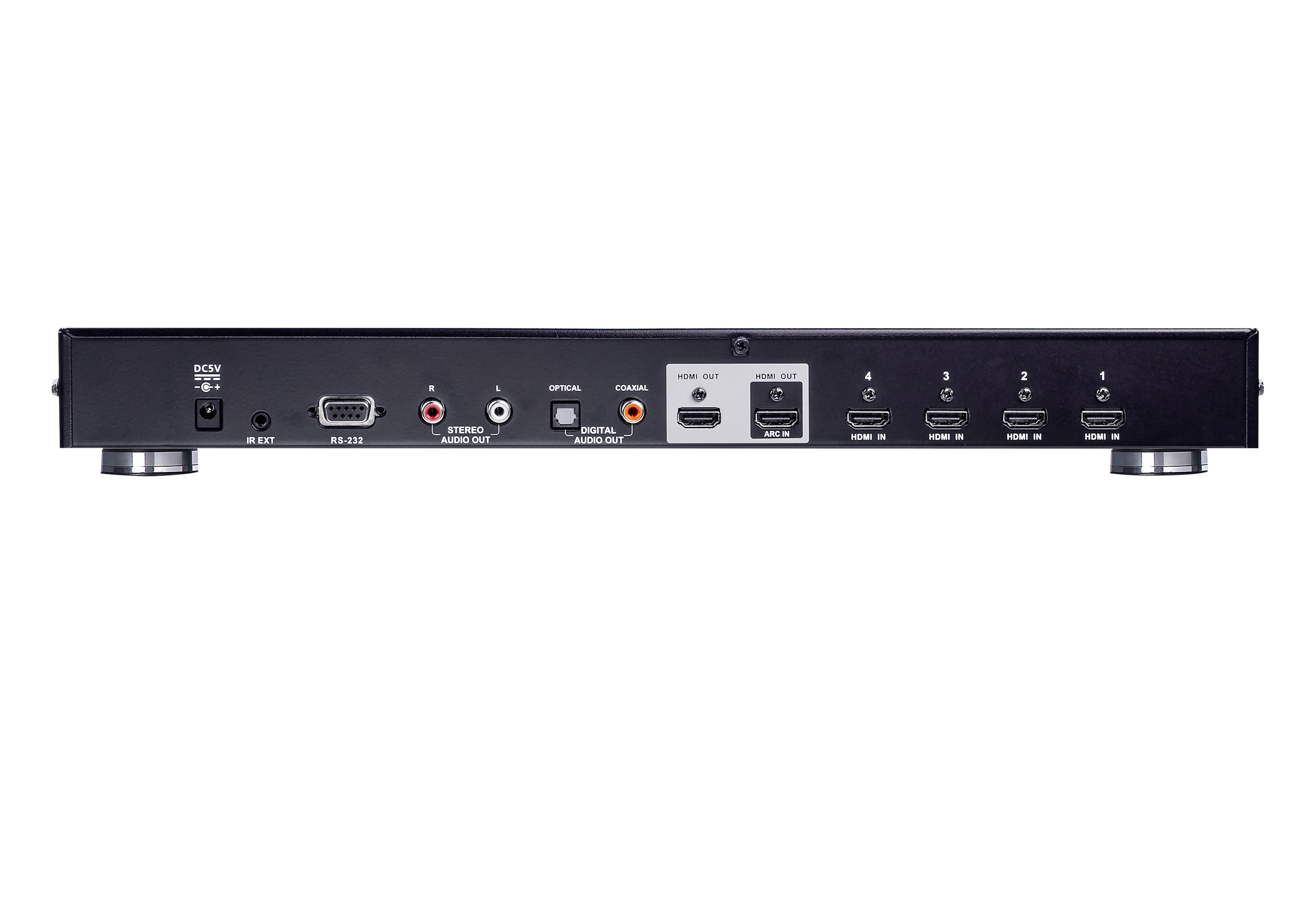

4-Port True 4K HDMI Switch with Dual Output
VS482B
Превключвател за 4 HDMI източника с два едновременни HDMI изхода, до 4096x2160@60Hz (4:4:4) с HDR. Поддържа ARC и автоматично превключване към новозакачен източник.
Характеристики

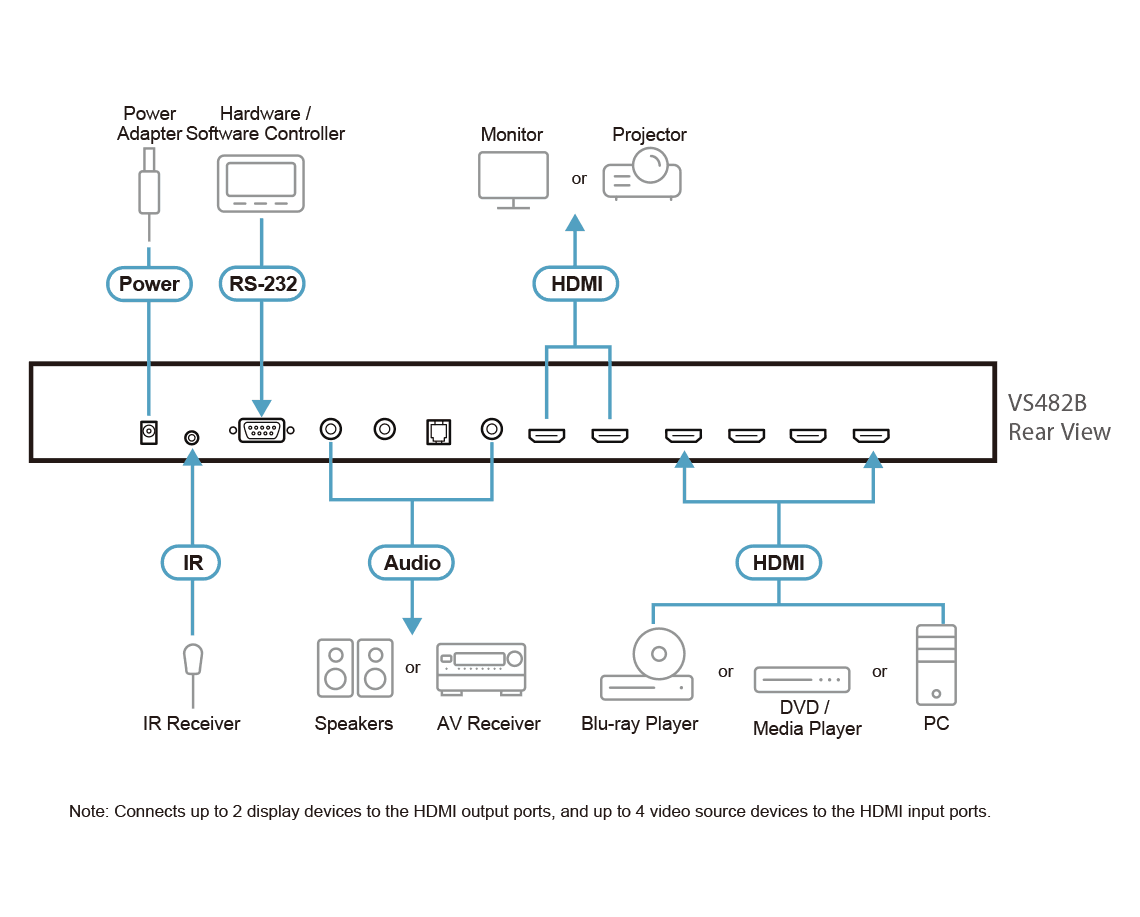

- Allows up to 4 HDMI A/V sources to be connected to 2 HDMI displays
- Superior video quality – up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4); HDR supported
- HDMI (3D, Audio Return Channel, Deep Color); HDCP 2.2 compliant
- Supports Auto Switch – the VS482B automatically switches to a newly plugged-in source
- Audio Return Channel (ARC) function – connects an HDMI cable to the ARC port to send audio from your source device to your audio/video receiver
- OSD for system configuration settings and information display
- Switching between HDMI input sources via front panel pushbuttons, IR remote control and RS-232 commands
- EDID Expert™ – selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolution across different screens
- Built-in bi-directional RS-232 serial control port for high-end system control
- HDMI audio can be extracted to stereo audio and digital audio (optical/coaxial) outputs
- Supports 5.1 channel audio output
- Supports Consumer Electronic Control (CEC)
- Rack mountable
Индикатори
- Вход
- LED (Green) x 4 (HDMI-In)
- Аудио
- LED (Green) x 1 (ARC ON/OFF)
- Захранване
- LED (Green/Orange) x 1 (Power ON/OFF)
Бутони и превключватели
- Избор на видео вход
- Push button x 4 (HDMI-In)
- Избор на режим
- Push button x 1 (ARC ON/OFF)
- Захранване
- Push button x 1 (Power ON/OFF)
Видео вход
- Интерфейси
- 4 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- 5m (4096x2160@60Hz, 4:4:4)
Видео изход
- Интерфейси
- 2 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- 5m (4096x2160@60Hz, 4:4:4)
Видео
- Макс. скорост на данните
- 18 Gbps (6 Gbps Per Lane)
- Макс. пикселна честота
- 600 MHz
- Съответствие
- HDMI (3D, Audio Return Channel, Deep Color) HDCP 2.2 Consumer Electronics Control (CEC)
- Макс. резолюция
- 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
- Макс. разстояние
- Up to 5m (input / output)
Аудио
- Вход
- 4 x HDMI Type A Female (Black)
- Изход
- Analog: 2 x RCA (Red / White) Digital: 2 x HDMI Type A Female (Black); 1 x Toslink (Black); 1 x RCA (Orange)
Управление
- RS-232
- Function: Port switching & FW upgrade Connector: 1 x DB-9 Female (Black) Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
- IR
- 1 x Mini Stereo Jack Female (Black) 1 x IR Receiver
- EDID настройки
- EDID Mode: Default (4K@60Hz) / Port-1 / Remix
Конектори
- Захранване
- 1 x DC Jack
- Консумация
- DC5V:3.29W:15BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 40°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 2.16 kg ( 4.76 lb )
- Размери (Д x Ш x В)
- 43.72 x 15.88 x 4.40 cm (17.21 x 6.25 x 1.73 in.)
- Брой в кашон
- 3 pcs
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
