Seamless Presentation Switch with Quad View Multistreaming

Name: Seamless Presentation Switch with Quad View Multistreaming
Brand: ATEN
SKU: VP2120

VP2120

Заяви оферта Datasheet PDF Ръководство Бърз старт CAD чертеж

Презентационен превключвател с 1 HDMI вход, 2 HDMI изхода и 4 двупосочни мрежови стрийма с Quad View при 1080p@60Hz. Превключва източниците без прекъсване, а аудио DSP смесва микрофона с HDMI звука.

Характеристики

One HDMI input and dual HDMI outputs plus 4 bi-directional streaming with matrix display support
Seamless Switching between streamed-in sources for fast idea exchange
Scaler – features a video scaling function to convert input resolutions to the optimum display resolutions
Audio DSP – mixes Mic input and HDMI input for HDMI or audio output
HDMI audio de-embedding support
Launches wireless BYOD collaboration via Web GUI and Mobile App in a swift and agile way
Offers quick and easy access to log in a quick meeting via multiple methods: . Start auto scan and select a room number from the list . Scan the QR code shown on the VP2120 OSD . Load a pre-saved QR code . Input the IP address and Room code shown on the OSD
Multiple control method via front-panel pushbuttons, web GUI, OSD, IR remote, and mobile app
Streaming in – view up to 4 streamed-in contents simultaneously for real-time synchronization
Streaming out – allows log-in participants to view the Go-live contents on personal devices
Attendee audio / video permission can be managed by the host
Multi-view mode – the display layout can either be set up by the host or dynamically adjusted to suit the number of sources available
Whiteboard allows real-time annotation for idea exchange and synchronization
Chat room feature enhances text interaction and information sharing
Video capture records the meeting process for future tracking
File sharing enables further data sharing and follow-up
Supports RTMP for streaming video content to large audience via RTMP compatible sites such as Facebook, Youtube, etc.
Superior video quality up to 1920 x 1080 with single streaming input and 854 x 480 with four streaming inputs
EDID Expert™ – automatically selects the optimum EDID settings for smooth power-up, high-quality display, and the best video resolution across connected devices
HDMI (1080p); CEC (Consumer Electronics Control); HDCP 1.4 compliant

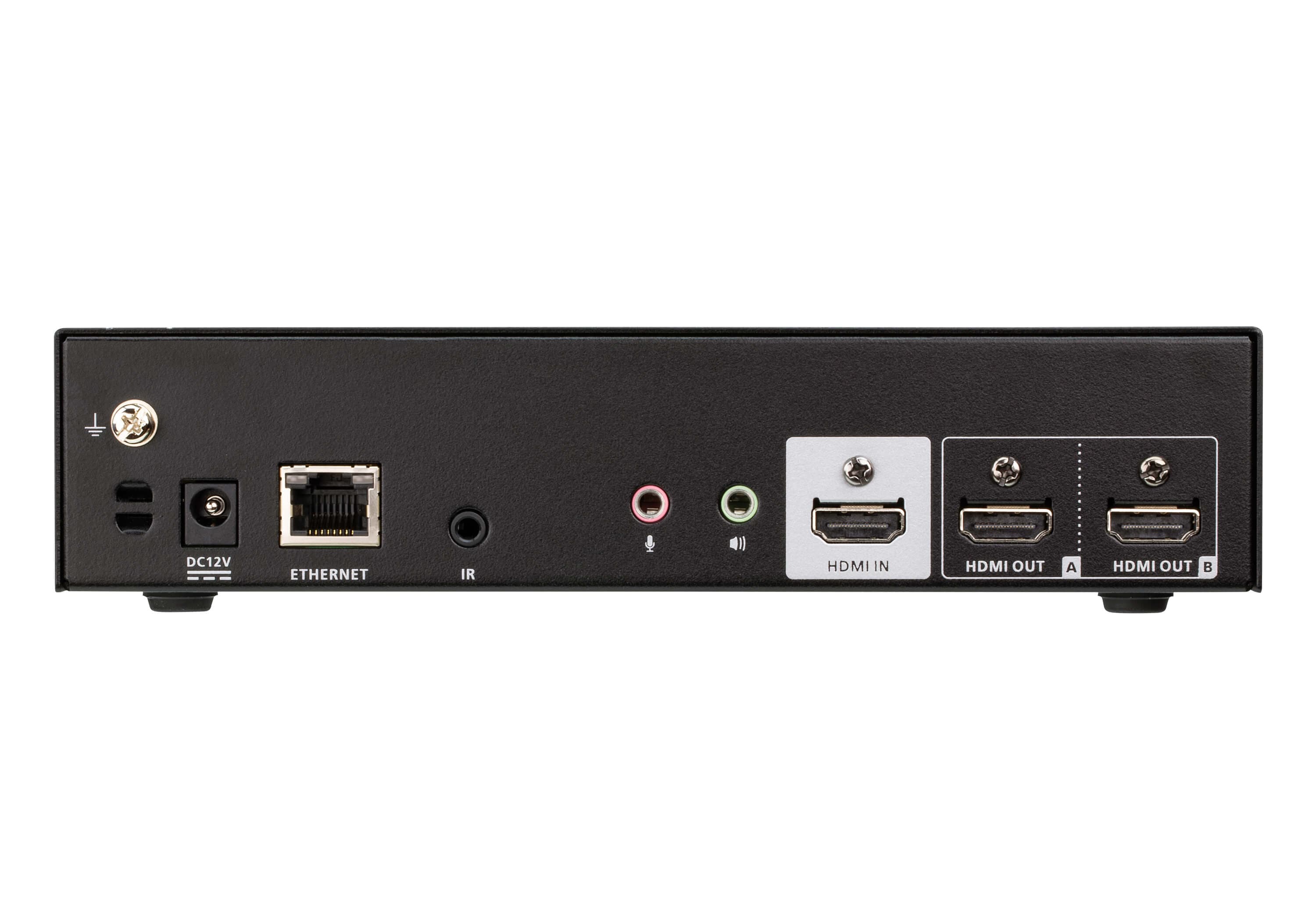

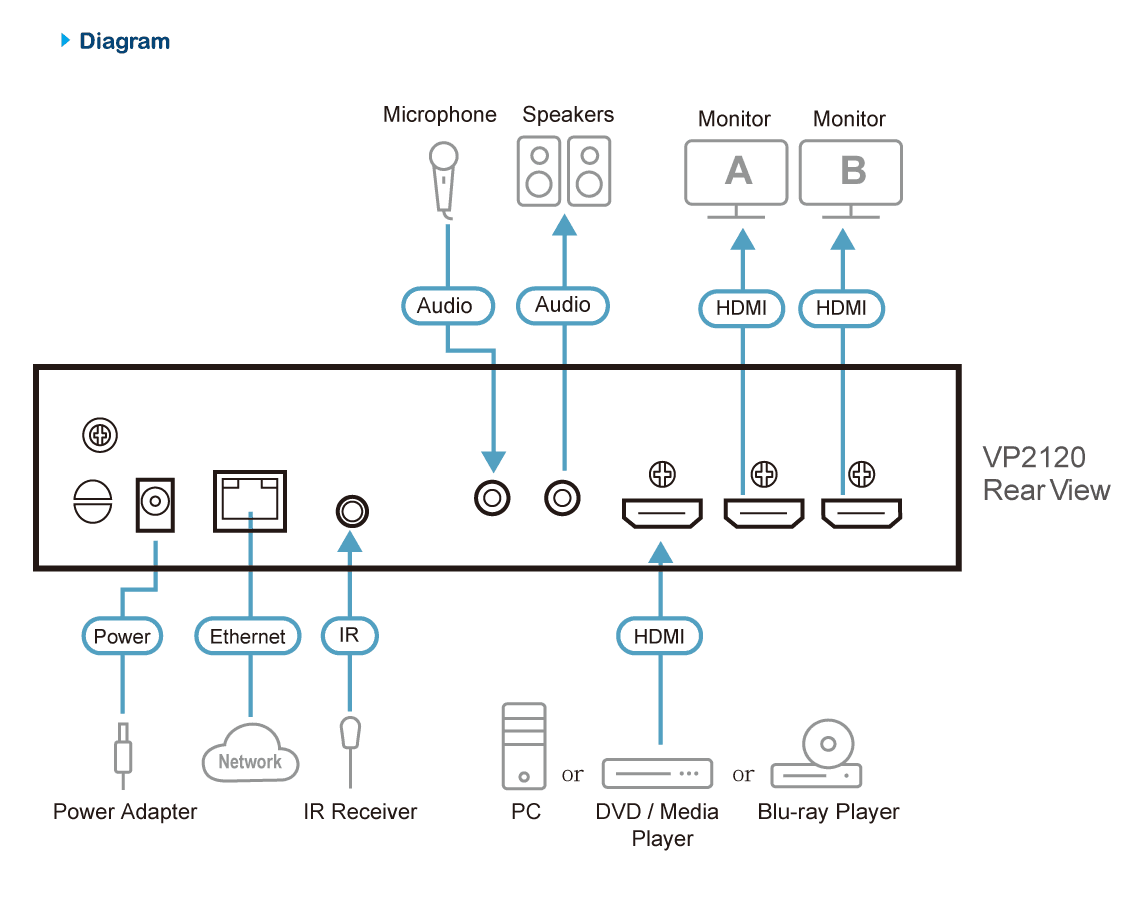

Видео вход

Интерфейси: 1 x HDMI Type A female (Black)

Видео изход

Интерфейси: 2 x HDMI Type A female (Black)
Макс. разстояние: HDMI: Up to 15m

Видео

Макс. резолюция: HDMI: Up to 1080p@60Hz
Съответствие: HDMI: HDCP 1.4 Compatible; Consumer Electronics Control (CEC)

Аудио

Вход: Microphone: 1 x mini stereo Jack female (Pink)
Изход: Stereo Audio: 1 x mini stereo Jack female (Green)

Конектори

Конзолни портове: USB 3.0: 1 x USB Type A Female (Blue)
Захранване: 1 x DC Jack (Black)

Управление

IR: 1 x Mini Stereo Jack Female (Black)
Ethernet: 1 x RJ-45 Female (Silver)

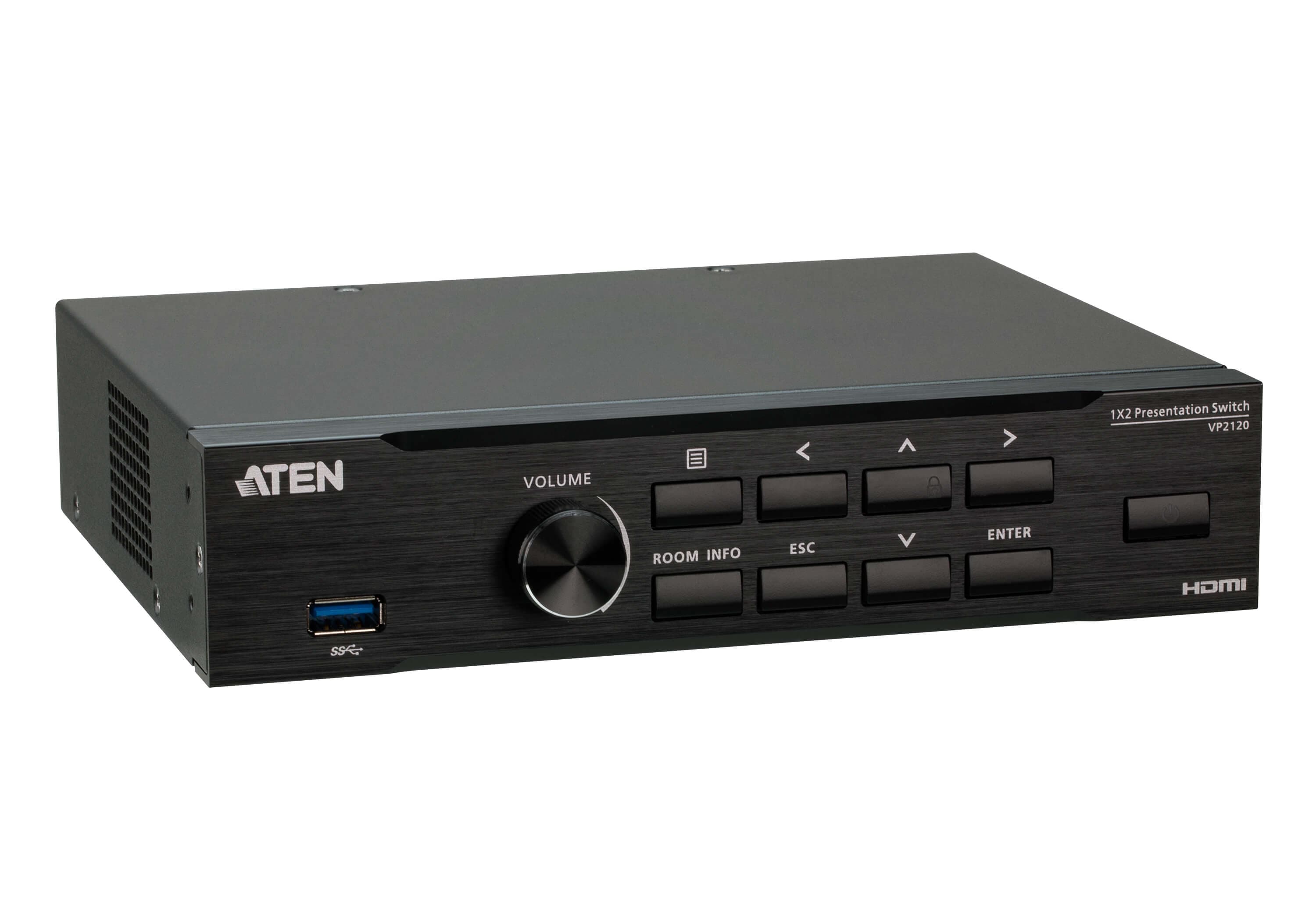

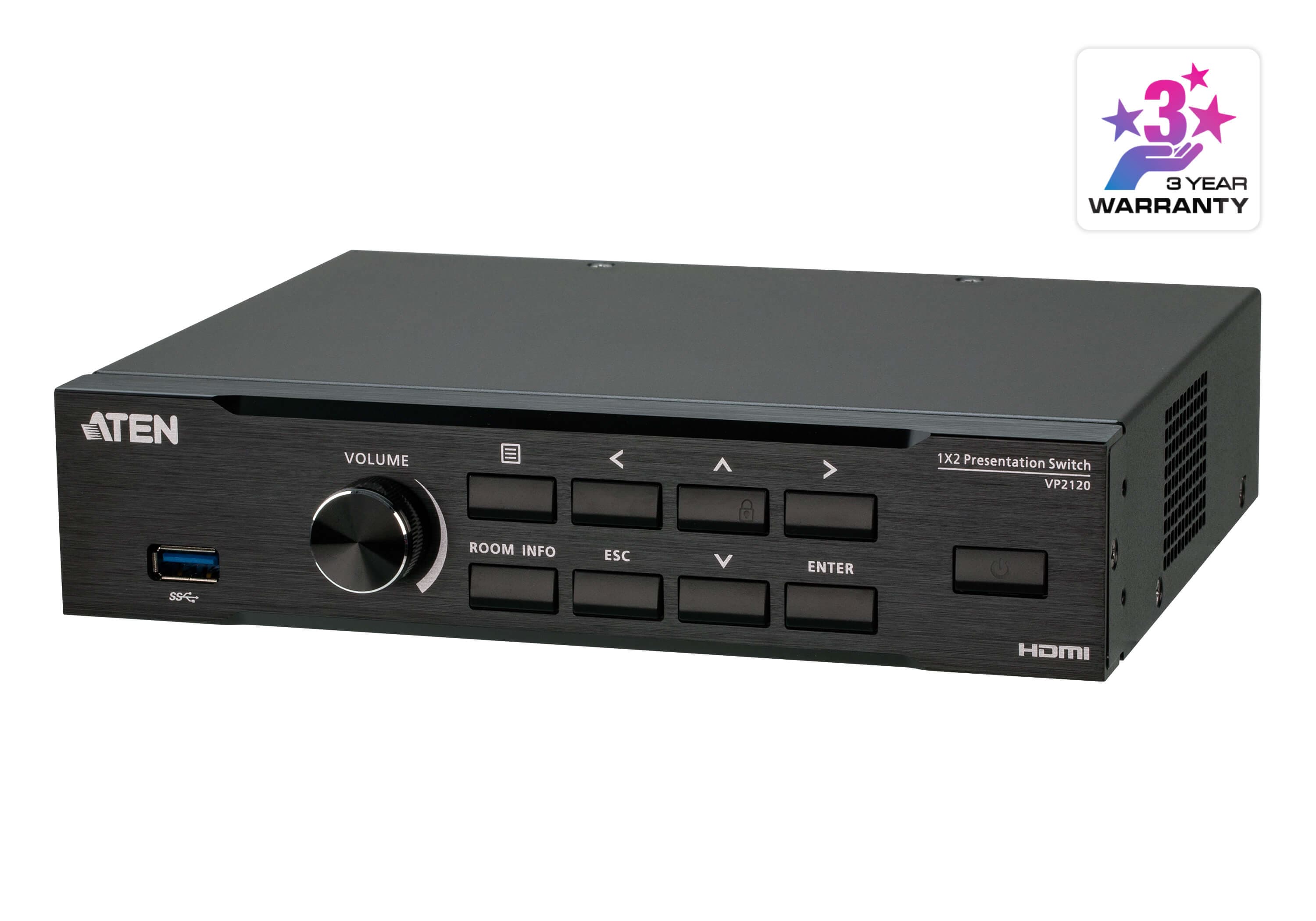

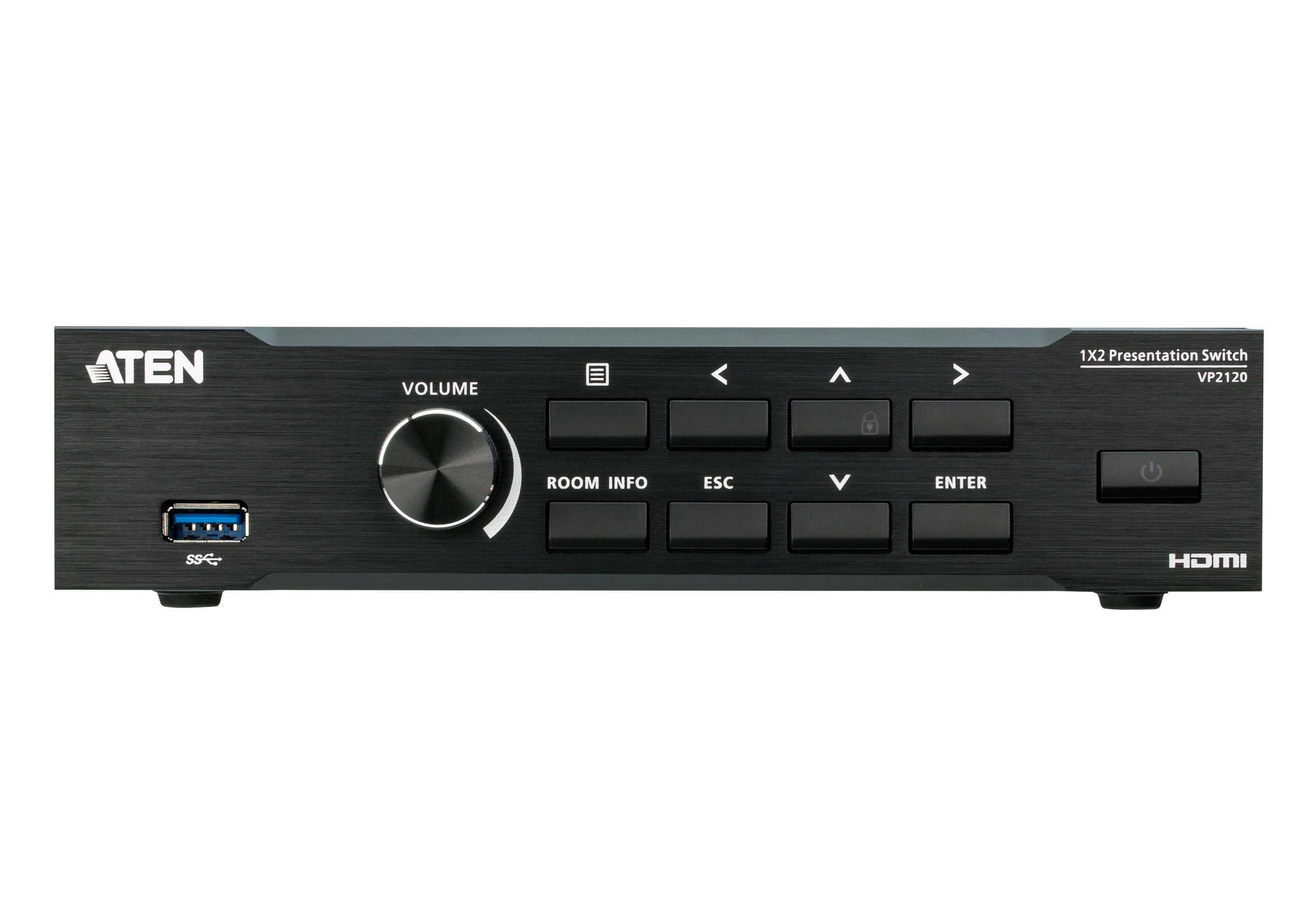

Бутони и превключватели

Захранване: 1 x Pushbutton (LED: Green)
Избор: Room Info: 1 x Pushbutton Menu: 1 x Pushbutton Left: 1 x Pushbutton Right: 1 x Pushbutton Down: 1 x Pushbutton Up/Unlock: 1 x Pushbutton Volume: 1 x Knob Enter: 1 x Pushbutton ESC: 1 x Pushbutton
EDID настройки: EDID Mode: ATEN Default / Display A
Консумация: DC12V:14.46W:87BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Работна среда

Работна температура: 0-40°C
Температура на съхранение: -20 - 60°C
Влажност: 0 - 80% RH, Non-Condensing

Физически характеристики

Корпус: Metal
Тегло: 1.14 kg ( 2.51 lb )
Размери (Д x Ш x В): 20.00 x 16.92 x 4.40 cm (7.87 x 6.66 x 1.73 in.)
Брой в кашон: 3 pc
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
