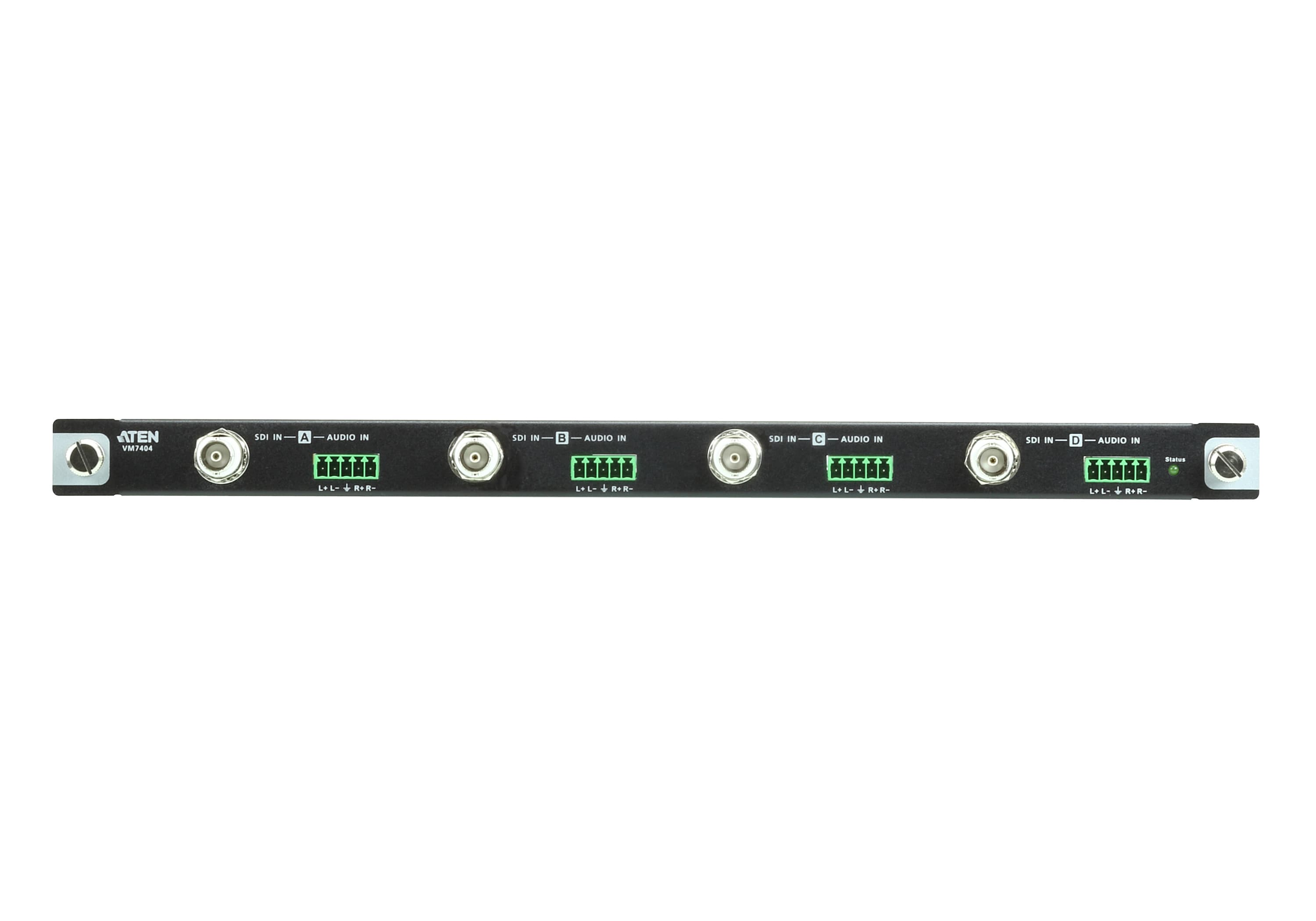

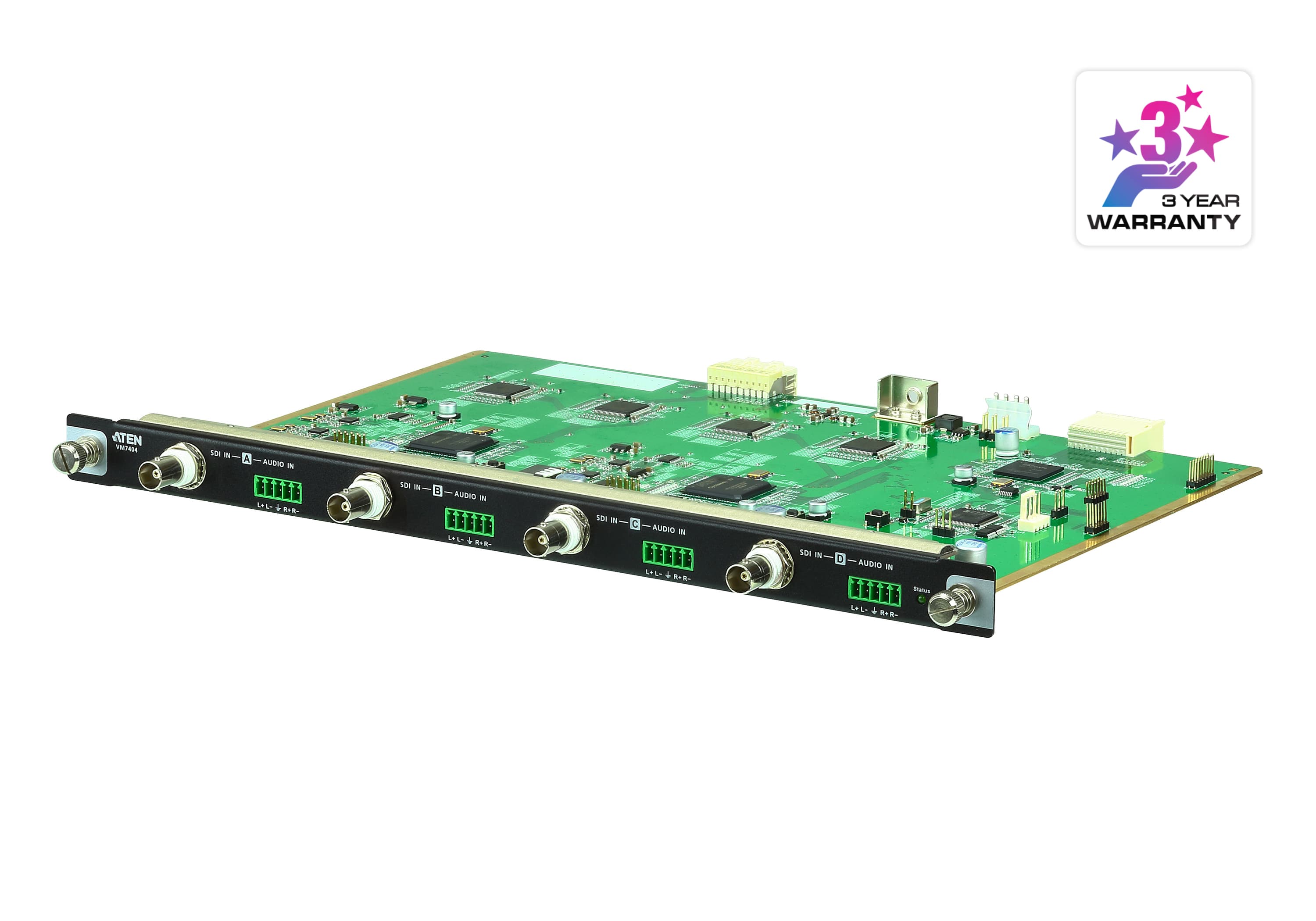

Входна платка с 4 порта 3G-SDI за модулната матрица VM1600. Поддържа SD-SDI, HD-SDI и 3G-SDI с обхват съответно до 300 m, 150 m и 100 m; сменя се в движение (hot-swap).
Характеристики
- Connects up to 4 SDI inputs
- Supports SD-SDI, HD-SDI and 3G-SDI formats
- Hot-swappable design for easy integration of I/O boards
- Compatible with the VM1600 - mix and match modular I/O boards for optimal fl exibility
Видео
- Поддържани резолюции
- PAL /50 PAL and NTSC/59.94 720p 25, 29.97, 30,50,59.94, 60 1080i50, 59.94, 60 1080PsF 25, 29.97,30 1080p 23.98, 24, 25, 29.97, 30,50,59.94, 60
- Макс. скорост на данните
- 2.97 Gpbs
- Макс. разстояние
- 100m (3G-SDI); 150m (HD-SDI); 300m (SD-SDI)
- SDI формати
- 3G-SDI, SMPTE-259,292,424, 425 Level A & B-DL
Аудио входове
- Интерфейси
- 4 x Captive Screw Connectors, 5 pole * Audio signal type: stereo, balanced/unbalanced.
- Консумация
- 16W:75BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0–40°C
- Температура на съхранение
- -20–60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Тегло
- 0.60 kg ( 1.32 lb )
- Корпус
- Metal
- Размери (Д x Ш x В)
- 35.20 x 23.80 x 2.33 cm (13.86 x 9.37 x 0.92 in.)
- Забележка
- Audio signal type support stereo, balanced/unbalanced. Balanced audio maximum input/output level: 0.5 Vrms (-6.02dBV@600 ohm ) Unbalanced audio maximum input/output level: 1Vrms (0dBV@600ohm.)
Видео вход
- Интерфейси
- 4 x BNC Female
- Импеданс
- 75 Ω
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
