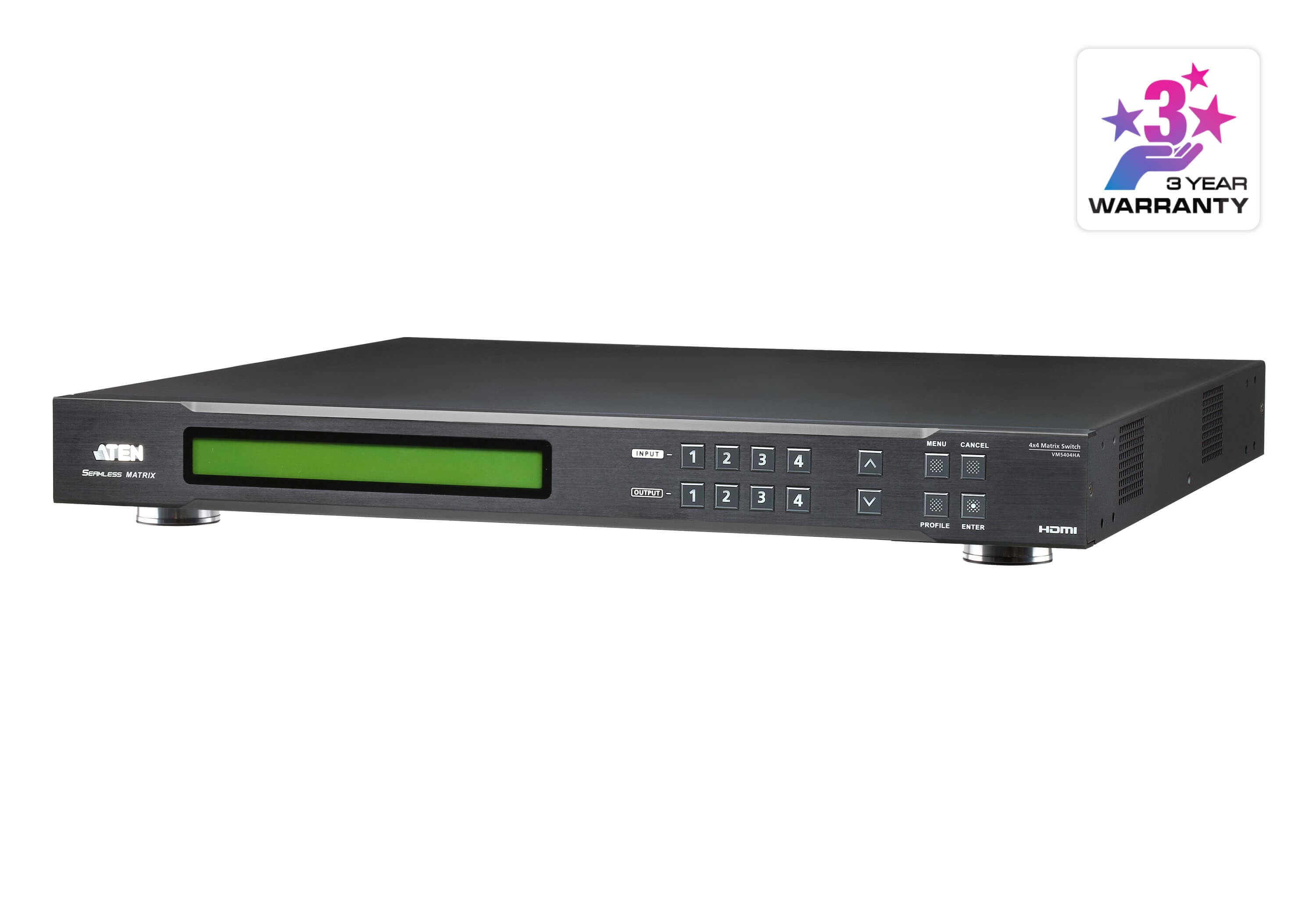

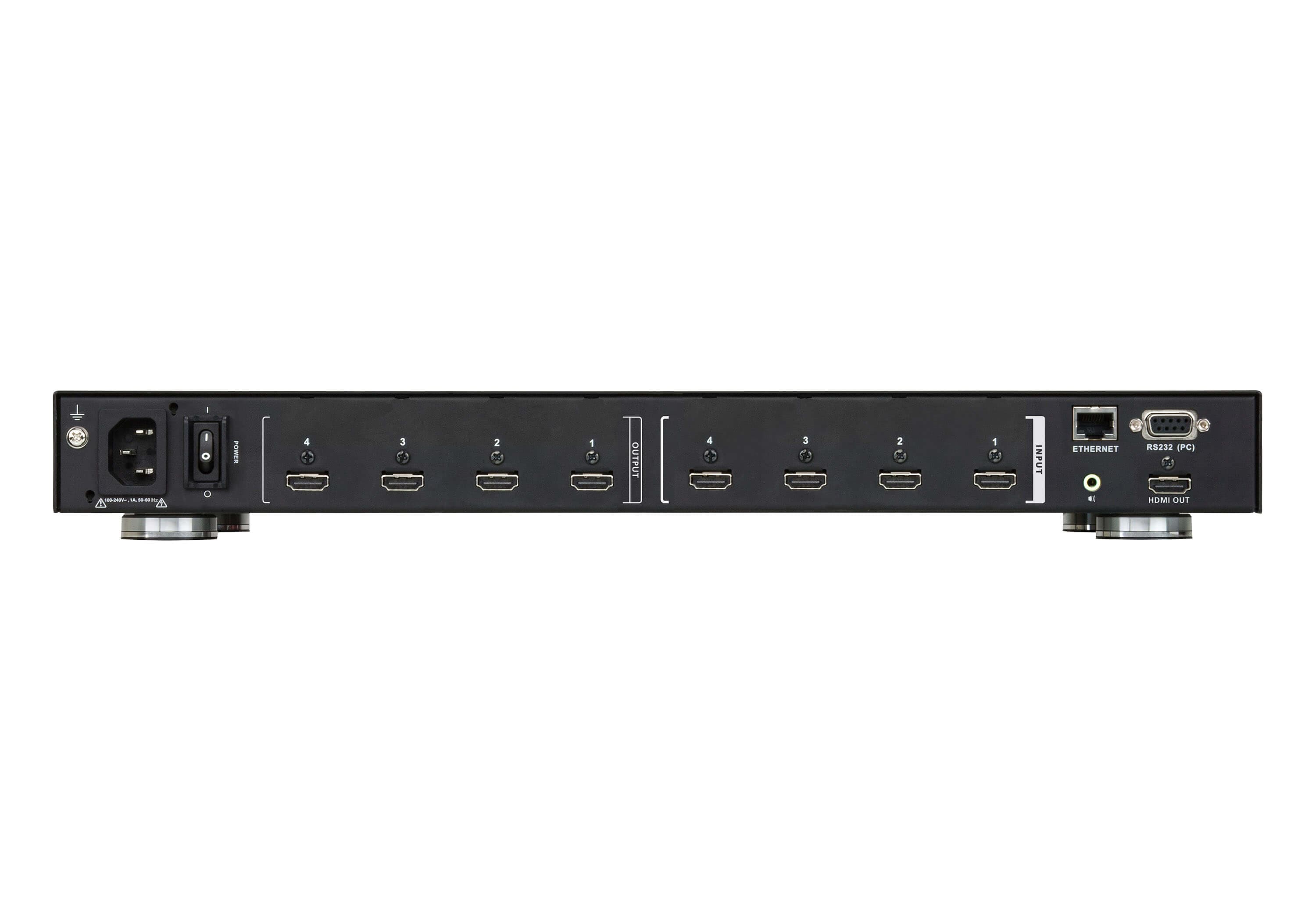

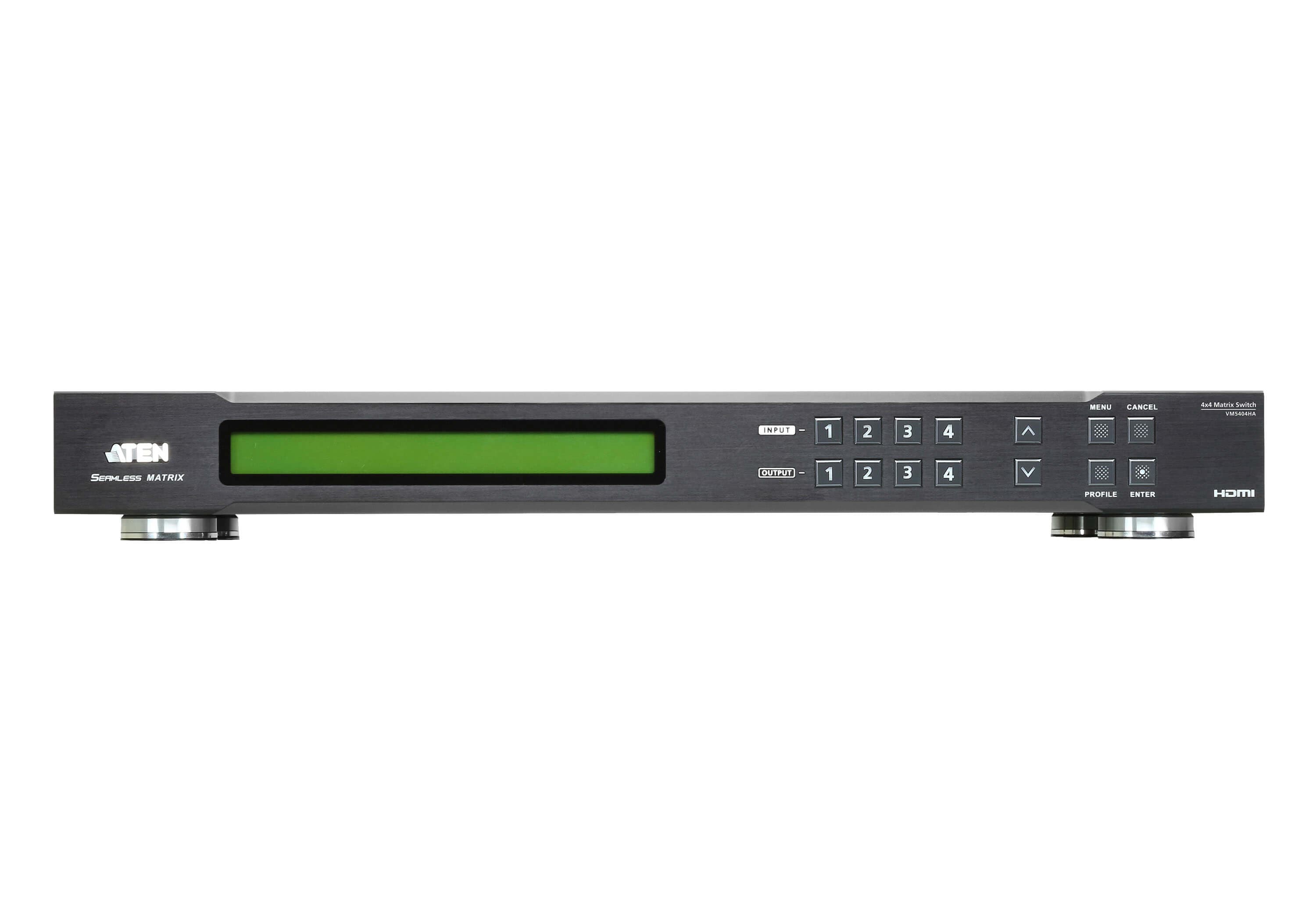

4 x 4 HDMI Matrix Switch with Scaler
VM5404HA
HDMI матрица 4 x 4 със скалер. Локалният HDMI изход показва до 4 източника в общ multi-view прозорец; управление чрез преден панел, RS-232, Ethernet или ATEN Video Matrix Control App.
Характеристики

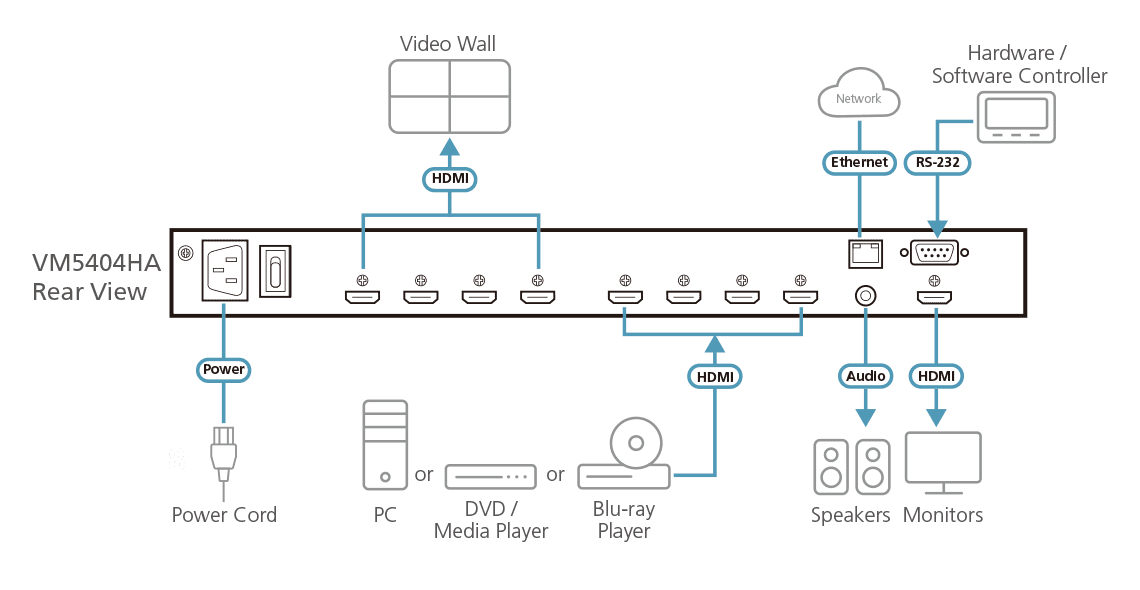

- Routes any of 4 HDMI sources to any of 4 HDMI displays
- Local HDMI output – enables previewing of up to 4 video sources in a multi-view window
- Multiple system configuration methods including front panel pushbuttons / RS-232 / Ethernet (Telnet / Web GUI) connection, ATEN Video Matrix Control app, and ATEN Control System
- Device status can be viewed and controlled via ATEN Video Matrix Control App
- Video Wall functionality via intuitive web GUI* allows for customization of up to 8 layouts for any type of video walls
- Built-in scaler automatically converts input resolutions for optimal appearance on the display
- FrameSync – prevents image tearing by synchronizing the scaler output frame rate to the input signal frame rate
- ATEN Seamless Switch technology* – adopts FPGA to unify video formats so as to provide continuous video streams, real-time switching, and stable signal transmission
- EDID Expert – selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolution across different screens
- Audio enabled; HDMI audio can be extracted to stereo audio
- HDMI (3D, Deep color); HDCP 1.4
- Supports Dolby True HD and DTS HD Master audio
- Supports Consumer Electronics Control (CEC)
- ESD protection for HDMI
- Firmware upgradeable
- Rack mountable (1U design) *Note: 1. If Seamless Switching is enabled, the video output will not display 3D, Deep Color or interlace (i.e., 1080i) resolutions. To make these features available, disabling Seamless Switching is a must. 2. Videos may not display within range when Seamless Switch or Video Wall is enabled, in which case please adjust the display settings on your device.
Видео вход
- Интерфейси
- 4 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- 5.0 m
Видео изход
- Интерфейси
- 4 x HDMI Type A Female (Black) (Array Mode): 1 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- 15 m
Видео
- Макс. скорост на данните
- 6.75 Gbps (2.25 Gbps Per Lane)
- Макс. пикселна честота
- 225 MHz
- Съответствие
- HDMI (3D, Deep Color) HDCP 1.4 Compatible Consumer Electronics Control (CEC)
- Макс. резолюция
- Up to 1080p
- Макс. разстояние
- Up to 15 m
Аудио
- Изход
- 1 x Mini Stereo Jack Female (Green)
Управление
- RS-232
- Connector: 1 x DB-9 Female (Black) Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
- Ethernet
- 1 x RJ-45 Female
- EDID настройки
- EDID Mode: Default / Port1 / Remix / Customized (EDID Wizard support)
Конектори
- Захранване
- 1 x 3-Prong AC Socket
Захранване
- Макс. входна мощност
- 100-240 VAC; 50-60 Hz; 1.0A
- Консумация
- AC110V:35.7W:167BTU/h AC220V:34.9W:164BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-40°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 5.12 kg ( 11.28 lb )
- Размери (Д x Ш x В)
- 43.24 x 37.82 x 4.40 cm (17.02 x 14.89 x 1.73 in.)
- Брой в кашон
- 1 pc
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
- Входни резолюции
- 1080P HDMI
- 640 x 480 @ 60/72/75 Hz
- 1280 x 720p 60 Hz (16:9)
- 800 x 600 @ 56/60/72/75 Hz
- 1920 x 1080i 60 Hz (16:9)
- 1024 x 768 @ 60/70/75 Hz
- 1920 x 1080p 60 Hz (16:9)
- 1280 x 800 @ 60 Hz
- 720 x 576p 50 Hz (4:3) / (16:9)
- 1280 x 1024 @ 60/75 Hz
- 1280x720p 50Hz (16:9)
- 1366 x 768 @ 60 Hz
- 1920 x 1080i 50 Hz (16:9)
- 1400 x 1050 @ 60 Hz
- 1440 x 900 @ 60 Hz
- 1600 x 1200 @ 60 Hz
- 1680 x 1050 @ 60 Hz
- 1920 x 1080 @ 60 Hz
- 1920 x 1200 @ 60 Hz (Reduced Blanking)
- 640 x 480p 60 Hz (4:3)
