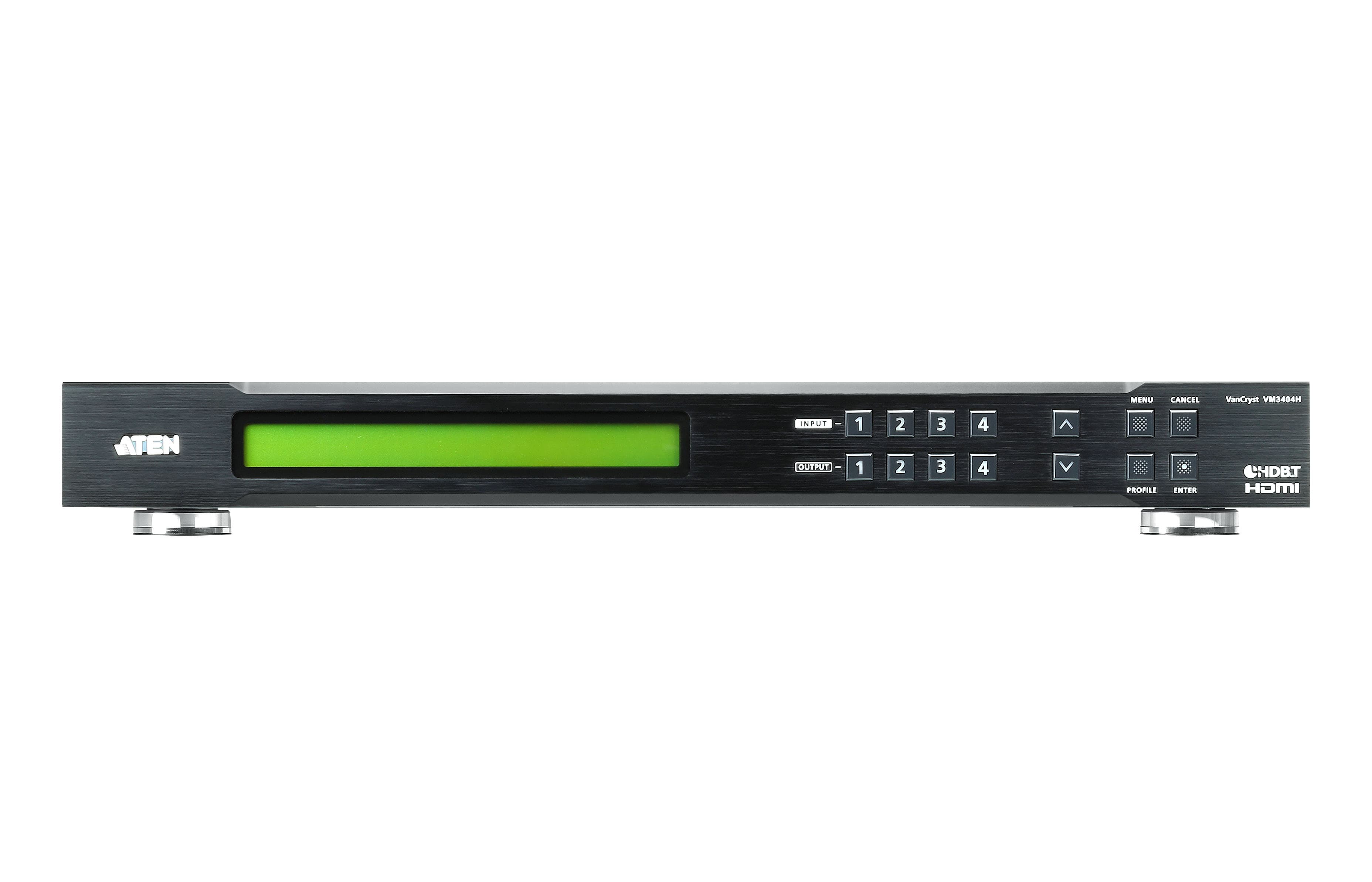

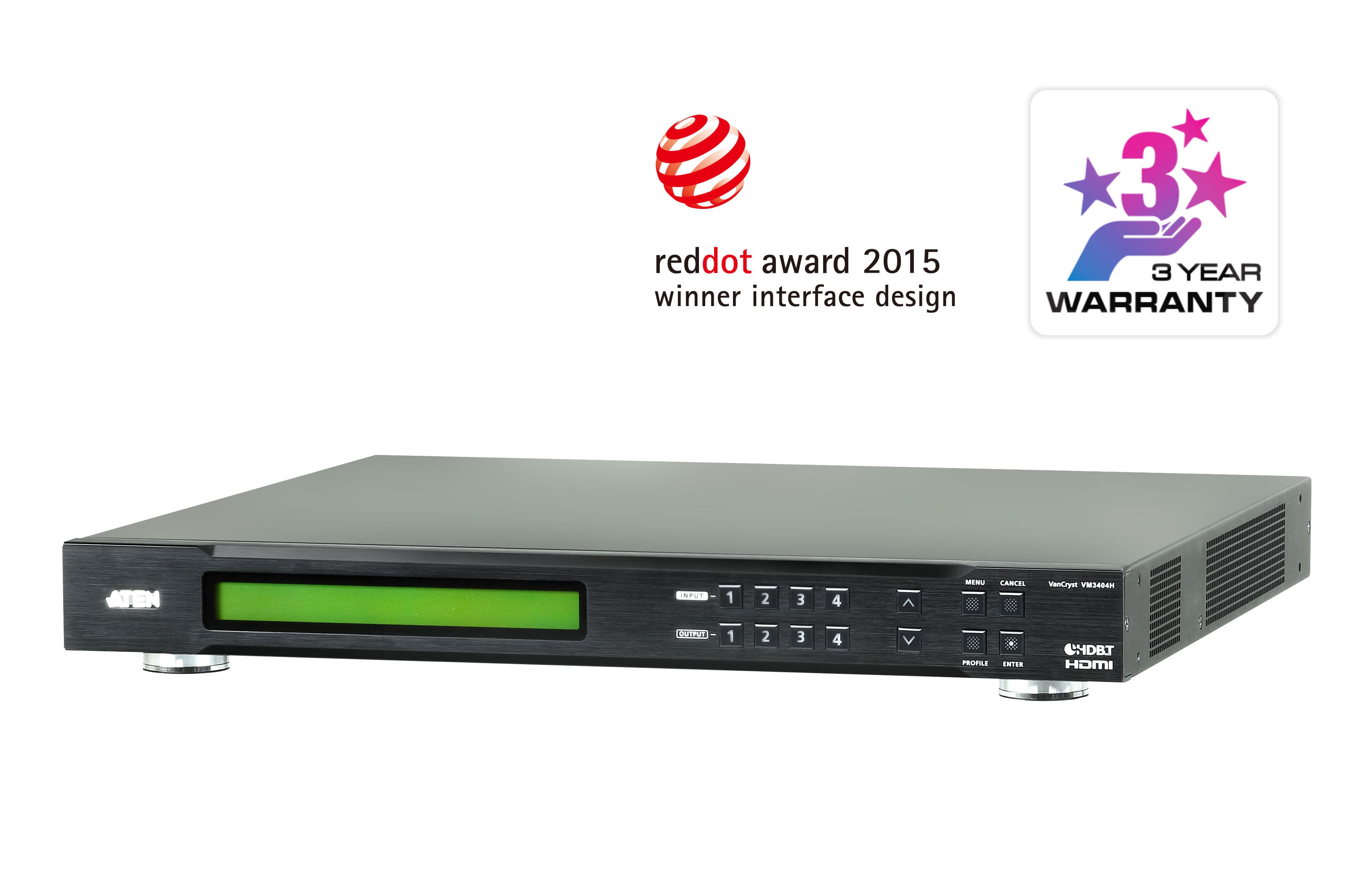

4 x 4 4K HDMI HDBaseT-Lite Matrix Switch
VM3404H
Матричен превключвател 4 x 4 за HDMI с HDBaseT-Lite изходи — пренася 4K сигнал до 35 m по Cat 5e/6 или 40 m по Cat 6a, с огледални HDMI изходи.
Характеристики

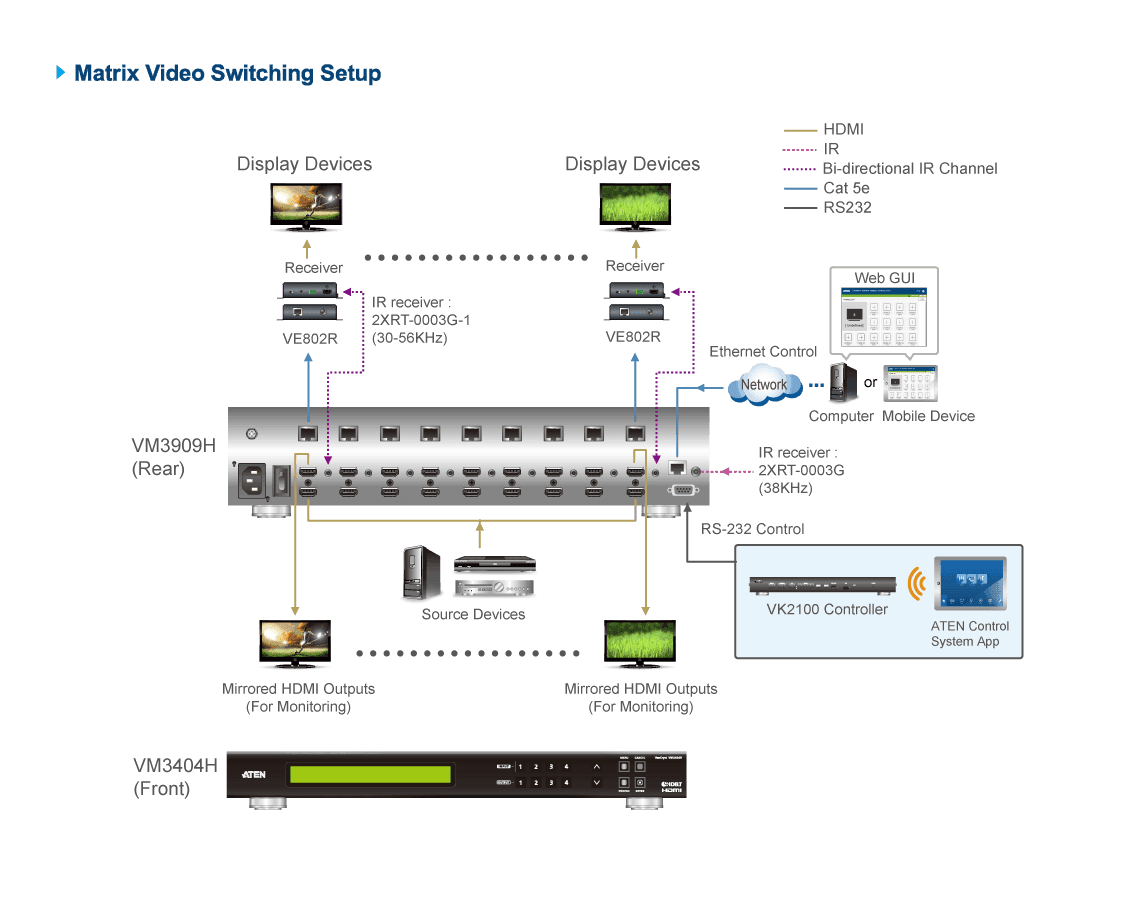

- Supports 4 HDMI inputs and mirrored 4 HDMI and HDBaseT outputs
- The mirrored HDMI outputs can be used to verify the corresponding HDBaseT output or as an additional video display*
- HDBaseT Connectivity – connects HDMI displays over a long distance via one Cat 5e/6/6a cable
- HDBaseT Anti-jamming – resists signal interference during high-quality video transmission
- Power over HDBaseT (POH) – supplies power over a long distance from the switch to a receiver over a single Cat 5e/6/6a cable** / ***
- Seamless Switch™ Technology – ATEN FPGA engine unifies video formats to provide continuous video streams, real-time switching and stable signal transmissions**

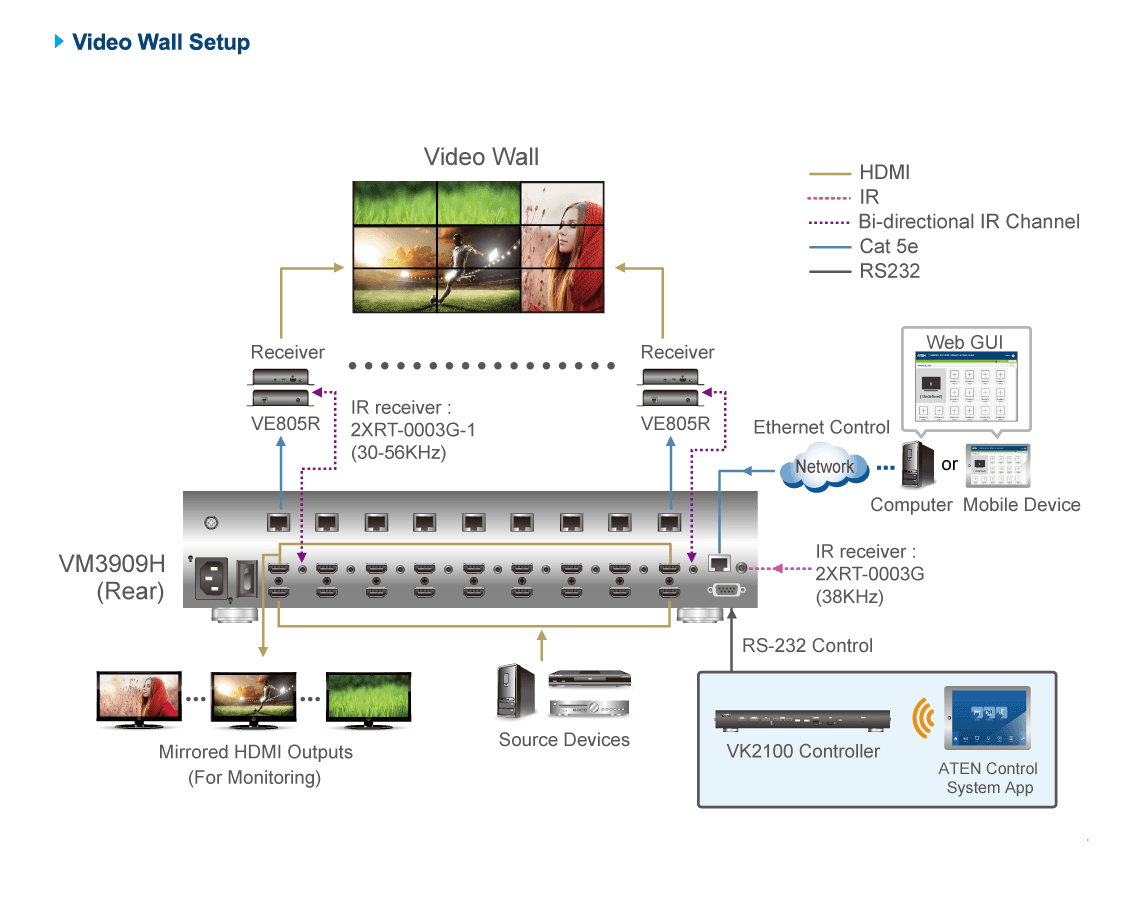

- Video Wall - allows you to create custom video wall layouts via intuitive web GUI**
- EDID Expert™ – selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution across different screens
- Multiple Control Methods – system management via front-panel pushbuttons, IR, RS-232 and Ethernet (Telnet / Web GUI) connections
- View and control via ATEN Video Matrix Control App in a swift and agile way
- Bi-directional IR channel ports support full frequency IR signals from 30 KHz to 60 KHz
- Supports ATEN's LockPro™ HDMI cable lock for securing HDMI cables to the device
- Firmware Upgradeable
- Rack Mountable (VM3404H: 1U Design) Note: * The HDMI outputs can't support the Video Wall and Seamless Switch™ functions. ** The Seamless Switch™, Video Wall and POH features are only available when used a compatible receiver. *** The VM3404H can provide up to 15.4 W @ 48 VDC of power per port and 35W of total power ; please ensure that the power consumption of the devices connected to the VM3404H does not exceed this limit.
Видео вход
- Интерфейси
- 4 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- 3.0 m

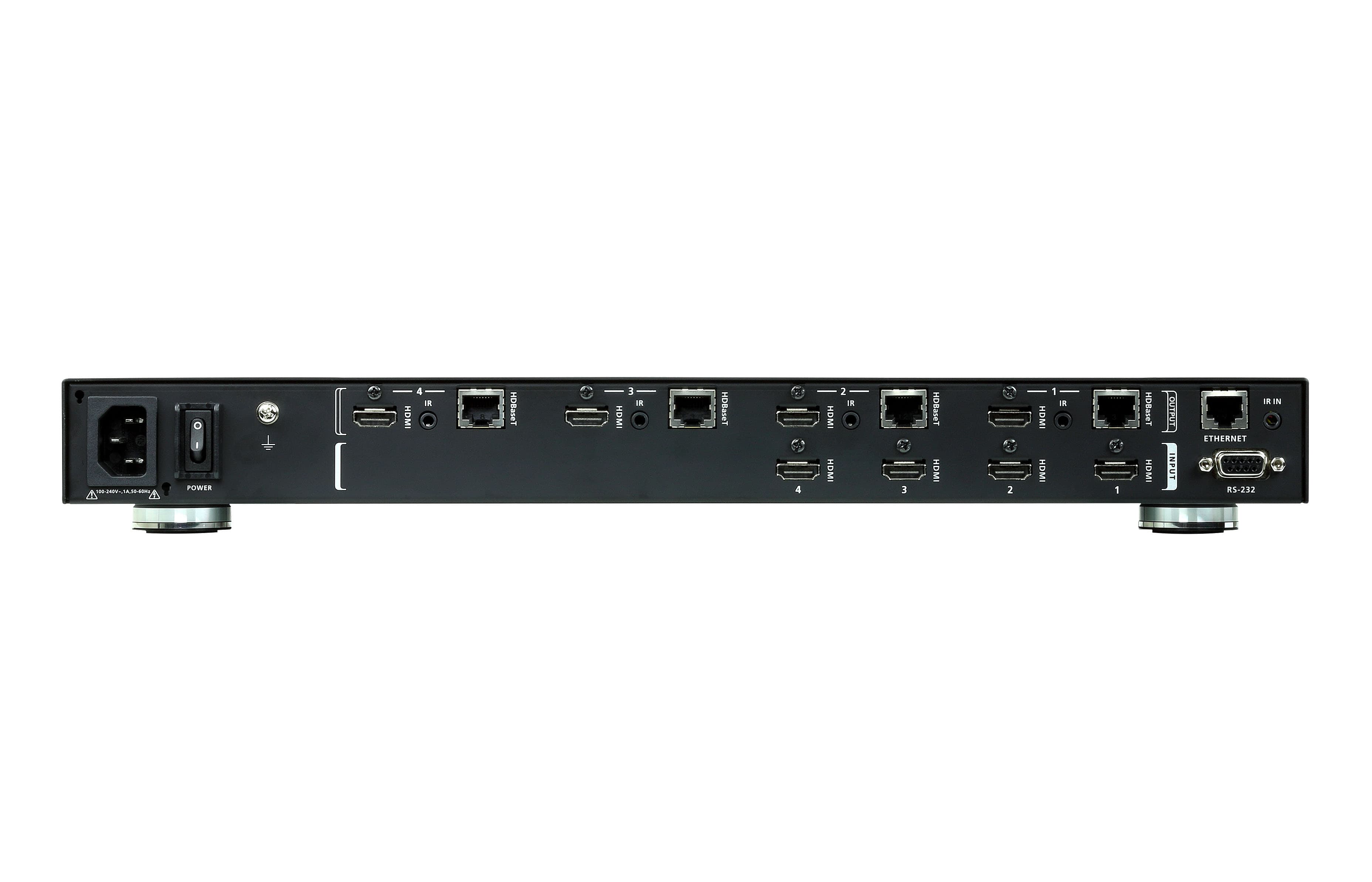

Видео изход
- Интерфейси
- 4 x HDMI Type A Female (Black); 4 x RJ-45 Female
- Импеданс
- 100 Ω
- Макс. разстояние
- HDMI: up to 15 m HDBaseT (Class B): 4K up to 35 m (Cat 5e/6) / 40 m (Cat 6a); 1080p up to 60 m (Cat 5e/6) / 70 m (Cat 6a)
Управление
- RS-232
- Connector: 1 x DB-9 Female (Black) Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
- IR канал
- 4 x Mini Stereo Jack Female (Black); 30~60 KHz full range transmission
- Ethernet
- 1 x RJ-45 Female
- EDID настройки
- EDID Mode: Default / Port1 / Remix / Customized
Конектори
- Захранване
- 1 x 3-Prong AC Socket
- Брой в кашон
- 1 pc
Работна среда
- Работна температура
- 0-50°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
- Консумация
- AC110V:62W:291BTU/h AC220V:60.6W:284BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Захранване
- Макс. входна мощност
- 100-240 VAC; 50-60 Hz; 1.0A
Видео
- Макс. скорост на данните
- 10.2 Gbps (3.4 Gbps Per Lane)
- Макс. пикселна честота
- 340 MHz
- Съответствие
- HDMI (3D, Deep Color, 4K); HDCP 1.4 Compatible Consumer Electronic Control (CEC) HDBaseT Compatible
- Макс. резолюция
- Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
- Макс. разстояние
- Up to 70 m
Физически характеристики
- Корпус
- Metal
- Тегло
- 5.62 kg ( 12.38 lb )
- Размери (Д x Ш x В)
- 43.24 x 38.23 x 4.40 cm (17.02 x 15.05 x 1.73 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Фърмуер
