4K HDMI HDBaseT Extender with ExtremeUSB® (4K@100m) (HDBaseT Class A)
VE813A
Удължителен комплект, който пренася 4K HDMI до 100 m по един Cat 5e/6/6a кабел заедно с прозрачни USB 2.0 сигнали (ExtremeUSB, без драйвери). Поддържа Dolby True HD и DTS HD Master Audio.
Характеристики

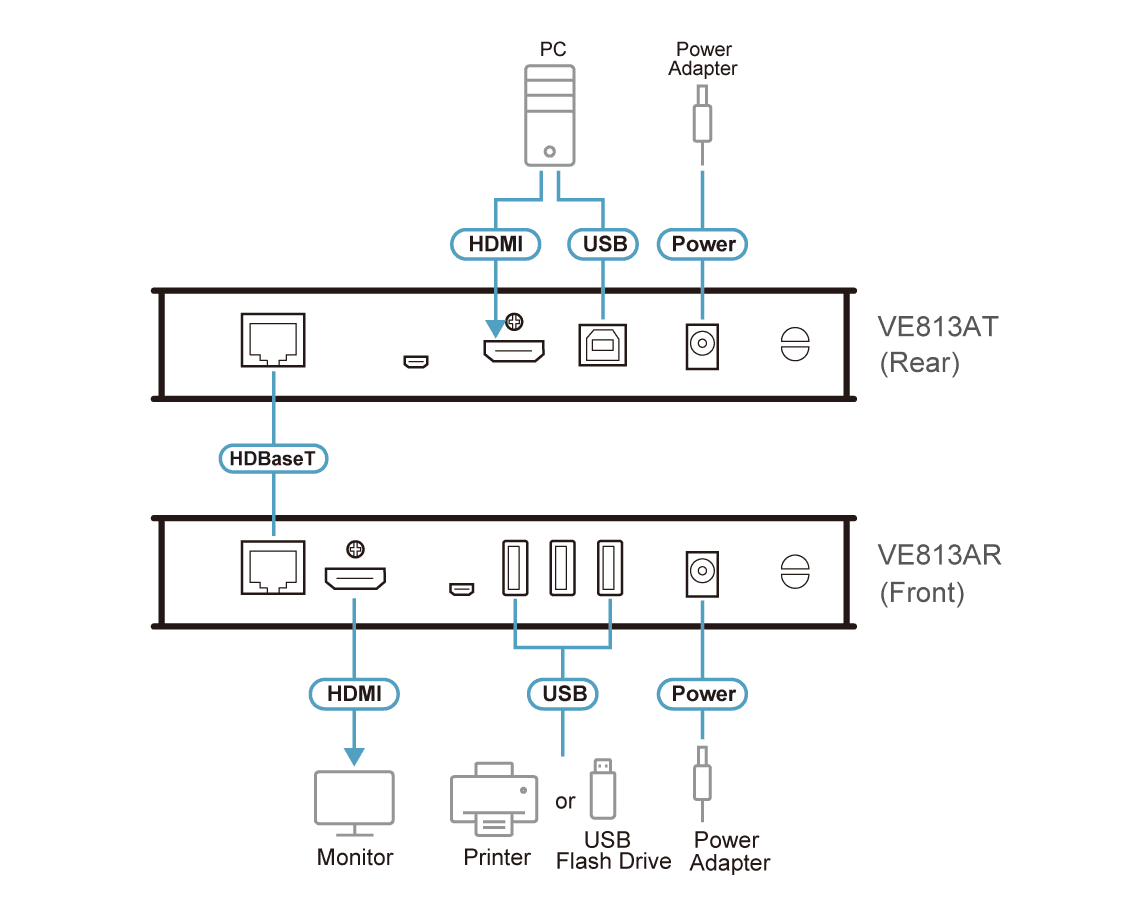

- Implements HDBaseT extension technology using only one Cat 5e/6/6a cable that connects the transmitter and receiver
- Anti-jamming – high quality video transmissions via HDBaseT technology that resists signal interference
- Supports Dolby True HD and DTS HD Master Audio
- ExtremeUSB® – supports transparent USB 2.0 signals and true plug-and-play (no software or drivers required)
- USB 2.0 Support* – connects devices such as keyboard, mouse, audio, flash drive, printer, touch panel, USB 1.1 web cameras and other USB devices which require moderate amounts of bandwidth
- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
- Works with all major operating systems: Windows®, OS X®, and Linux®
- Rack-mountable *Note: The VE813A supports a maximum combined USB transfer rate of 40 Mbps for attached USB devices
Видео вход
- Интерфейси
- N/A
- Интерфейси
- 1 x HDMI Type A Female (Black)
- Импеданс
- N/A
- Импеданс
- 100 Ω
- Макс. разстояние
- N/A
- Макс. разстояние
- 3 m
Видео изход
- Интерфейси
- 1 x HDMI Type A Female (Black)
- Интерфейси
- N/A
- Импеданс
- 100 Ω
- Импеданс
- N/A
- Макс. разстояние
- 3 m
- Макс. разстояние
- N/A
Видео
- Макс. скорост на данните
- 10.2 Gbps (3.4 Gbps Per Lane)
- Макс. скорост на данните
- 10.2 Gbps (3.4 Gbps Per Lane)
- Макс. пикселна честота
- Up to 340 MHz
- Макс. пикселна честота
- Up to 340 MHz
- Съответствие
- HDMI (3D, Deep Color, 4K) HDCP Compatible Consumer Electronics Control (CEC)
- Съответствие
- HDMI (3D, Deep Color, 4K) HDCP Compatible Consumer Electronics Control (CEC)
- Макс. резолюция / разстояние
- Up to 4K@70m (Cat 5e/6) / 100m (cat 6a); 1080p@100m *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
- Макс. резолюция / разстояние
- Up to 4K@70m (Cat 5e/6) / 100m (cat 6a); 1080p@100m *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Аудио
- Вход
- -
- Вход
- 1 x HDMI Type A Female (Black)
- Изход
- 1 x HDMI Type A Female (Black)
- Изход
- -
- Консумация
- DC5V:5.75WBTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Консумация
- DC5V:5.75WBTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Физически характеристики
- Тегло
- 0.62 kg ( 1.37 lb )
- Тегло
- 0.61 kg ( 1.34 lb )
- Размери (Д x Ш x В)
- 18.20 x 11.61 x 2.87 cm (7.17 x 4.57 x 1.13 in.)
- Размери (Д x Ш x В)
- 18.20 x 11.61 x 2.87 cm (7.17 x 4.57 x 1.13 in.)
- Корпус
- Metal
- Корпус
- Metal
- Брой в кашон
- 5 pcs
- Брой в кашон
- 5 pcs
Управление
- USB канал
- 3 x USB Type A Female Transfer Rate: USB 2.0 (Up to 40 Mbps)
- USB канал
- 1 x USB Type B Female Transfer Rate: USB 2.0 (Up to 40 Mbps)

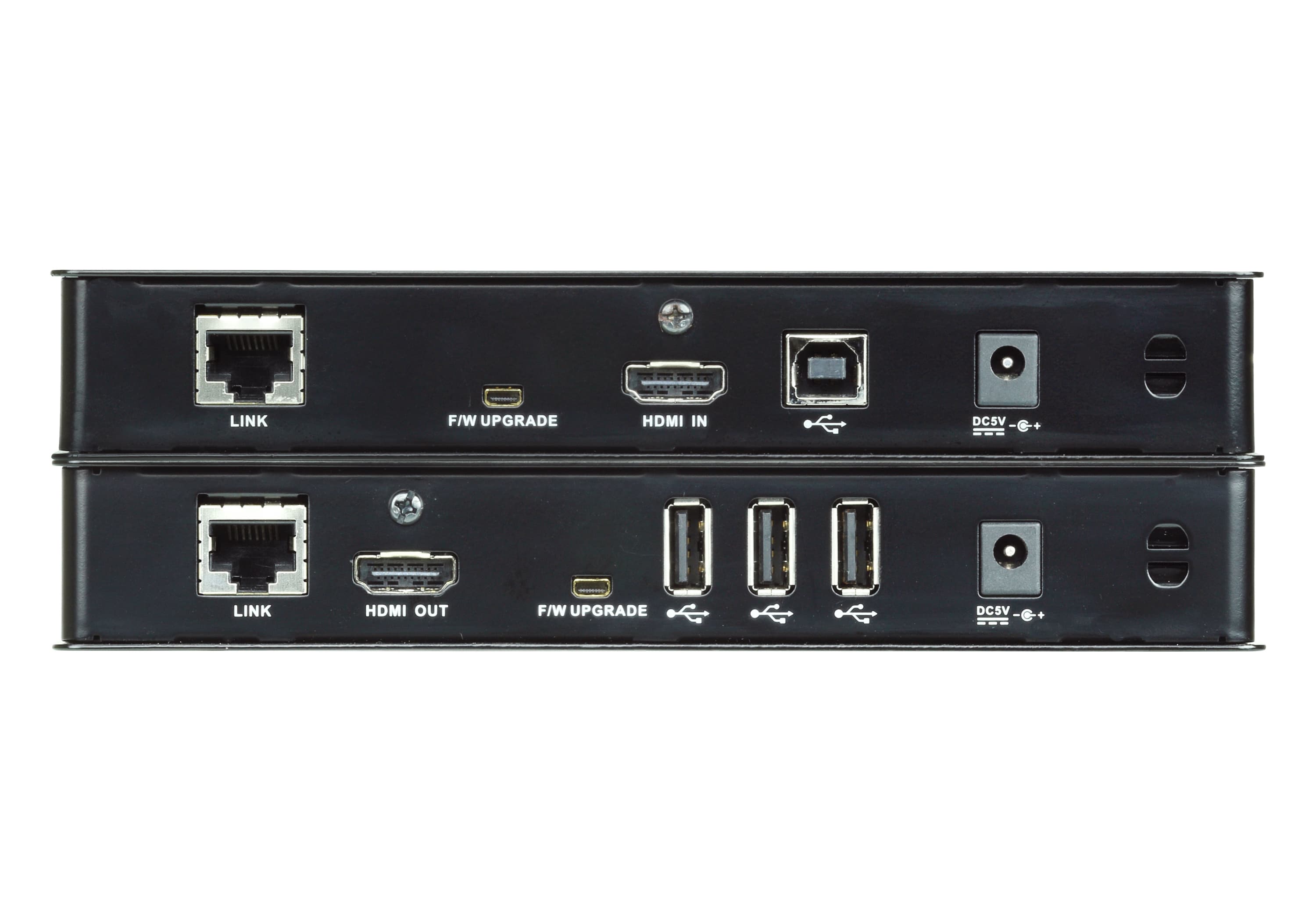

Конектори
- Захранване
- 1 x DC Jack
- Захранване
- 1 x DC Jack
Работна среда
- Работна температура
- 0-40°C
- Работна температура
- 0-40°C
- Температура на съхранение
- -20 - 60°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
- Влажност
- 0 - 80% RH, Non-Condensing
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
