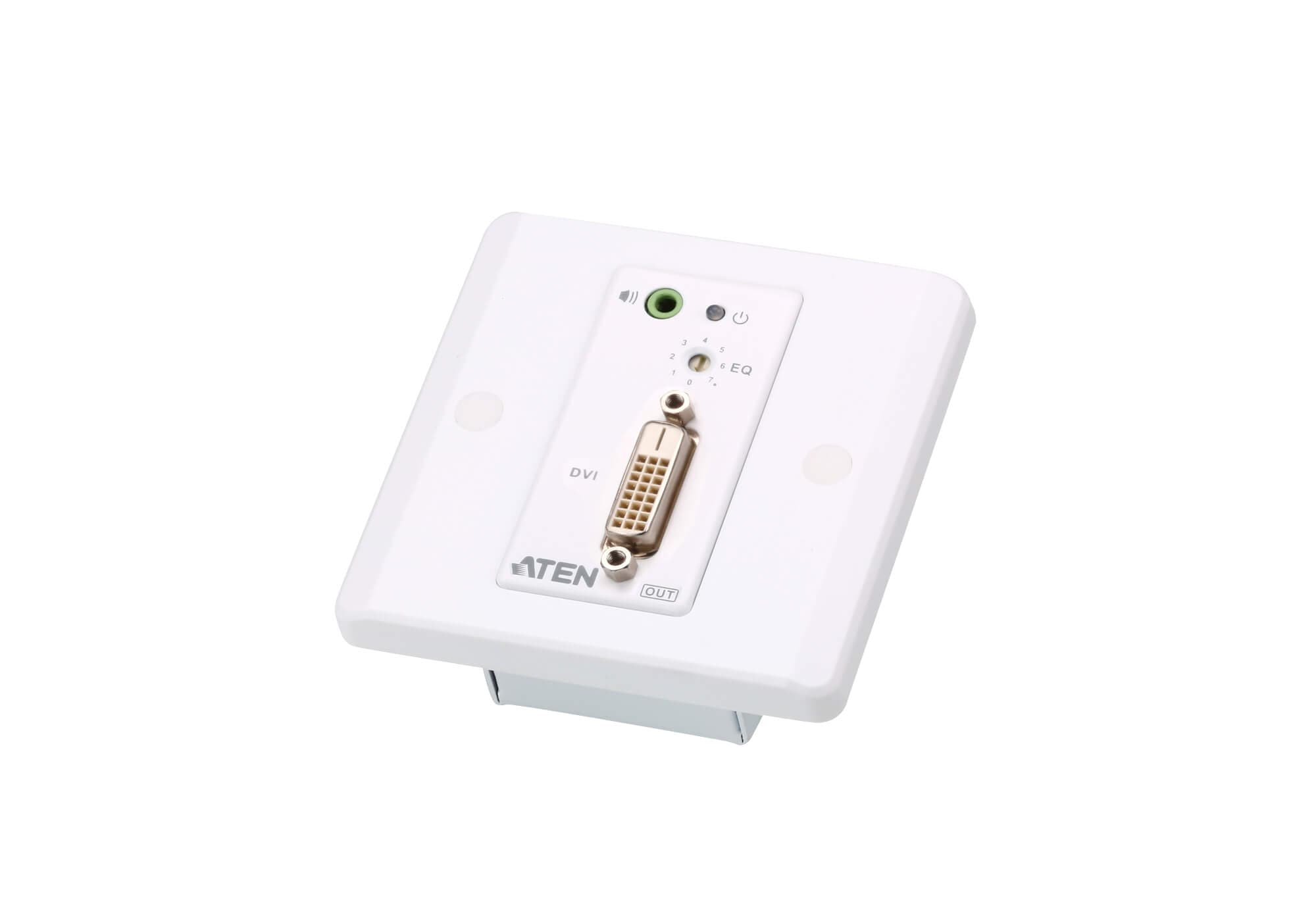

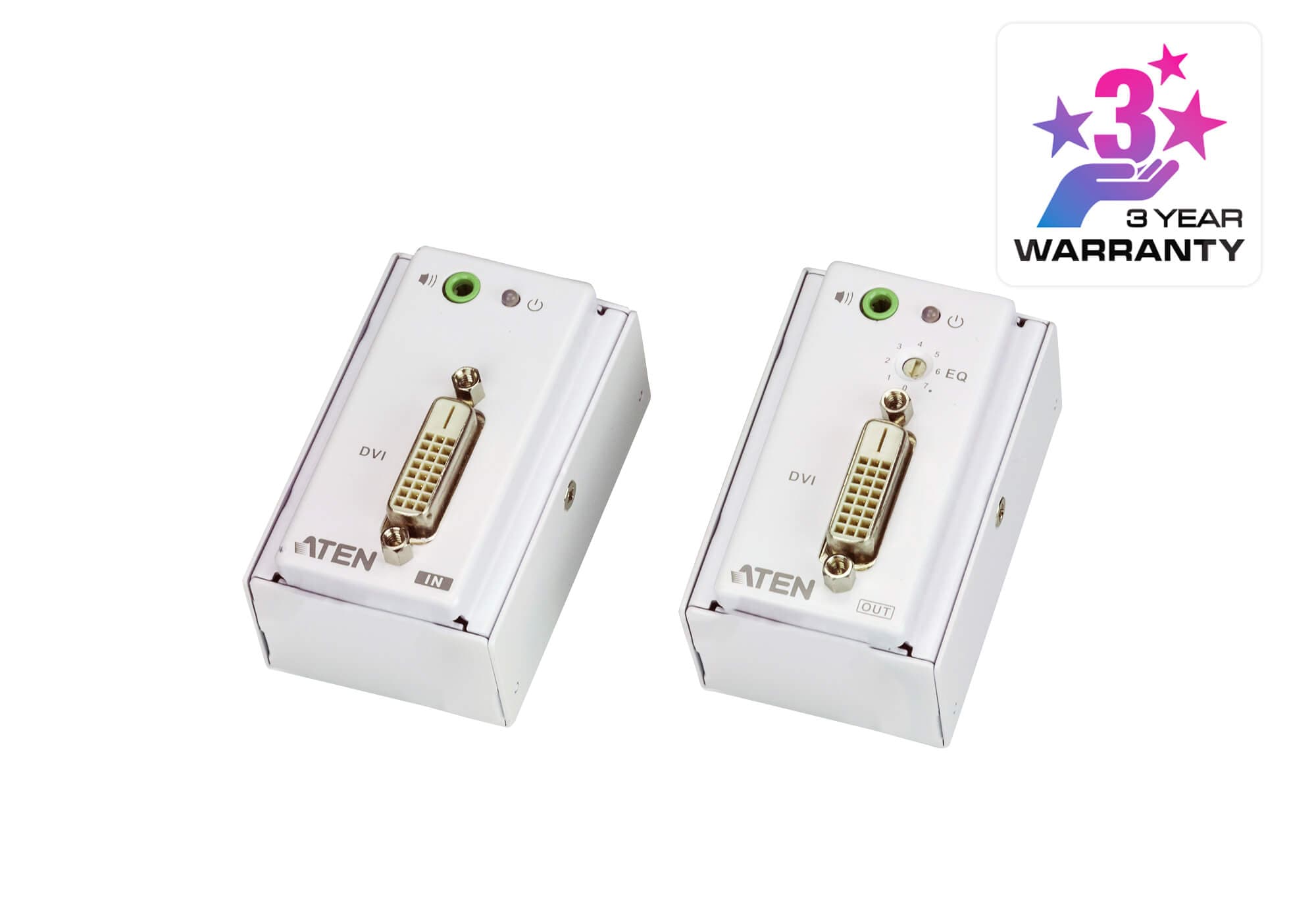

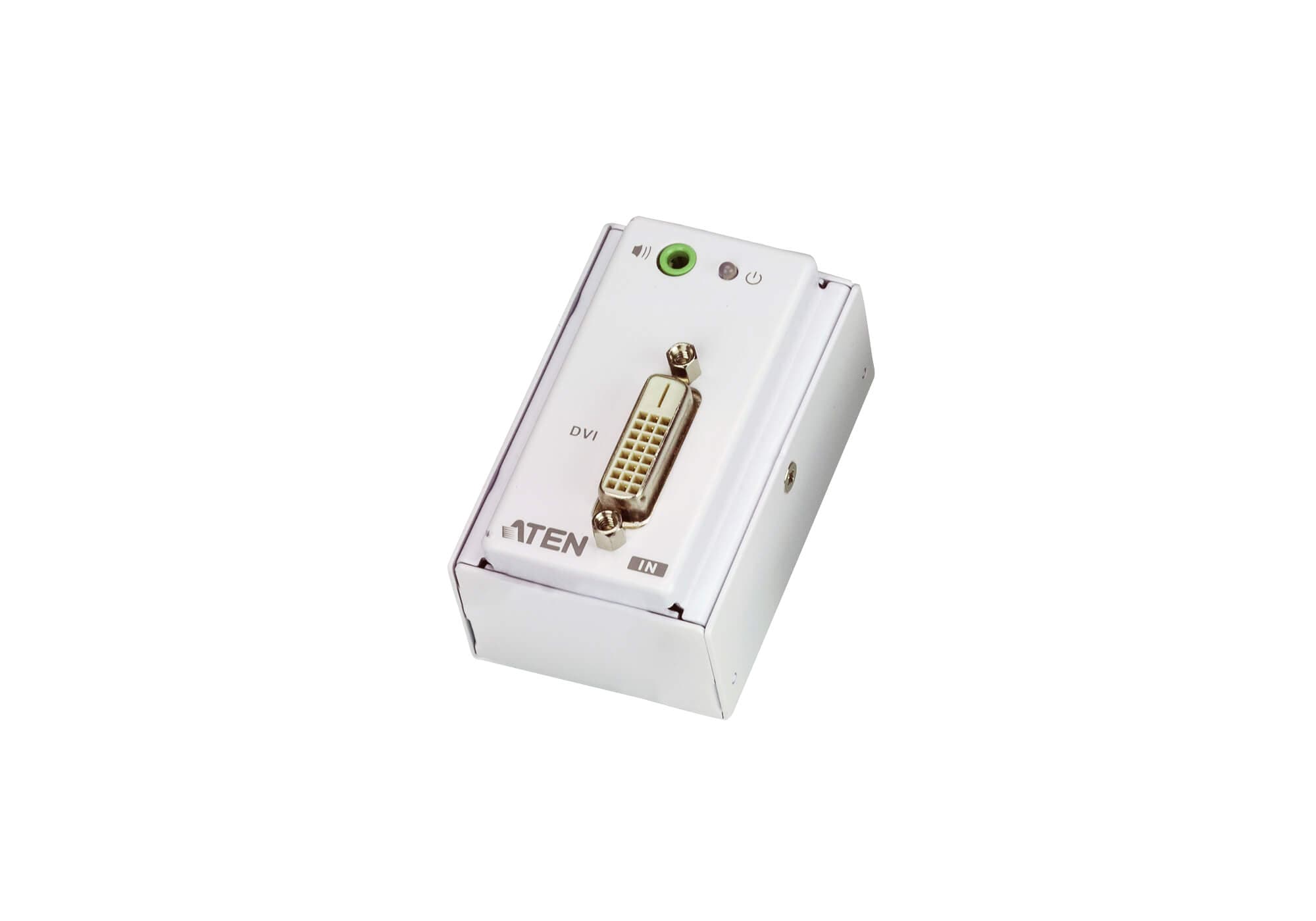

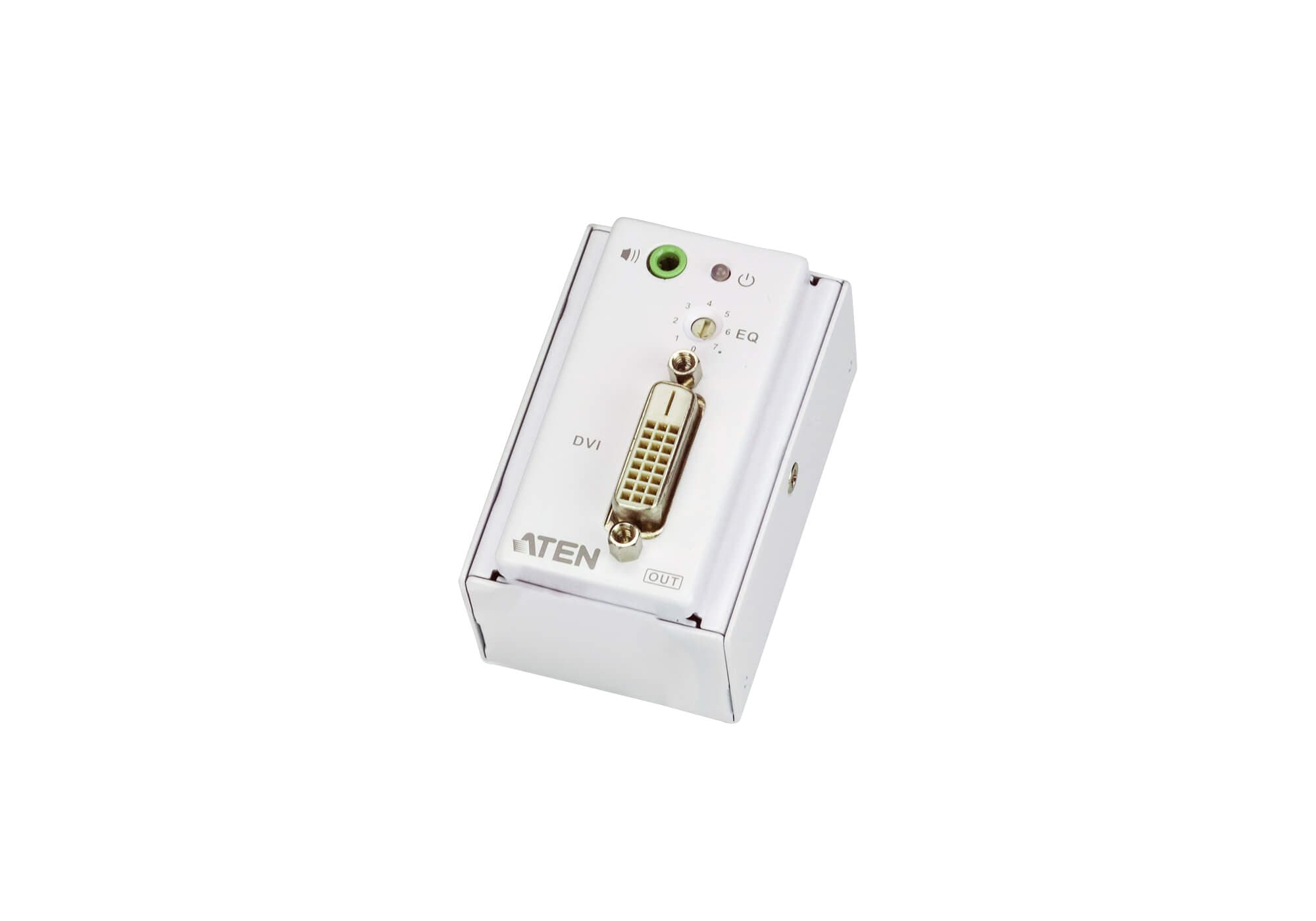

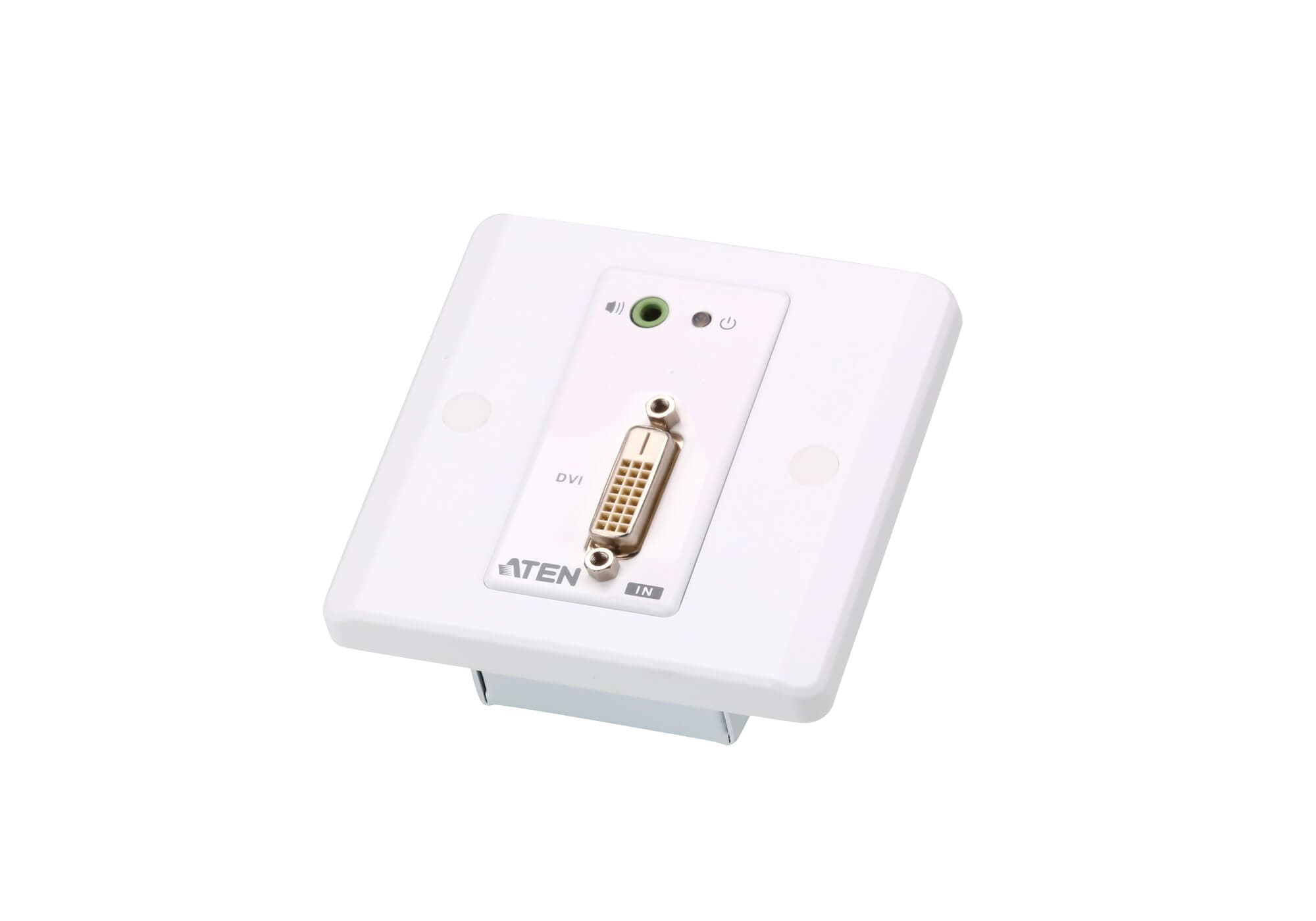

DVI/Audio Cat 5 Extender with MK Wall Plate (1920 x 1200 @ 40m)
VE607
Удължава DVI видео и аудио по два Cat 5e/6 кабела — до 1920 x 1200 при 40 m или 1280 x 1024 при 60 m. Изпълнение като стенна платка тип MK.
Характеристики

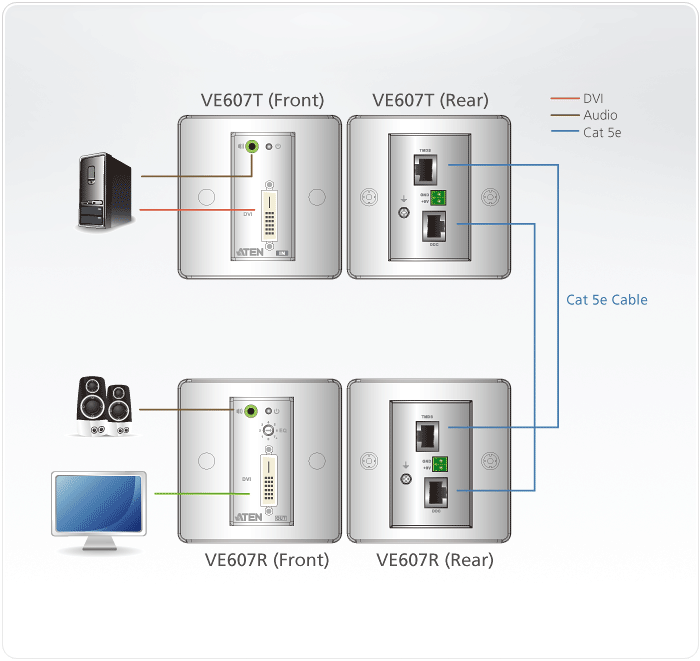

- Uses two Cat 5e/6 cables to connect the local and remote units- one to transmit video, and another for power*
- Remotely powered from either the transmitter or receiver side**
- Extends the distance between DVI source and DVI display
- Superior video quality – up to 1920 x 1200@40m; 1280 x 1024@60m
- Designed to mount in one- gang junction box for UK, Singapore, Hong Kong and other markets that apply MK type junction boxes.
- Supports 8 segment equalization adjustment via switch
- Supports wide screen formats
- Supports hot- plugging
- Supports stereo audio
- Built- in 8KV/ 15 KV ESD protection
- Plug- and- play with no software installation required
- LED indication of power sources / connection status * A second Cat 5e/6 cable connection is required to remotely power on either the transmitter or receiver ** A power adapter is provided with this package and can be used at either the transmitter or receiver side, which in turn remotely powers the other unit
Видео вход
- Интерфейси
- N/A
- Интерфейси
- 1 x DVI-D Female (White)
- Импеданс
- N/A
- Импеданс
- 100 Ω
Видео изход
- Интерфейси
- 1 x DVI-D Female (White)
- Интерфейси
- N/A
- Импеданс
- 100 Ω
- Импеданс
- N/A
Видео
- Макс. скорост на данните
- 6.75 Gbps (2.25 Gbps Per Lane)
- Макс. скорост на данните
- 6.75 Gbps (2.25 Gbps Per Lane)
- Макс. пикселна честота
- 225 MHz
- Макс. пикселна честота
- 225 MHz
- Съответствие
- HDCP Compatible
- Съответствие
- HDCP Compatible
- Макс. резолюция / разстояние
- Up to 1920 x 1200@40m; 1280 x 1024@60m
- Макс. резолюция / разстояние
- Up to 1920 x 1200@40m; 1280 x 1024@60m
Аудио
- Вход
- N/A
- Вход
- 1 x Mini Stereo Jack Female (Green)
- Изход
- 1 x Mini Stereo Jack Female (Green)
- Изход
- N/A
Конектори
- Захранване
- 1 x Terminal Block (Green)
- Захранване
- 1 x Terminal Block (Green)
- Консумация
- DC9V:0.81W:4BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Консумация
- DC9V:1.35W:6BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 50°C
- Работна температура
- 0 - 50°C
- Температура на съхранение
- -20 - 60°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Корпус
- Metal
- Тегло
- 0.18 kg ( 0.4 lb )
- Тегло
- 0.18 kg ( 0.4 lb )
- Размери (Д x Ш x В)
- 6.86 x 4.44 x 4.34 cm (2.7 x 1.75 x 1.71 in.)
- Размери (Д x Ш x В)
- 6.86 x 4.44 x 4.34 cm (2.7 x 1.75 x 1.71 in.)
- Размери на лицевия панел (Д x Ш x В)
- 8.60 x 8.60 x 1.60 cm (3.39 x 3.39 x 0.63 in.)
- Размери на лицевия панел (Д x Ш x В)
- 8.60 x 8.60 x 1.60 cm (3.39 x 3.39 x 0.63 in.)
- Брой в кашон
- 5 pcs
- Брой в кашон
- 5 pcs
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
