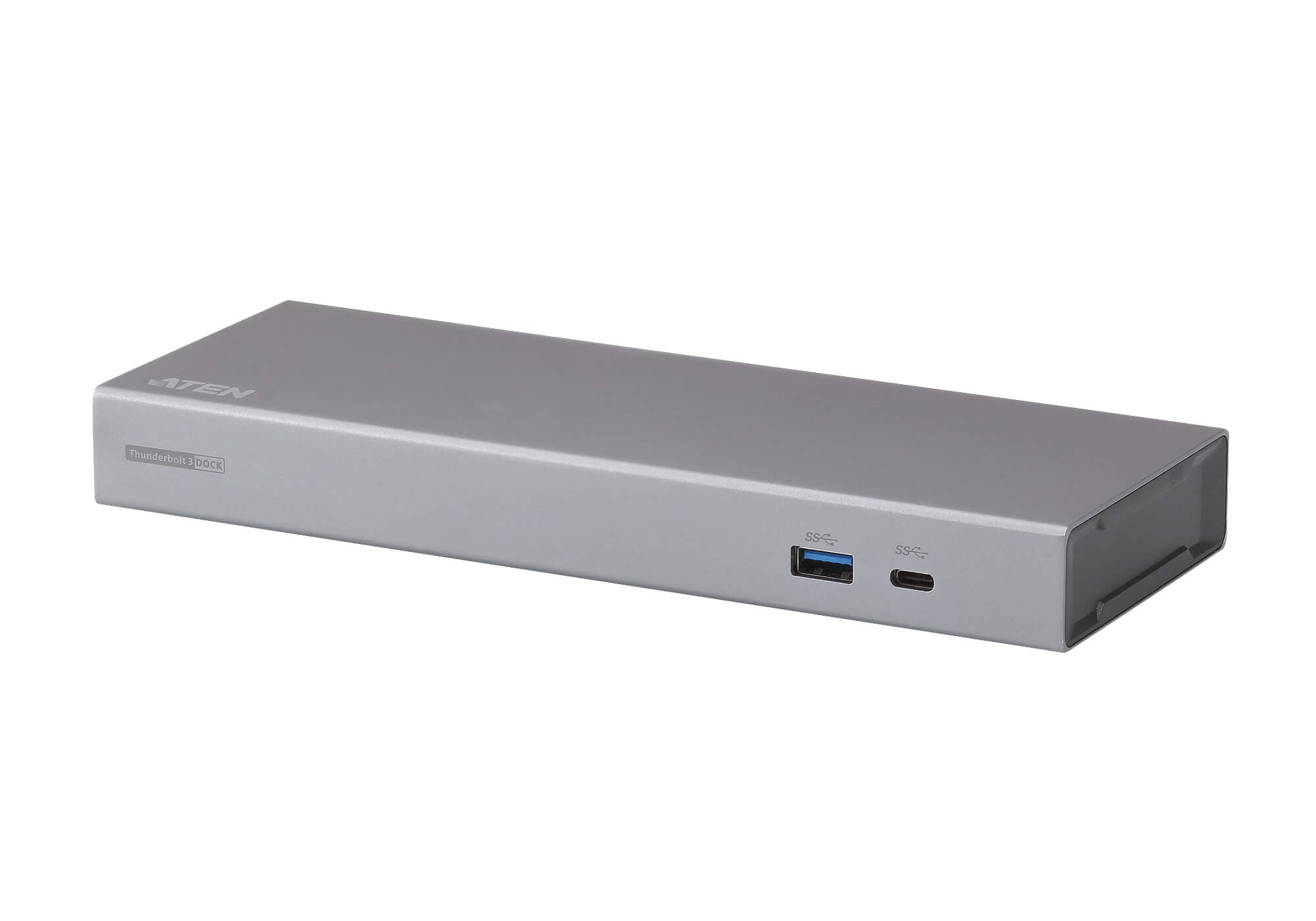

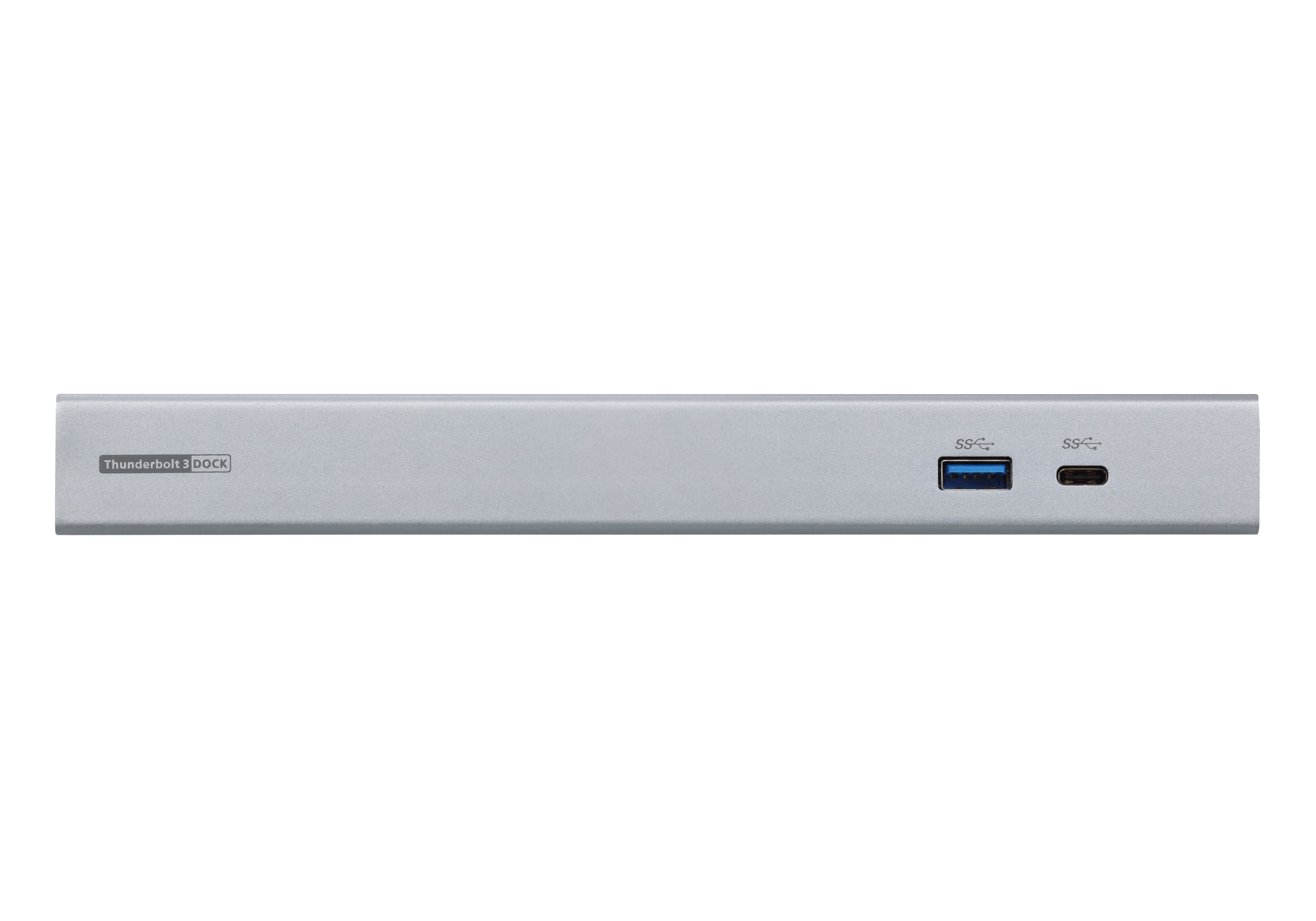

Thunderbolt™ 3 Multiport Dock with Power Charging
UH7230Снет от производство
Thunderbolt 3 докинг станция: свързва до 8 устройства през един кабел при 40Gbps, извежда 5K на един дисплей или два 4K дисплея и зарежда лаптопа с до 85W.
Характеристики

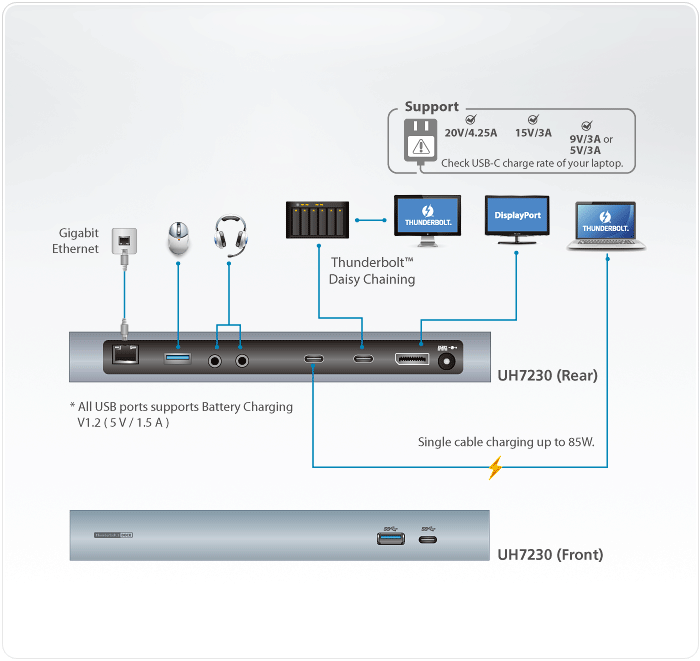

- Supports both Thunderbolt 3 (40Gbps) and USB 3.1 Gen2 (10Gbps) protocol through a single Thunderbolt 3 cable
- Connect up to 8 devices to a laptop via a single Thunderbolt 3 cable / can daisy-chain 5 additional Thunderbolt devices
- Supports 5K resolution on a single Thunderbolt 3 display or dual 4K resolution on one DisplayPort display and one USB-C / Thunderbolt 3 display
- 85W Universal Power Delivery for charging a Thunderbolt 3 laptop or MacBook pro ; supports 20V/4.25A, 15V/3A, 9V/3A and 5V/3A power specifiation for the output power
- Compatible with legacy Thunderbolt devices via adapter
- Gigabit Ethernet port
- Audio line-in and line-out
- OS Support: Windows 10 32/64 bit, and OS X Sierra 10.12 later
Спецификация
- Връзки към компютри
- 1 Thunderbolt Computer
- Връзки към устройства
- 5 Max. (via Thunderbolt Daisy-chaining)

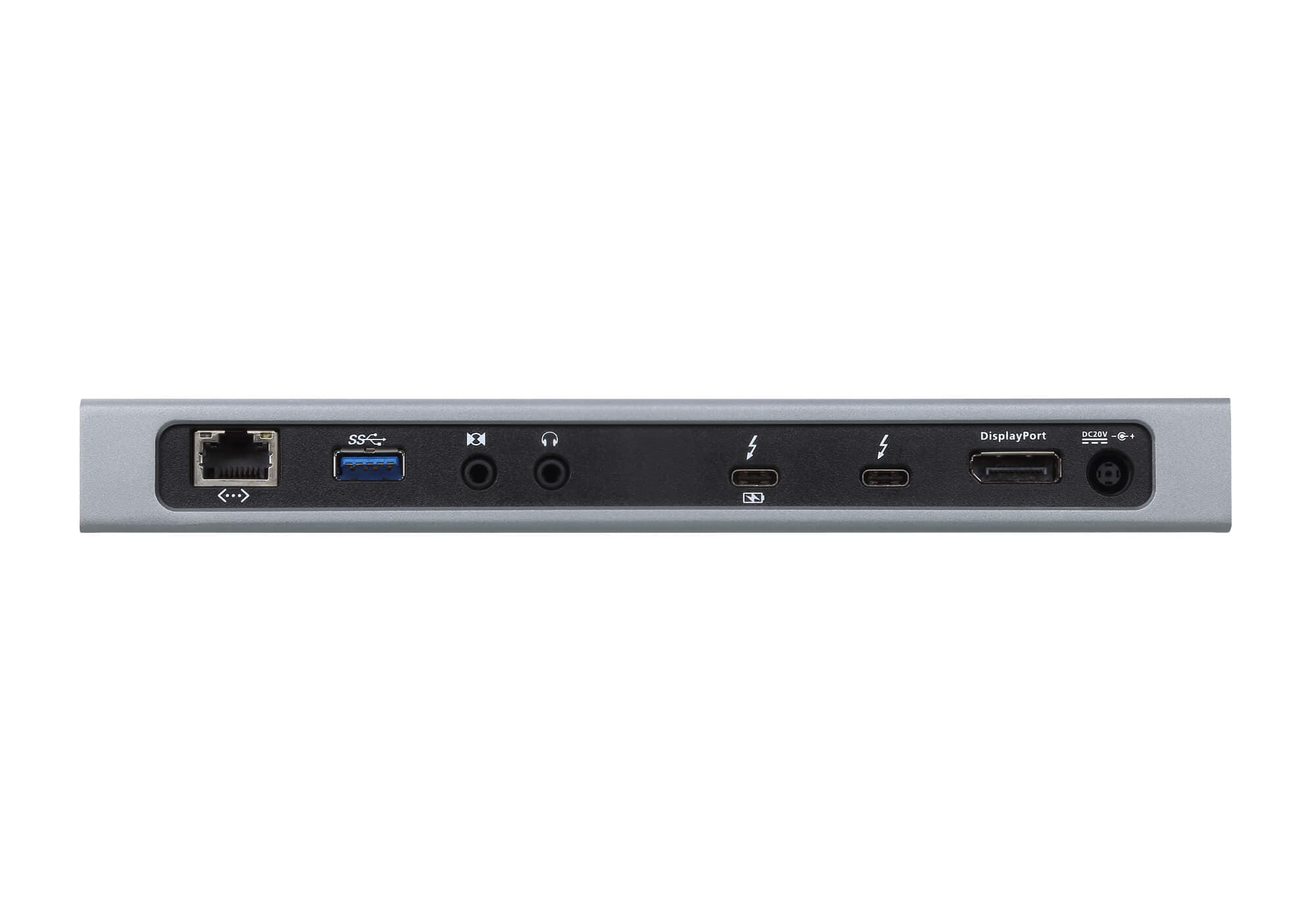

Конектори
- Компютър
- 1 x Thunderbolt 3 (USB-C) Female (Black)
- Устройство
- 1 x Thunderbolt 3 (USB-C) Female (Black) 2 x USB 3.1 Gen1 Type-A Female (Blue) 1 x USB 3.1 Gen1 Type-C Female (Black, data only)
- LAN портове
- 1 x Gigabit Ethernet Female (Black)
- Аудио входове
- 1 x 3.5mm Stereo Input Female (Black)
- Аудио изходи
- 1 x 3.5mm Stereo Output Female (Black)
- Захранващ конектор
- 1
- Видео изход
- 1x DisplayPort Female 1x Thunderbolt 3 (USB-C) Female
- Видео резолюция
- Single-View: Thunderbolt 3 (USB-C) Monitor - 5K@60 USB-C Monitor - 4096*2160@60 DisplayPort Monitor - 4096*2160@60 Dual-View: Thunderbolt 3 (USB-C) Monitor or USB-C Monitor - 4096*2160@60 DisplayPort Monitor- 4096*2160@60
- Консумация
- DC20V:8.5A:170WBTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Съдържание на комплекта
- 1 x Thunderbolt 3 (USB-C) Cable 1 x Power Adapter w/ AC power cord
Работна среда
- Работна температура
- 0–40°C
- Температура на съхранение
- -20–60°C
- Влажност
- 0–80% RH, Non-condensing
Физически характеристики
- Корпус
- Aluminum
- Тегло
- 0.37 kg ( 0.83 lb )
- Размери (Д x Ш x В)
- 22.20 x 8.20 x 2.60 cm (8.74 x 3.23 x 1.02 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
