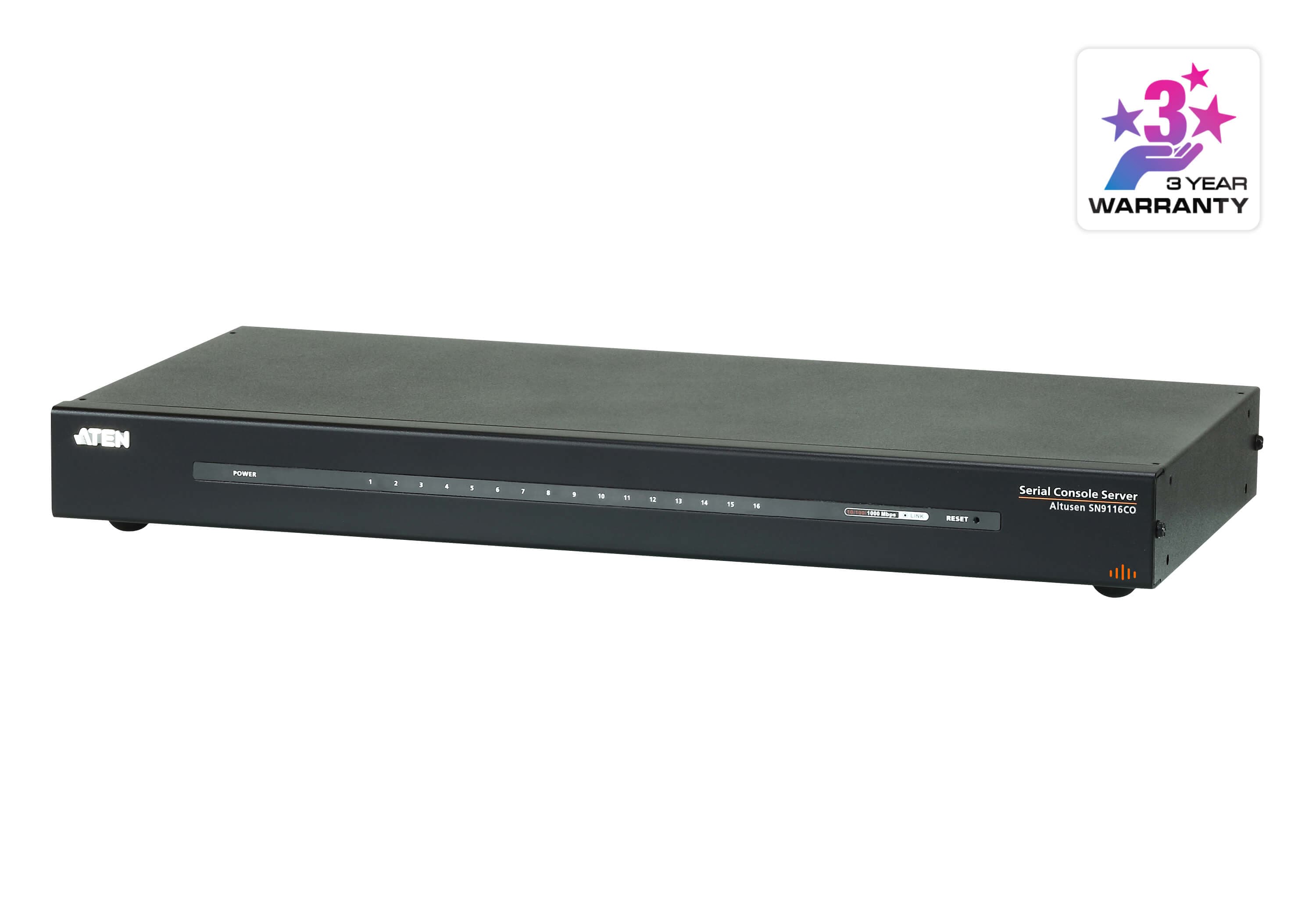

16-Port Serial Console Server

Name: 16-Port Serial Console Server
Brand: ATEN
SKU: SN9116CO

SN9116CO

Заяви оферта Datasheet PDF Ръководство Бърз старт CAD чертеж

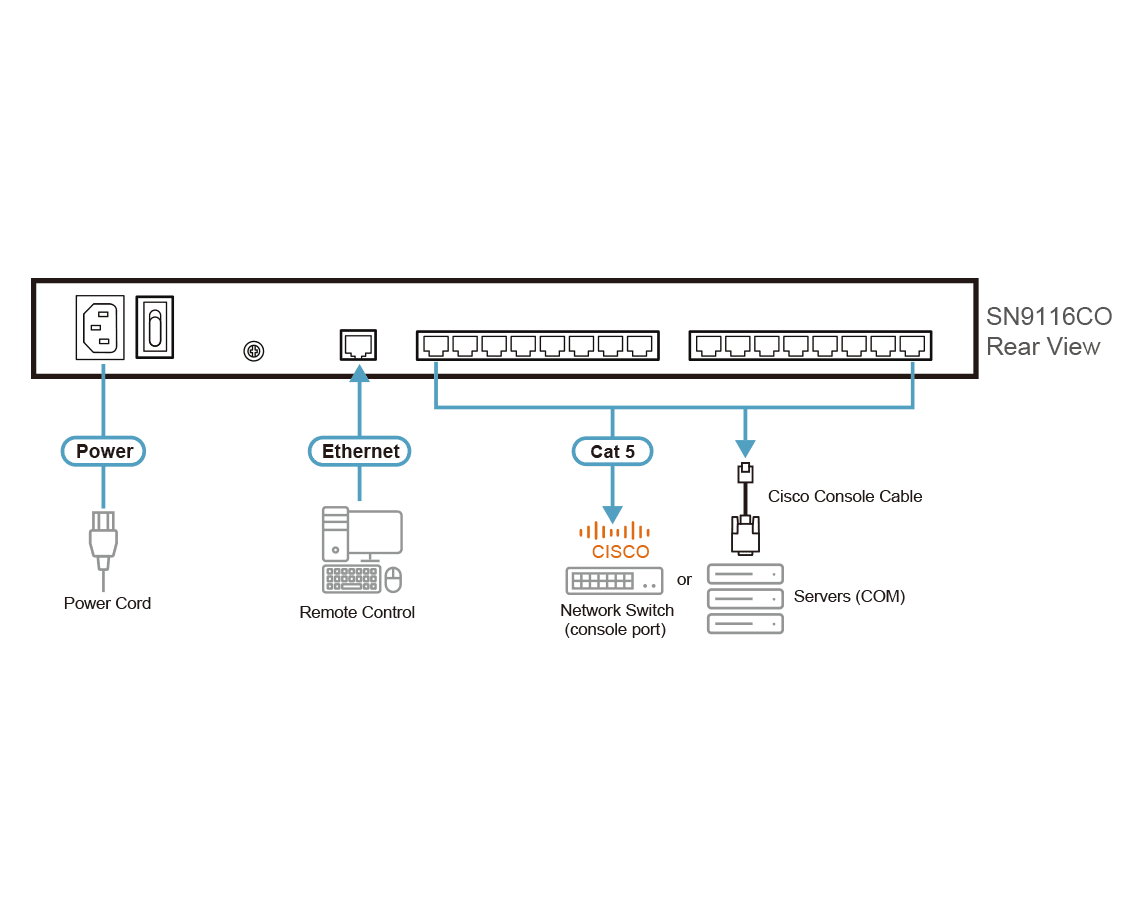

Конзолен сървър с 16 серийни RJ-45 порта за in-band и out-of-band достъп до конзолите на мрежово и сървърно оборудване. Управление през браузър, терминален интерфейс или модем dial-in.

Характеристики

Secure in-band and out-of-band remote serial console access
Browser access with an intuitive GUI
Terminal-based access with a menu-driven UI
Modem dial-in/dial-back/dial-out access
Auto-sensing DTE/DCE feature supports a direct connection to Cisco network switches (and other compatible devices) without rollover cables for more convenient IT infrastructure deployment
Online/Offline detection of connected serial devices (including terminal blocks) – automatically send event notifications when the devices are offline (e.g. power failure) for device status monitoring
Response Check － checks the system status of the connected serial devices, and sends a notification if the check fails (e.g. system crash)
Convenient and simple serial device access via selectable Telnet/SSH and third-party clients such as PuTTY
Easy port access via selectable ActiveX or Java serial viewer
Comprehensive viewer functions – copy/paste, logging, data import, macros, broadcasting and message board
Sun Solaris ready – Sun “break-safe”
Alert Strings – whenever one of the pre-defined strings matches the message sent from the serial devices, you will be informed by serial console server via SNMP Trap alert and/or an email
Command filter – administrators can restrict users to execute only pre-defined commands
Multiple users can simultaneously access the same port – up to 16 connections per port
Modes for simultaneous access – Exclusive/Occupy/Share
Supports secure login from browsers with TLS 1.2 data encryption and RSA 2048-bit certificates
Configurable user permissions for port access and control
Local and remote authentication and login
Third-party authentication via RADIUS, TACACS+, LDAP/AD and Kerberos
IP and MAC address filter for enhanced security protection
High security grade – supports FIPS 140-2 level 1 security standards that use an embedded FIPS 140-2 certified OpenSSL cryptographic module (Certificate #1747, #2398, #2473)
Supports security level configuration – High, Medium-high, Medium or Custom, to ensure a fine granularity of network access control
IEEE 802.1X compliant
Supports SSH password-less login for enhanced security and simplified access management
System configuration via web browser, Telnet/SSH client and local console
System log and event login
Event Destination – Event logs will be saved to Log server, Syslog server, and USB drive*
SNMP agent v1/v2c/v3
Event notification – supports notification of SMTP email and SNMP Trap (v1/v2c/v3)
Backup / Restore system configuration and upgradeable firmware
Multi-browser support – Internet Explorer, Chrome, Firefox
NTP for time server synchronization
IPv4 / IPv6 support
LLDP support
Integrates into CC2000 software for centralized data center management
Integrates into CCVSR software for user session recording
Versatile serial operating modes – Console Management, Console Management Direct, Real COM Port, TCP Server/Client, UDP Server/Client, and Virtual Modem
Real COM driver for Windows 2000 or higher and Windows Server 2003/2008
Real TTY driver for Linux
Fixed TTY driver for UNIX*
Supports baud rates of 300, 600, 1200, 1800, 2400, 4800, 9600, 19200, 28800, 38400, 57600, 115200, 230400 bps
Multi-language web-based GUI – available in English, German, Japanese, Korean, Russian, Simplified Chinese and Traditional Chinese Note: Fixed TTY Driver supports: – OpenServer (Sco Unix) – UnixWare 7, SVR 5 – UnixWare 2.1, SVR 4.2 – QNX 4.25, QNX 6 – FreeBSD – Solaris 10 – AIX 5.x – HP-UX 11i

Спецификация

Връзки: 16

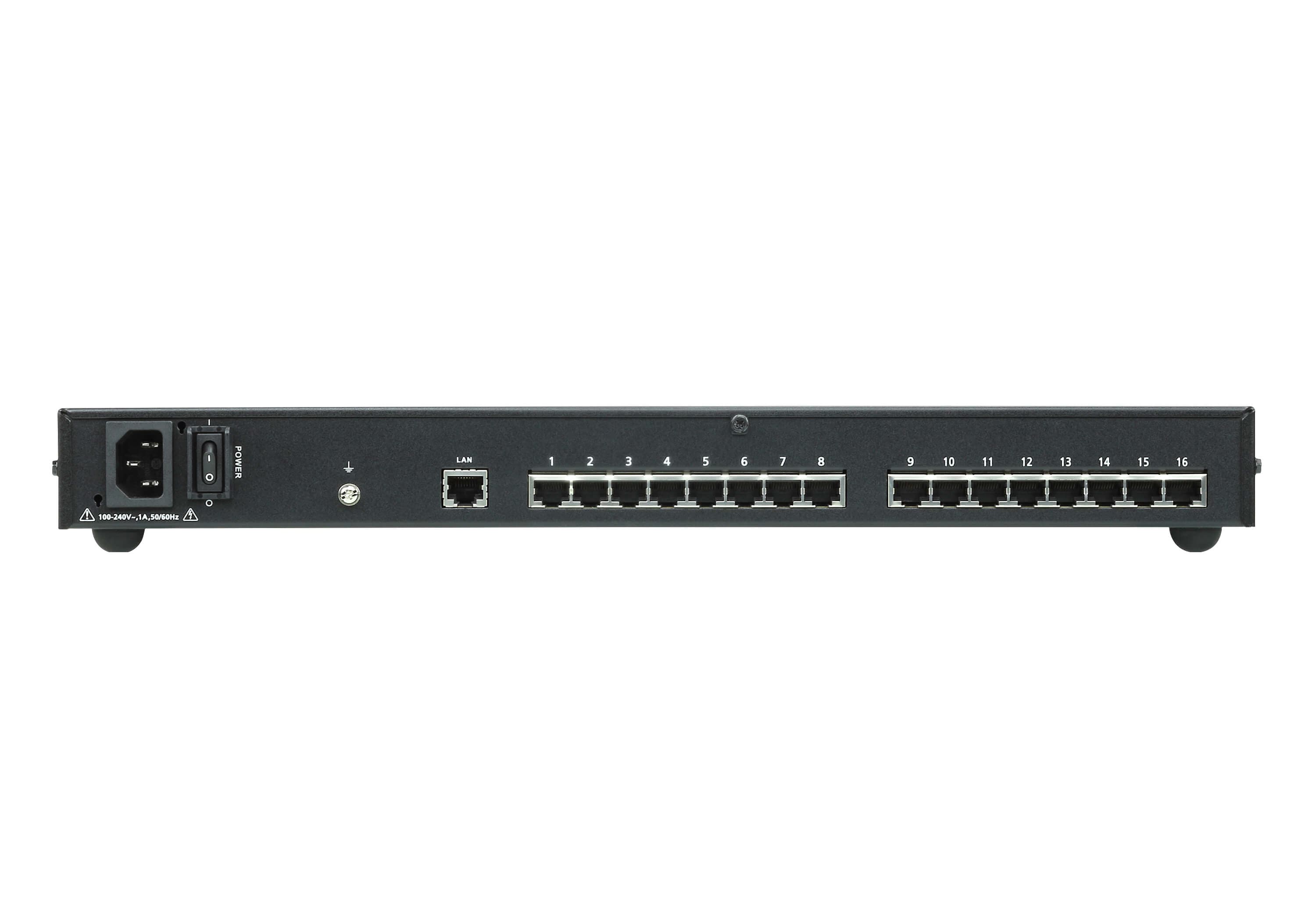

Конектори

Сериен: 16 x RJ-45 Female
LAN портове: 1 x RJ-45 Female
Захранване: 1 x IEC60320/C14

Бутони и превключватели

Нулиране: 1 x Recessed Pushbutton
Захранване: 1 x Rocker Switch

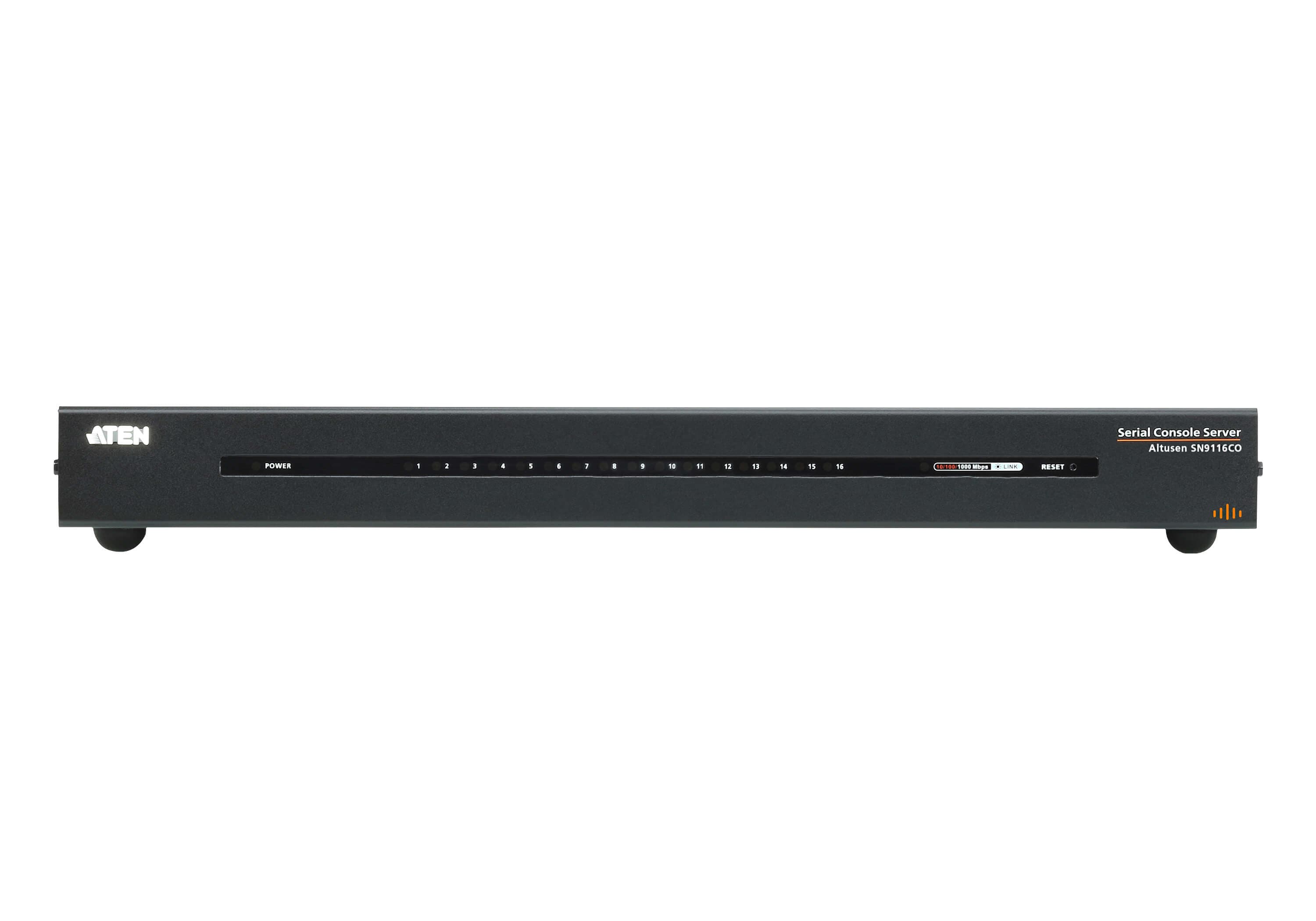

Индикатори

Сериен: 16 (Green)
10/100/1000 Mbps: 1 (Red / Orange / Green)
Захранване: 1 (Blue)
Макс. входна мощност: 100-240V~, 1A, 50/60Hz
Консумация: AC110V:5.5W:26BTU/h AC220V:5.4W:25BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Работна среда

Работна температура: 0 - 40˚C
Температура на съхранение: -20 ~ 60˚C
Влажност: 0 - 80% RH, Non-condensing

Физически характеристики

Корпус: Metal
Тегло: 3.16 kg ( 6.96 lb )
Размери (Д x Ш x В): 43.72 x 21.76 x 4.40 cm (17.21 x 8.57 x 1.73 in.)
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Фърмуер
