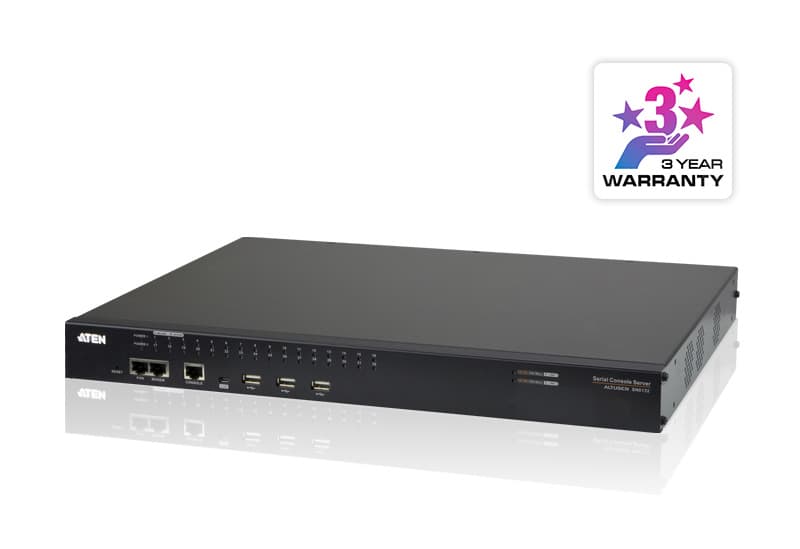

32-Port Serial Console Server with Dual Power/LAN
SN0132Снет от производство
Сериен конзолен сървър с 32 RJ-45 порта, двойно захранване и 2 LAN порта. Комбинира in-band и out-of-band достъп до серийни устройства; с локална конзола, модемен и PON порт.
Характеристики
- System Accessibility and Availability
- Secure in-band and out-of-band network access to serial consoles
- In-band access of Ethernet
- Browser access with an intuitive GUI
- Terminal-based access with a menu-driven UI
- Out-of-band access of dial-up modem
- Modem dial-in/dial-back/dial-out
- Front access USB ports for USB storage or for USB-based PC cards
- Laptop USB Console (LUC) port for extra local console access via laptop computer
- Dual Ethernet ports for failover or for dual IP addresses access
- Dual power supply
- Serial Console Management
- Convenient and simple access via browser or Telnet/SSH client
- Port access via Telnet/SSH client and third-party client such as PuTTY
- Direct port access from Telnet client – bypassing login to SN
- Convenient port access via the applet serial viewer from SN Web GUI
- Selectable Telnet or SSH for the serial viewer
- Selectable ActiveX or Java for the serial viewer
- Comprehensive viewer function – Copy/paste, logging, data import, Macro, broadcast and Message Board
- Sun Solaris ready – Sun "break-safe"
- Alert String
- Command filter – Administrators can restrict users to execute only predefined commands*
- Data buffering
- Multiple users simultaneously access to the same port – up to 16 connections per port.
- Selectable mode for multiple simultaneous access – Exclusive/Occupy/Share mode
- Integrated with Power Over the NET product for port and power outlet association
- Security
- SSH and SSL (TLS v1.0 / TLS v1.1 / TLS v1.2) support
- Secure login from browser with TLS 1.2 data encryption and RSA 2048-bit certificates
- Configurable user permissions for port access and control
- Configurable group permission for port access and control
- Local and remote authentication and logging
- SN0132 support RADIUS, TACACS+, LDAP/AD, and Kerberos
- IP filtering and MAC filtering
- High-Grade Security – supports FIPS 140-2 level 1 security standards that use an embedded FIPS 140-2 certified OpenSSL cryptographic module (Certificate #1747, #2398, #2473)
- System Management
- System configuration via Web browser of HTTP/HTTPS, Telnet/SSH client and local console
- System log and event logging
- Comprehensive logging and event notifi cation
- ATEN Log server and Syslog server
- SNMP agent
- Event notification – SN0132 support notification of SMTP email, SNMP Trap, and SMS (with additional mobile device)
- Backup/restore system configuration
- Firmware upgradeable
- Multi-browser support – Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla, and Netscape
- Customizable global time zone
- NTP for time server synchronization
- DHCP for dynamic IP address assignment
- IPv6 support
- Integrated with CC2000 for data center centralized management
- Serial Device Management
- Versatile serial operating modes – SN0132 support Real COM, TCP Server, TCP Client, UDP, Serial Tunnel and Virtual Modem
- 128-bit/256-bit SSL encryption (TLS v1.0 / TLS v1.1 / TLS v1.2) for Real COM, TCP Server, TCP Client, Serial Tunnel and Virtual Modem
- Multiple simultaneous connections to the same port – up to 16 connections per port
- Real COM driver for Windows 2000/XP/Vista/7 and Windows Server 2003/2008
- Real TTY driver for Linux
- Fixed TTY driver for UNIX
- Language
- Web-based GUI multi-language – available for Japanese, Korean, German, Russian, Simplifi ed Chinese and Traditional Chinese

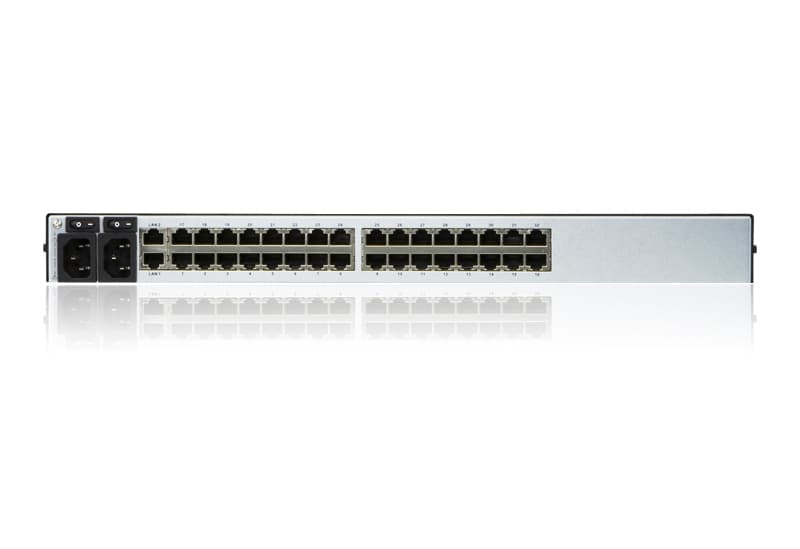

Конектори
- Сериен
- 32 x RJ-45 Female
- LAN портове
- 2 x RJ-45 Female
- Захранване
- 2 x IEC 60320/C14
- Локална конзола
- 1 x RJ-45 Female
- Модем
- 1 x RJ-45 Female
- PON
- 1 x RJ-45 Female
- Laptop USB Console (LUC) порт
- 1 x Mini USB
- USB порт
- 3 x USB Type A Female
Бутони и превключватели
- Захранване
- 2 x Rocker Switch
- Нулиране
- 1 x Recessed Pushbutton
Индикатори
- Сериен
- 32 (Green)
- Връзка
- N/A
- 10/100 Mbps
- N/A
- 10/100/1000 Mbps
- 2 (Red/Orange/Green)
- Захранване
- 2 (Blue)
- Макс. входна мощност
- 100–240VAC; 50/60Hz; 1.8A
- Консумация
- AC110V:22.5W:137BTU/h AC220V:29.9W:143BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 40˚C
- Температура на съхранение
- -20 - 60˚C
- Влажност
- 0 - 80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 4.84 kg ( 10.66 lb )
- Размери (Д x Ш x В)
- 43.72 x 32.77 x 4.40 cm (17.21 x 12.9 x 1.73 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
