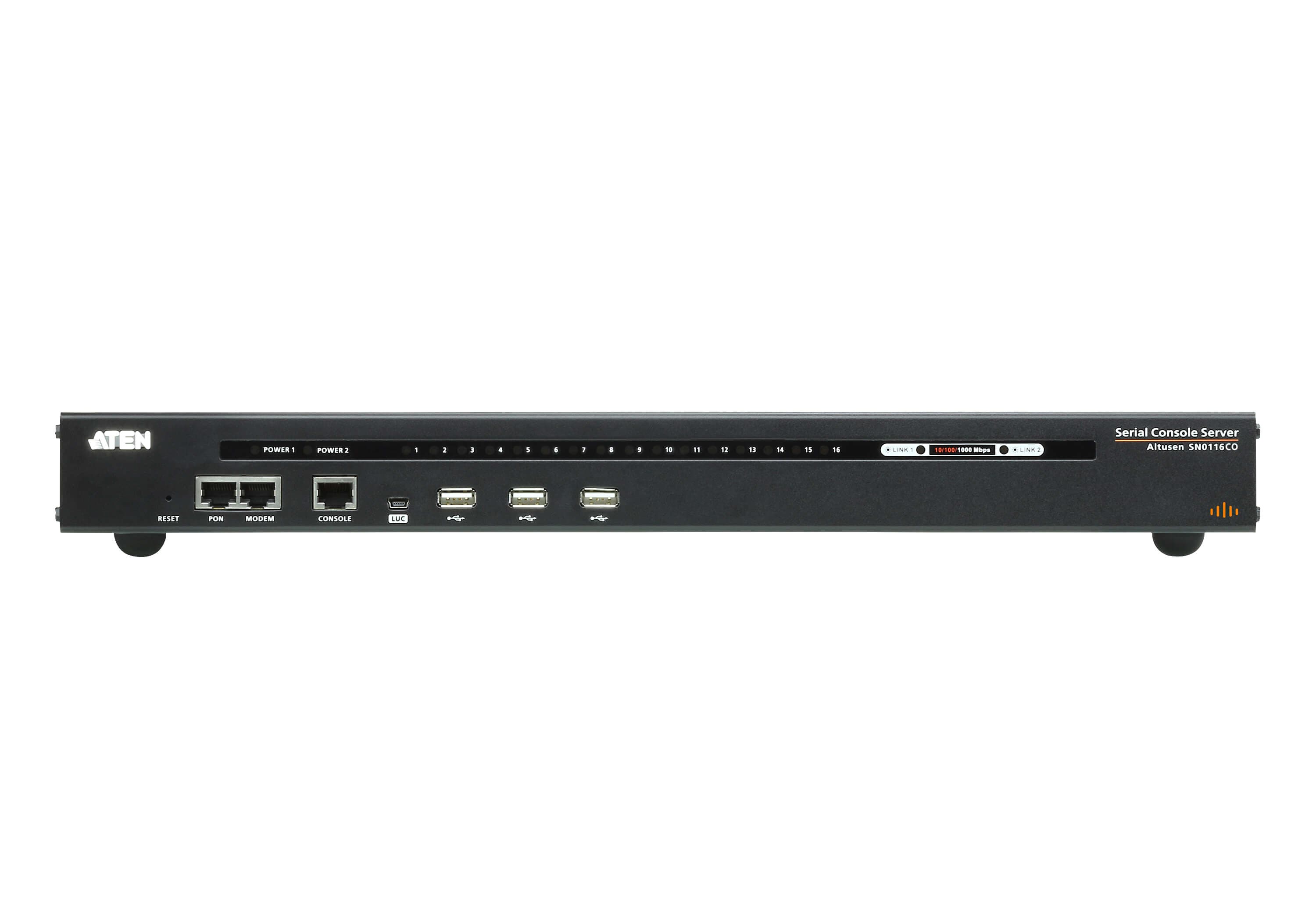

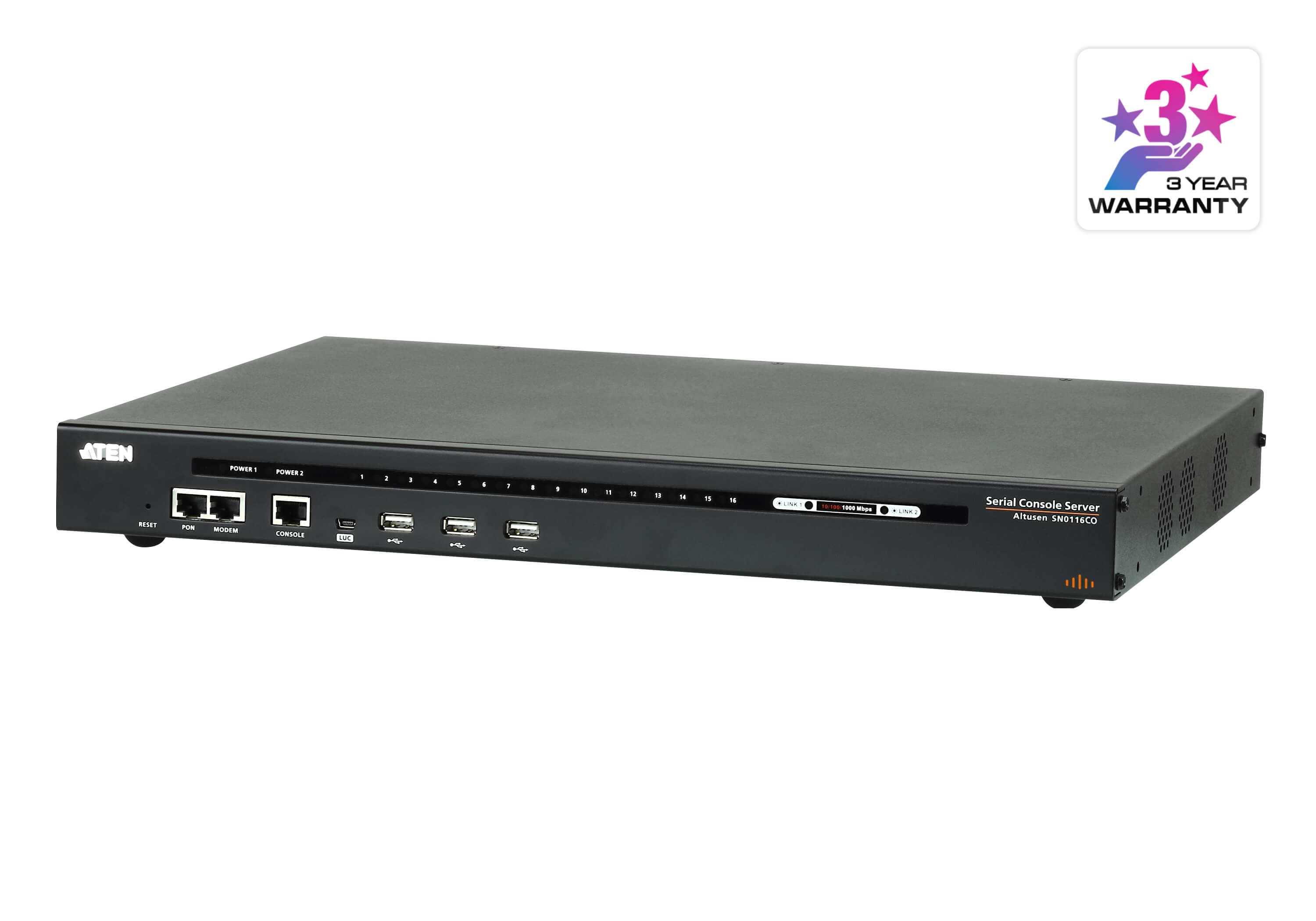

16-Port Serial Console Server with Dual Power/LAN

SN0116CO
Заяви офертаDatasheet PDFРъководствоБърз стартCAD чертеж

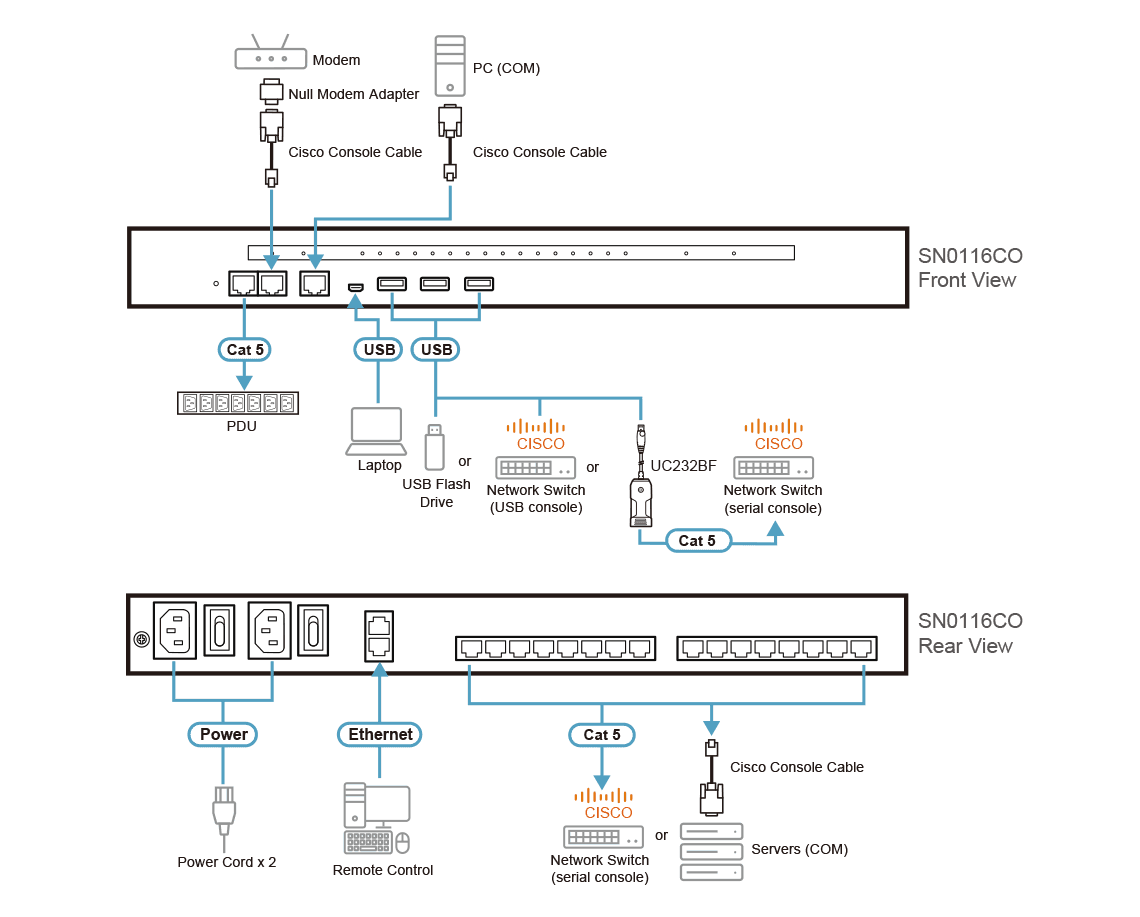

Сериен конзолен сървър с 16 RJ-45 порта за отдалечено in-band и out-of-band управление на серийни устройства през браузър или терминал. Двойното захранване и двата LAN порта осигуряват резервираност; поддържа и достъп през модем.

Характеристики

  • Secure in-band, out-of-band remote serial console and USB console1 access
  • Browser access with an intuitive GUI
  • Terminal-based access with a menu-driven UI
  • Modem dial-in/dial-back/dial-out access
  • Front USB ports for storage, USB console1, and UC232B/UC232BF connection
  • Laptop USB Console (LUC) port for local console access via laptop
  • Dual Ethernet ports allow fail control or dual IP address access
  • Dual power supply
  • Auto-sensing DTE/DCE feature supports a direct connection to Cisco network switches (and other compatible devices) without rollover cables for more convenient IT infrastructure deployment
  • Online/Offline detection of connected serial devices (including terminal blocks) – automatically send event notifications when the devices are offline (e.g. power failure) for device status monitoring
  • Response Check － checks the system status of the connected serial devices, and sends a notification if the check fails (e.g. system crash)
  • Convenient and simple serial device access via selectable Telnet/SSH and third-party clients such as PuTTY
  • Easy port access via selectable ActiveX or Java serial viewer
  • Comprehensive viewer functions – copy/paste, logging, data import, macros, broadcasting and message board
  • Sun Solaris ready – Sun “break-safe”
  • Alert Strings – whenever one of the pre-defined strings matches the message sent from the serial devices, you will be informed by serial console server via SNMP Trap alert and/or an email
  • Command filter – administrators can restrict users to execute only pre-defined commands
  • Multiple users can simultaneously access the same port – up to 16 connections per port
  • Modes for simultaneous access – Exclusive/Occupy/Share
  • Integrates with ATEN PDU products for power management of each port
  • Supports secure login from browsers with TLS 1.2 data encryption and RSA 2048-bit certificates
  • Configurable user permissions for port access and control
  • Local and remote authentication and login
  • Third-party authentication via RADIUS, TACACS+, LDAP/AD and Kerberos
  • IP and MAC address filter for enhanced security protection
  • High security grade – supports FIPS 140-2 level 1 security standards that use an embedded FIPS 140-2 certified OpenSSL cryptographic module (Certificate #1747, #2398, #2473)
  • Supports security level configuration – High, Medium-high, Medium or Custom, to ensure a fine granularity of network access control
  • IEEE 802.1X compliant
  • Supports SSH password-less login for enhanced security and simplified access management
  • System configuration via web browser, Telnet/SSH client and local console
  • System log and event login
  • Event Destination – Event logs will be saved to Log server, Syslog server, and USB drive
  • SNMP agent v1/v2c/v3
  • Event notification – supports notification of SMTP email and SNMP Trap (v1/v2c/v3)
  • Backup / Restore system configuration and upgradeable firmware
  • Multi-browser support – Internet Explorer, Chrome, Firefox
  • NTP for time server synchronization
  • IPv4 / IPv6 support
  • LLDP support
  • Integrates into CC2000 software for centralized data center management
  • Integrates into CCVSR software for user session recording
  • Versatile serial operating modes – Console Management, Console Management Direct, Real COM Port, TCP Server/Client, UDP Server/Client, and Virtual Modem
  • Real COM driver for Windows 2000 or higher and Windows Server 2003/2008
  • Real TTY driver for Linux
  • Fixed TTY driver for UNIX2
  • Supports baud rates of 300, 600, 1200, 1800, 2400, 4800, 9600, 19200, 28800, 38400, 57600, 115200, 230400 bps
  • Multi-language web-based GUI – available in English, German, Japanese, Korean, Russian, Simplified Chinese and Traditional Chinese Note: 1. Compatible models: Cisco Catalyst 2960-C series 2. Fixed TTY Driver supports: – OpenServer (Sco Unix) – UnixWare 7, SVR 5 – UnixWare 2.1, SVR 4.2 – QNX 4.25, QNX 6 – FreeBSD – Solaris 10 – AIX 5.x – HP-UX 11i

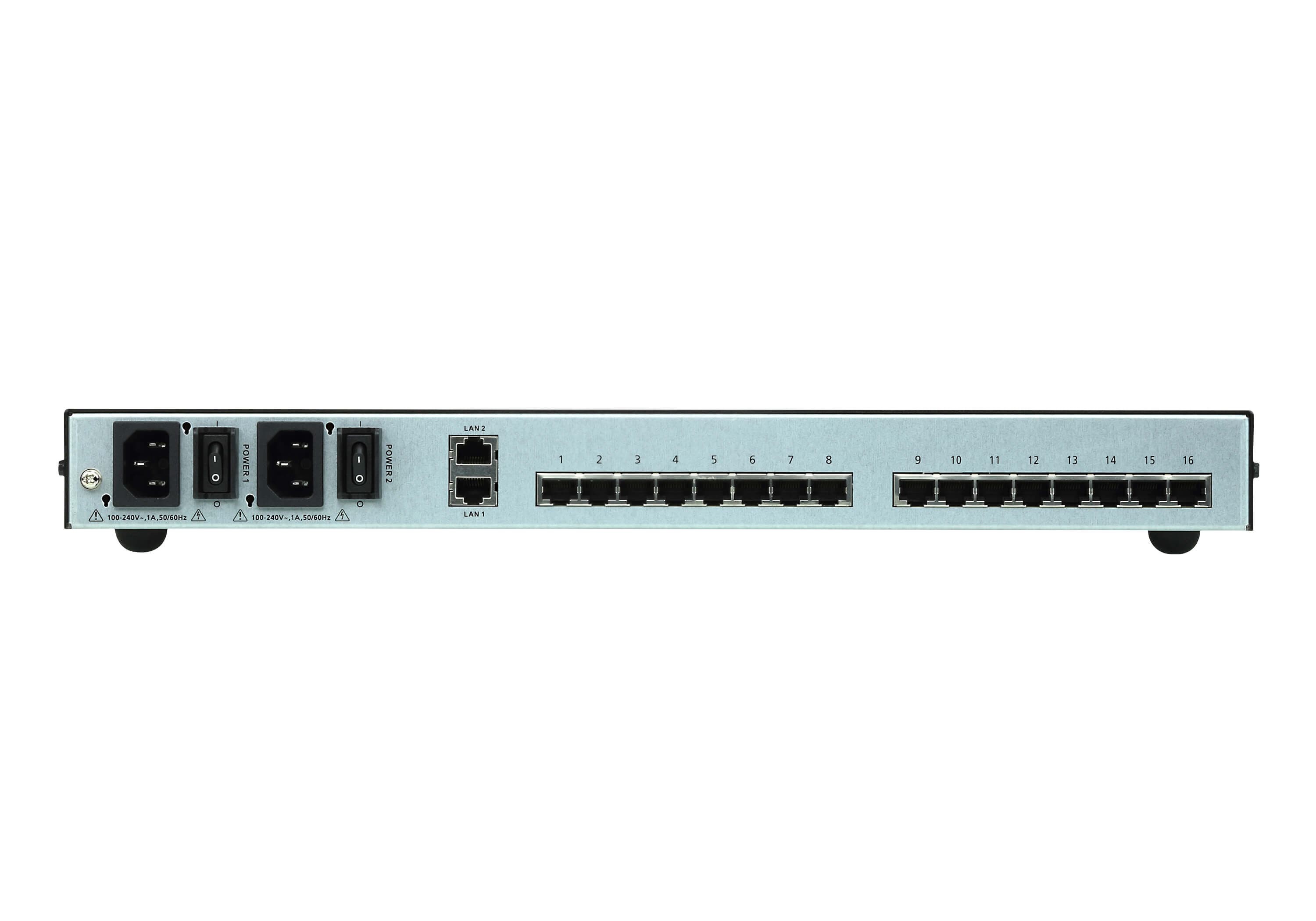

Конектори

Сериен
16 x RJ-45 Female
LAN портове
2 x RJ-45 Female
Захранване
2 x IEC 60320/C14
PON
1 x RJ-45 Female (Reserved)
Модем
1 x RJ-45 Female
USB порт
3 x USB Type A Female
Laptop USB Console (LUC) порт
1 x Mini USB
Локална конзола
1 x RJ-45 Female

Бутони и превключватели

Нулиране
1 x Recessed Pushbutton
Захранване
2 x Rocker Switch
Макс. входна мощност
100-240V~, 1A, 50/60Hz
Консумация
AC110V:5.5W:58BTU/h AC220V:5.5W:58BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Индикатори

Сериен
16 (Green)
10/100/1000 Mbps
2 (Red / Orange / Green)
Захранване
2 (Blue)
Режим на работа
Console Management, Console Management Direct, Real Com Port, TCP Server/Client, UDP Server/Client, Virtual Modem

Работна среда

Работна температура
0 - 40˚C
Температура на съхранение
-20 ~ 60˚C
Влажност
0 - 80% RH, Non-condensing

Физически характеристики

Корпус
Metal
Тегло
4.38 kg ( 9.65 lb )
Размери (Д x Ш x В)
43.72 x 32.98 x 4.40 cm (17.21 x 12.98 x 1.73 in.)
Забележка
SN0116COD with dual DC power (I/P Rating: 36-48 V DC; 1.6 A in 5-Pin Terminal Block, Power Consumption: DC48V/16.22W) available at customer’s request
Забележка
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
