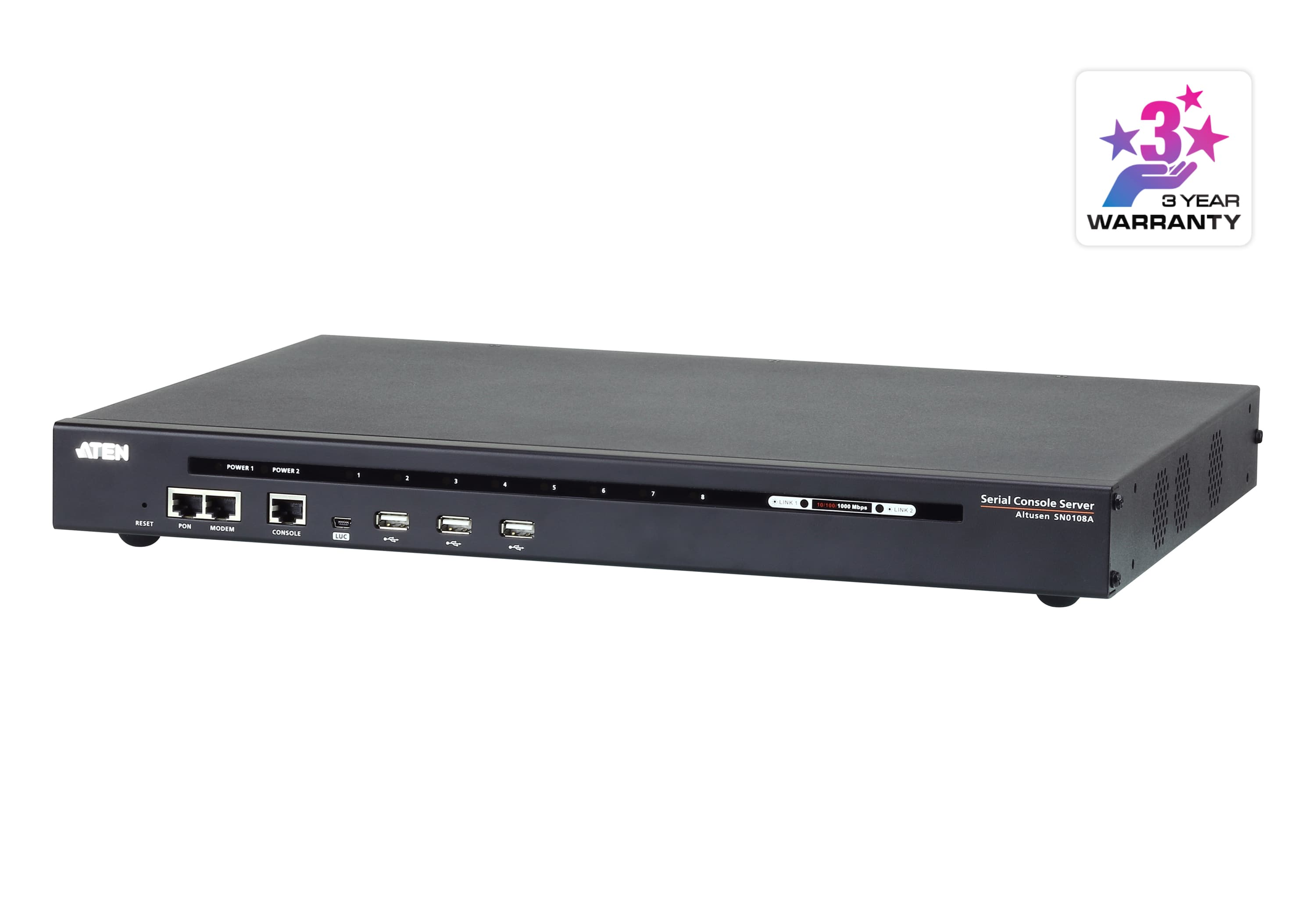

8-Port Serial Console Server with Dual Power/LAN
SN0108AСнет от производство
Сериен конзолен сървър с 8 RJ-45 порта, двойно захранване и 2 LAN порта. Осигурява in-band и out-of-band отдалечен достъп до серийни конзоли; включва модемен и PON порт.
Характеристики
- System Accessibility and Availability
- Secure in-band and out-of-band network access to serial consoles
- In-band access of Ethernet
- Browser access with an intuitive GUI
- Terminal-based access with a menu-driven UI
- Out-of-band access of dial-up modem
- Modem dial-in/dial-back/dial-out
- Front access USB ports for USB storage or for USB-based PC cards
- Laptop USB Console (LUC) port for extra local console access via laptop computer
- Dual Ethernet ports for failover or for dual IP addresses access
- Dual power supply
- Serial Console Management
- Convenient and simple access via browser or Telnet/SSH client
- Port access via Telnet/SSH client and third-party client such as PuTTY
- Direct port access from Telnet client – bypassing login to SN
- Convenient port access via the applet serial viewer from SN Web GUI
- Selectable Telnet or SSH for the serial viewer
- Selectable ActiveX or Java for the serial viewer
- Comprehensive viewer function – Copy/paste, logging, data import, Macro, broadcast and Message Board
- Sun Solaris ready – Sun “break-safe”
- Alert String
- Command filter – administrators can define what commands cannot be executed by users
- Data buffering
- Multiple users simultaneously access to the same port – up to 16 connections per port.
- Selectable mode for multiple simultaneous access – Exclusive/Occupy/Share mode
- Integrated with Power Over the NET™ product for port and power outlet association
- Security
- SSH and SSL (TLS v1.0 / TLS v1.1 / TLS v1.2) support
- Secure login from browser with TLS 1.2 data encryption and RSA 2048-bit certificates
- Configurable user permissions for port access and control
- Configurable group permission for port access and control
- Local and remote authentication and logging
- Third-party authentication – support RADIUS, TACACS+, LDAP/AD, and Kerberos
- IP filtering and MAC filtering
- High-Grade Security – supports FIPS 140-2 level 1 security standards that use an embedded FIPS 140-2 certified OpenSSL cryptographic module (Certificate #1747, #2398, #2473)
- System Management
- System configuration via Web browser of HTTP/HTTPS, Telnet/SSH client and local console
- System log and event logging
- Comprehensive logging and event notification
- ATEN Log server and Syslog server
- SNMP agent
- Event notification – support notification of SMTP email, SNMP Trap, and SMS (with additional mobile device)
- Backup/restore system configuration
- Firmware upgradeable
- Multi-browser support – Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla, and Netscape
- Customizable global time zone
- NTP for time server synchronization
- DHCP for dynamic IP address assignment
- IPv6 support
- Integrated with CC2000 for data center centralized management
- Serial Device Management
- Versatile serial operating modes – support Real COM, TCP Server, TCP Client, UDP, Serial Tunnel and Virtual Modem
- 128-bit/256-bit SSL encryption (TLS v1.0 / TLS v1.1 / TLS v1.2) for Real COM, TCP Server, TCP Client, Serial Tunnel and Virtual Modem
- Real COM driver for Windows 2000 or higher and Windows Server 2003/2008
- Real TTY driver for Linux
- Fixed TTY driver for UNIX
- Language
- Web-based GUI multi-language – available for English, German, Japanese, Korean, Russian, Simplified Chinese and Traditional Chinese
Спецификация
- Връзки
- 8
Конектори
- Сериен
- 8 x RJ-45 Female
- LAN портове
- 2 x RJ-45 Female
- Захранване
- 2 x IEC 60320/C14
- PON
- 1 x RJ-45 Female
- Модем
- 1 x RJ-45 Female
- Локална конзола
- 1 x RJ-45 Female
- Laptop USB Console (LUC) порт
- 1 x Mini USB
- USB порт
- 3 x USB Type A Female
Бутони и превключватели
- Захранване
- 2 x Rocker Switch
- Нулиране
- 1 x Recessed Pushbutton
- Макс. входна мощност
- 100-240V~, 1A, 50/60Hz
- Консумация
- AC110V:14.1W:98BTU/h AC220V:14W:98BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Индикатори
- Сериен
- 8 (Green)
- 10/100/1000 Mbps
- 2 (Red / Orange / Green)
- Захранване
- 2 (Blue)
Работна среда
- Работна температура
- 0 - 40˚C
- Температура на съхранение
- -20 - 60˚C
- Влажност
- 0 - 80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 4.35 kg ( 9.58 lb )
- Размери (Д x Ш x В)
- 43.72 x 32.98 x 4.40 cm (17.21 x 12.98 x 1.73 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
