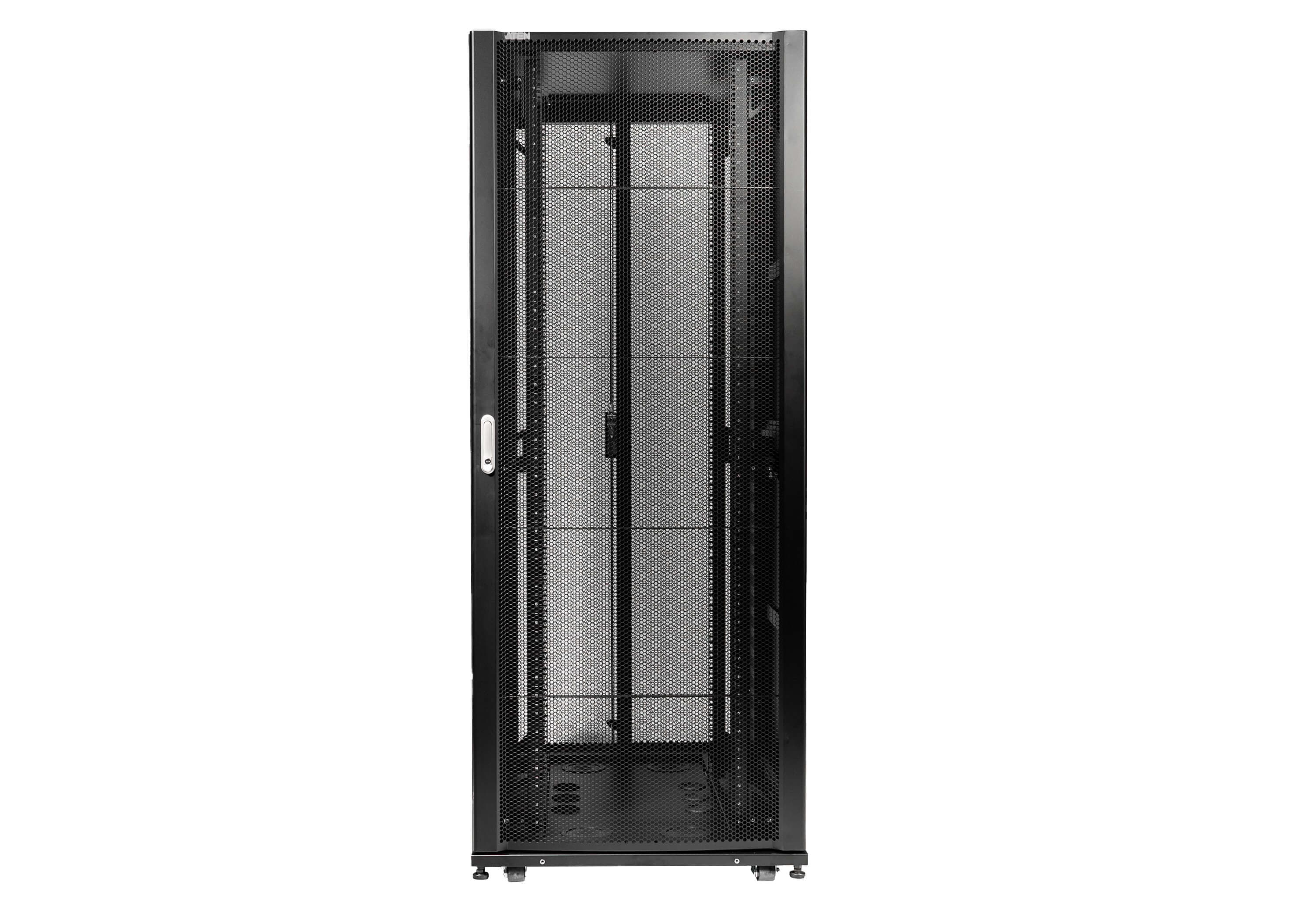

42U Server Rack with Perforated Front Door and Split Rear Door

Характеристики

• The frame structure is made of steel plate cold-rolled (SPCC) material and has a strong structure. The static load is up to 1800 kg
• It is manufactured in accordance with the latest EIA/ECA-310-E specification
• Adjustable mounting rails are made from cold-rolled steel (SPCC). The materials are triple bent so as to enhance its loading capacity
• The movable column is marked with a U number for easy installation
• The components of the structure are designed for ergonomics with high-precision quality and for optimizing airflow management to conserve energy and reduce carbon emissions
• For the cabinet, the front door is featured of a perforated door with hexagonal pattern, and the back door is featured of a perforated split door with hexagonal pattern with a ventilation rate of more than 66%. The diagonal aperture is 10 mm, the pitch-row is 2 mm, and the hexagonal edge diameter is 5 mm, which are beneficial to the heat dissipation and circulation inside the cabinet.
• The side panel of the cabinet is featured of quick-release design and is equipped with a round lock
• With the design of multi-section upper and lower covers, the U-shaped routing organization troughs may be installed flexibly to facilitate cable entry and exit
• M12 leveling feet secure the racks in place by adjusting the leveling feet even if the racks are set up in a server room with non-raised floors
• The high-strength horizontal support rails can disperse the weight of IT equipment, making the racks robust and safe
• Anti-seismic connection design (such as side baying connectors or top baying connectors) offers safe connections in between racks and in between racks and the building
• Server rack enclosure frame × 1 pc
• Perforated front door (with door lock and keys)
• Perforated split rear door (with door lock and keys)
• Removable upper and lower side panels × 2 sets
• Roof and floor panels × 1 set
• Caster × 4 pcs
• Leveling feet × 4 pcs
• M5 Mounting Screw × 50 pcs
• Cage nut × 80 pcs
