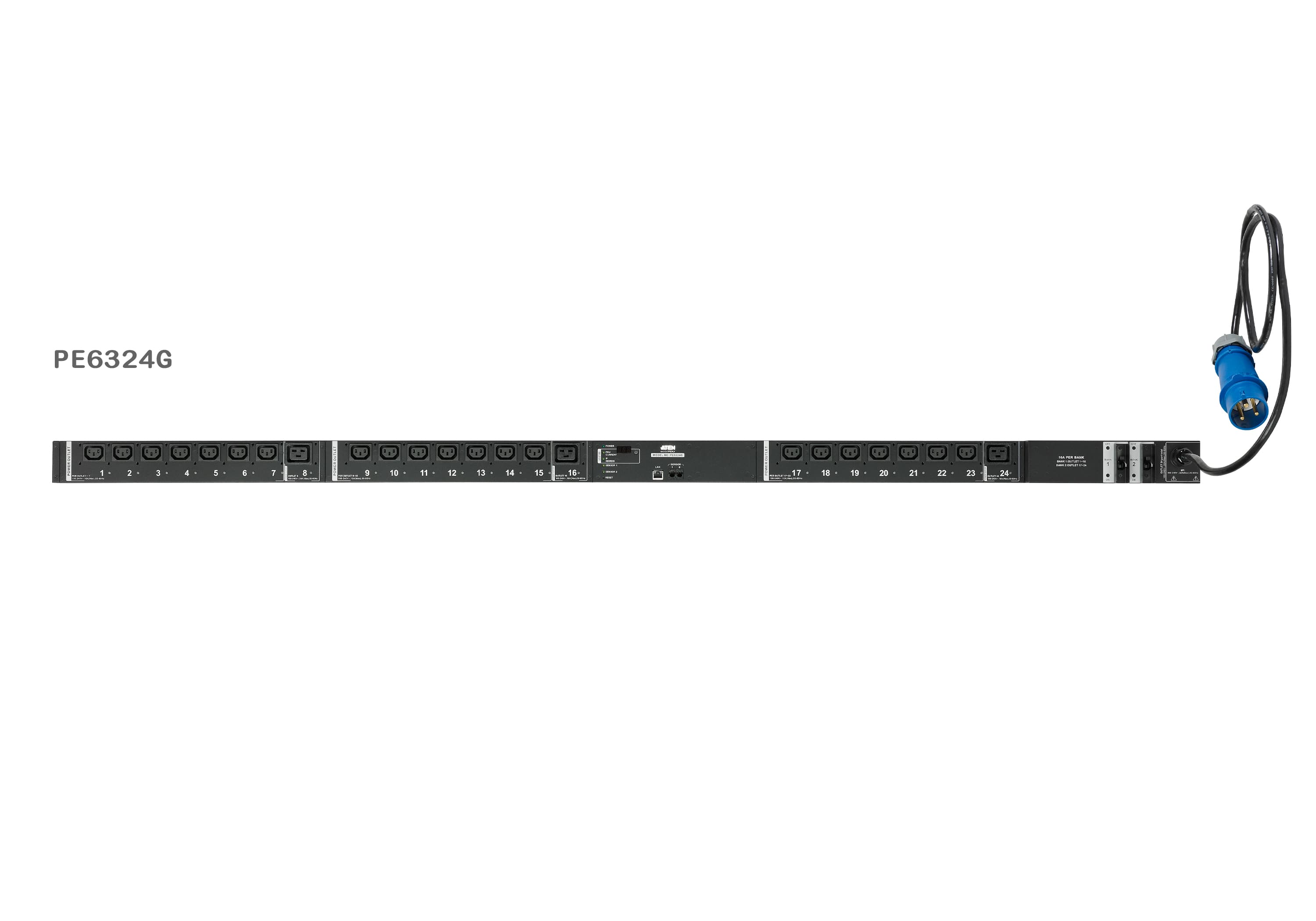

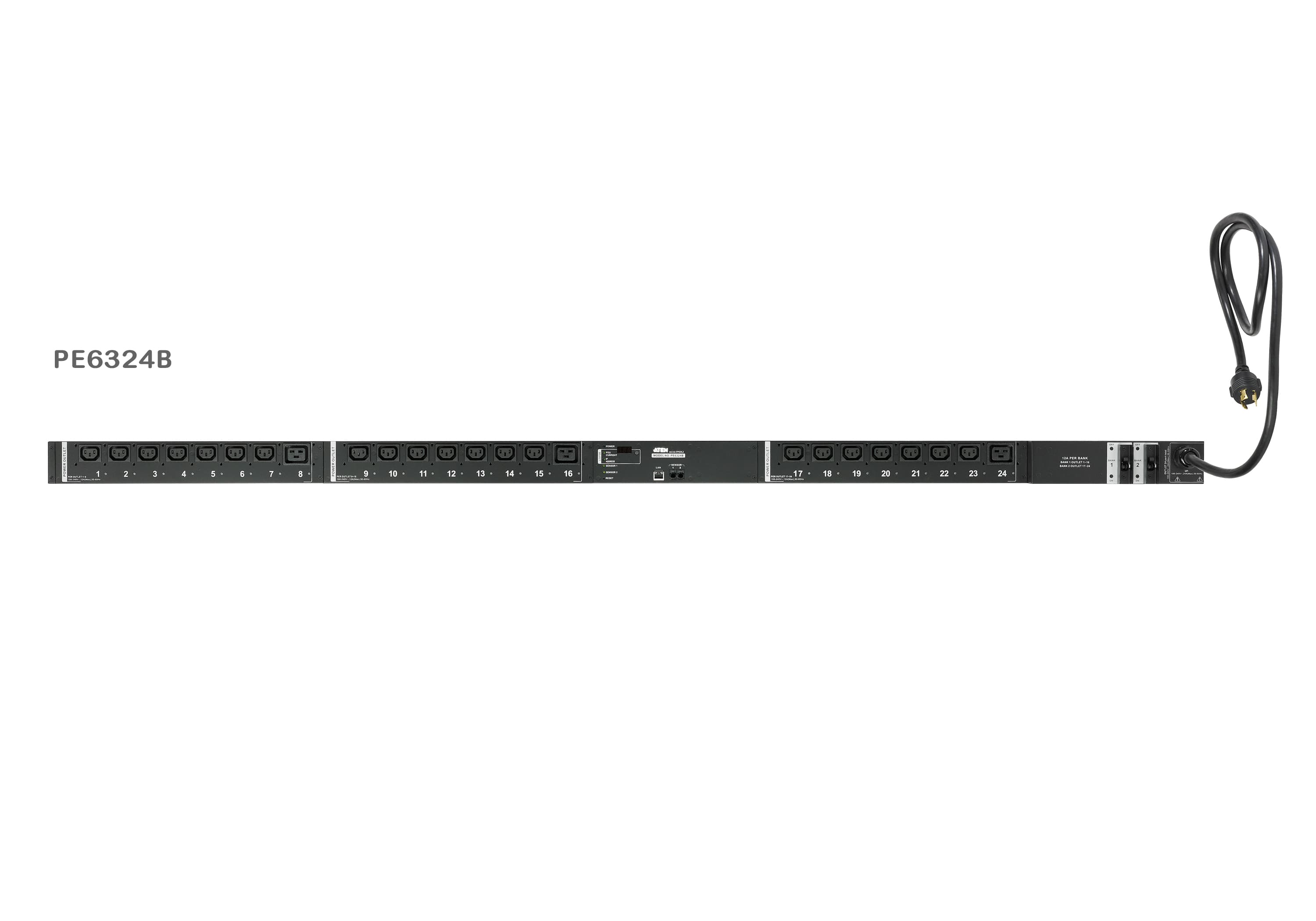

30A/32A 24-Outlet Metered & Switched eco PDU
PE6324
PDU 0U за монтаж в rack, 24 изхода и вход 30A/32A — измерване на консумацията и превключваеми изходи, IEC или NEMA контакти според модела.
Характеристики
- Power Distribution
- Space saving 0U rack mount design with rear mounting
- IEC or NEMA outlet models
- 3 x 7-segment front panel LED shows Current / IP Address for PDU / Bank
- Remote users can monitor PDU/Bank status via web pages on their browsers
- Safe shutdown support
- Separate power for the unit´s own power and its power outlets – the user interface is still accessible even when an overload condition trips the devices´ circuit breaker Remote Access
- Remote power control via TCP/IP and a built in 10 / 100 Ethernet port
- Network Protocols: TCP / IP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, auto sense, Ping,Telnet
- Energy & DCIM Management Web GUI – eco DC
- Supports SNMP Manager V1, V2 & V3 Operation
- Local and Remote power outlet control (On, Off, Power Cycle) by individual outlets
- Supports multiple power control methods – Wake on LAN, System After AC Back, Kill the Power
- Power-on sequencing – users can set the power on sequence and delay time for each port to allow equipment to be turned on in the proper order
- Easy setup and operation via a browser-based user interface
- Multibrowser support (IE, Firefox, Chrome, Safari, Opera, and Netscape)
- RTC support to keep the timer running during times of no power.
- Up to 8 user accounts and 1 administrator account
- Proactive Overload Protection (POP) – automatically powers off outlets when current overloads to protect operating devices Management
- Power status measurement at the PDU/Bank level
- LED indicators for current and IP address at the PDU device and/or Bank levels
- Real-time aggregate current, voltage, and power and power dissipation displayed in a browser-based UI for monitoring at the bank level

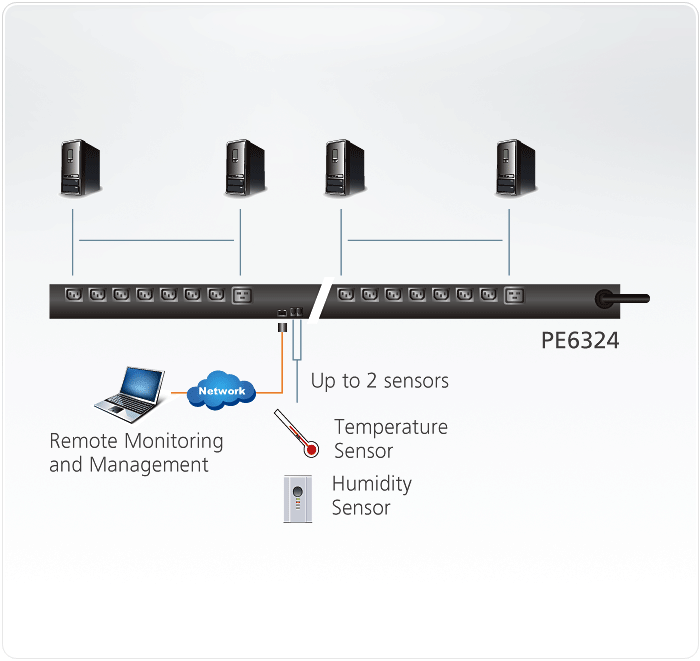

- Environment monitoring – supports external temperature / humidity / Differential Pressure sensors for rack environment monitoring
- Current and voltage threshold setting
- Naming support for outlets
- User outlet access assignment on an outlet-by-outlet basis
- Event logging and syslog support
- Upgradeable firmware
- Multilanguage support: English, Traditional Chinese, Simplified Chinese, Japanese, German, Italian, Spanish, French, Russian Security
- Two-level password security
- Strong security features include strong password protection and advanced encryption technologies – 128 bit SSL
- Remote authentication support: RADIUS eco DC Energy & DCIM Management Web GUI*
- Automatic discovery of all PE devices within the same intranet
- Remote real-time power measurement and monitoring
- Remote real-time environment sensor monitoring
- Plotting/Monitoring of all PE devices
- Exceed threshold alert through SMTP and System log
- Power Analysis Report *eco DC is designed to work with eco PDUs, and is bundled with all PE series packages.
Електрически характеристики
- Номинално входно напрежение
- 100 – 240 VAC
- Номинално входно напрежение
- 100 – 240 VAC
- Макс. входен ток
- 30A(Max); 24A(UL de-rated)
- Макс. входен ток
- 32A(Max)
- Входна честота
- 50-60 Hz
- Входна честота
- 50-60 Hz
- Входна връзка
- NEMA L6-30P
- Входна връзка
- IEC 60309 32A
- Входна мощност
- 6240VA(Max); 4992VA(UL de-rated)
- Входна мощност
- 7360VA(Max)
- Тип на изхода
- Total: 21 x IEC320 C13 + 3 x IEC320 C19 Bank1-1: Outlet 1 – 8; 7 x C13 + 1 x C19 Bank1-2: Outlet 9 – 16; 7 x C13 + 1 x C19 Bank2: Outlet 17 – 24; 7 x C13 + 1 x C19
- Тип на изхода
- Total: 21 x IEC320 C13 + 3 x IEC320 C19 Bank1-1: Outlet 1 – 8; 7 x C13 + 1 x C19 Bank1-2: Outlet 9 – 16; 7 x C13 + 1 x C19 Bank2: Outlet 17 – 24; 7 x C13 + 1 x C19
- Номинално изходно напрежение
- 100 – 240 VAC
- Номинално изходно напрежение
- 100 – 240 VAC
- Макс. изходен ток (извод)
- C13: 12A(Max) C19: 16A(Max)
- Макс. изходен ток (извод)
- C13: 10A(Max) C19: 16A(Max)
- Макс. изходен ток (група)
- 15A(Max)
- Макс. изходен ток (група)
- 16A(Max)
- Макс. изходен ток (общо)
- 30A(Max)
- Макс. изходен ток (общо)
- 32A(Max)
- Прекъсвачи
- 2 x 16A UL489 Breaker
- Прекъсвачи
- 2 x 16A UL489 Breaker
- Измерване
- Bank Level Current, Voltage, VA , PF and kWh Monitoring
- Измерване
- Bank Level Current, Voltage, VA , PF and kWh Monitoring
- Превключване на изводите
- Yes
- Превключване на изводите
- Yes
- Портове за сензори
- 2
- Портове за сензори
- 2
- Точност на измерването
- Voltage Range: 100VAC ~ 250VAC +/-1% Power Range: 100W ~ Maximum Capacity +/- 2% Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-1%
- Точност на измерването
- Voltage Range: 100VAC ~ 250VAC +/-1% Power Range: 100W ~ Maximum Capacity +/- 2% Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-1%
Физически характеристики
- Размери (Д x Ш x В)
- 177.50 x 6.60 x 4.40 cm (69.88 x 2.6 x 1.73 in.)
- Размери (Д x Ш x В)
- 177.50 x 6.60 x 4.40 cm (69.88 x 2.6 x 1.73 in.)
- Тегло
- 6.12 kg ( 13.48 lb )
- Тегло
- 6.12 kg ( 13.48 lb )
- Дължина на захранващия кабел
- 1.6 m
- Дължина на захранващия кабел
- 1.6 m
Работна среда
- Температура (работна / съхранение)
- 0–50°C / -20–60°C
- Температура (работна / съхранение)
- 0–50°C / -20–60°C
- Влажност (работна и при съхранение)
- 0–80% RH, Non-Condensing
- Влажност (работна и при съхранение)
- 0–80% RH, Non-Condensing
Съответствие
- EMC сертификация
- FCC, Others by Request
- EMC сертификация
- CE, C-Tick, Others by Request
- Сертификация за безопасност
- cTUVus, PSE, Others by Request
- Сертификация за безопасност
- TUV-CB, CE-LVD, Others by Request
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Фърмуер
Подобни продукти
2X-EA07

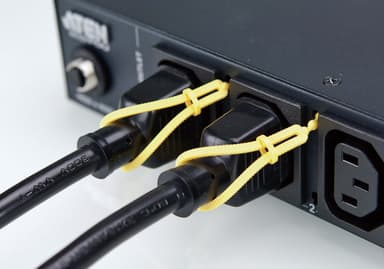

Lok-U-Plug Cable Holder
