eco PDU с 8 извода NEMA 5-15R и вход 15A (1800VA). Вграденият 10/100 Mbit Ethernet порт осигурява отдалечен достъп по SNMP и Telnet, а сваляемият преден панел пасва на 19-инчови шкафове с различна дълбочина.
Характеристики

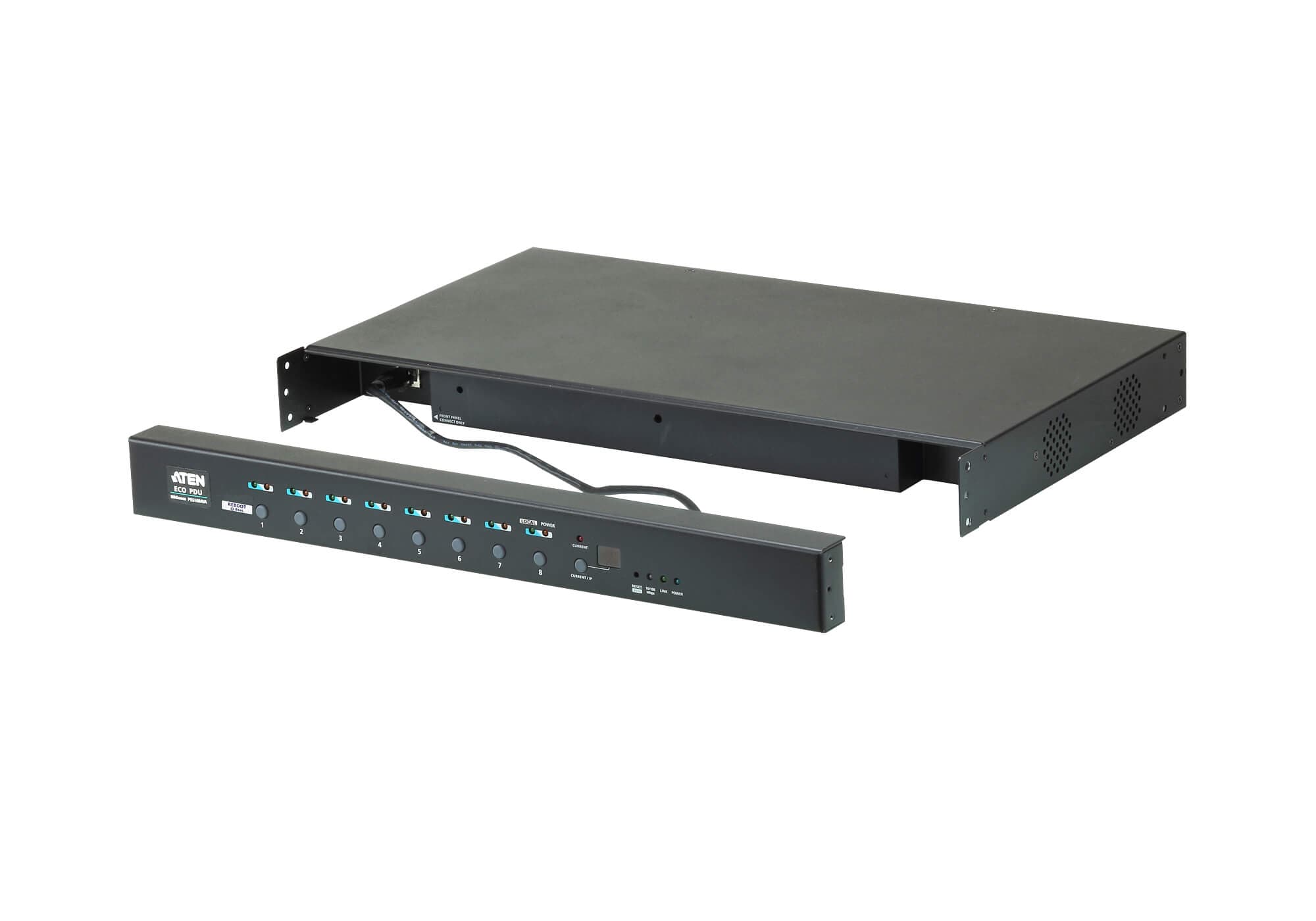

- Detachable front panel fits 19” racks with different depths
- Built-in 10/100 Mbit Ethernet Interface
- Supports TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, ARP, NTP, DNS, Auto Sense, Ping, SNMP V1, V2, and V3, Telnet
- 2-level account/password security, IP/MAC filter, 128 bit SSL, RADIUS
- Browser access via IE, Firefox, Chrome, Safari, and more
- Easy integration with ATEN Control System and Control4 libraries
- Supports RS-232 port and power outlet control (on/off) by outlet group.
- 1% Metering Accuracy – supports bank-level power metering
- Environment Monitoring – supports external temperature or temperature and humidity sensors for rack temperature and humidity monitoring
- Remote and local power outlet control (On/Off, Power Cycle) by individual outlets and outlet groups
- Multiple Power Control Methods – Wake on LAN, System After AC Back, Kill the Power
- Power-On Sequencing – users can set the power-on sequence and delay time for each outlet to allow equipment to be powered on in the correct order to enhance equipment safety
- Proactive Overload Protection (POP) : - automatically powers off outlets when current overloads to protect operating devices. - Priority Mode enables outlets to be powered off following the outlet shutdown order pre-defiend by the administrator via web browser
- Auto Ping – the method pings a device at specified intervals, and if there is no response (request timed out), the PDU automatically powers cycles the outlet (off and then on)
- Holiday Mode – when Holiday Mode is enabled, each outlet will be set to the selection chosen for it: POWER OFF or POWER ON
- Automatic discovery of all ATEN PDUs within the same intranet
- Remote real-time power measurement and monitoring of PDUs
- Real-time environment monitoring via sensors
- Plotting and monitoring of all ATEN PDU devices
- Exceed threshold alerts through real-time monitoring, SMTP, and System logs
- Power analysis reports * eco DC is designed to work with ATEN eco PDUs and is bundled with all PE Series models.
- Supports SMTPS, IPv6, Modbus (Over TCP/IP), Auto Ping, TLS1.2, SSH
- Supports IEEE 802.1X
- Authentication: LDAP, TACACS+
- UI – heartbeat,schedule control, mail control, and setting rule
Електрически характеристики
- Номинално входно напрежение
- 100 – 120 VAC
- Макс. входен ток
- 15A(Max), 12A(UL de-rated)
- Входна честота
- 50-60 Hz
- Входна връзка
- For A/J Plug:NEMA 5-15P
- Входна мощност
- 1800VA(Max),1440VA(UL de-rated)
- Тип на изхода
- Total : 8 x NEMA 5-15R
- Номинално изходно напрежение
- 100-120 VAC
- Макс. изходен ток (извод)
- NEMA 5-15R : 15A (Max) 12A (UL de-rated)
- Макс. изходен ток (група)
- 15A (Max) 12A (UL de-rated)
- Макс. изходен ток (общо)
- 15A (Max) 12A (UL de-rated)
- Измерване
- Per Bank level Current, Voltage, VA , PF and KWh Monitoring
- Превключване на изводите
- Yes
- Портове за сензори
- 2
- Точност на измерването
- Voltage range: 100VAC ~ 250VAC +/-1% Power range: 100W ~ 5000W +/- 2% Current range: 0.1A~1A +/- 0.1A, 1A~20A +/-1%
Комуникация
- 10/100 Mbps
- 1 x RJ-45
- RS-232
- 1 x DB-9
Бутони и превключватели
- Захранване
- Yes
Работна среда
- Температура (работна / съхранение)
- 0 – 45℃ / -20 – 60℃
- Влажност (работна и при съхранение)
- 0–80% RH, Non-Condensing
Физически характеристики
- Размери (Д x Ш x В)
- 43.24 x 26.73 x 4.40 cm (17.02 x 10.52 x 1.73 in.)
- Тегло
- 3.70 kg ( 8.15 lb )
- Дължина на захранващия кабел
- 3 m
Съответствие
- EMC сертификация
- FCC, J55022
- Сертификация за безопасност
- PSE
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
