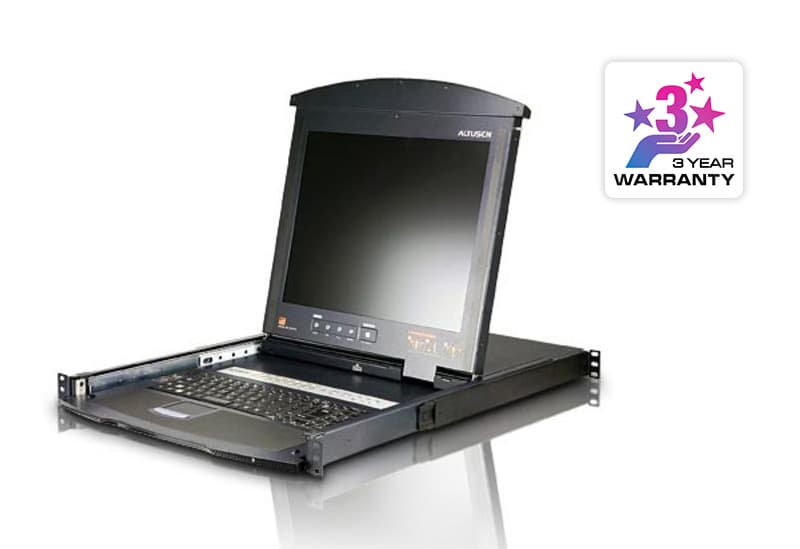

1-Local/1-Remote Access 16-Port PS/2 VGA Dual Rail LCD KVM over IP Switch
KL9116Снет от производство
LCD KVM over IP превключвател със 17" монитор — управлява 16 компютъра директно, до 128 чрез каскадиране. Локален и отдалечен потребител работят едновременно на отделни портове.
Характеристики
- Integrated KVM console with 17" LCD monitor in a Dual Rail housing

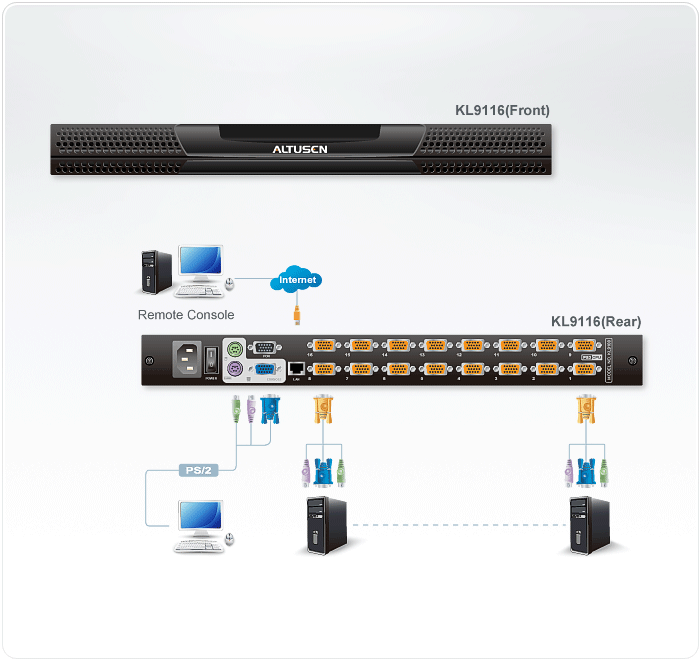

- Space saving technology with dual bus function support - 1 remote console (one bus) and two local consoles (one bus) control up to 16 computers
- Dual-bus - one local and one remote user can simultaneously control separate ports
- Remotely access computers via the LAN, WAN, or Internet - control your installation when and where you want
- Dual Rail housing is slightly less than 1U with top and bottom clearance for smooth operation in 1U of rack space
- Extra console port - manage computers in the LCD KVM switch from an external console (monitor, PS/2 keyboard, and PS/2 mouse)
- Supports external PS/2 mouse
- Dual Rail - LCD monitor slides independently of the keyboard/touchpad
- LCD module rotates up to 120 degrees for a more comfortable viewing angle
- Console lock - enables the console drawer to remain securely locked away in position when not in use
- Supports dedicated OSD and OSD Toolbar invocation keys
- Internet browser access, Windows Client and Java Client provided, Java Client works with all operating systems
- Graphical OSD and graphical toolbars for convenient, user-friendly operation
- Up to 64 user accounts - up to 32 concurrent remote logins
- Panel Array Mode - view all 16 ports at the same time.
- Message board feature allows logged in users to communicate with each other and allows a remote user to take exclusive control of the KVM functions
- Windows-based Log Server
- Remote power control for attached Power Over the NET™ devices
- Three level login security: Administrator, User, and Select
- Advanced security features include password protection and advanced encryption technologies - 1024 bit RSA, 256 bit AES, 56 bit DES, and 128 bit SSL
- RADIUS server support
- Ports can be set to Exclusive, Occupy and Share
- Network Interfaces: TCP/IP, HTTP, HTTPS, UDP, RADIUS, DHCP, SSL, ARP, DNS, 10Base-T/100Base-TX, auto sense, Ping
- Flash firmware upgradable over network connection
- Keyboard Language support: English(US); English(UK); German;German(Swiss); French; Spanish; Traditional Chinese; Japanese; Korean;Swedish; Italian; Russian; Hungarian; Greek
- Super A-Grade TFT LCD Panel; Zero Dead Pixel Guarantee
- Multiplatform support:Windows 2000/XP/Vista, Linux, Unix and FreeBSD.
- For more information about KVMs which can connect to KL9116, see Compatible KVM Table Rack Mounting KitDepth2X-010G (Long/Optional)68cm - 105cmShort (Standard)42cm - 77cmEasy Installation Rack Mounting KitDepth2X-012G (Long/Optional)68cm - 105cm2X-011G (Short/Optional)57cm - 70cm
Връзки към компютри
- Директно
- 16
- Максимум
- 128 (via Cascade)
- Избор на порт
- OSD, Hotkey, Pushbuttons

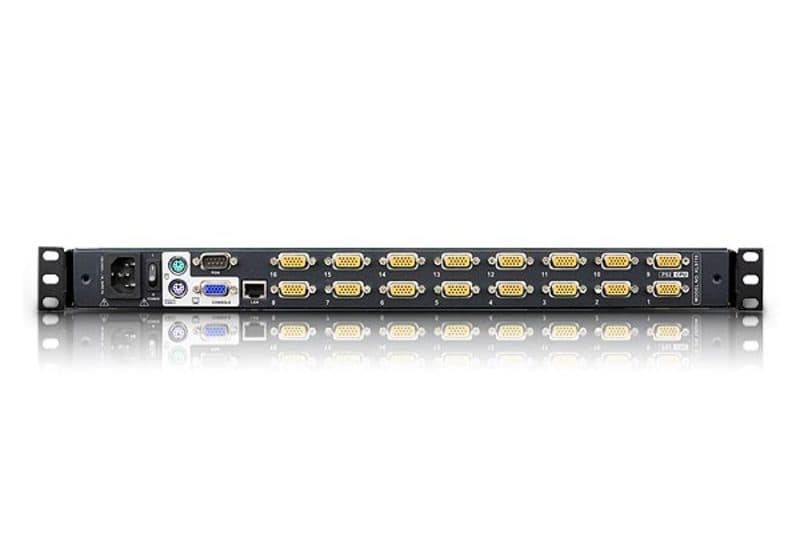

Конектори
- Конзолни портове
- 1 x 6-pin Mini-DIN Female (Purple) 1 x 6-pin Mini-DIN Female (Green) 1 x HDB-15 Female (Blue)
- KVM портове
- 16 x SPHD-15 Female (Yellow)
- Захранване
- 1 x IEC 60320/C14
- Външен порт за мишка
- 1 x 6-pin Mini-DIN Female (Green)
- LAN портове
- 1 x RJ-45 Female (Black)
- PON
- 1 x DB-9 Male (Black)
Бутони и превключватели
- Нулиране
- 1 x Semi-recessed Pushbutton
- Избор на порт
- 2 x Pushbutton
- Захранване
- 1 x Rocker
- Захранване на дисплея
- 1 x Pushbutton
- Настройка на дисплея
- 4 x Pushbutton
Индикатори
- Онлайн
- 16 (Green)
- Избран
- 16 (Orange)
- Захранване
- 1 (Blue)
- Заключване
- 1 x Num Lock(Green) 1 x Caps Lock(Green) 1 x Scroll Lock(Green)
- Връзка
- 1 (Orange)
- 10/100 Mbps
- 1 (Orange / Green)
Емулация
- Клавиатура / мишка
- PS/2
- Видео
- 1280 x 1024@75Hz; DDC2B (Local); 1600 x 1200@60Hz; DDC2B (Remote)
- Интервал на сканиране
- 1-255 sec.
- Макс. входна мощност
- 100-240V AC; 50-60Hz; 1A
- Консумация
- 120V/31W; 230V/39W Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 50°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0–80% RH; Non-condensing
Панел
- Време за реакция
- 5 ms
- Зрителен ъгъл
- 170° (H), 160° (V)
- LCD модул
- 17" TFT-LCD
- Стъпка на пикселите
- 0.264 mm x 0.264 mm
- Поддържани цветове
- 16.7M colors
- Контраст
- 1000:1
- Яркост
- 250 cd/m²
Физически характеристики
- Корпус
- Metal
- Тегло
- 17.18 kg ( 37.84 lb )
- Размери (Д x Ш x В)
- 48.20 x 70.63 x 4.40 cm (18.98 x 27.81 x 1.73 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
