16-Port Dual Rail Touchscreen KVM Switch
KL3116TСнет от производство
KVM превключвател с вградена 17" LCD конзола със сензорен екран в корпус с две релси. До две конзоли на една шина управляват до 16 компютъра; сензорният екран замества мишката.
Характеристики
- Integrated KVM console with 17" LCD monitor in a Dual Rail housing
- Space saving technology – up to two consoles (sharing one bus) can control up to 16 computers
- Touchscreen offers convenient operation without extending the keyboard module or using a mouse
- Touchscreen on-screen icons enables quick and full operation of the OSD menu or apply hotkey functions
- Supports touchscreen for control without drawing out the keyboard
- Simple one-point and two-point touchscreen calibration including separate methods for calibrating the OSD (on-screen display) and attached computers with varying resolutions
- Dual interface supports computers and KVM Switches with PS/2 or USB keyboards and mice
- USB peripheral support for attached computers*
- Conveniently located station and port selectors with LED displays to quickly switch to target Computers
- Dual Rail housing is slightly less than 1U with top and bottom clearance for smooth operation in 1U of rack space
- LCD module rotates up to 120 degrees for a more comfortable viewing angle
- Console lock – enables the console drawer to remain securely locked away in position when not in use
- Dedicated Hotkey Mode and OSD invocation Keys reduce the number of keystrokes and provide quick access to these functions

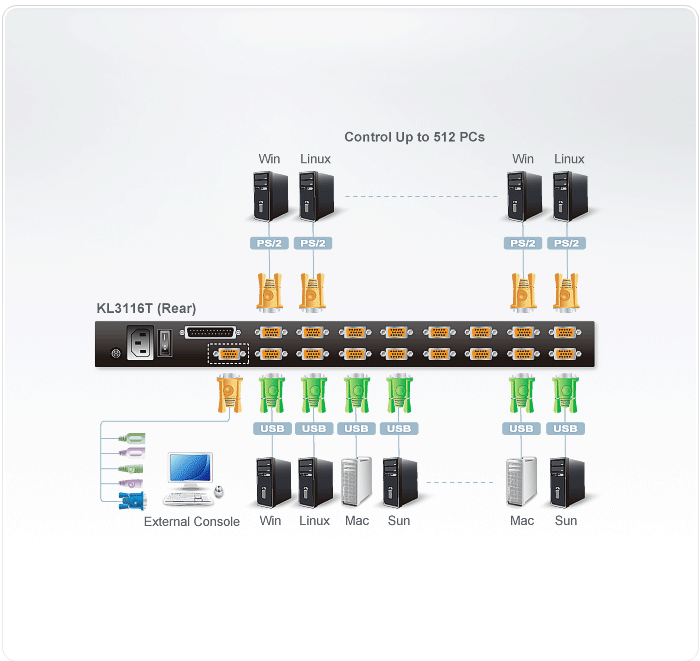

- Daisy-chain up to 31 additional KVM switches** to control up to 512 computers
- No software required
- Extra console port – manage computers in the LCD KVM switch from an external console (monitor, USB or PS/2 keyboard and mouse)
- Supports External USB mouse
- Convenient computer selection via mouse-driven, intuitive OSD menus and hotkeys
- OSD tree structure makes finding and managing computers easy
- Dual Rail – LCD monitor slides independently of the keyboard/touchpad
- Hot pluggable – add or remove computers without powering down the switch
- OSD port list automatically expands when new stations are added
- OSD screen automatically adjusts to resolution changes
- Auto Scan mode enables continuous monitoring of user-selected computers
- Broadcast support – commands from the keyboard can be broadcast to all available computers on the installation
- Two-level password security – Administrator and up to four Users; only authorized users view and control the computers; separate profiles for each administrator/user password authorization for enhanced security protection; administrator access rights synchronized between first and chained stations
- LCD power button helps save energy and prolong display’s life
- DDC emulation – video settings of each computer are automatically adjusted for optimal output to the monitor
- Standard 105-key keyboard
- Keyboard status restored when switching computers
- Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere
- Superior video quality – supports resolutions up to 1280 x 1024 @ 75 Hz
- Two types of logout: manual and timed
- Firmware upgradable * Supports USB peripherals for computers connected to the local station **Compatible KVM switches: ACS1208A, ACS1216A, CS1708A, CS1716A, KH1508A,KH1516A, KH0116 Rack Mounting KitDepth2X-010G (Long/Optional)68cm - 105cmShort (Standard)42cm - 77cmEasy Installation Rack Mounting KitDepth2X-012G (Long/Optional)68cm - 105cm2X-011G (Short/Optional)57cm - 70cm More information about "Easy Rack Mounting"...
Фърмуер
