8-Port Multi-Interface Cat 5 Dual Rail LCD KVM Switch
KL1508A

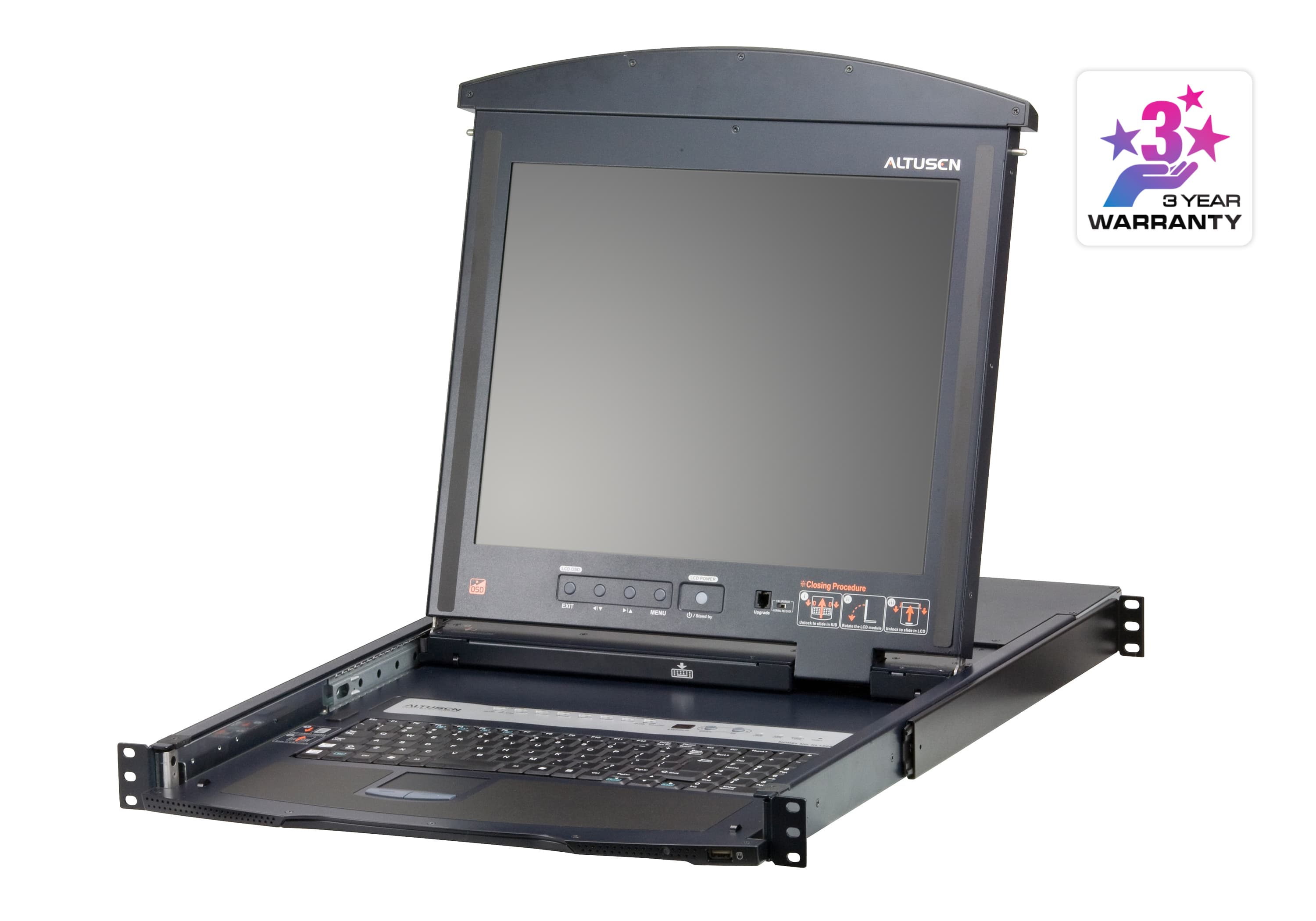

KVM превключвател с вградена Dual Rail конзола — 17- или 19-инчов LCD монитор с LED подсветка и клавиатура с тъчпад се изтеглят независимо. Управлява 8 компютъра по Cat 5, до 256 с daisy-chain.
Характеристики
- Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- Integrated KVM console with 17" or 19" LED-backlit LCD monitor in a Dual Rail housing
- A single console controls up to 8 computers
- Space-Saving RJ-45 connectors and Cat 5e / 6 cabling
- KVM adapters* designed with automatic conversion to allow flexible interface combinations (PS/2, USB, Sun and serial) to control all computer types
- OSD tree structure makes finding and managing computers easy
- Conveniently located station and port selectors with LED displays to quickly switch to target computers
- Dual Rail housing is slightly less than 1U with top and bottom clearance for smooth operationmm in 1U of rack space
- Extra console port - manage computers in the LCD KVM switch from an external console (monitor, USB or PS/2 keyboard, and USB or PS/2 mouse)
- Additional hot-pluggable USB mouse port on front panel that supports HID device for keyboard and mouse
- Dual Rail - LCD monitor slides independently of the keyboard / touchpad
- LCD module rotates up to 120 degrees for a more comfortable viewing angle
- Console lock - enables the console drawer to remain securely locked away in position when not in use
- Dedicated Hotkey Mode and OSD Invocation Keys reduce the number of keystrokes and provide quick access to these functions
- Daisy chain up to 31 additional KVM switches to control up to 256 computers
- Auto Scan mode enables continuous monitoring of user-selected computers
- Multiplatform support: PC, Mac, Sun and Serial
- Superior Video Quality- supports the video resolutions up to 1280x1024@75 Hz for up to 50 meters
- Configure port access rights for users on a port - by - port basis
- Three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display)
- Multiple User Accounts -supports up to 10 user and 1 administrator accounts
- Two-Level Password Security- supports one administrator and ten user profiles. Strong password protection prevents unauthorized accessing to the installation
- LCD power button helps save energy and prolong displays' life
- Broadcast Mode sends commands from the console to all computers – allowing you to perform operations (such as software installation, upgrades, shutdowns, etc.), on them simultaneously
- Adapter ID
- Firmware Upgradeable
- Optional rack mount kits available including easy installation options
- Keyboard Language support: English(US); English(UK); French, German, German(Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Traditional Chinese and Turkish More information about "Easy Rack Mounting"...
Връзки към компютри
- Директно
- 8
- Директно
- 8
- Максимум
- 256 (via Daisy-chain)
- Максимум
- 256 (via Daisy-chain)
- Избор на порт
- OSD, Hotkey, Pushbutton
- Избор на порт
- OSD, Hotkey, Pushbutton

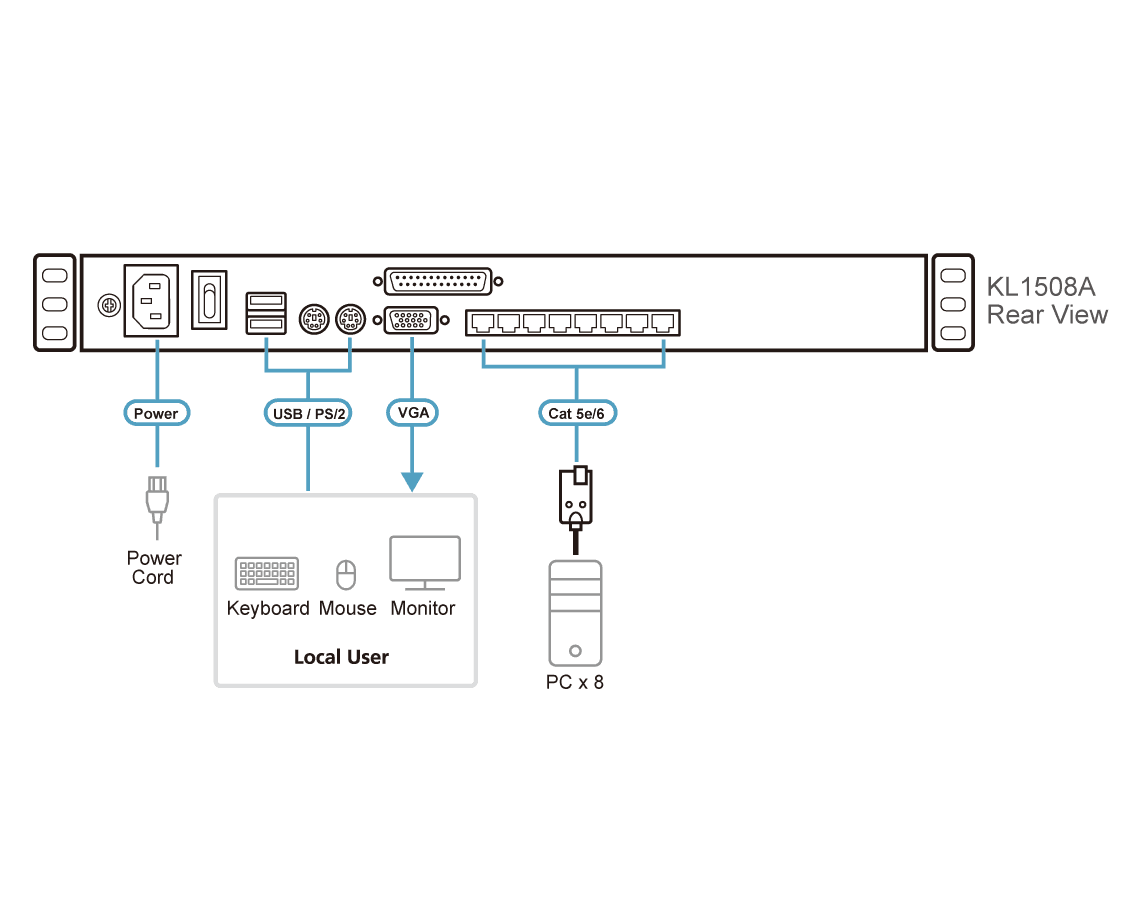

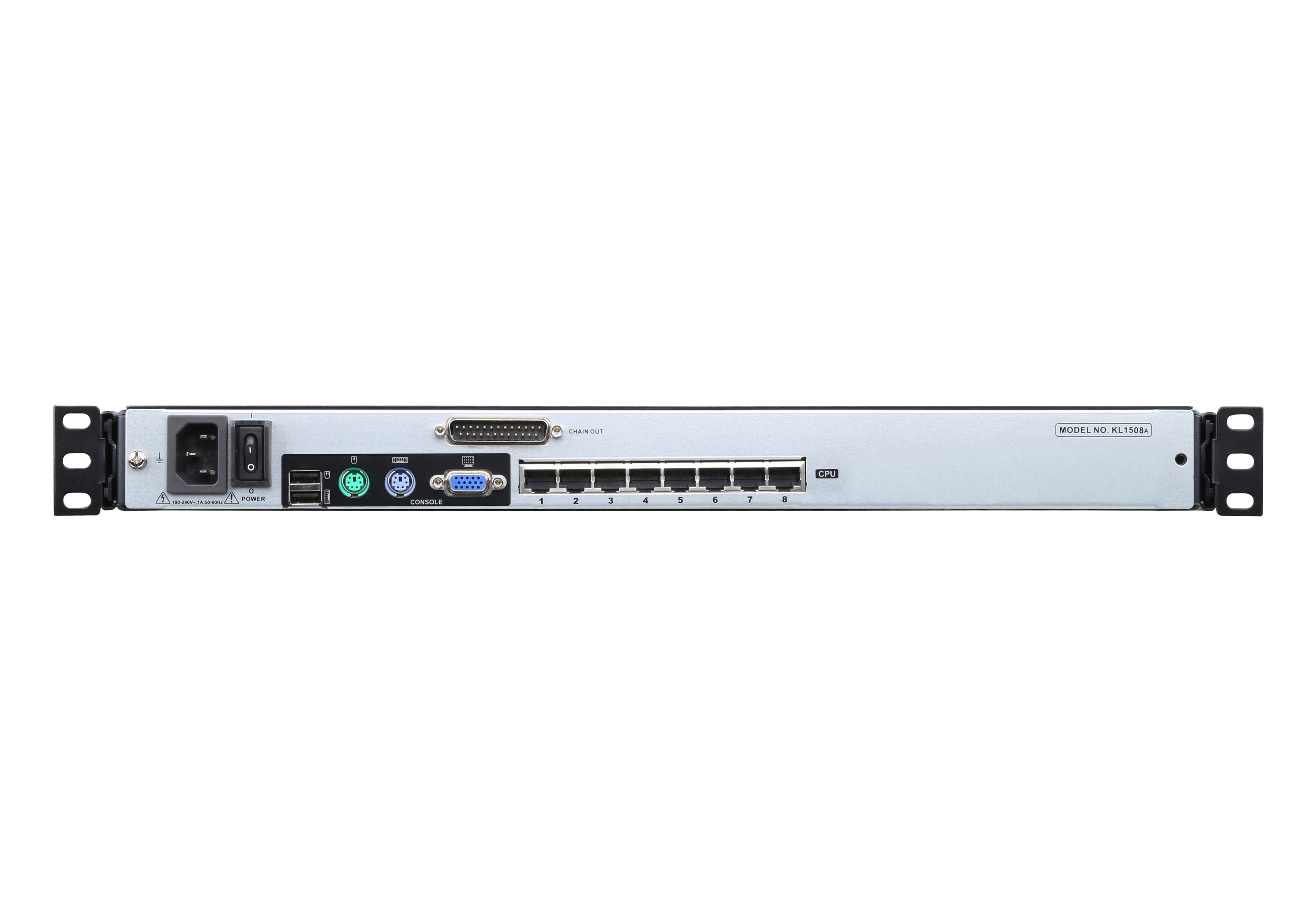

Конектори
- KVM портове
- 8 x RJ-45 Female
- KVM портове
- 8 x RJ-45 Female
- Daisy Chain портове
- 1 x DB-25 Male
- Daisy Chain портове
- 1 x DB-25 Male
- Обновяване на фърмуера
- 1 x RJ-11 Female
- Обновяване на фърмуера
- 1 x RJ-11 Female
- Захранване
- 1 x IEC60320/C14
- Захранване
- 1 x IEC60320/C14
- Външни конзолни портове
- 1 x HDB-15 Female (Blue) 2 x USB Type A Female 1 x 6-pin Mini-DIN Female (Purple) 1 x 6-pin Mini-DIN Female (Green)
- Външни конзолни портове
- 1 x HDB-15 Female (Blue) 2 x USB Type A Female 1 x 6-pin Mini-DIN Female (Purple) 1 x 6-pin Mini-DIN Female (Green)
- Външен порт за мишка
- 1 x USB Type A Female (Front)
- Външен порт за мишка
- 1 x USB Type A Female (Front)
Бутони и превключватели
- Избор на порт
- 8 x Pushbutton
- Избор на порт
- 8 x Pushbutton
- Избор на станция
- 2 x Pushbutton
- Избор на станция
- 2 x Pushbutton
- Нулиране
- 1 x Semi-recessed Pushbutton
- Нулиране
- 1 x Semi-recessed Pushbutton
- Обновяване на фърмуера
- 1 x Slide Switch
- Обновяване на фърмуера
- 1 x Slide Switch
- Захранване
- 1 x Rocker Switch
- Захранване
- 1 x Rocker Switch
- Управление на дисплея
- 4 x Pushbutton
- Управление на дисплея
- 4 x Pushbutton
- Захранване на дисплея
- 1 x LED Pushbutton
- Захранване на дисплея
- 1 x LED Pushbutton
Индикатори
- Онлайн
- 8 (Green)
- Онлайн
- 8 (Green)
- Избран
- 8 (Orange)
- Избран
- 8 (Orange)
- Захранване
- 1 (Blue)
- Захранване
- 1 (Blue)
- ID на станция
- 1 x 2 Digit 7-segment (Orange)
- ID на станция
- 1 x 2 Digit 7-segment (Orange)
- Заключване
- 1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green)
- Заключване
- 1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green)
- Захранване на дисплея
- 1 (Orange)
- Захранване на дисплея
- 1 (Orange)
- LED осветление
- 1 x LED Illumination Light
- LED осветление
- 1 x LED Illumination Light
Панел
- LCD модул
- 17" TFT-LCD
- LCD модул
- 19" TFT-LCD
- Резолюция
- 1280 x 1024 @ 75 Hz
- Резолюция
- 1280 x 1024 @ 75 Hz
- Време за реакция
- 5 ms
- Време за реакция
- 5 ms
- Зрителен ъгъл
- 170° (H), 160° (V)
- Зрителен ъгъл
- 170° (H), 160° (V)
- Стъпка на пикселите
- 0.264 mm x 0.264 mm
- Стъпка на пикселите
- 0.294 mm x 0.294 mm
- Поддържани цветове
- 16.7M colors
- Поддържани цветове
- 16.7M colors
- Контраст
- 1000:1
- Контраст
- 1000:1
- Яркост
- 250 cd/m²
- Яркост
- 250 cd/m²
Видео
- Входна видео резолюция
- 1920 x 1200 @ 60 Hz
- Входна видео резолюция
- 1920 x 1200 @ 60 Hz
- Втора конзола
- 1920 x 1200 @ 60 Hz
- Втора конзола
- 1920 x 1200 @ 60 Hz
- Интервал на сканиране
- 1–255 seconds
- Интервал на сканиране
- 1–255 seconds
Емулация
- Клавиатура / мишка
- PS/2, USB, Serial
- Клавиатура / мишка
- PS/2, USB, Serial
- Макс. входна мощност
- 100-240V AC; 50-60Hz; 1A
- Макс. входна мощност
- 100-240V AC; 50-60Hz; 1A
- Консумация
- AC110V:16.7W:89BTU/h AC220V:18.9W:99BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Консумация
- AC110V:19.9W:104BTU/h AC220V:21.2W:114BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 40°C
- Работна температура
- 0 - 40°C
- Температура на съхранение
- -20 - 60°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0–80% RH, Non-condensing
- Влажност
- 0–80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Корпус
- Metal
- Тип релси
- Dual Rail
- Тип релси
- Dual Rail
- Тегло
- 15.19 kg ( 33.46 lb )
- Тегло
- 15.35 kg ( 33.81 lb )
- Размери (Д x Ш x В)
- 48.00 x 70.12 x 4.40 cm (18.9 x 27.61 x 1.73 in.)
- Размери (Д x Ш x В)
- 48.00 x 70.12 x 4.40 cm (18.9 x 27.61 x 1.73 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
